Description
Smart. High-precision mmWave presence sensor detects micro-movements, breathing and motion while monitoring ambient light for reliable automated lighting and security scenes. Works in ZigBee or Wi‑Fi mode and supports adjustable detection distance, sensitivity and reporting interval for low-noise smart home integration.
Specifications:
- Certification: CE, FCC
- Network: ZigBee / Wi‑Fi
- Radar Frequency: 5.8 GHz
- Detection Angle: 100° (24G), 120° (5.8G)
- Detection Range: Up to 10 m (32.8 ft); Wall mount max 9 m (29.5 ft, default 6 m / 19.7 ft); Ceiling mount radius max 7 m (23.0 ft, default 5 m / 16.4 ft)
- Illuminance Sensor: 0–2000 lux
- Sensitivity: 1–9 (default 7)
- Target Detection Time: 0.1 s
- Unmanned Delay Time: 2–1500 s (default 90 s)
- Power Input: Ceiling mount 80–240 VAC (110–240 VAC compatible), Wall mount USB 5 V
- Working Temperature: -20°C to +70°C (-4°F to +158°F)
- Ceiling Mount Size: Φ61 × H39 mm (2.40" × 1.54")
- Ceiling Mount Opening Size: 53–58 mm (2.09"–2.28")
- Wall Mount Size: 58 × 58 × 11 mm (2.28" × 2.28" × 0.43")
- Package Contents: Human presence sensor ×1, USB cable ×1 (Wall Mount), User manual ×1
Overview & Key Benefits:
- mmWave radar detects micro-movements and breathing to identify stationary presence (sleeping, sitting) as well as walking and active motion.
- Built-in illuminance sensing enables automatic scene linkage for lights and other smart devices based on ambient brightness.

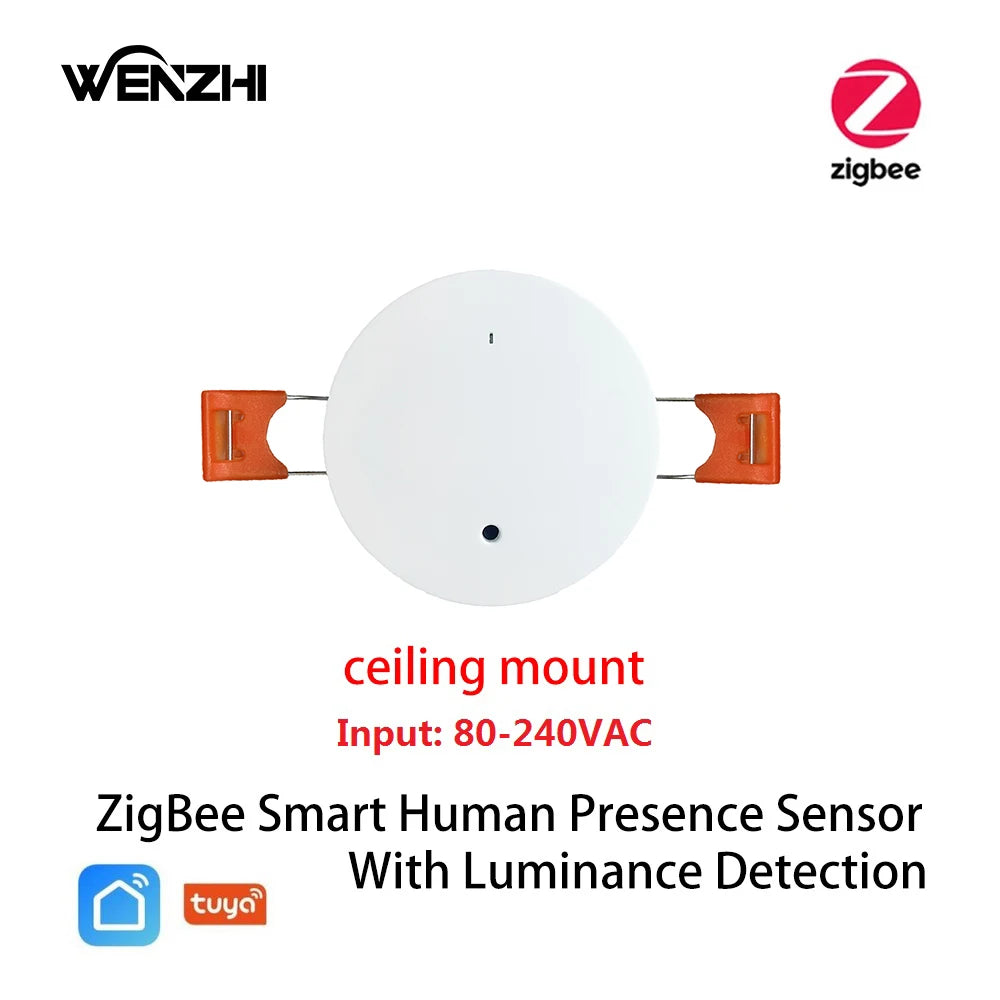

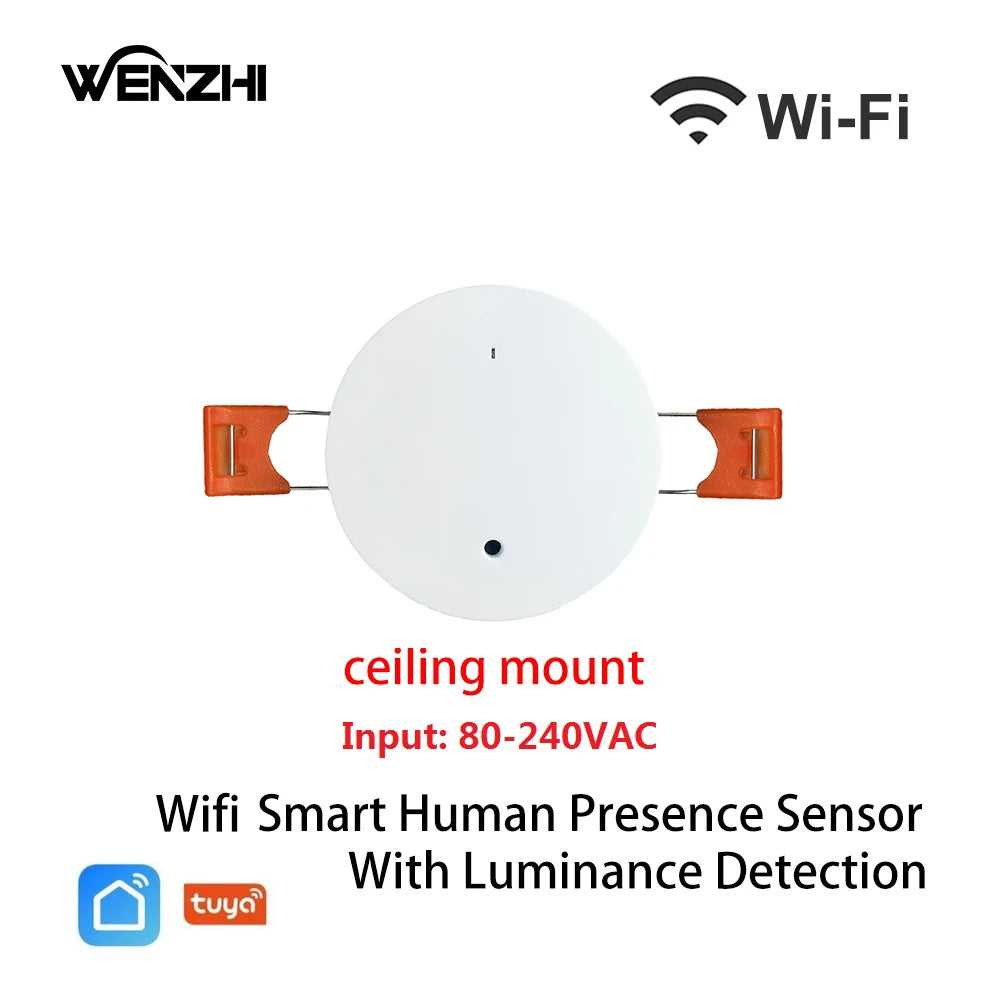

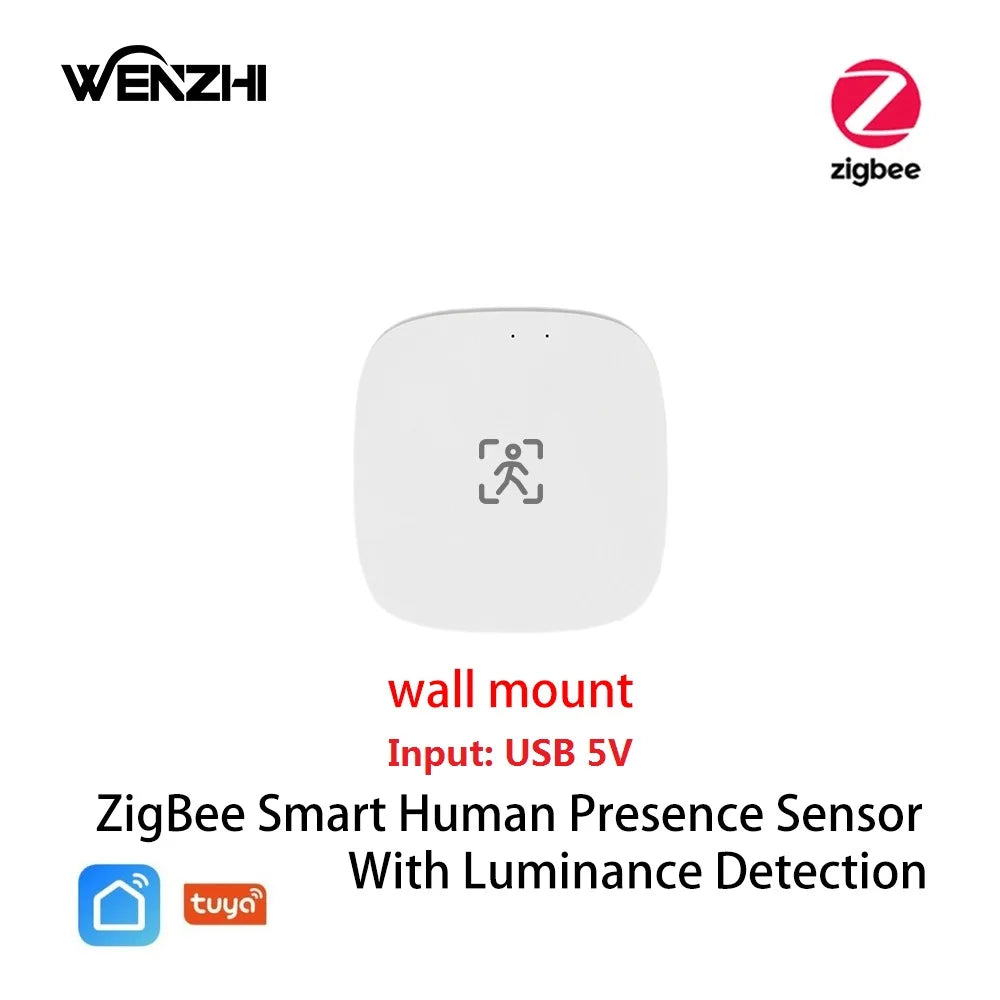

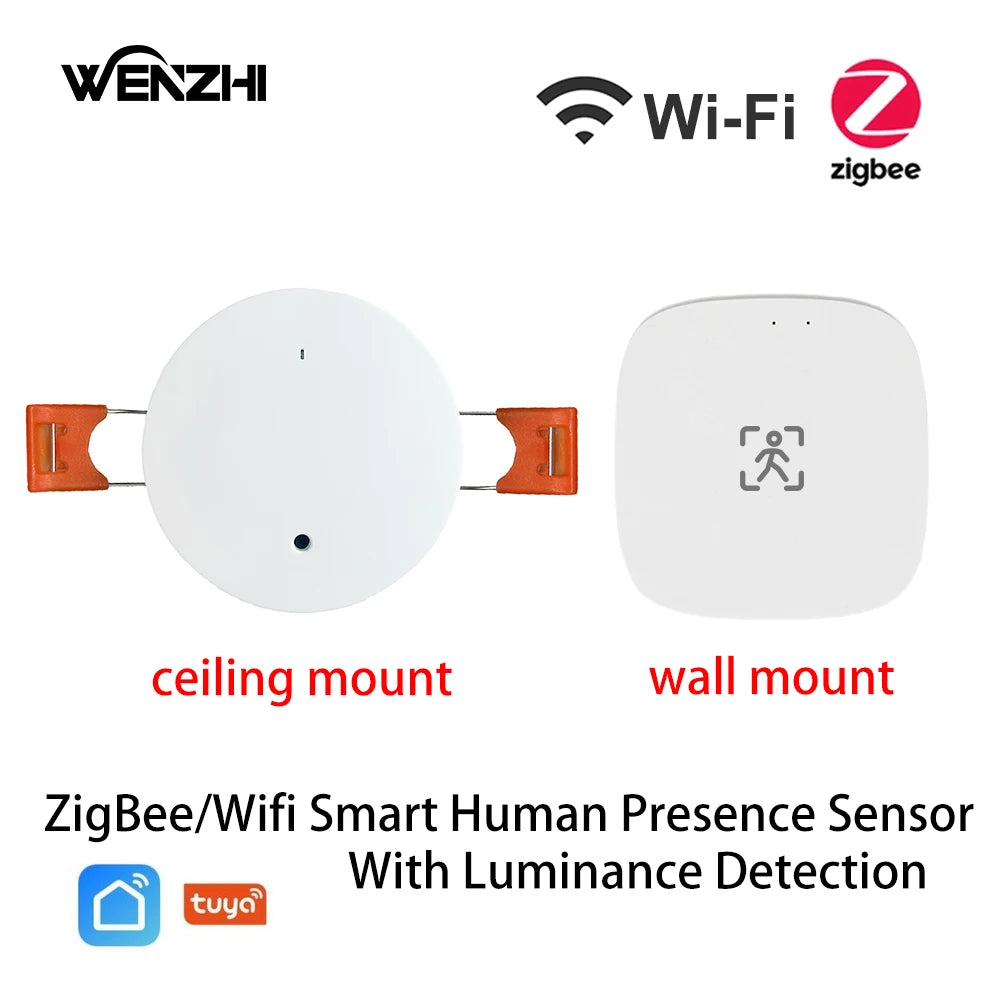

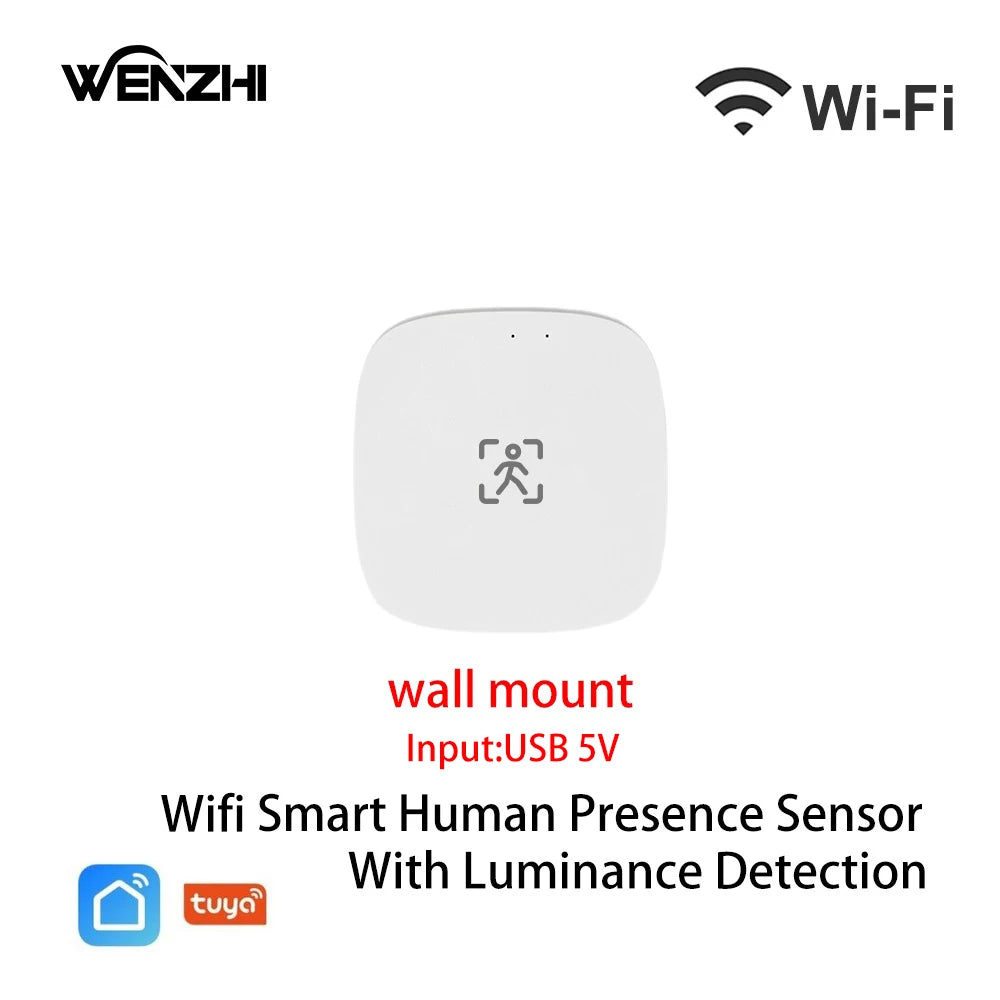

- Two installation modes: flush ceiling mount (AC powered) and compact wall mount (USB 5 V), ideal for bedrooms, living rooms, bathrooms and entryways.

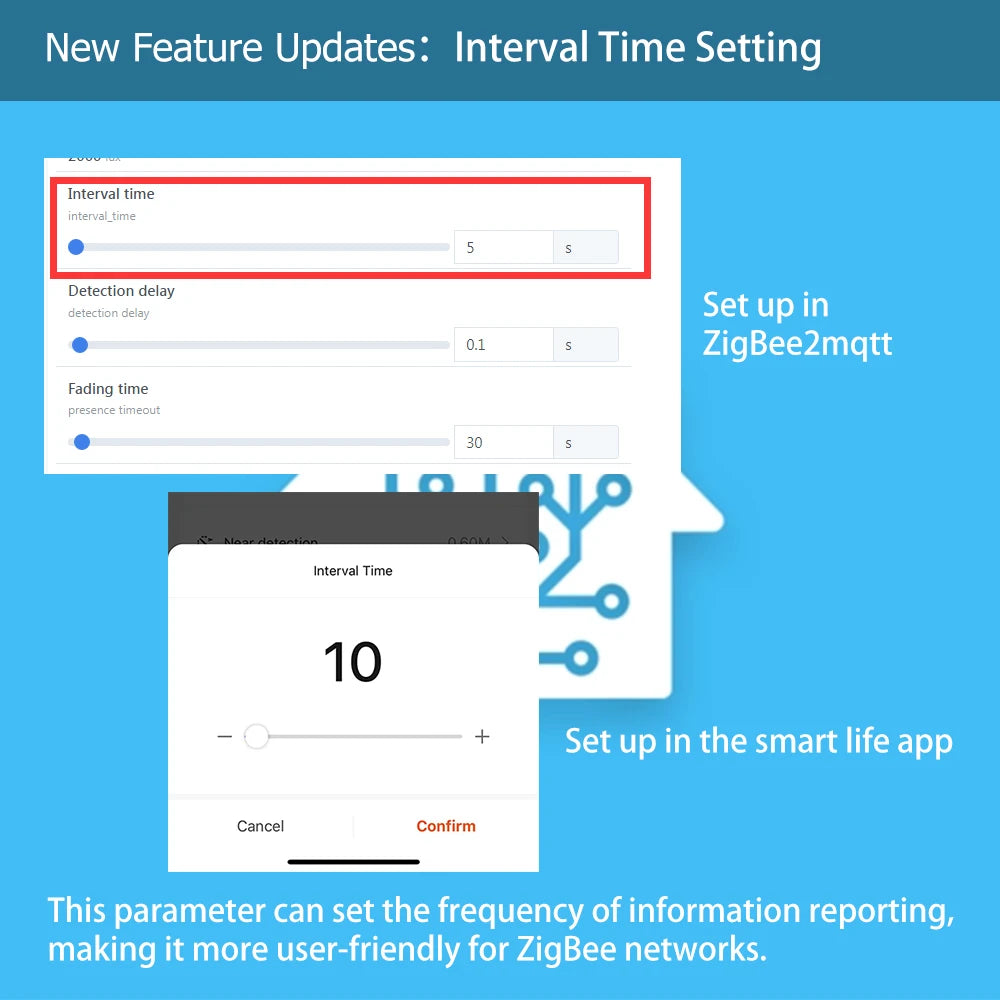

- Advanced configurable parameters — sensitivity, detection distance, hold/unmanned delay and reporting interval — reduce false triggers and network noise (supports ZigBee2mqtt interval control).
- Fast response (0.1 s) and precise distance filtering for targeted detection zones and improved automation control.
Installation & Usage Tips:
- For best static-presence detection place ceiling mount directly above the target area; wall mount is better for seated or low-level presence.
- Large rooms (≈20 m² / 215 ft²) may require multiple sensors or array placement; keep spacing between sensors less than installation height for full coverage.
- Adjust sensitivity and unmanned delay during initial setup to fine-tune performance for your environment and avoid false triggers from curtains or vents.
Hashtags: #SmartSensor #HomeAutomation #FanzyMarket
Safety Notes:
This is an electrical device. Disconnect power before installation or maintenance. For AC wiring, consult a qualified electrician and ensure the supply matches 80–240 VAC where applicable. Use only the provided USB cable or a compatible 5 V USB power source for wall-mount operation. Keep the sensor dry and avoid exposure to water or extreme humidity. Do not disassemble the device; improper handling may result in electric shock or equipment damage.
