Transform any space with individually addressable WS2812B RGB LED strip lights — fully programmable smart pixels for dynamic ambient lighting, TV backlighting, DIY projects, and custom installations.

Specifications:

• Addressable: Every LED individually addressable (1 IC drives 1 LED)
• Voltage: DC 5V
• Power Source: DC (5V power supply required, not included)
• LED Chip Model: SMD5050 with built-in WS2812 IC

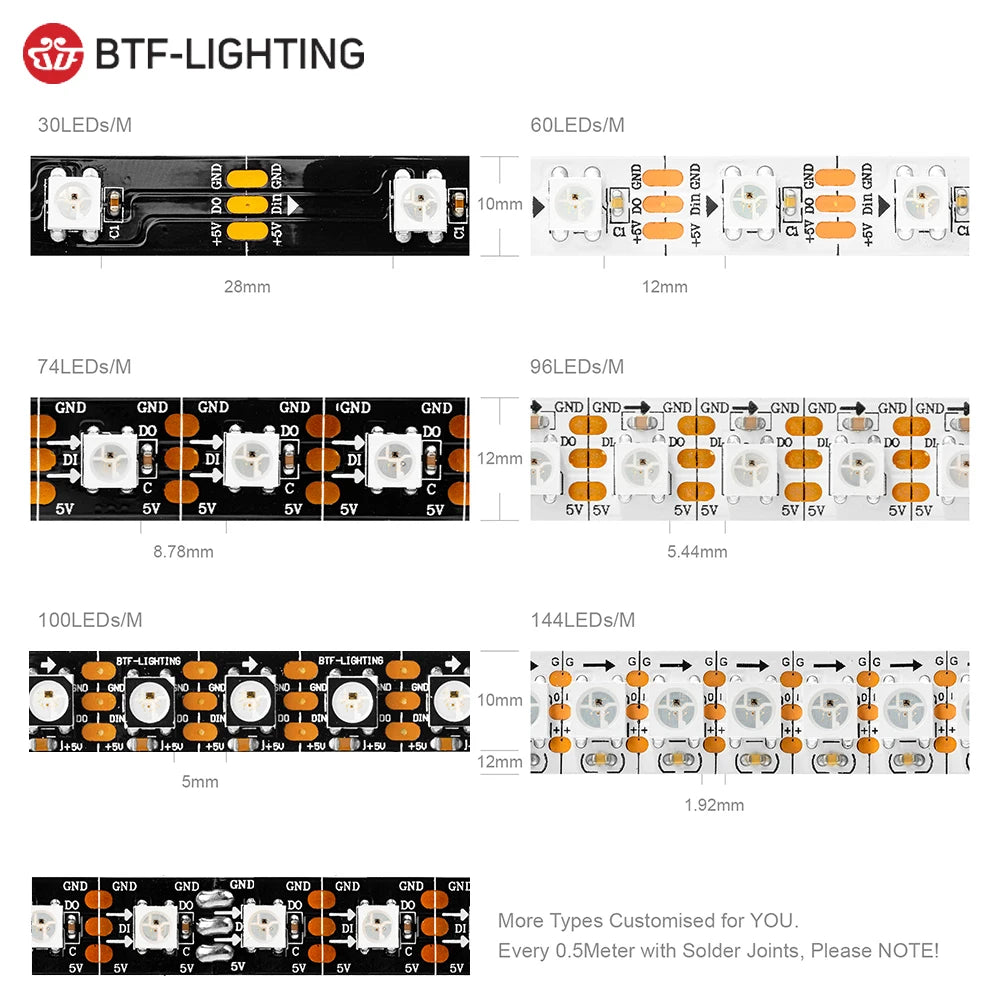

• Pixels / LEDs per meter: 30 / 60 / 74 / 96 / 100 / 144 LEDs per meter (~9 / 18 / 23 / 29 / 30 / 44 LEDs per foot)
• Power Consumption: 30 LEDs/m — 9 W/m (~2.74 W/ft); 60 LEDs/m — 18 W/m (~5.49 W/ft); 74 LEDs/m — 22 W/m (~6.71 W/ft); 96 LEDs/m — 28.8 W/m (~8.78 W/ft); 100 LEDs/m — 30 W/m (~9.14 W/ft); 144 LEDs/m — 43.2 W/m (~13.18 W/ft)
• Theoretical Power: ~0.3 W per LED
• FPCB Width: 10 mm (0.39 in) for 30/60/100 LEDs; 12 mm (0.47 in) for 74/96/144 LEDs
• FPC Color: Black or White PCB
• Cuttable: Cut between each LED to create custom lengths
• Adhesive Tape: Adhesive backing included on IP30 and IP65 versions (IP67 without adhesive)

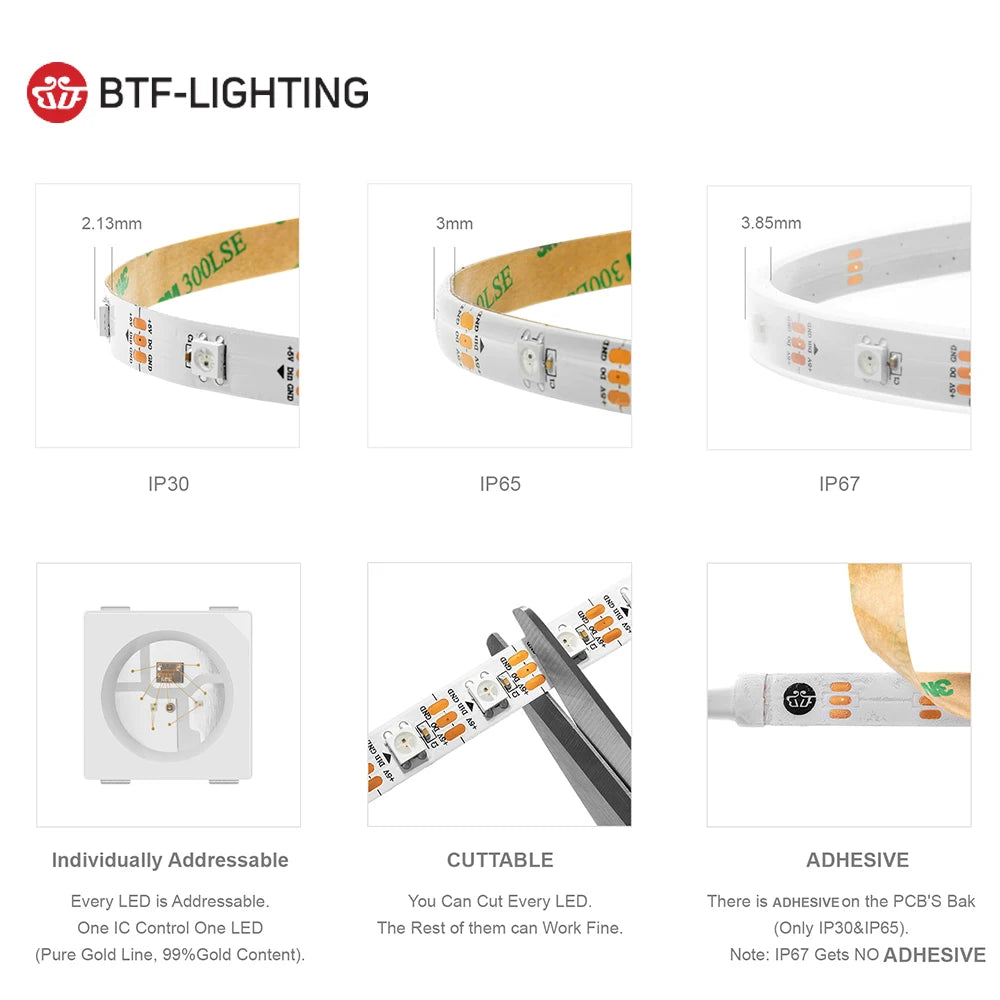

• Waterproof Grade / Protection: IP30 (non-waterproof), IP65 (silicone coating), IP67 (silicone tube)
• Average Life: ~50,000 hours
• Luminous Flux: 2,000–82,000 lumens (varies by density and strip length)
• IC Type: Improved WS2812 IC (one IC per LED)
• Certifications: CCC, CE, FCC, RoHS, UL
• Package Includes: LED strip only — power supply and pixels controller NOT included
• Compatibility: Works with Arduino, Raspberry Pi, Wi‑Fi/Bluetooth controllers and most single-line pixel controllers (pixels controller required)

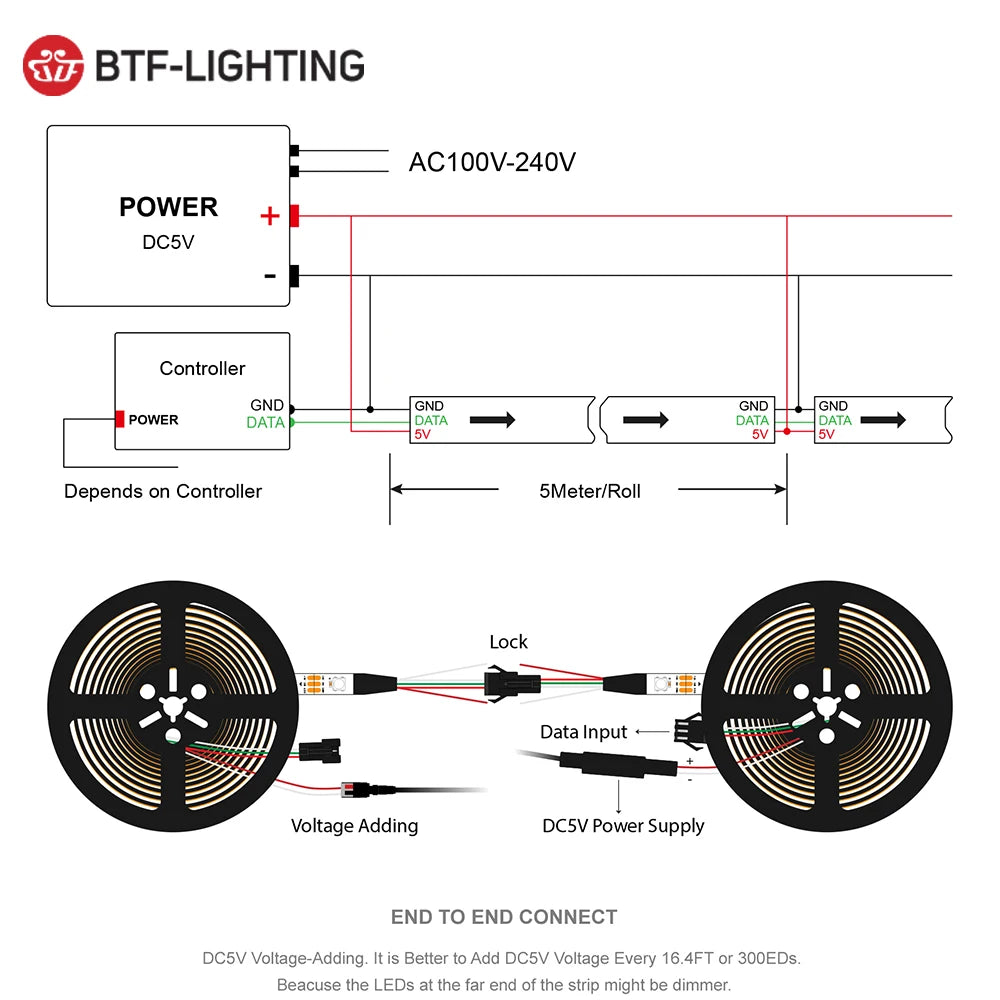

• Installation Notes: Solder joints appear every 0.5 meter (normal). Do not bend the strip sharply. For long runs, inject additional 5V power at multiple points (both ends recommended) to reduce voltage drop.
• Recommended Power Calculation Example: 5 m of 60 LEDs/m = 300 LEDs × 0.3 W = 90 W → 90 W / 5 V = 18 A (choose 18 A or higher power supply)
