Illuminate your space with vibrant, individually addressable RGB pixels. This WS2812B 5V LED strip delivers full-color dream effects, precise pixel control, and flexible installation for TV backlighting, gaming setups, bars, retail displays, and home décor.

Specifications:

• Item Type: LED Strip

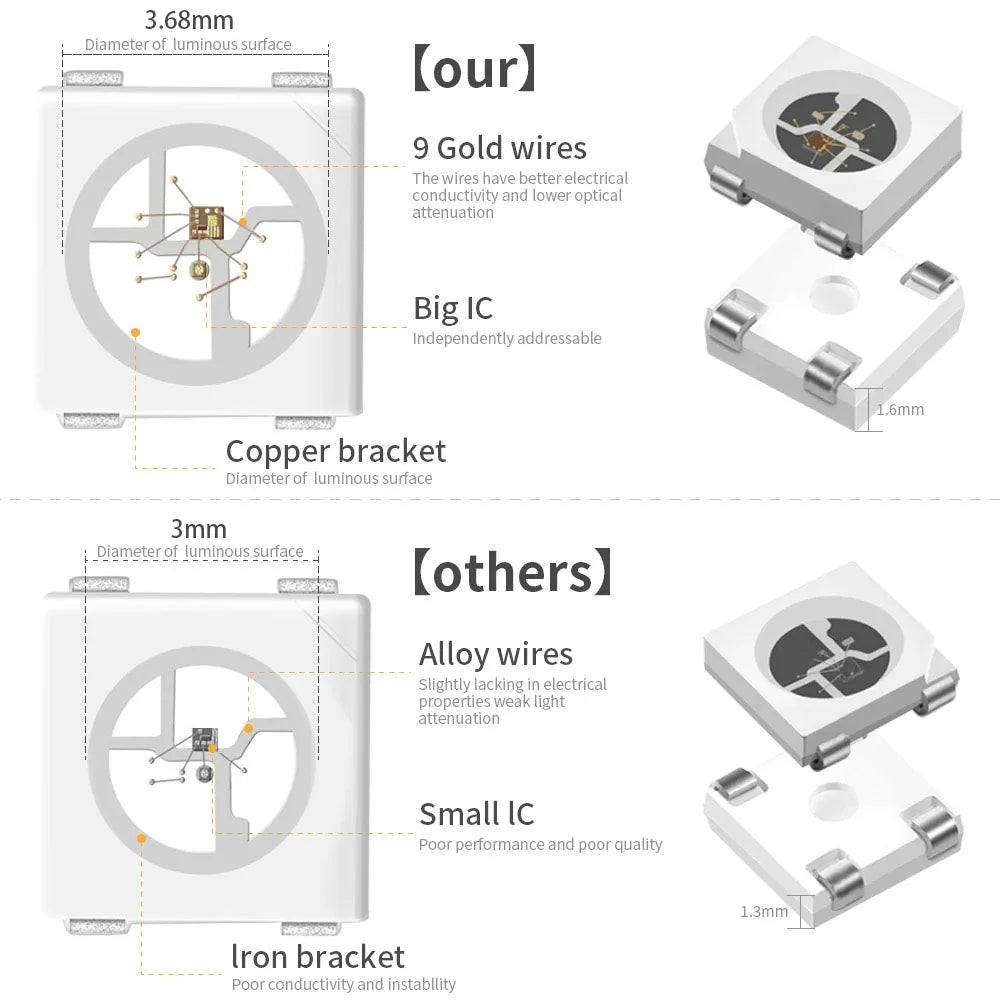

• LED Chip: 5050 SMD RGB with built-in WS2812 IC
• LEDs per Meter: 30 / 60 / 74 / 96 / 144 LEDs/m
• Nominal Voltage: 5 V DC
• Power Consumption: 30 LEDs/m ≈ 6 W/m; 60 LEDs/m ≈ 12 W/m; 74 LEDs/m ≈ 14.8 W/m; 96 LEDs/m ≈ 19.8 W/m; 144 LEDs/m ≈ 28.8 W/m
• Typical Current Example: 5 m of 30 LEDs/m ≈ 30 W total → ~6 A at 5 V
• Average Life: More than 50,000 hours
• Luminous Flux: 249–2000 lm (varies by density)
• Color: Full RGB, dream color changing
• Grey Scale / Bits: 256 gray scale, 8 bits/color
• Pixels: Individually addressable (1 IC per LED)
• IC Type: WS2812 (improved version built into 5050 SMD)

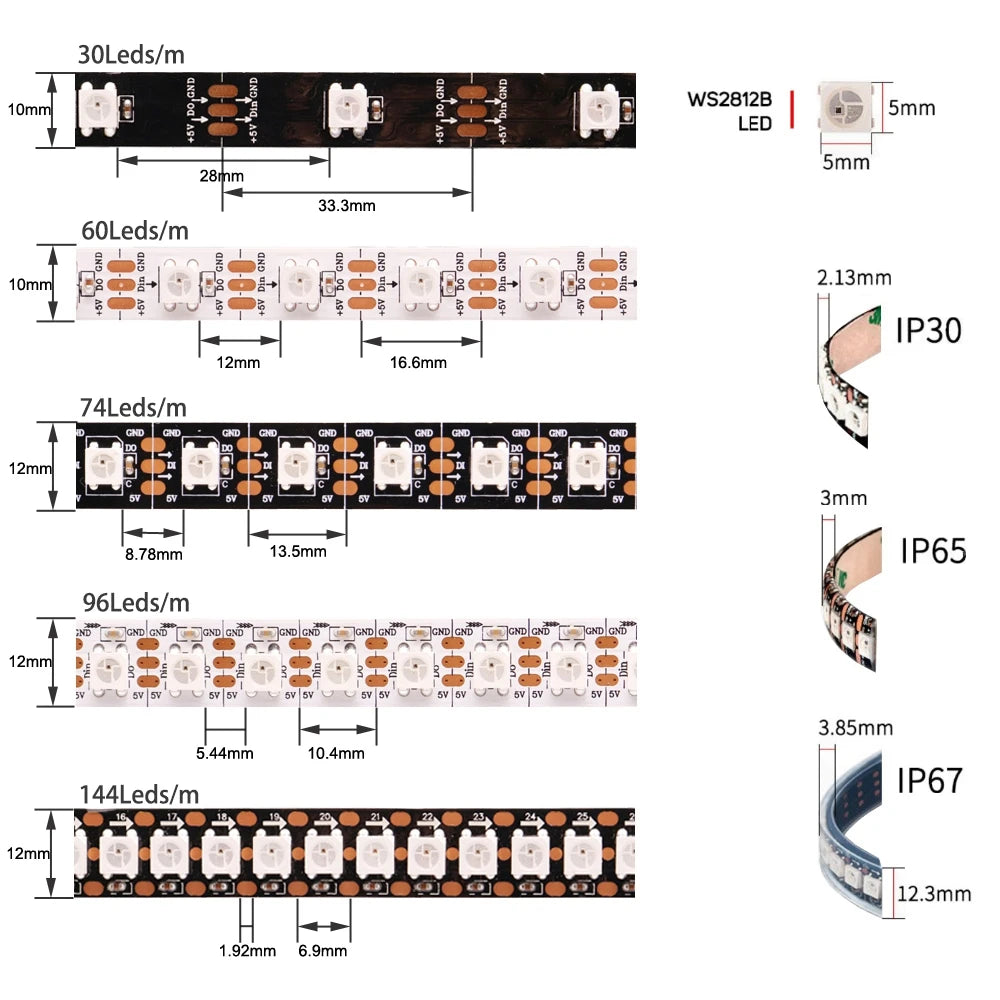

• FPC Width: 10 mm (0.39 in) for 30/60 LEDs/m; 12 mm (0.47 in) for 74/96/144 LEDs/m
• Pitch: 16.6 mm (0.65 in)
• Strip Type: SMD

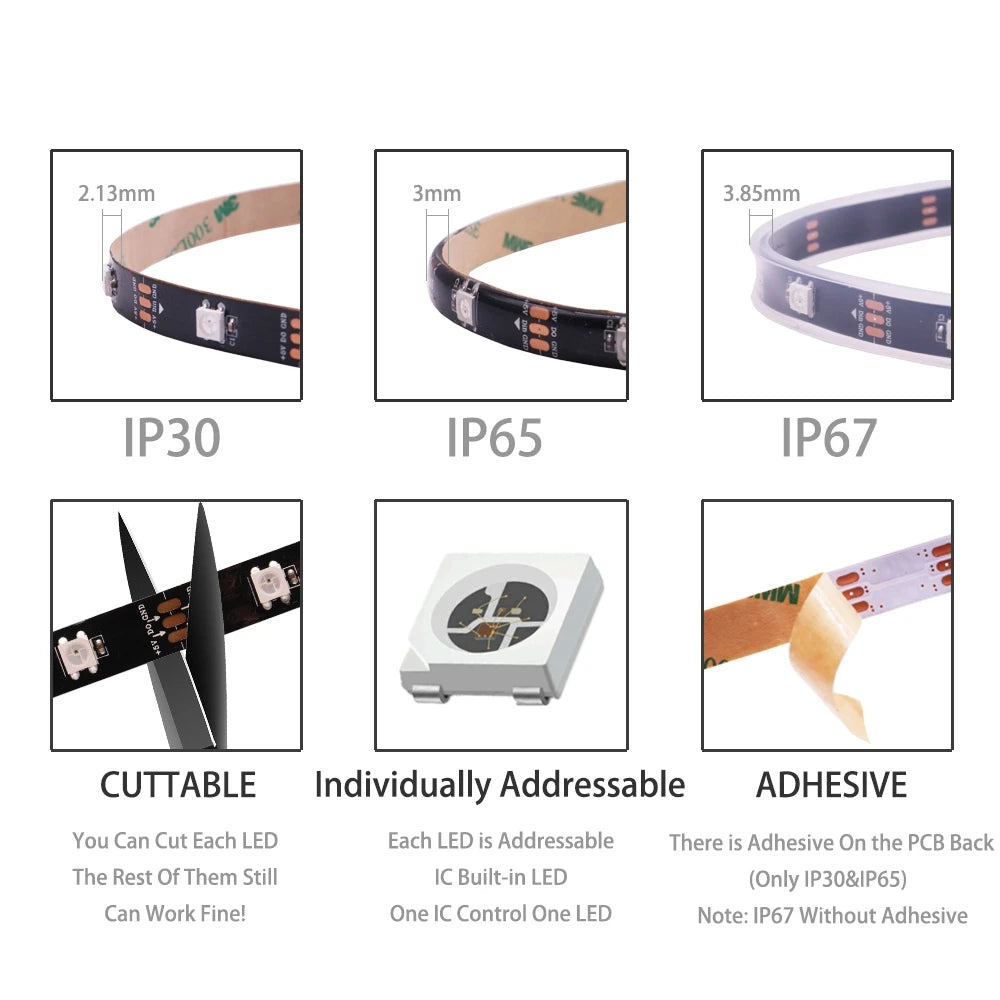

• Waterproof / Protection Rate: IP30 (non-waterproof) / IP65 (silicone coating) / IP67 (silicone tube)
• FPC Color: Black or White
• Cuttable: Cuttable at every LED
• Connector: 3-pin JST included (Red: VCC, White: GND, Green: DATA). Wire gauge: 20 AWG
• Adhesive: 3M tape on back (IP30/IP65). IP67 strips do not include double adhesive tape
• Certifications: CCC, RoHS, CE, FCC

Overview & Usage:

• Packing List: 1 x LED strip (power supply and controller not included)
• Power & Control: Requires a stable 5 V DC LED power supply and a WS2812-compatible controller. Using more than 5.5 V will damage the strip.
• Installation: Clean, smooth, dry surface recommended. Avoid sharp bending. Longer runs should be powered from both ends to reduce voltage drop.
• Cutting & Customizing: Can be cut between LEDs to create custom lengths. Handle with care and observe solder points when joining sections.
• Applications: TV backlight, gaming rigs, bars, restaurants, car accent lighting, shop displays, stage decoration, and home ambient lighting.
