Description

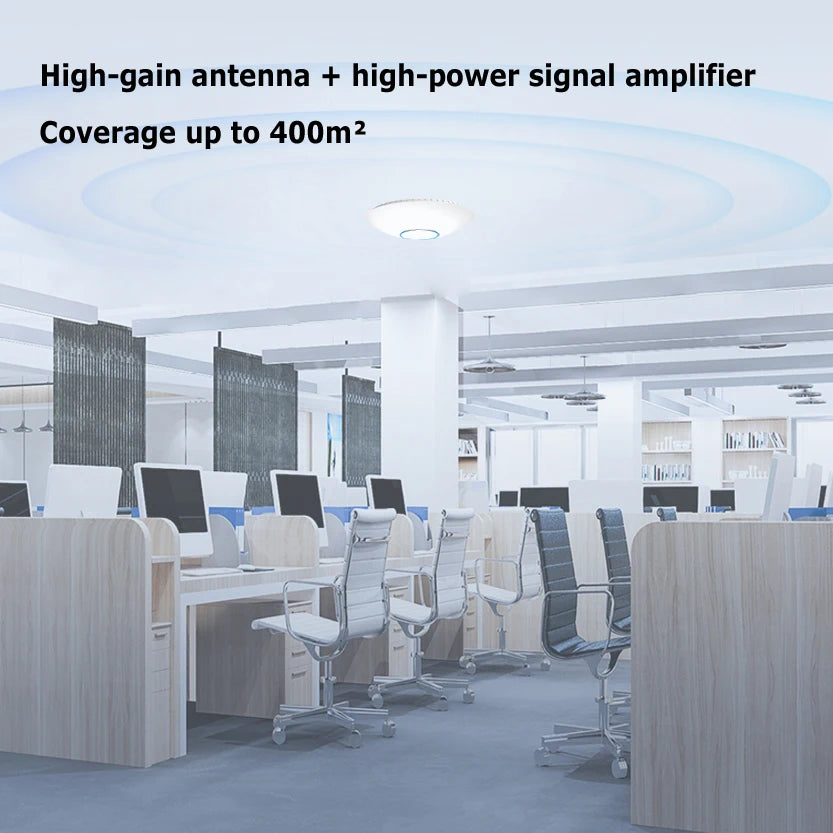

Upgrade your network with a powerful WiFi 6 ceiling access point that delivers fast dual-band coverage, Gigabit wired backhaul, PoE installation, and mesh-ready performance for homes and small offices.
Specifications:
- Product Type: Ceiling Access Point
- Wi‑Fi Standard: WiFi 6 (AX1500), dual‑band (2.4 GHz & 5 GHz); compatible with 802.11ac/n/g/b

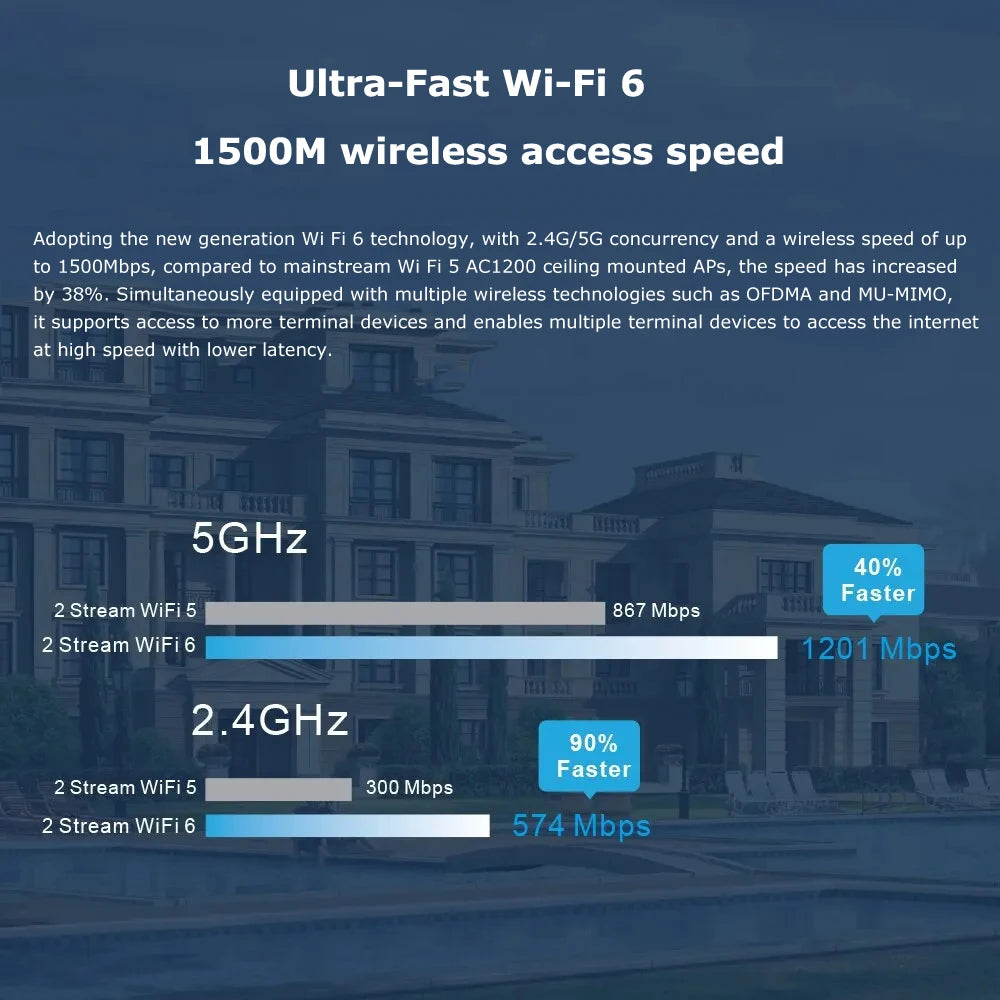

- Wireless Transmission Rate (Total): 1500 Mbps
- 2.4 GHz Rate: Up to 600 Mbps
- 5 GHz Rate: Up to 1201 Mbps
- Data Rates: 2.4 GHz data rate 300 Mbps (per‑stream) / 5 GHz data rate 1201 Mbps
- Antenna: Internal, 4 × 4 dBi
- Ethernet Ports: 1 × Gigabit Ethernet (10/100/1000 Mbps) with PoE; WAN: 1 × 10/100/1000 Mbps

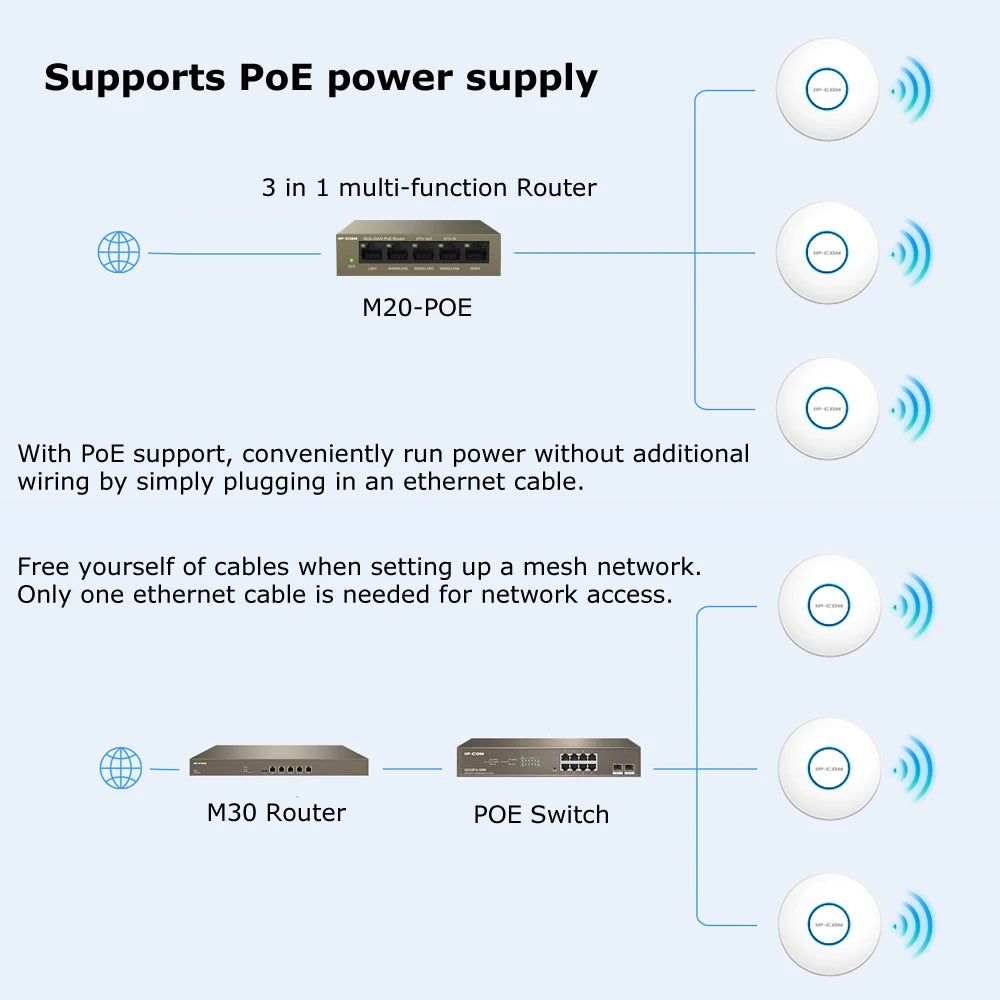

- Power: 48V PoE (IEEE 802.3af), max power consumption 10.5 W
- Concurrent Clients: Up to 256 clients
- Max LAN Data Rate: 1000 Mbps
- Channel Width: 20 MHz / 40 MHz / 80 MHz
- MU‑MIMO: 2×2 MU‑MIMO
- OFDMA: Supported
- Beamforming: Supported

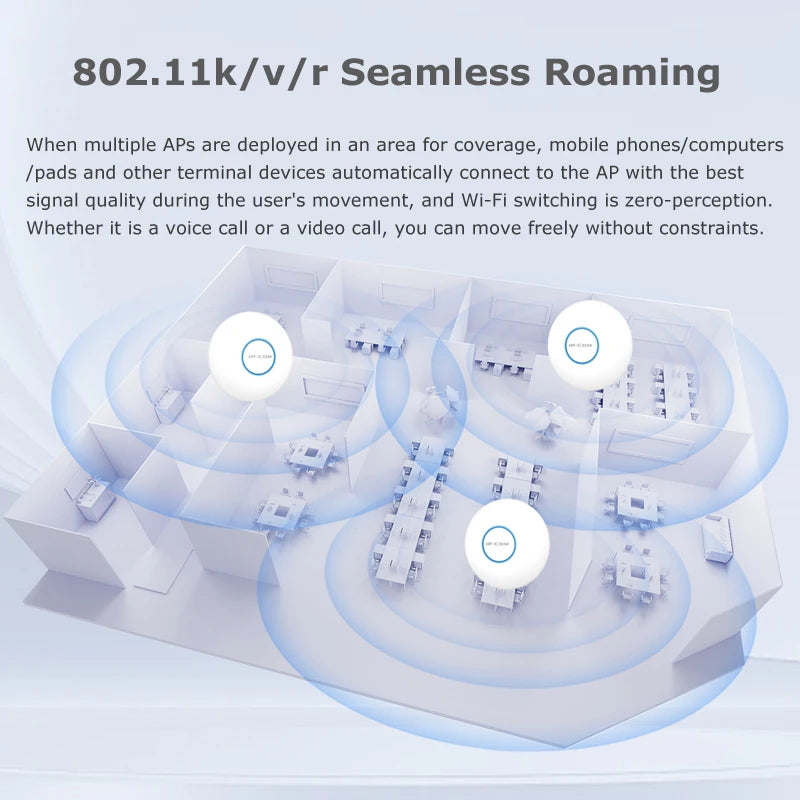

- Fast Roaming: Supported
- Mesh & WDS Support: Supports mesh networking and WDS
- Security: WEP, WPA, WPA‑PSK (AES/TKIP), WPA2, WPA2‑PSK (AES/TKIP), WPA3 (AES)
- SSID Support: 2.4 GHz: up to 8 SSIDs; 5 GHz: up to 4 SSIDs
- AP Features: AP/AP+client modes, AP isolation, VLAN tagging for SSID, RSSI threshold, connected clients control
- LED Indicator: RGB with control supported
- Dimensions: D176 × 43.5 mm (6.93 × 1.71 in)
- Certifications: CE, RoHS
- Recommended Uses: Home, small office
- Package: Included
Safety Notes:
This device contains electronic components and must be installed by qualified personnel. Use only the specified power source: 48V PoE (IEEE 802.3af). Disconnect power before maintenance or installation. Do not expose the unit to moisture or extreme temperatures. Keep out of reach of children and pets. Follow local electrical codes and guidelines when installing network equipment.
