Powerful, portable vector network analyzer for antenna tuning, RF testing, spectrum inspection and ham radio diagnostics. Compact 2.8 inch touchscreen, USB-C connectivity and SD card support make field measurements fast and convenient.

Specifications:

• Measurement Frequency: 10 kHz - 1.5 GHz
• RF Output: -13 dBm (maximum -9 dBm)
• Frequency Accuracy: < 0.5 ppm
• Measurement Range: 70 dB (50 kHz–300 MHz), 50 dB (300 MHz–600 MHz), 40 dB (600 MHz–900 MHz with extended firmware)
• Port SWR: < 1.1
• Display: 2.8 inch TFT (320 x 240) — 2.8 in (71 mm)
• PCB Dimensions: 54 x 85.5 x 11 mm (2.13 x 3.37 x 0.43 in) without connectors

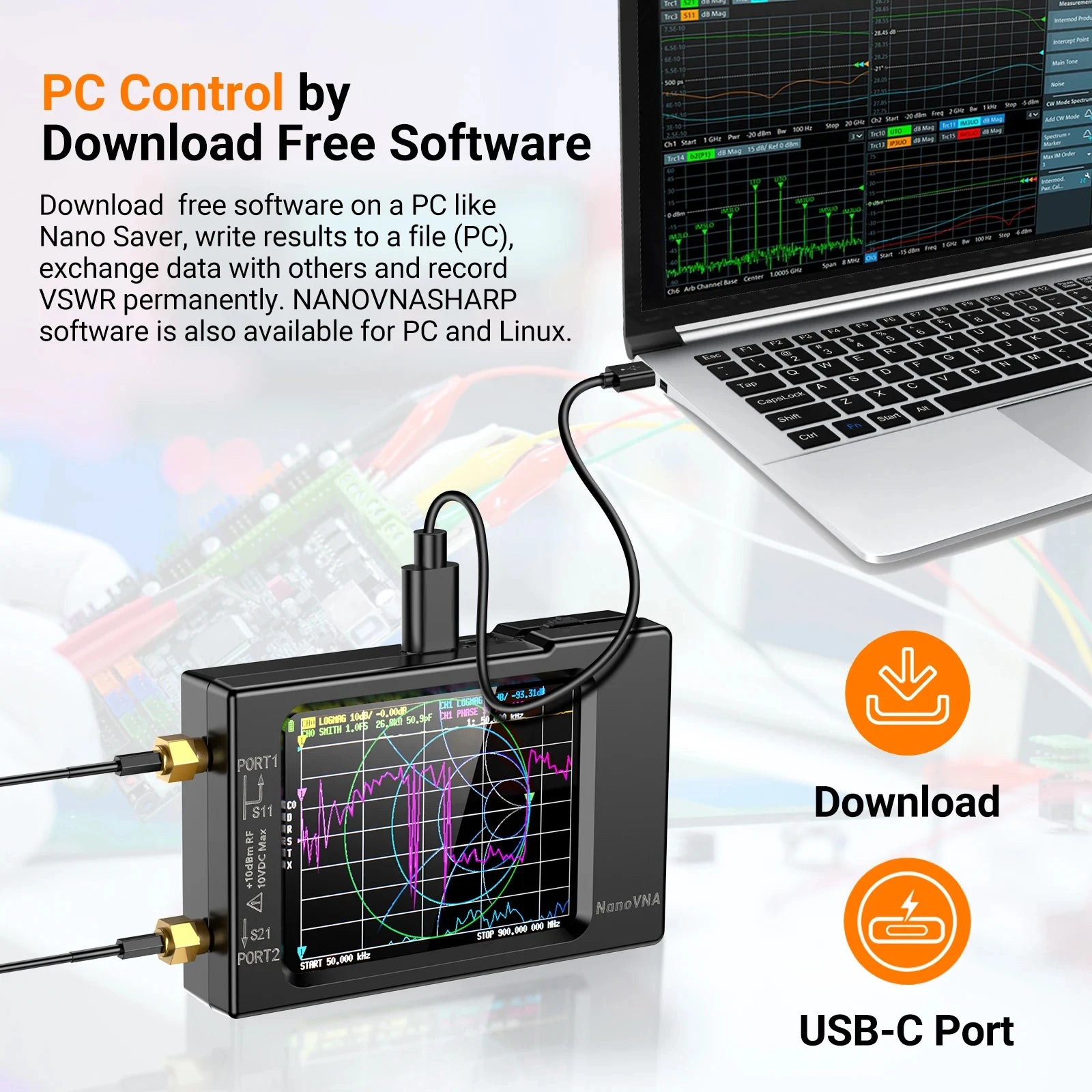

• USB Interface: USB Type-C (CDC serial)
• Power: USB 5V 120 mA; built-in 650 mAh battery (included); max charging current 0.8 A
• Calibration Points: 101 (fixed)
• Scanning Points: 101 (fixed)
• Display Tracking / Markers: 4 tracking traces, 4 markers, 5 saved settings
• Functions: S-parameters, VSWR, phase, delay, Smith chart, time domain reflectometry (TDR)

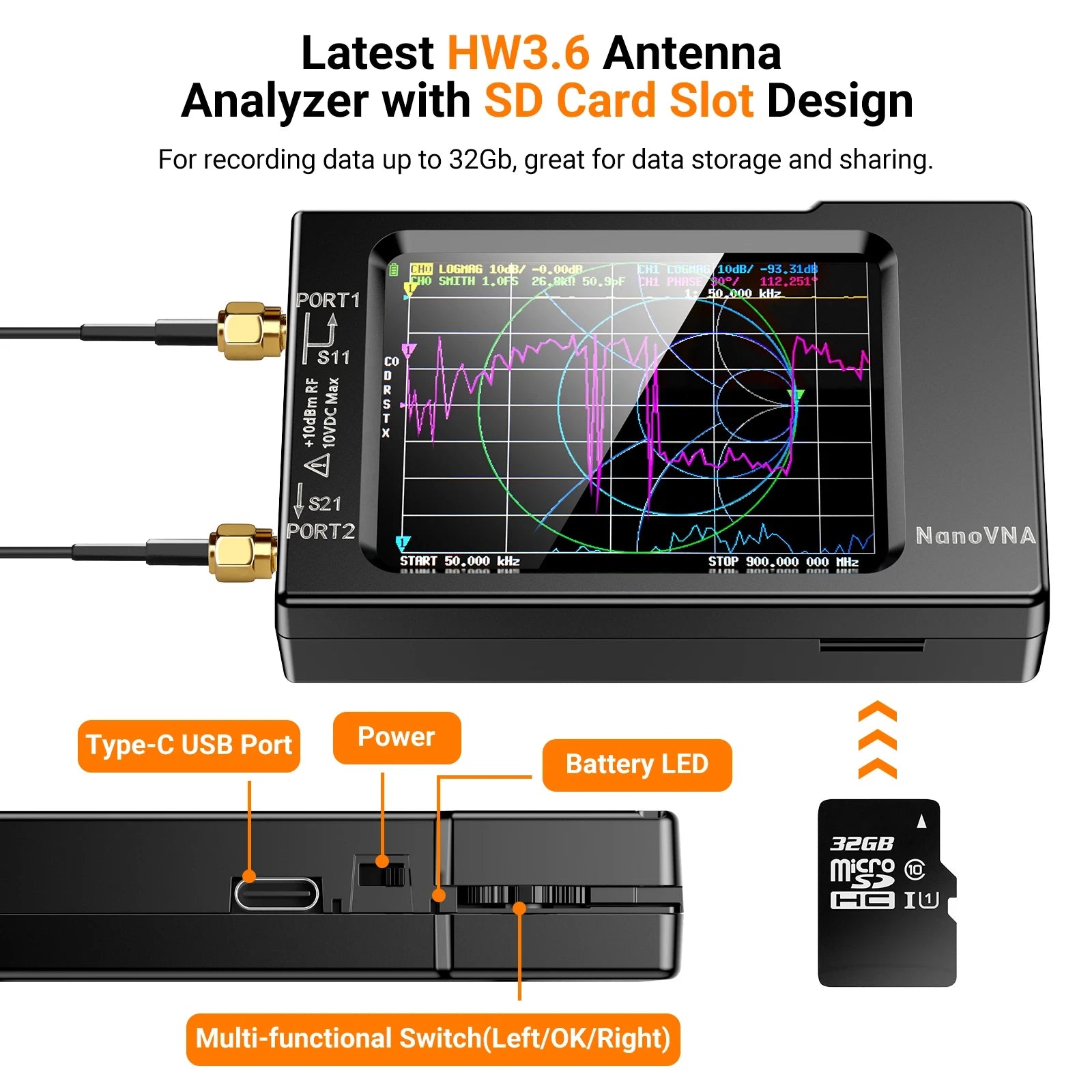

• SD Card: SD card slot, supports up to 32 GB
• Battery Included: Yes (built-in 650 mAh)

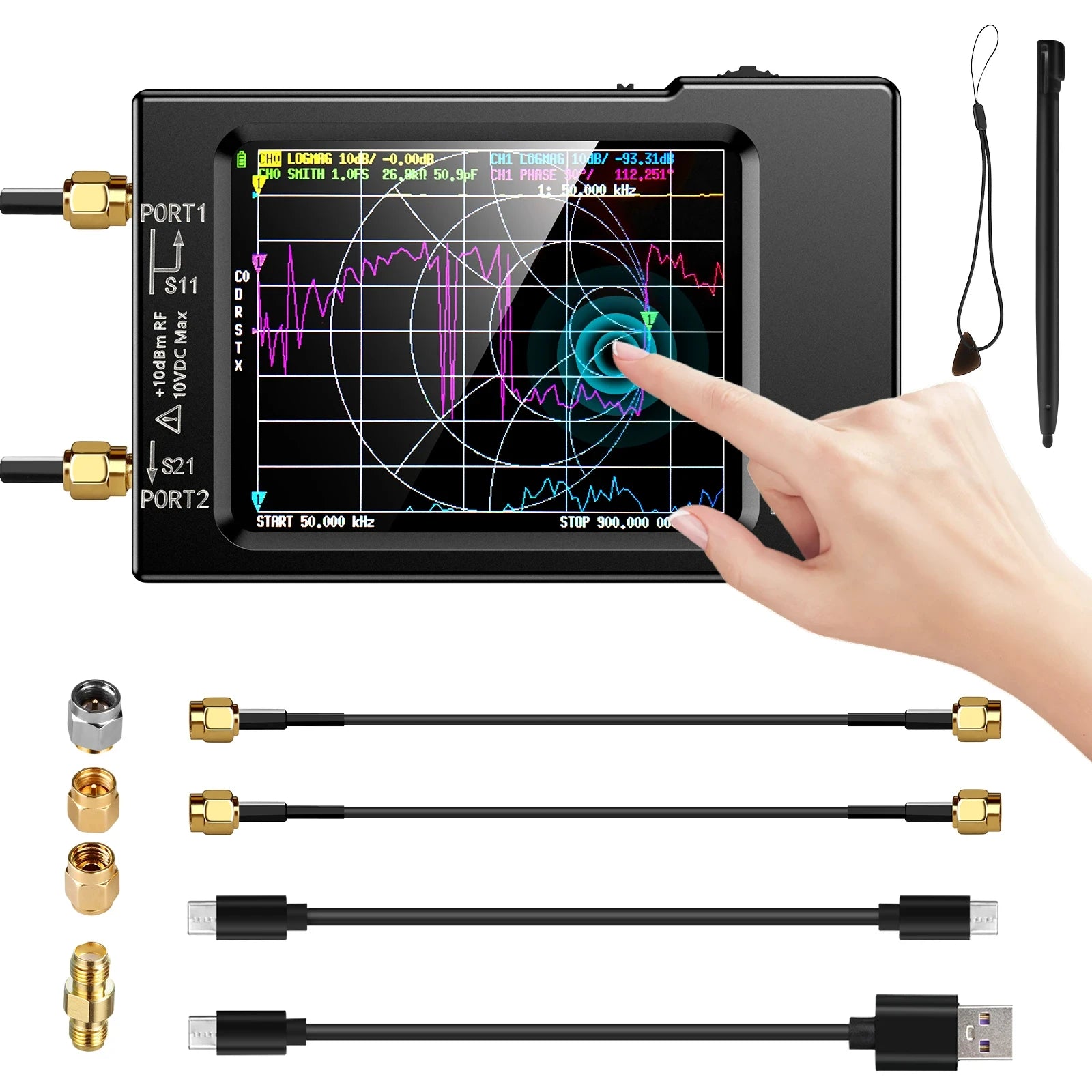

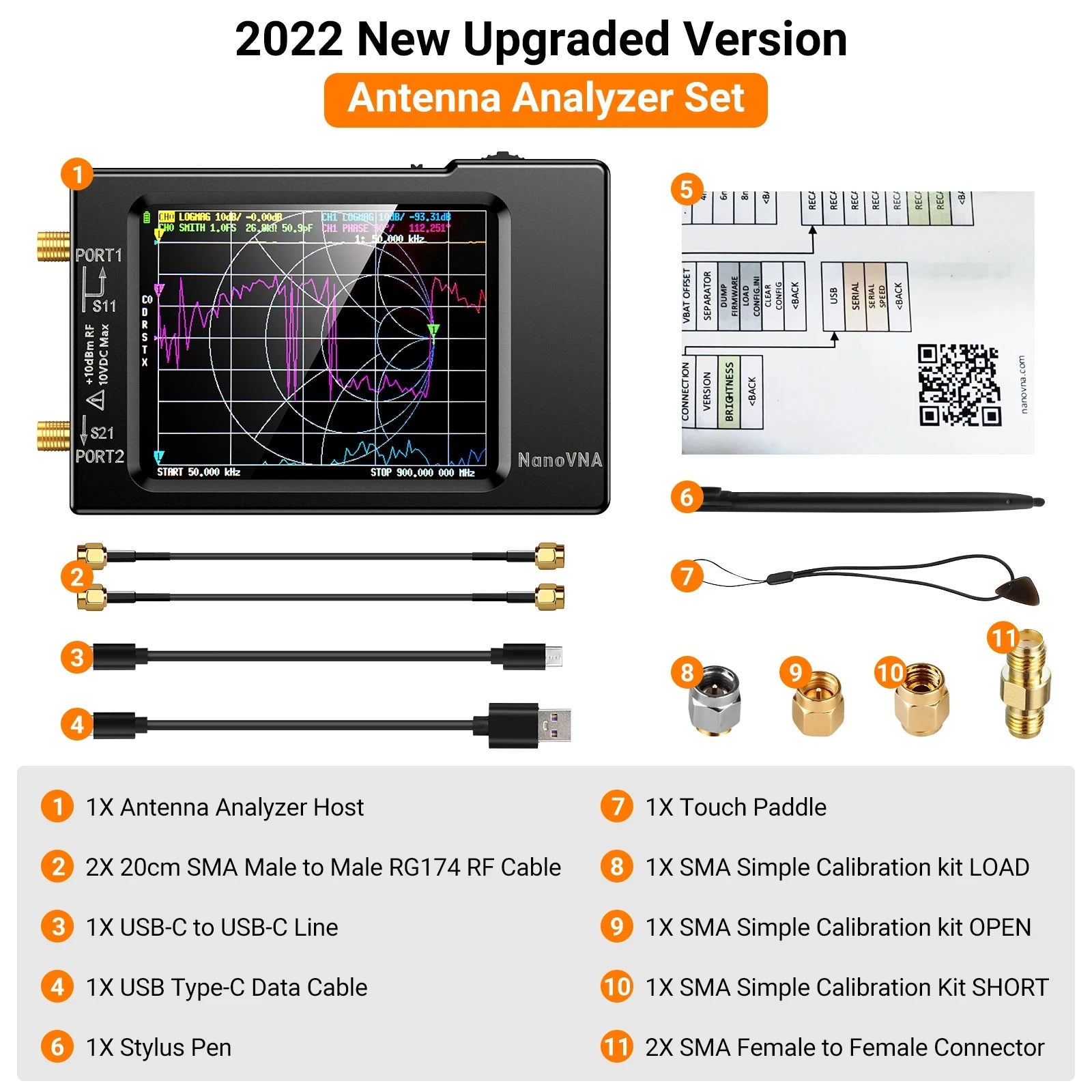

Package Includes:

• Main Unit: 1x VNA host with 2.8 inch touchscreen and 650 mAh battery
• RF Cables: 2x 20 cm SMA male-to-male RG174 cables
• Adapters: 2x SMA female-to-female connectors
• Calibration Kit: 1x SHORT, 1x OPEN, 1x LOAD
• Cables: 1x USB Type-C data cable, 1x Type-C to Type-C cable
• Accessories: 1x touch paddle

Key Features:

• Portable Design: ABS shell for protection and improved durability
• Mobile Display Support: USB-C to USB-C display support for many Android phones (does not support iPhone)
• TDR Support: Time domain analysis for cable fault location
• Easy Data Storage: Save measurements to SD card for later analysis
