Description

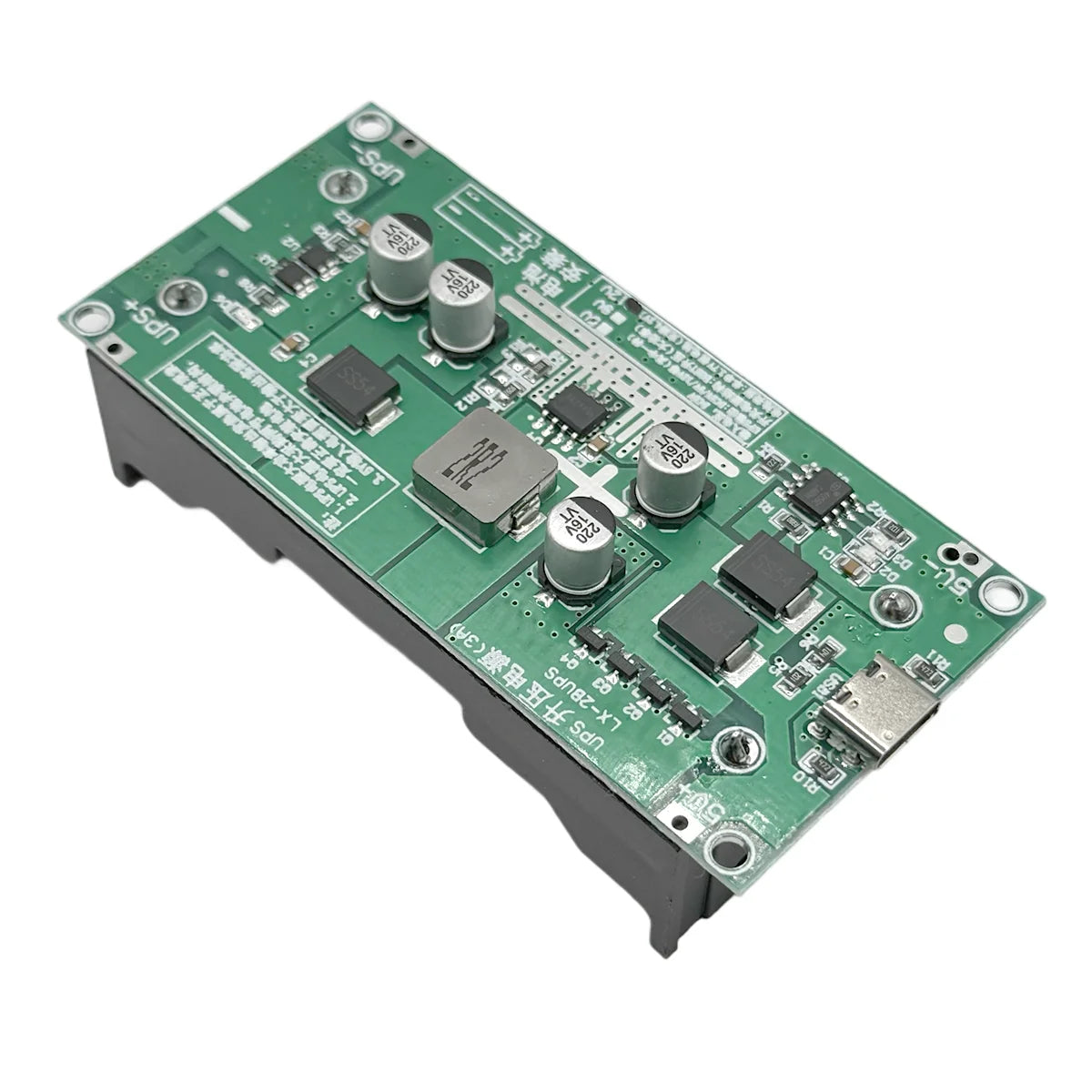

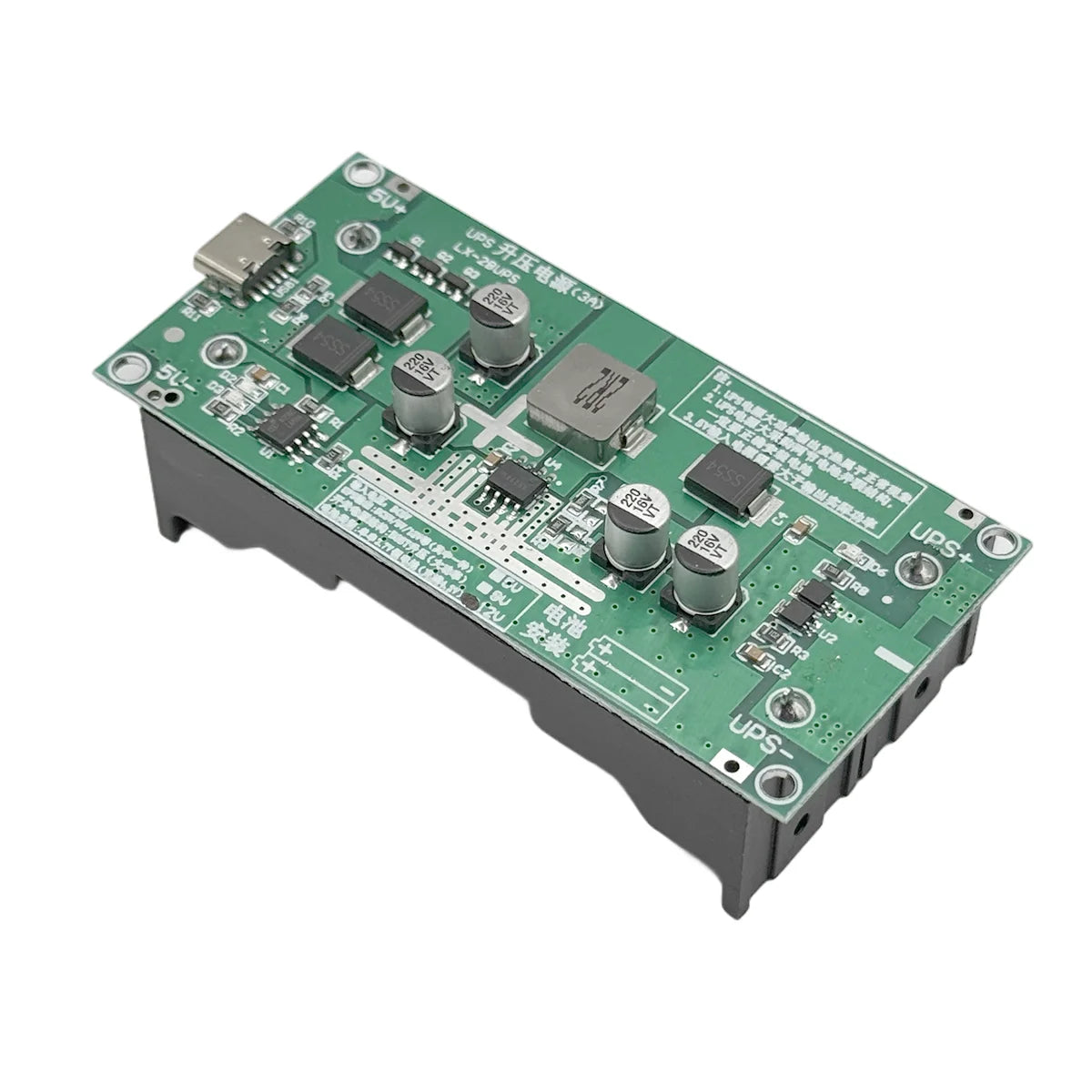

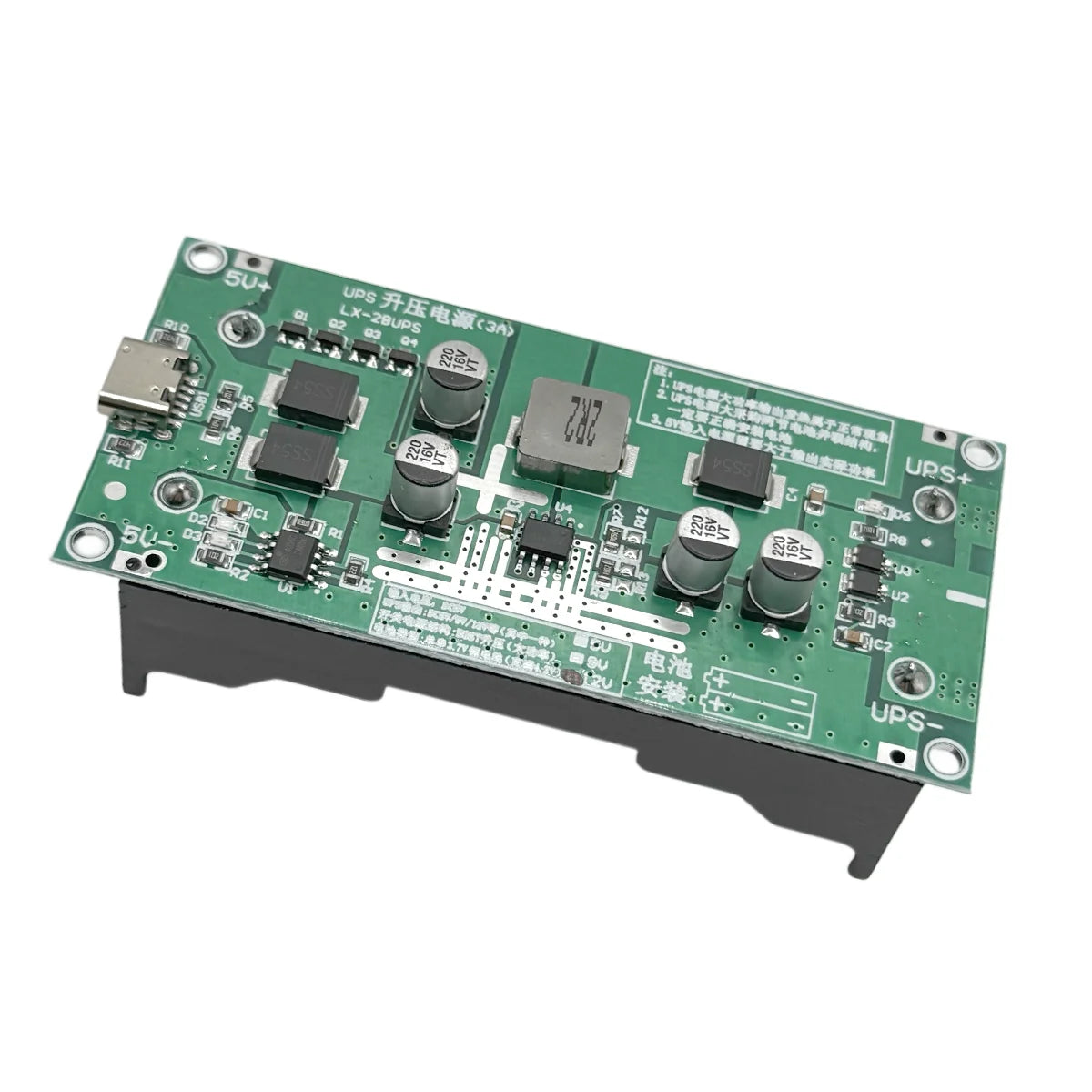

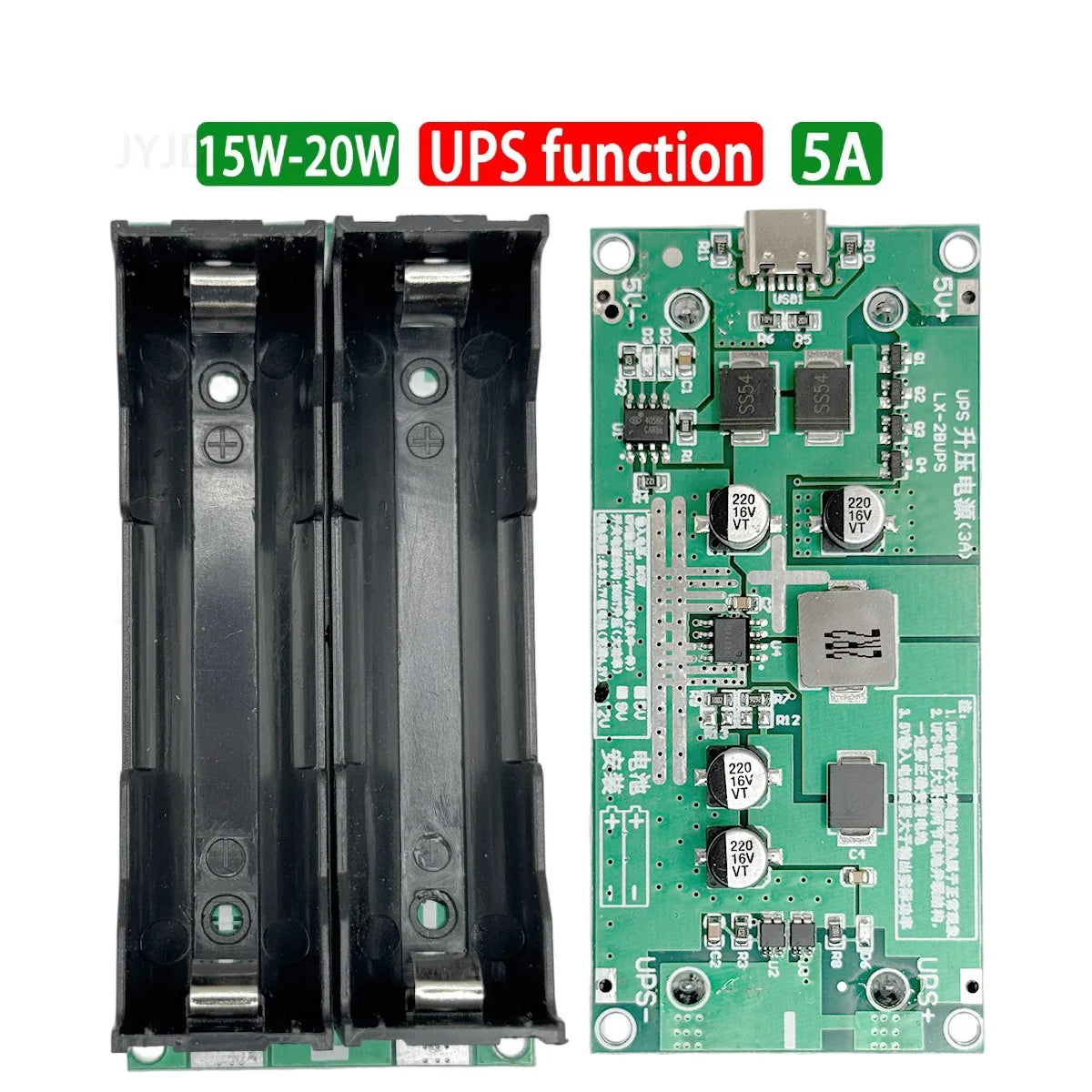

Powerful and compact USB-C UPS charger module designed to keep low-power DC devices running. This all-in-one module combines 18650 lithium charging, battery protection, DC-DC boost output and seamless UPS switching with selectable 5V/9V/12V outputs—perfect for routers, cameras, development boards and DIY power projects.
Specifications:
- Condition: New
- Type: Module
- Supported Battery: 18650 or other 3.7V lithium cells
- Input Interface: USB-C (Type-C)
- Output Voltage: Selectable 5V / 9V / 12V
- Output Current: Up to 5A (maximum)
- Rated Power: Up to 15W
- Peak Power: Up to 20W
- Functions: Lithium battery charging, battery protection, DC-DC boost, UPS seamless switching
- LED Indicator: Dual-color charge/status LED (green when fully charged)
- Module Size: 88 × 41 × 22 mm (3.46 × 1.61 × 0.87 in)
Overview:
- Seamless power switching: automatic and instant switch from external power to battery backup with no perceptible delay.
- High-current USB-C input supports faster charging and higher current delivery compared with older micro USB interfaces.
- Suitable for uninterrupted power applications like routers, IP cameras, microcontroller boards and other low-power DC equipment.
- Energy-saving option: disable output indicator LED after testing to reduce standby current draw.
Usage Tips:

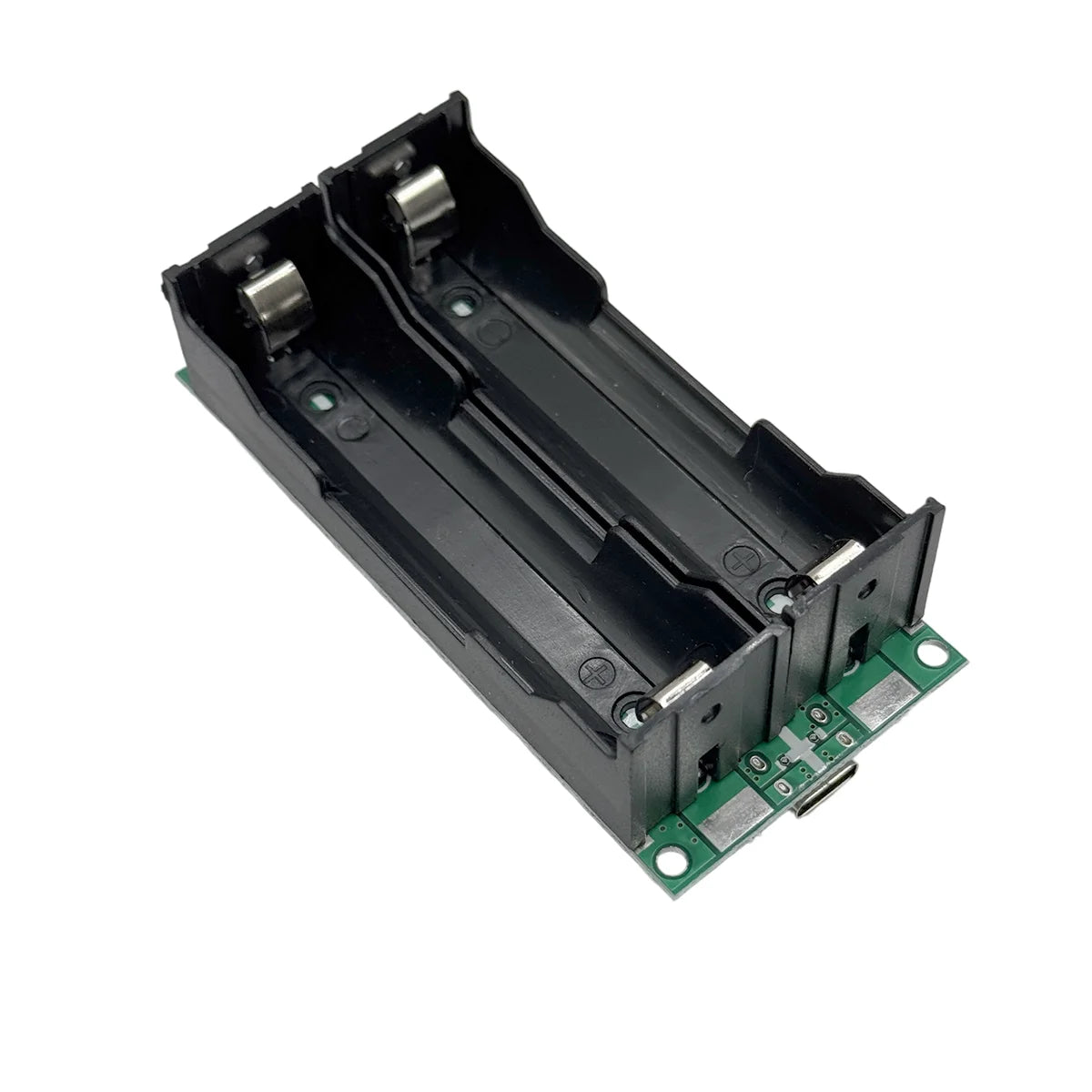

- Install a 18650 (or compatible 3.7V) cell in the battery holder before using UPS mode to ensure continuous output.
- If a large output capacitor slows transition to battery when input is removed, add a ~1K discharge resistor at the 5V input to speed switching.
- To increase run time, connect multiple batteries in parallel following safe battery-parallel procedures.
Safety Notes:
Use only compatible 18650 or 3.7V lithium cells with built-in protection or ensure external protection is provided. Observe correct polarity when connecting batteries and wiring to avoid damage or fire risk.
Charge and operate the module in a well-ventilated, dry area away from flammable materials. Do not expose the board to water or excessive moisture.
Avoid short circuits and do not modify or disassemble the module while powered. Use a proper USB-C power supply that meets the module's current and voltage requirements.
