Portable Vector Network Antenna Analyzer 2.8-Inch TFT 10 kHz-1.5 GHz SWR Spectrum Analyzer USB-C TDR

Overview: Compact, portable vector network and spectrum analyzer designed for antenna tuning, SWR measurement, S-parameter analysis and time-domain reflectometry (TDR). Features a bright 2.8-inch (71 mm) touchscreen, USB-C connectivity and a built-in 650 mAh rechargeable battery for reliable field testing and ham radio use.

Specifications:

• Type: Portable vector network & spectrum analyzer with TDR
• Battery: Built-in 650 mAh rechargeable battery
• Frequency Range: 10 kHz - 1.5 GHz
• Display: 2.8 inch (71 mm) TFT, 320 x 240 pixels
• PCB Size: 54 x 85.5 x 11 mm (2.13 x 3.37 x 0.43 in) — excluding connectors and switches
• RF Output: -13 dBm (typical), maximum -9 dBm
• Frequency Accuracy: < 0.5 ppm
• Measurement Range: 70 dB (50 kHz–300 MHz), 50 dB (300–600 MHz), 40 dB (600–900 MHz) — extended firmware may enable additional ranges
• Port SWR: < 1.1
• USB Interface: USB Type-C (CDC Serial)
• Power & Charging: USB 5 V, 120 mA operating; maximum charging current 0.8 A

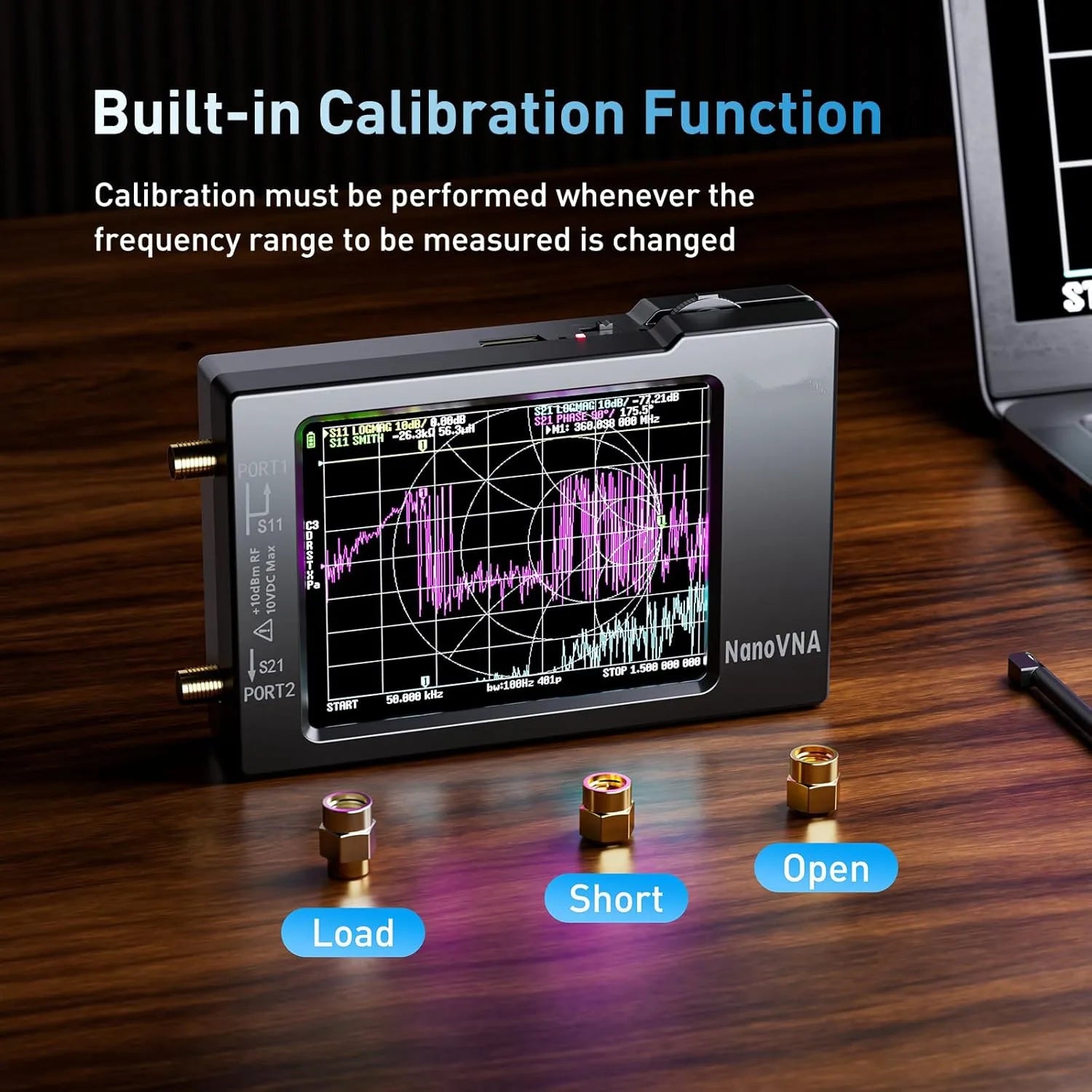

• Calibration & Scan Points: 101 fixed calibration points; 101 fixed scanning points
• Display Tracking / Markers / Save: 4 tracking traces; 4 markers; save up to 5 settings
• Functions: S-parameter measurement, SWR, phase, delay, Smith chart, spectrum analyzer, TDR (time domain reflectometry)
• Certification: CE

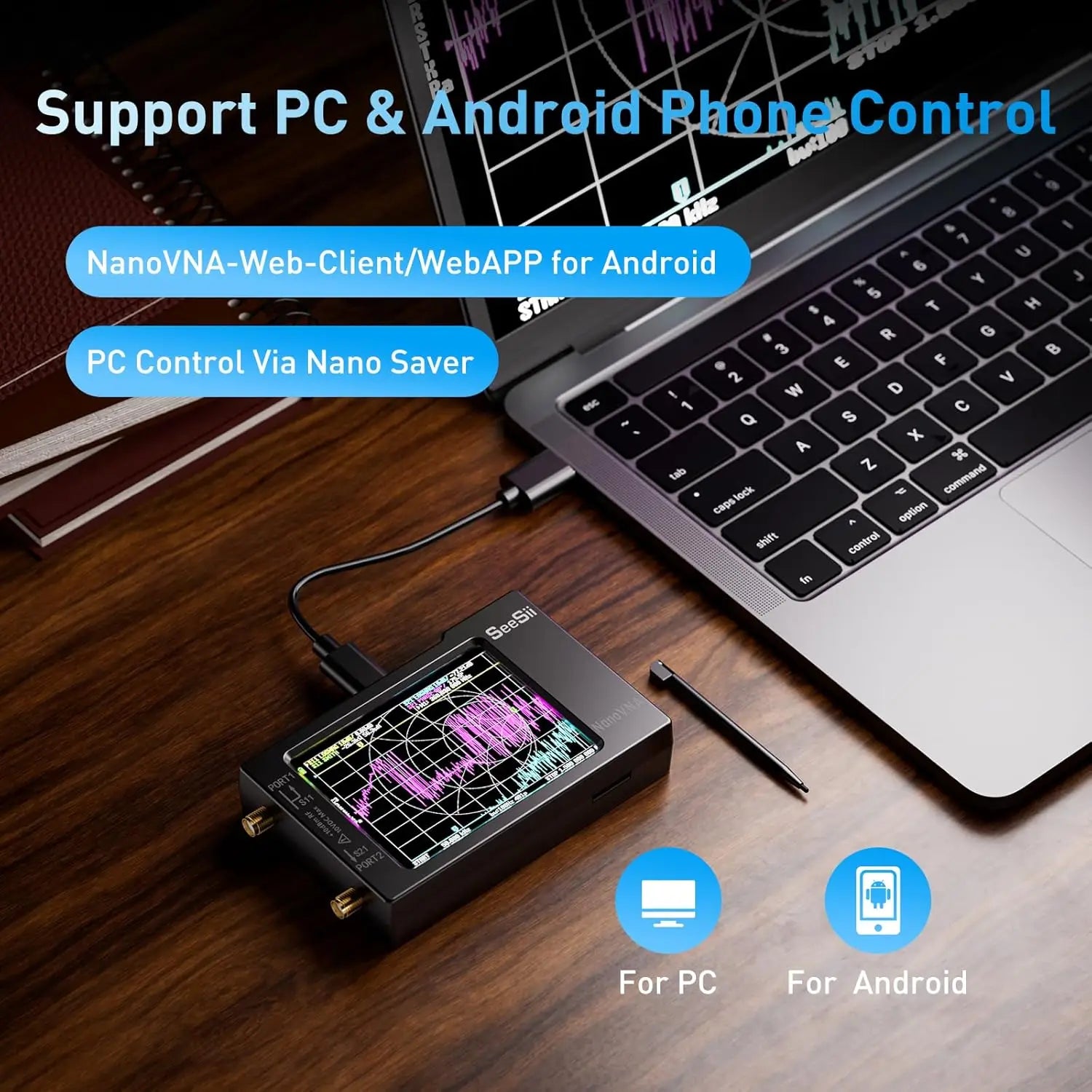

• Additional Features: Durable ABS housing, serial number printed on back, improved transport packaging, supports Type-C to Type-C display connection with many USB-C smartphones (may not support all devices)

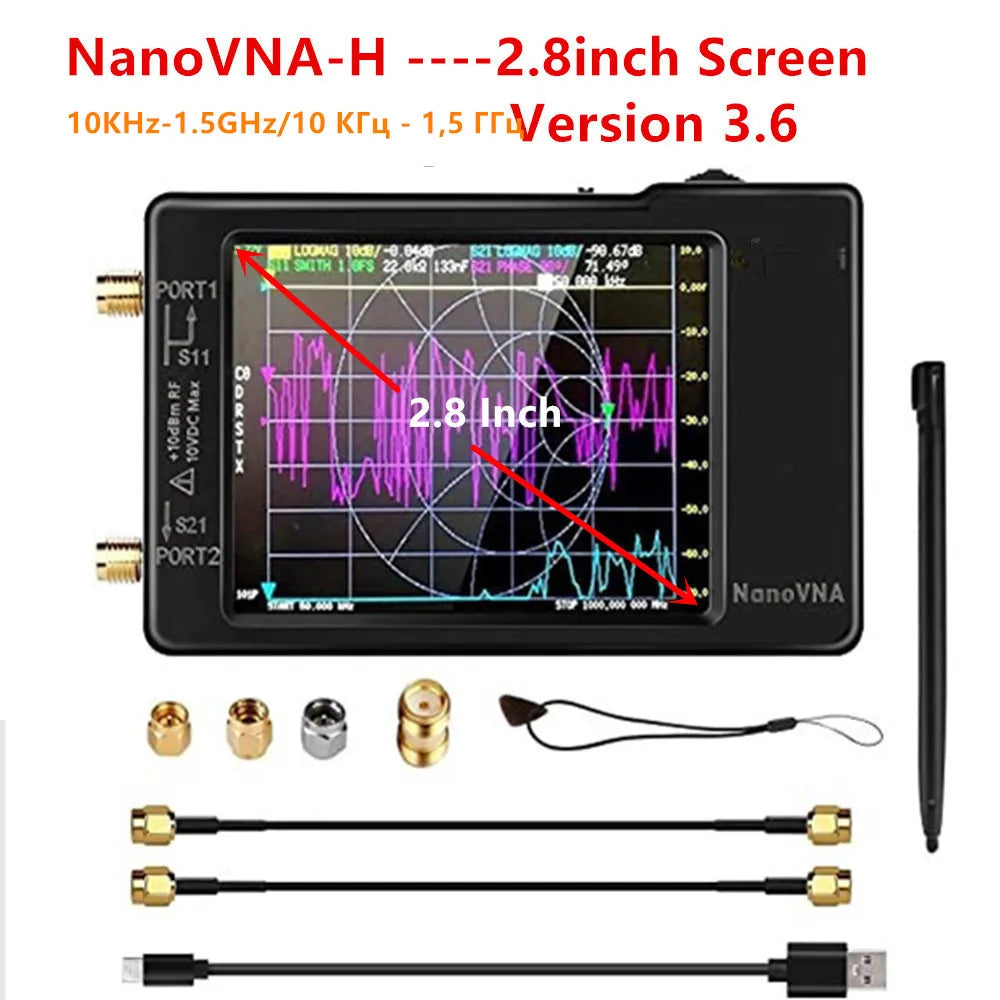

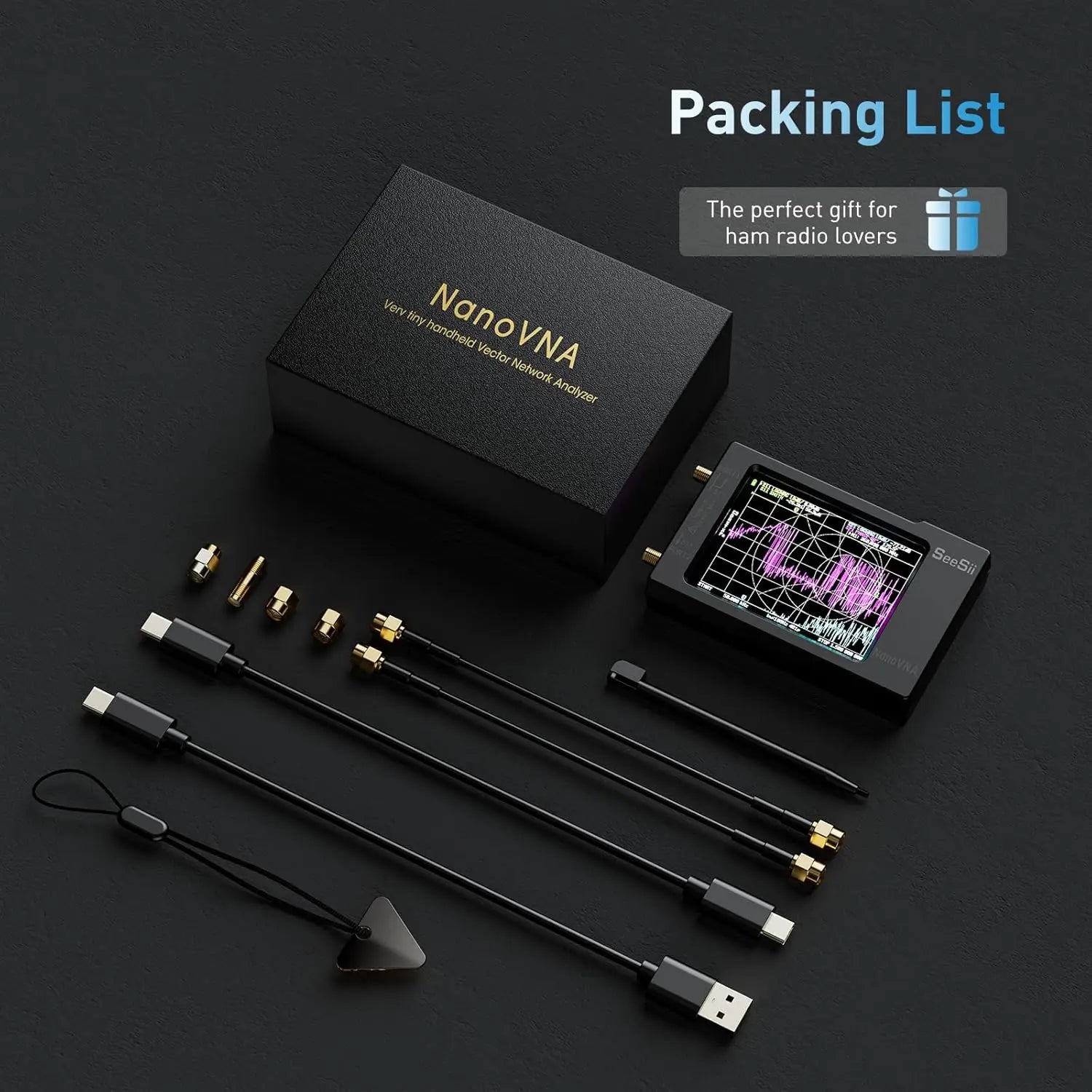

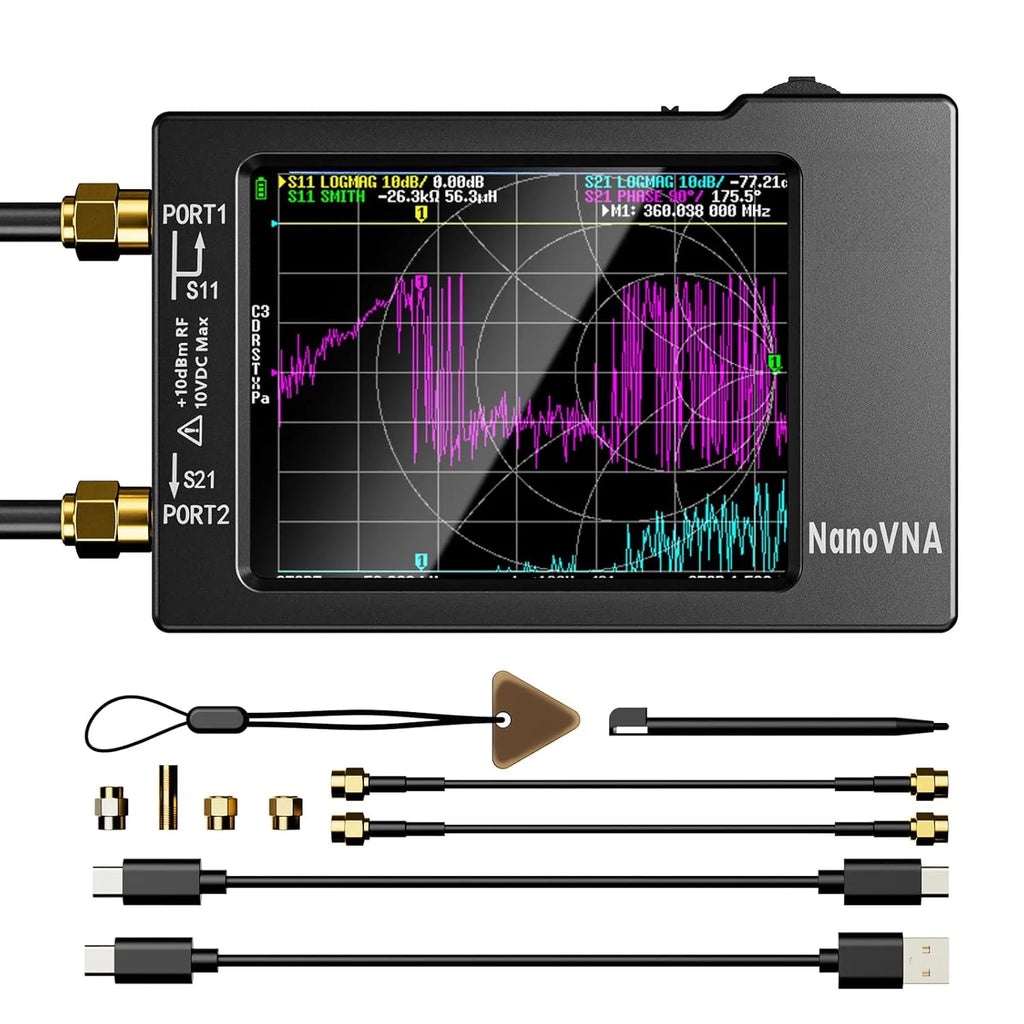

• Package Includes: 1x analyzer host (2.8" touchscreen, 650 mAh battery), 2x 20 cm SMA male-to-male RG174 RF cables, 2x SMA female-to-female adapters, SMA calibration kit (SHORT, OPEN, LOAD), 1x USB Type-C data cable, 1x Type-C to Type-C cable, 1x touch paddle
