Description
Smart lighting made simple: This PIR infrared LED motion sensor switch delivers reliable, hands-free activation for outdoor and indoor lighting — energy-saving, waterproof, and adjustable for a variety of lighting setups.
Specifications:

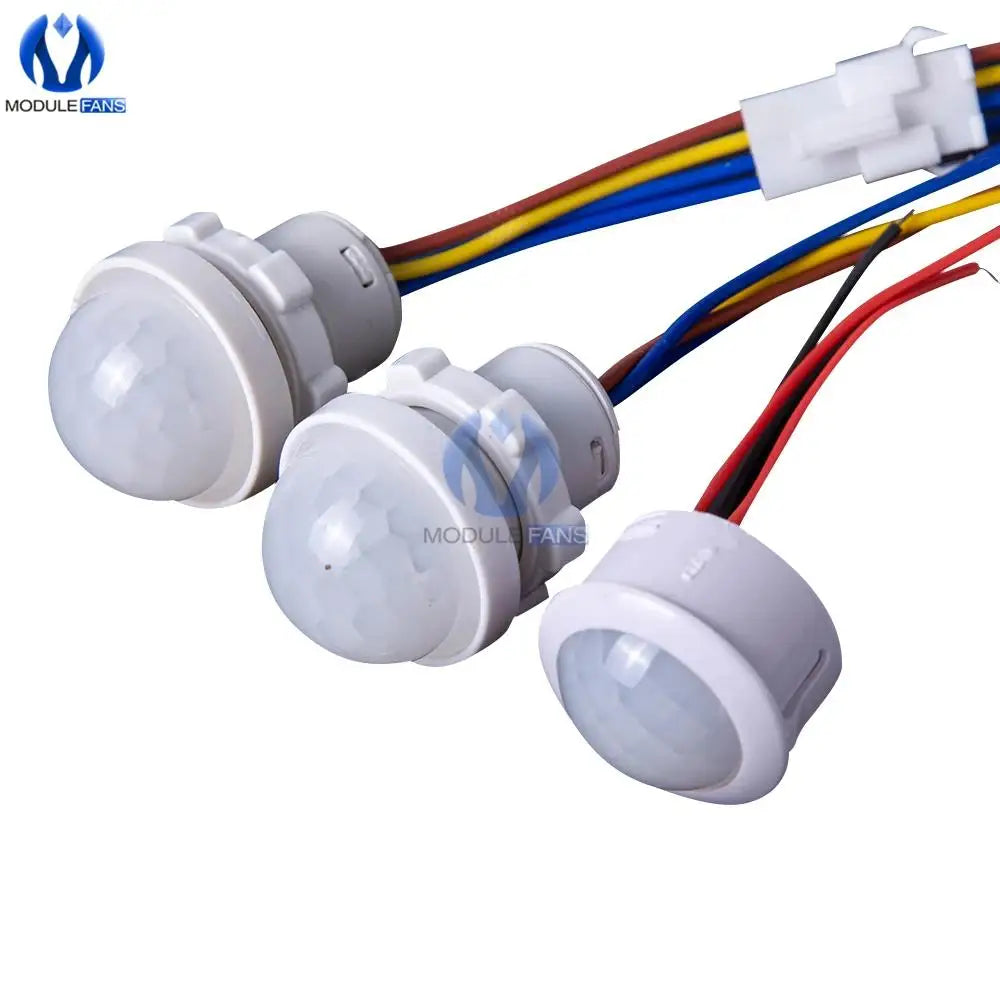

- Product Name: Human infrared sensor head (Types A–F, high-voltage and low-voltage models)
- Type: Biosensor / PIR motion sensor
- Material: Mixture
- Output: Lamp control with motion detection
- Theory: Passive infrared (PIR) motion detection
- Use: Night light / motion-activated lighting
- Working Voltage (high-voltage models): AC 110–240V
- Low-Voltage Parameters (Type C, F): DC 12–24V, loadable up to 18W (180–260 mA)
- Load Power (high-voltage): ≤ 40 W

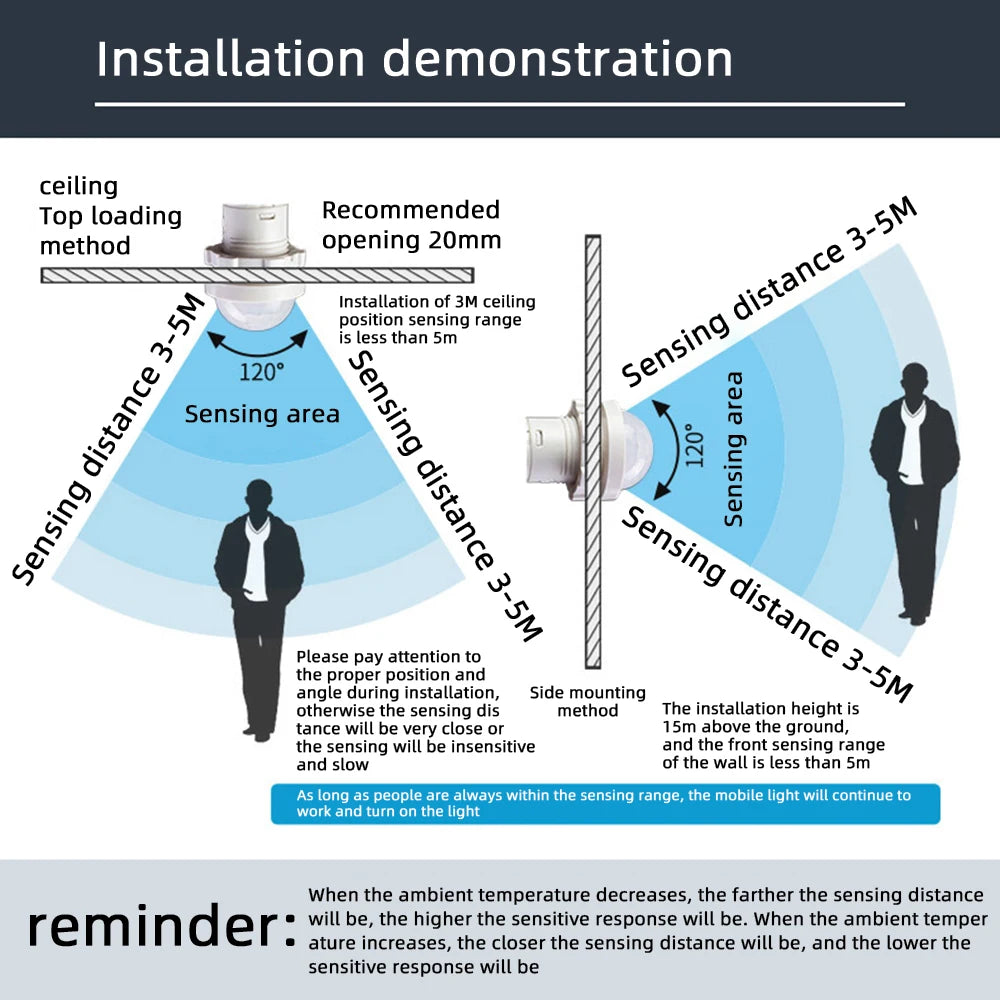

- Induction Distance: 3–5 m (approx. 9.8–16.4 ft)
- Sensing Angle: 120°
- Delay Time: 30 seconds
- Working Temperature: -20°C to 40°C (-4°F to 104°F)
- Shell Size (high-voltage models): Height 37.2 mm × Diameter 27.5 mm (1.46 × 1.08 in)
- Product Specification (low-voltage models): 25 × 19 mm (0.98 × 0.75 in)
- Recommended Hole/Opening Size: Hole size 20 mm recommended (0.79 in); recommended opening 24.9 mm (0.98 in)
- Optional Functions: Light-control (dusk-to-dawn) model or all-day induction (no light control)
- Features: LED lamp motion sensing, infrared detection, waterproof design for outdoor use, adjustable light-control option, energy-saving automation
-
Package Includes:

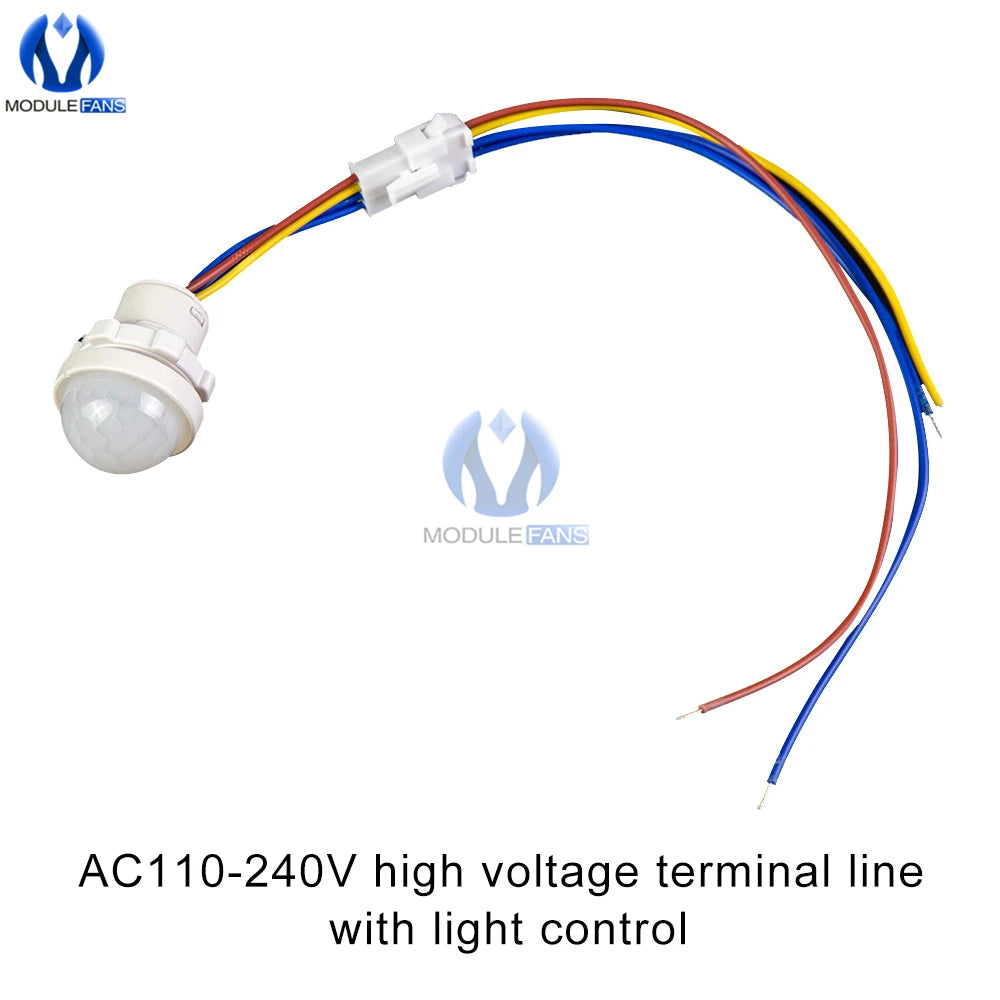

- Type A: Human body sensor switch with light-control terminal line ×1

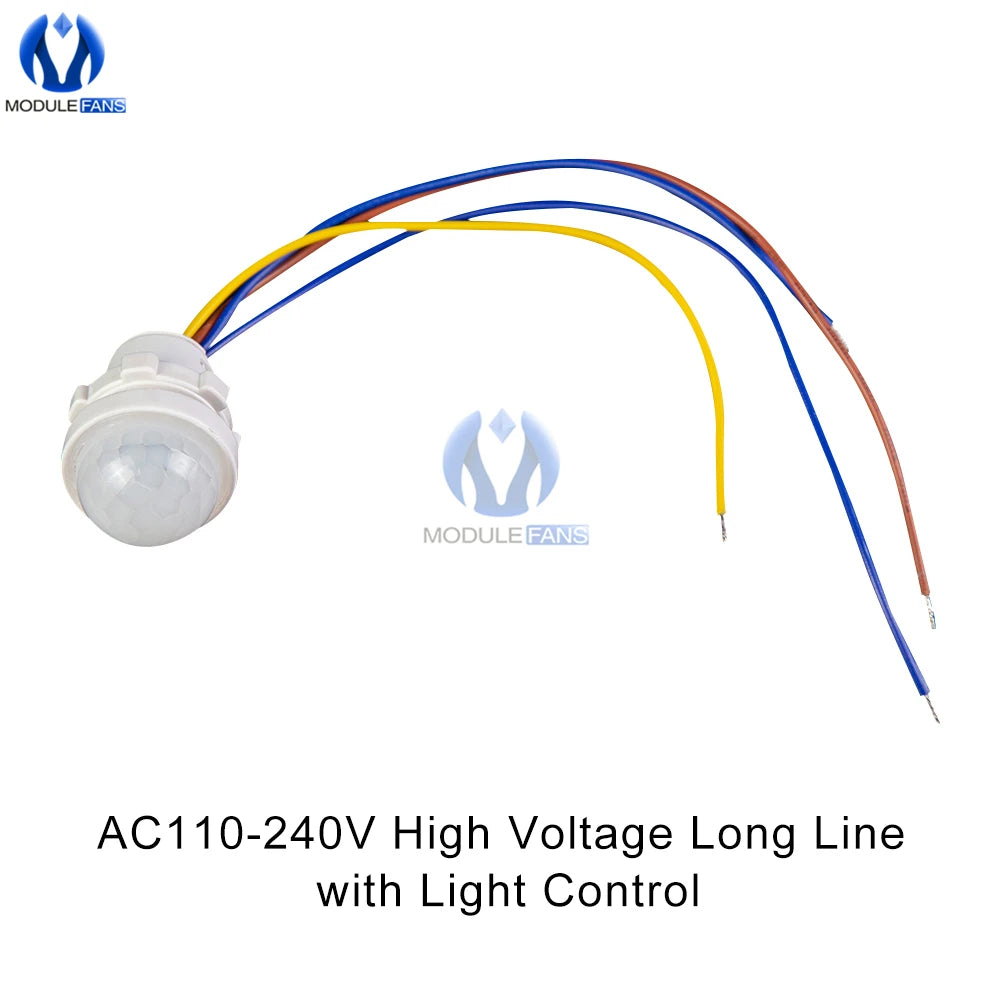

- Type B: Human body induction switch with light-control long line ×1

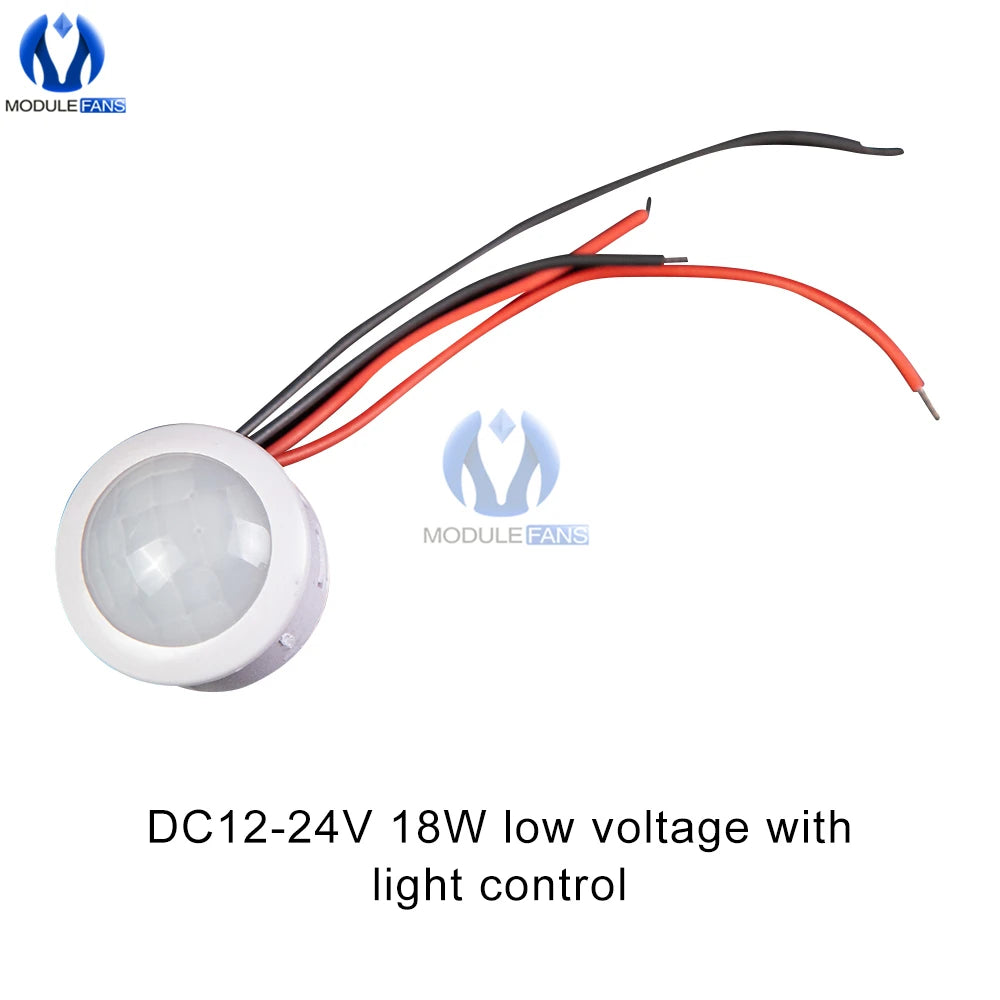

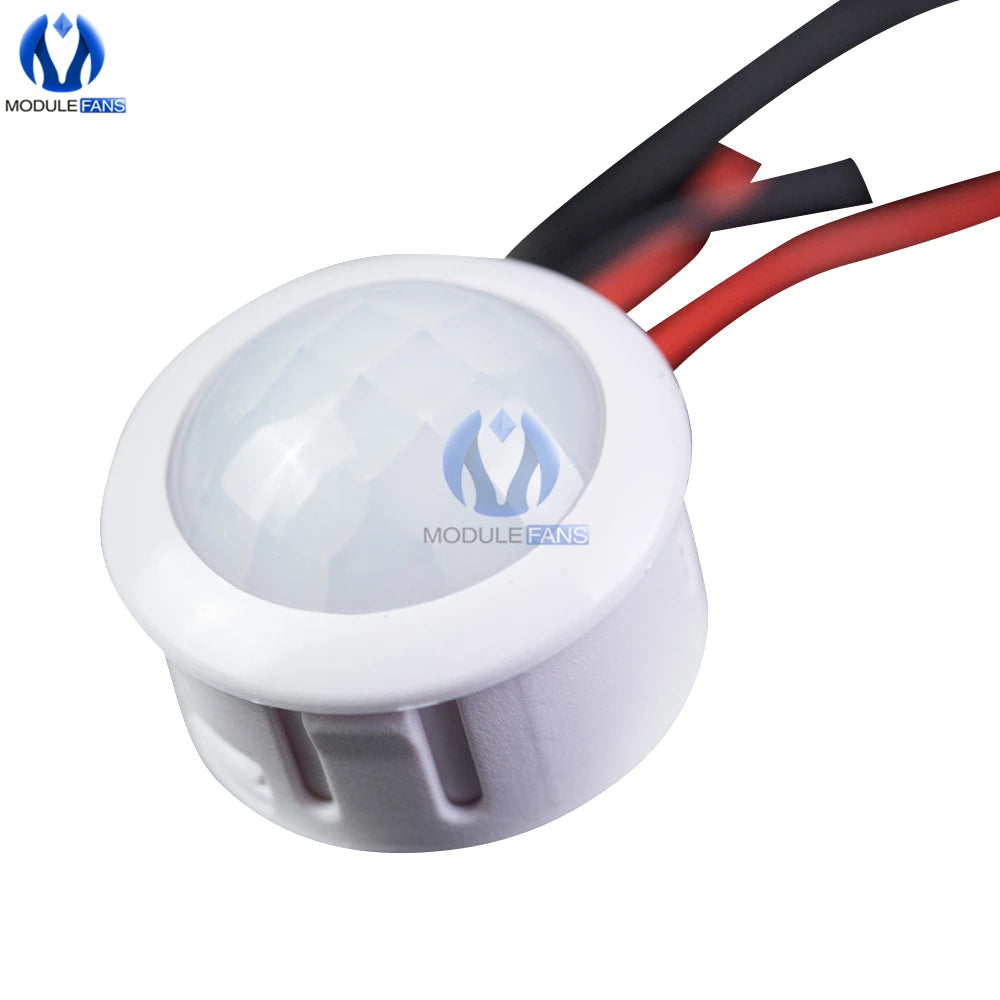

- Type C: Low-voltage human body induction switch with light-control ×1

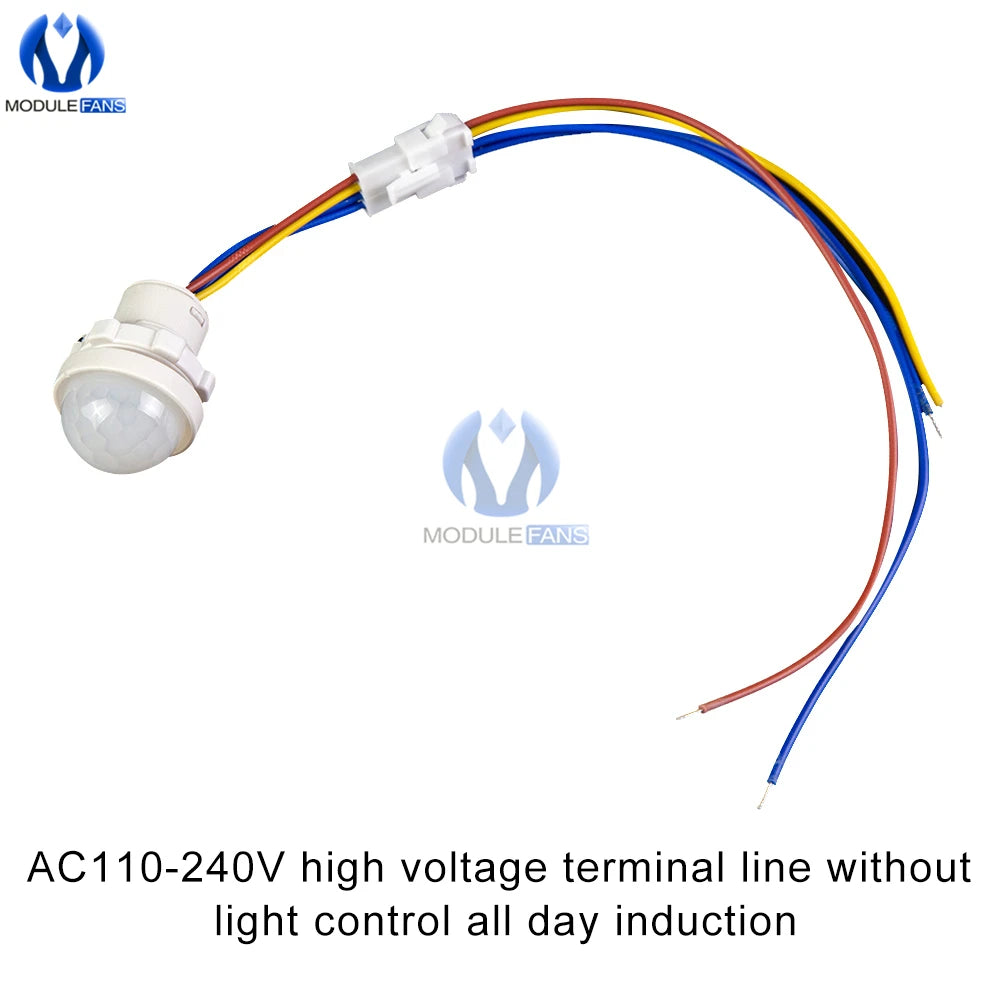

- Type D: Human body induction switch without light-control (all-day induction) with terminal line ×1

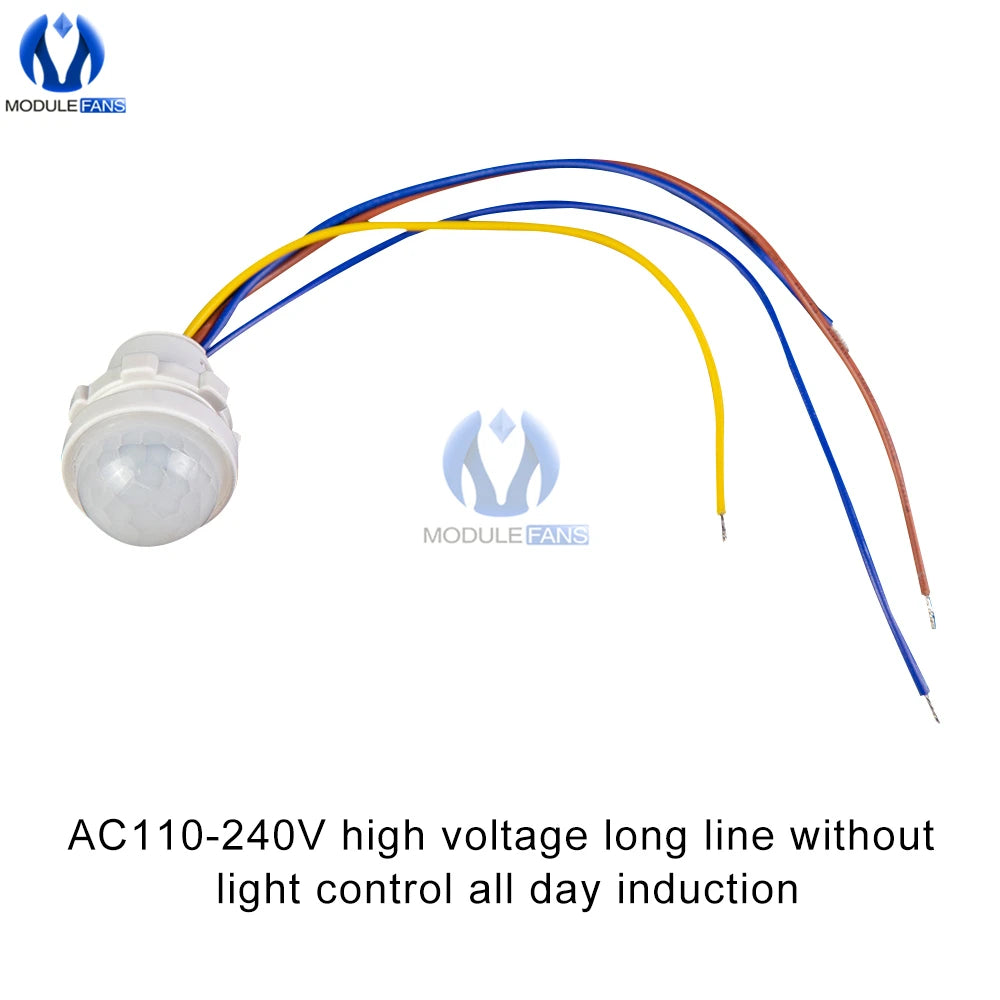

- Type E: Human body sensor switch without light-control (all-day induction) with long line ×1

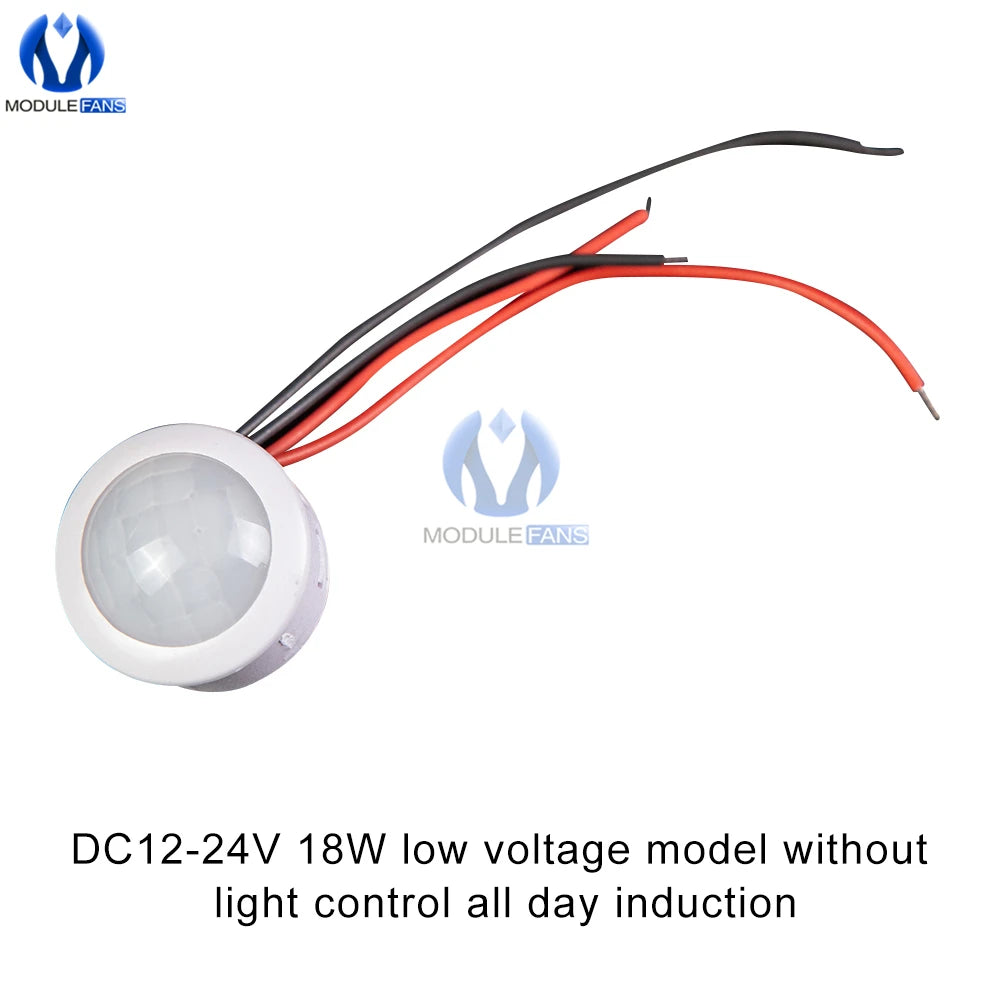

- Type F: Low-voltage human body induction switch without light-control (all-day induction) ×1
- Customization: Yes
- Chemicals: None reported
Installation & Benefits: Ideal for outdoor porches, hallways, stairwells, security lighting and energy-efficient night lights. Easy to install into standard openings (see recommended hole sizes). Switches support both AC and DC systems depending on model selection and include optional dusk-to-dawn control for automatic night operation.
Safety Notes:
Disconnect power at the circuit breaker before installation or maintenance. Ensure wiring matches the rated voltage for the selected model (AC110–240V or DC12–24V) and do not exceed the maximum load.
For hardwired installations or if you are not familiar with electrical work, consult a licensed electrician. Keep out of reach of children and avoid exposing non-waterproof components to wet conditions.
