Description

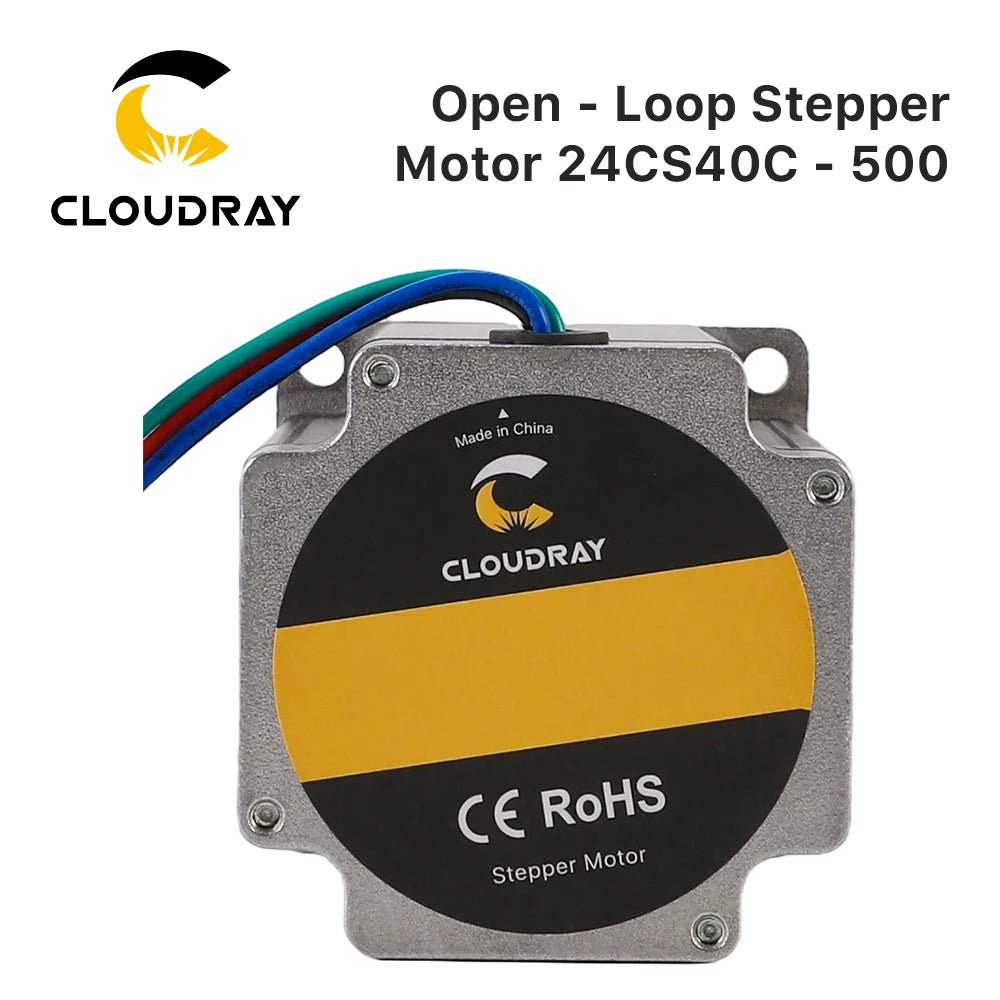

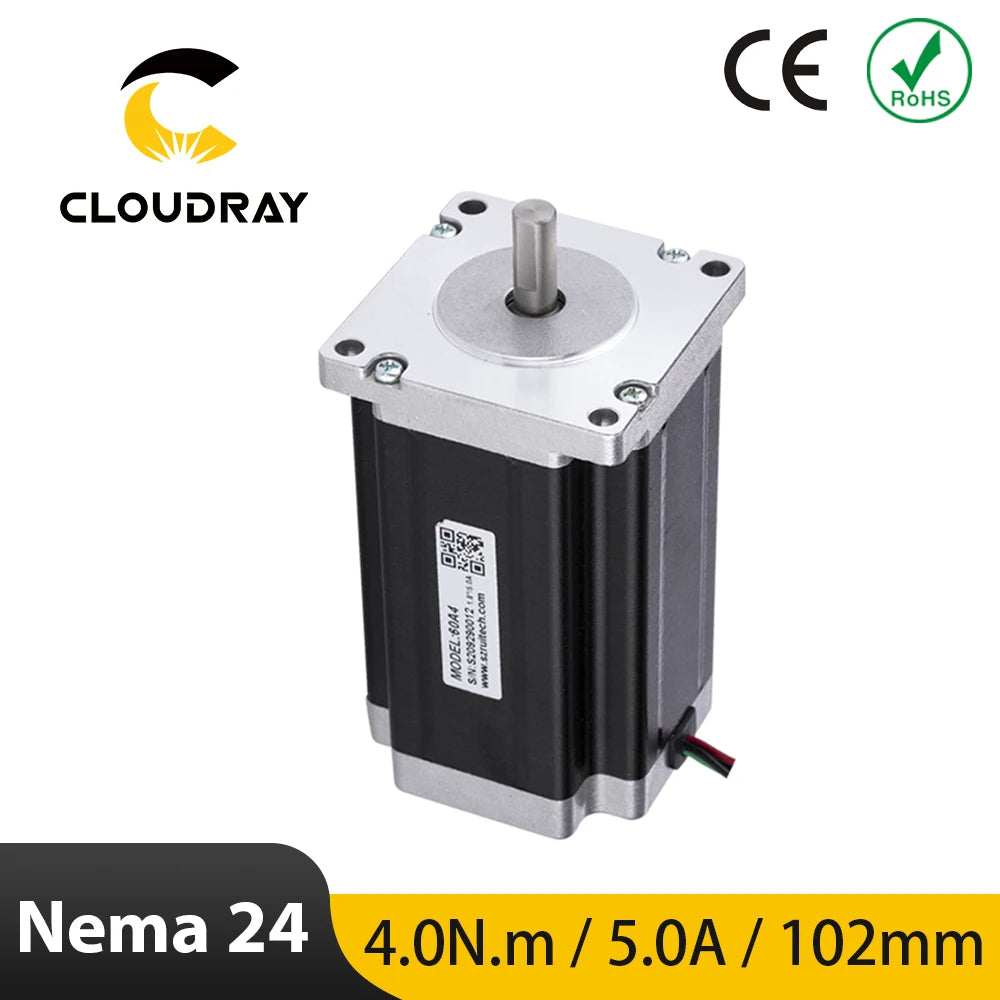

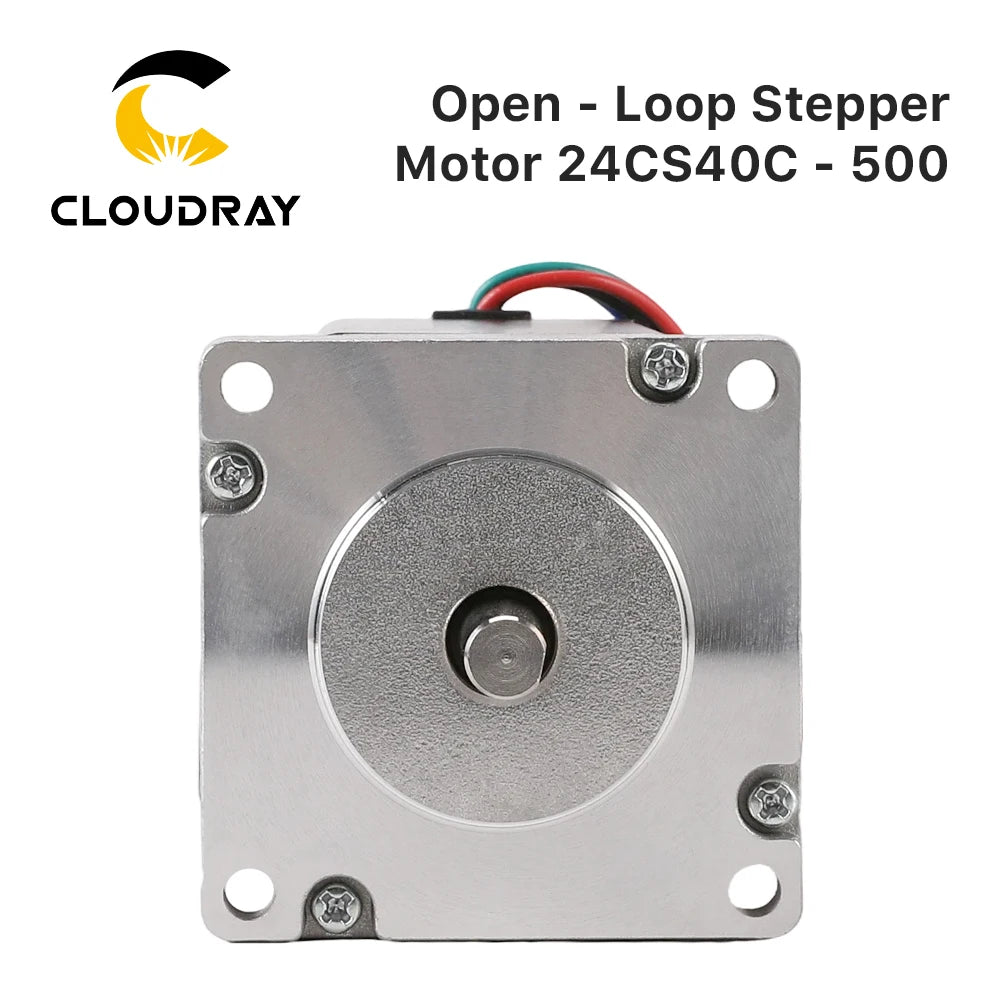

Powerful, precise motion control: Compact NEMA 24 hybrid stepper motor engineered for CNC routers, engraving machines, milling setups and 3D printers. Offers high holding torque, smooth stepping and reliable performance for exact positioning and repeatable results.

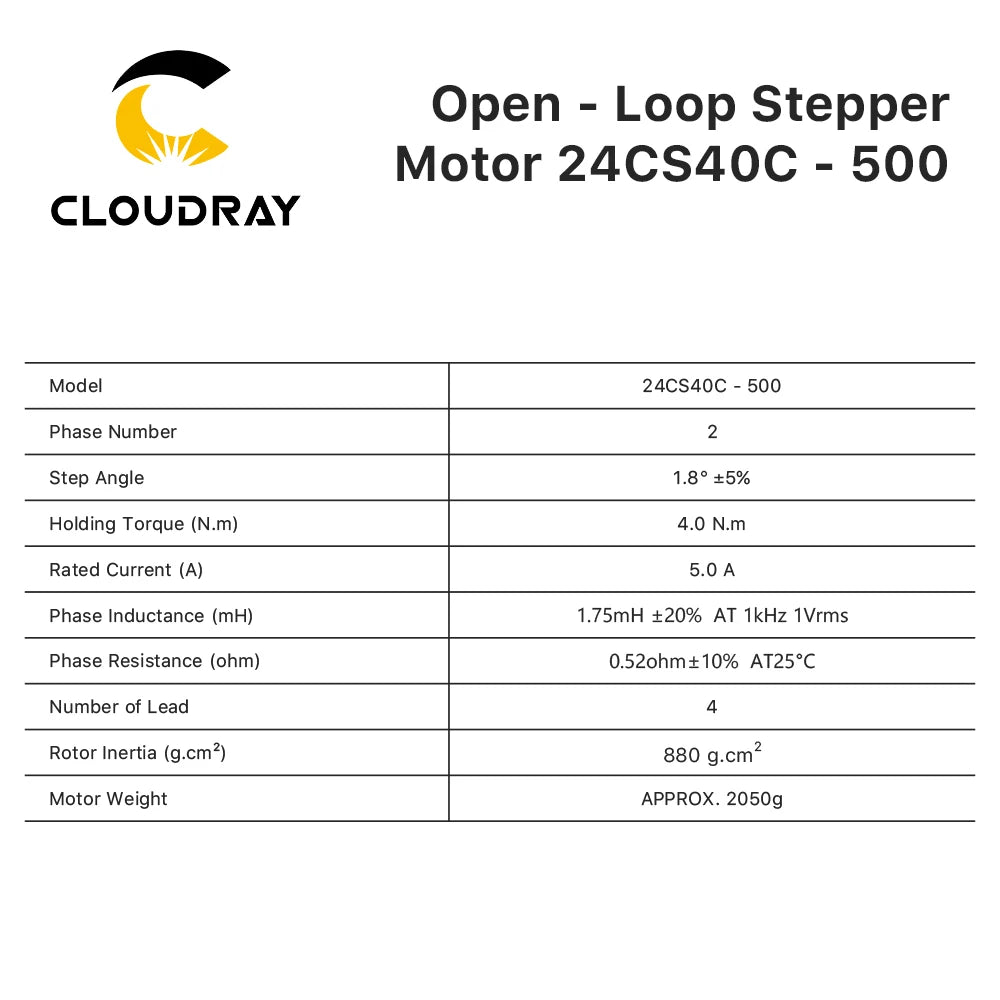

Specifications:
- Model Number: SM47N24CS40C500
- Certification: CCC, RoHS
- Current per Phase: 5.0 A
- Includes Battery: No
- Wireless Functionality: No
- EU LVD Voltage: Low voltage: Below 50 Vac or 75 Vdc
- High-concerned Chemical: None
- Holding Torque: 4.0 N·m (35.4 in·lb)
- Number of Leads: 4
- Phase: 2
- Phase Inductance: 4.4 mH ±20%
- Phase Resistance: 2.2 Ω ±10%
- Rotor Inertia: 880 g·cm² (8.8 × 10⁻⁵ kg·m²)

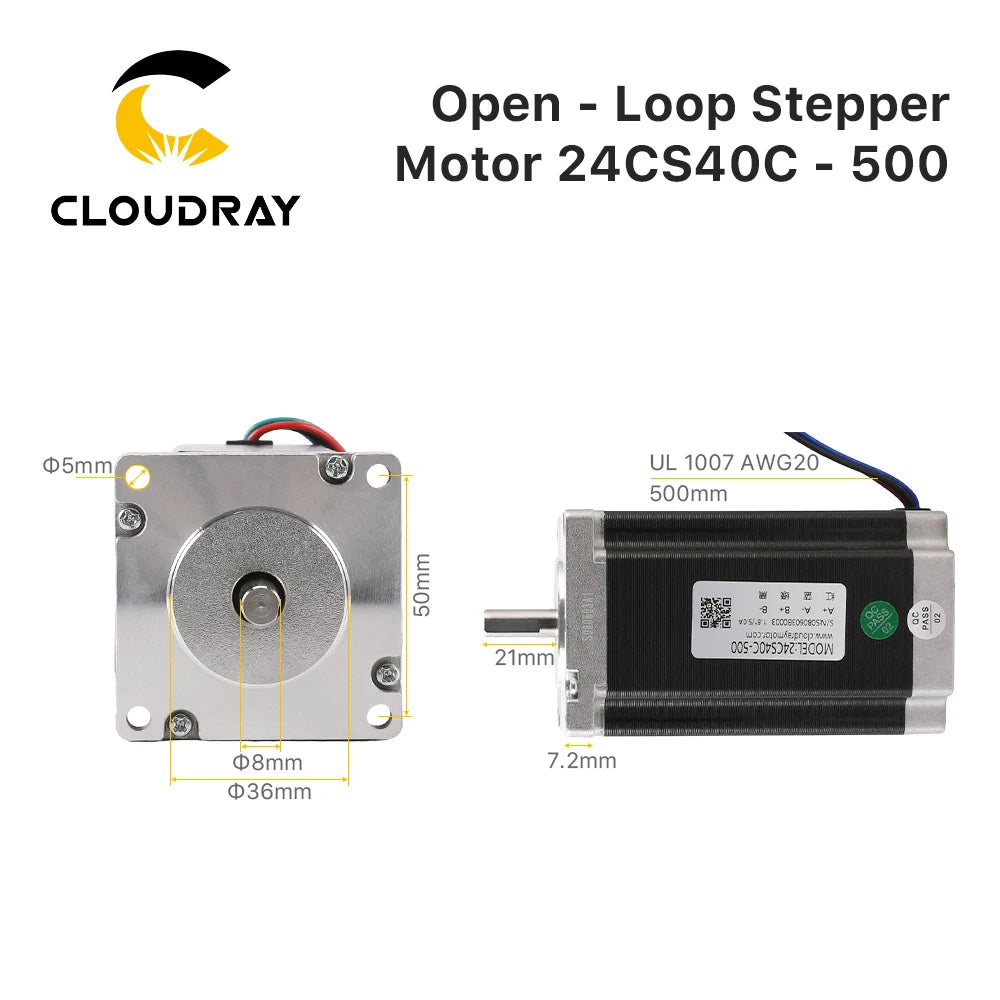

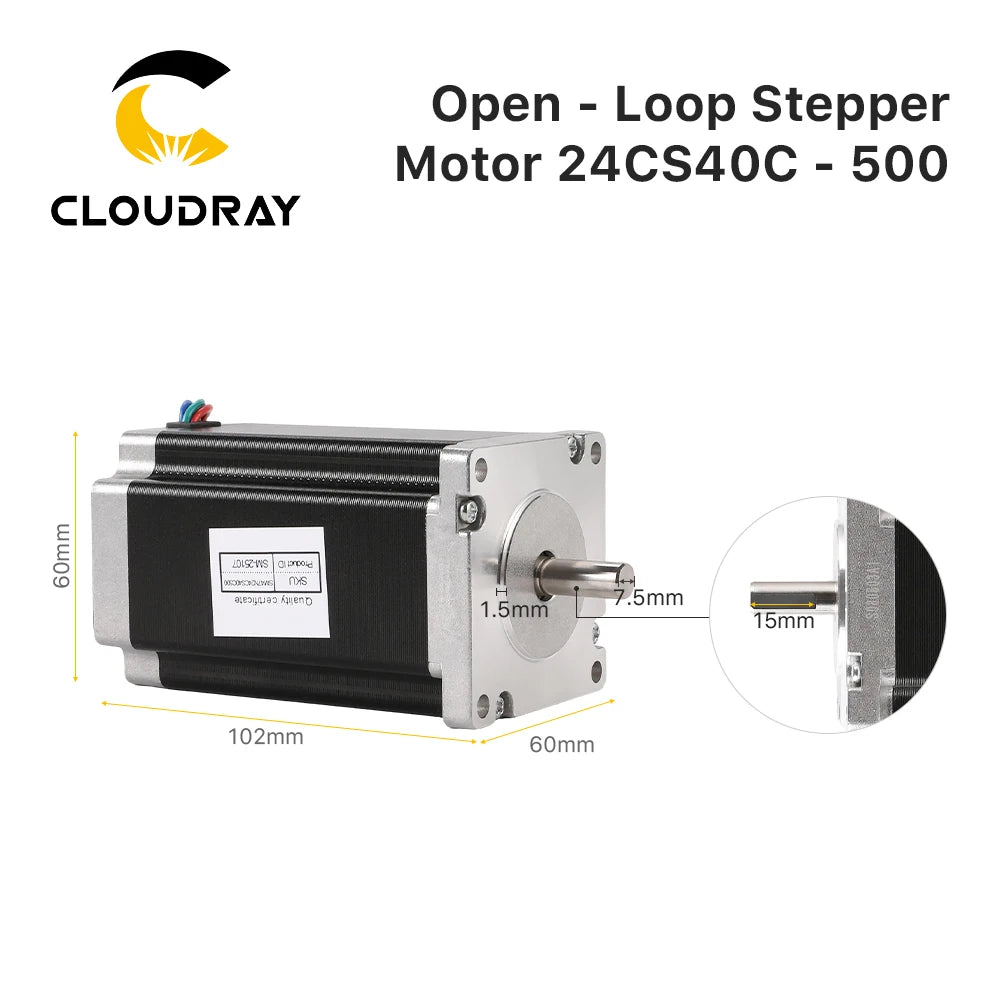

- Shaft Diameter: 8 mm (0.315 in)
- Step Angle: 1.8° ±5%
- Type: Hybrid
#StepperMotor #CNCParts #3DPrinting #FanzyMarket
Safety Notes:
Handle electrical connections with care. Disconnect power before wiring, installation, or maintenance to avoid electric shock or short circuits.
Ensure adequate driver current settings and cooling; improper wiring or excessive current may cause overheating or damage.
Securely mount the motor and avoid touching the shaft or terminals while energized. Keep away from moisture and conductive debris during operation.
