Description

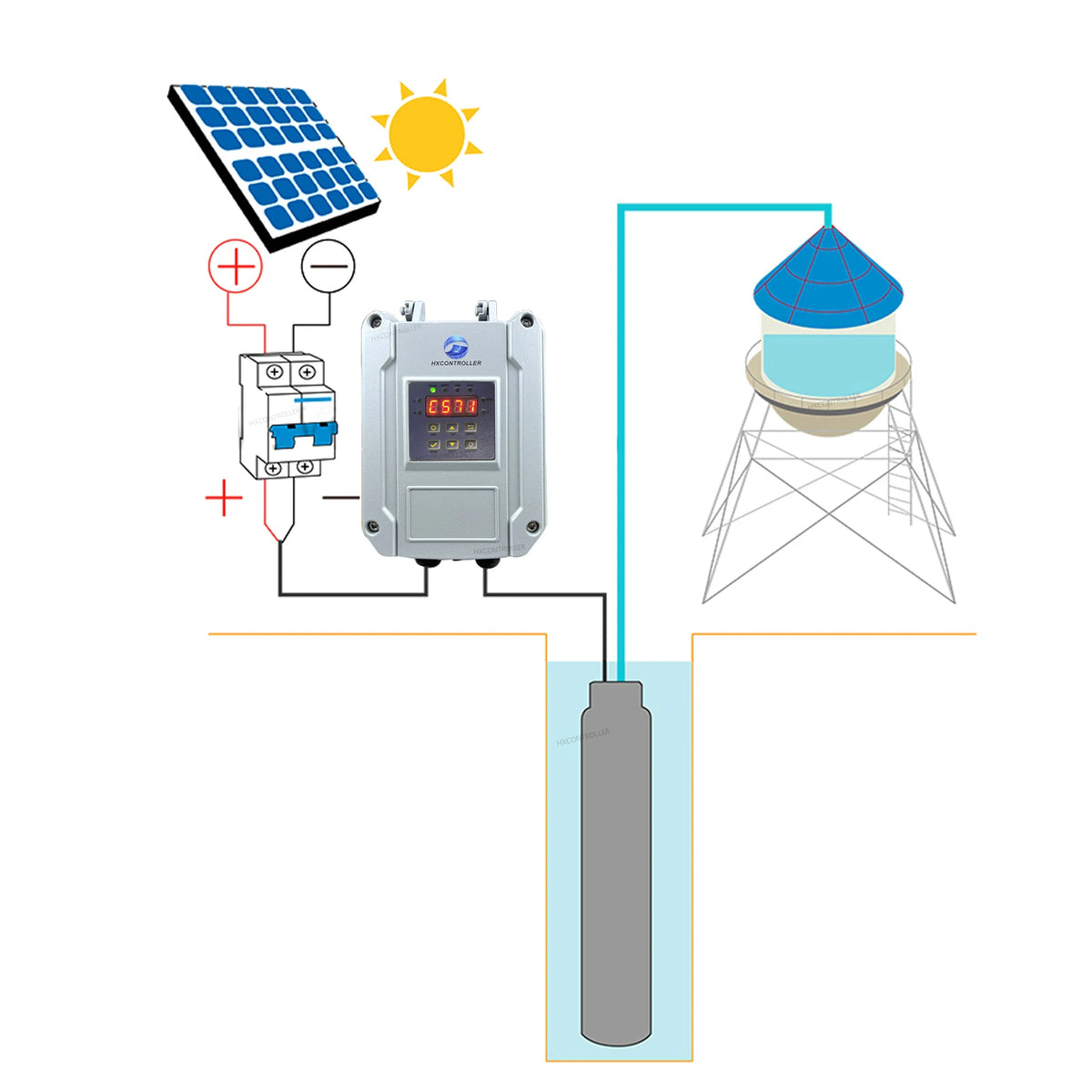

Reliable and efficient solar MPPT pump controller engineered for DC brushless water pumps. Maximize solar output with MPPT tracking, automatic frequency conversion, LED monitoring, and built‑in protections for deep wells, irrigation, domestic water supply, and pool systems.
Specifications:
- Product Name: Solar Water Pump MPPT Controller
- Application: Voltage controller for DC brushless water pumps
- Rated Voltages: 24V, 48V, 72V, 96V, 110V
- Motor Rated Power: DC24V – 450 W; DC48V – 900 W; DC72V – 1400 W; DC96V – 1800 W; DC110V – 2000 W
- Max Input Current: 16 A
- Max Input Voltage: 63 V (24V), 100 V (48V), 150 V (72V), up to 200 V (96–110V)
- Min Input Voltage: 20 V (24V), 30 V (48V), 50 V (72V), 60 V (96–110V)
- MPPT Voltage Range: 24V: 24–36 V; 48V: 48–72 V; 72V: 72–108 V; 96V: 96–144 V

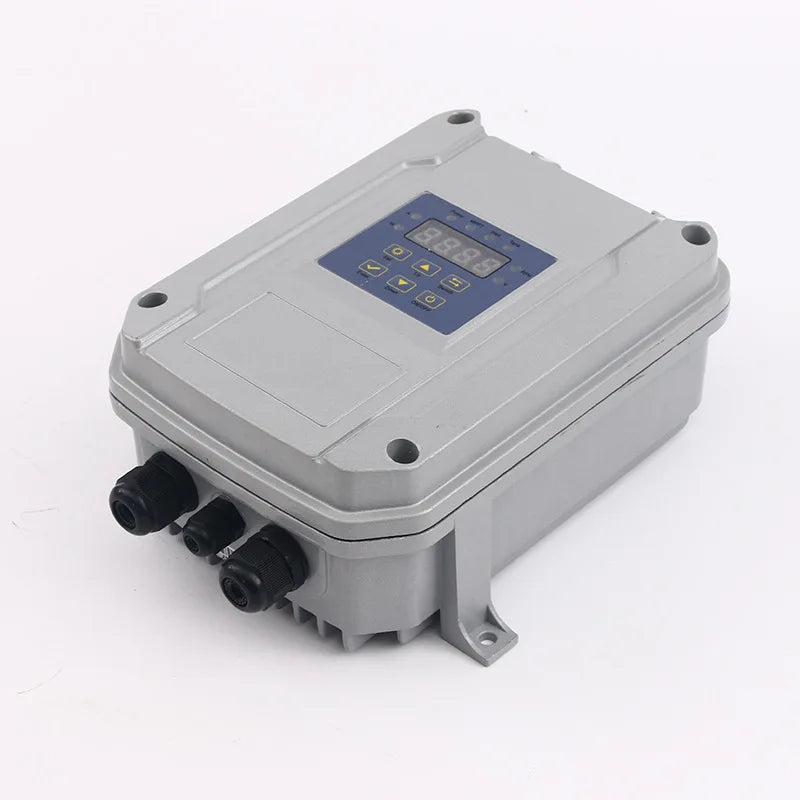

- Material: Aluminum alloy
- Drive Mode: DC brushless motor
- Working Fluid: Water

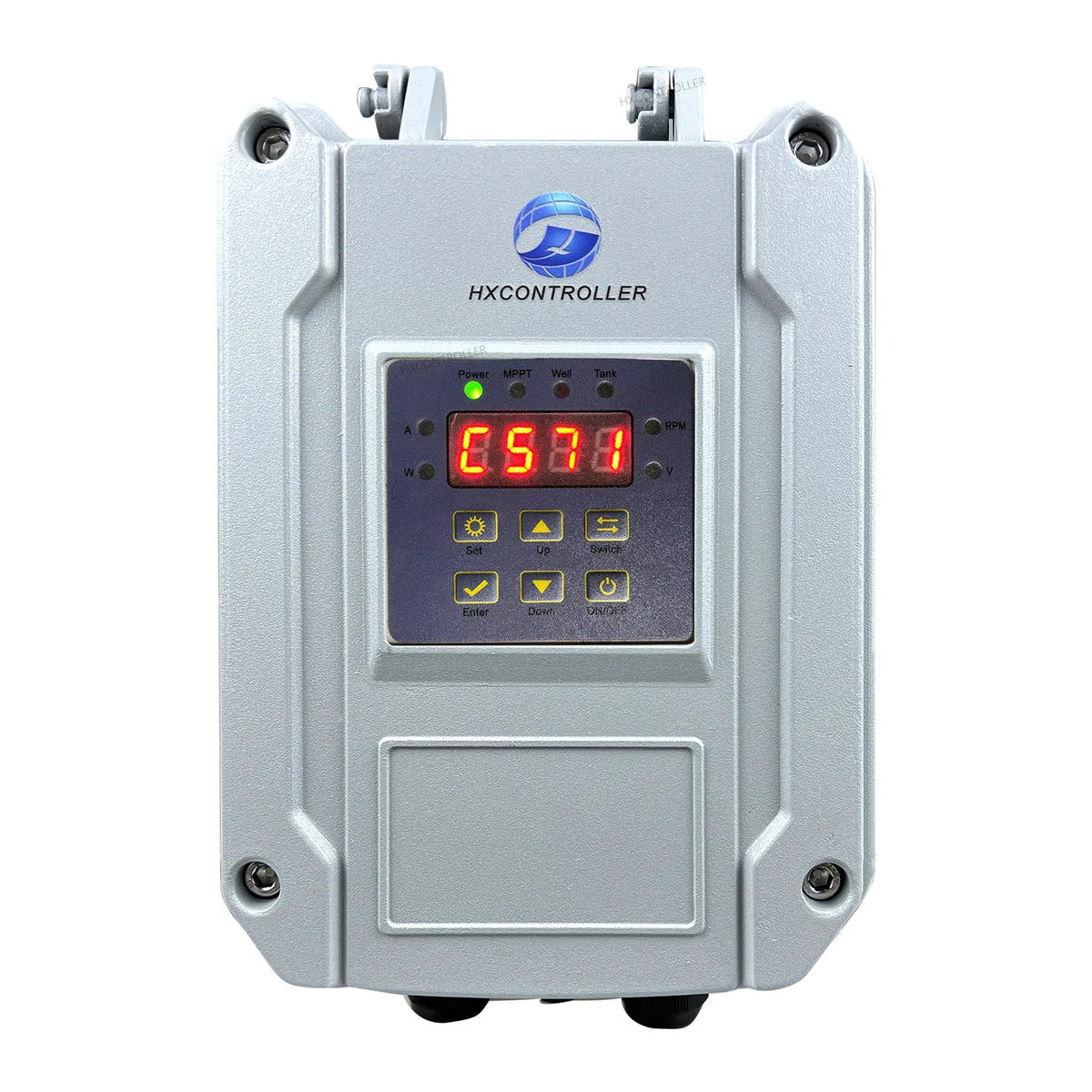

- Display: LED display (power, current, voltage, motor speed)
- Certifications: CE, RoHS
- Weight: 1.8 kg (3.97 lb)
- Operating Temperature: -15°C to 60°C (5°F to 140°F)

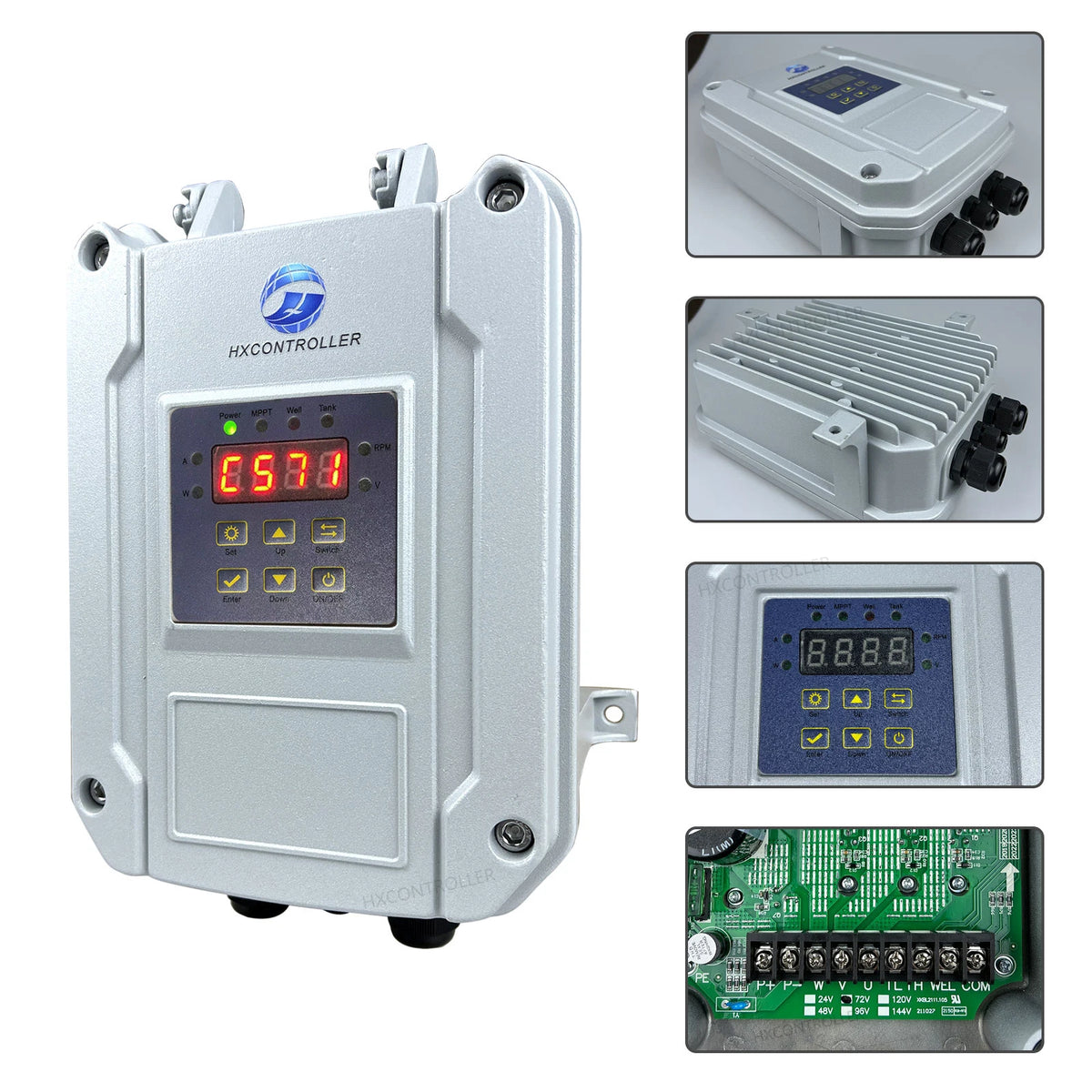

- Features: MPPT tracking, automatic frequency conversion, automatic start/stop with sunlight, anti-dry run auto stop (water tower requires level switch), high temperature resistant shell, high insulation wiring ports
- Compatibility Note: Recommended for pumps with 3 pairs of magnetic poles. Verify pump parameters if unsure.
- User Guidance: Measure or calculate solar panel open-circuit voltage before connection. Ensure open-circuit voltage does not exceed controller max input voltage to avoid irreversible damage.
- Is Customized: Yes
Why choose this controller: Designed to optimize solar energy for water pumping applications, this MPPT controller improves efficiency, protects your pump, and simplifies off-grid water systems with smart automatic control and a clear LED display for system monitoring.
#SolarPumpController #MPPT #WaterPumps #FanzyMarket
Safety Notes:
This is an electrical device. Disconnect solar panels and battery circuits before installation or maintenance. Do not exceed the specified maximum input voltage.
Installation and wiring should be performed by a qualified technician. Use appropriate fuses, circuit protection, and correct polarity to prevent damage or fire risk.
Keep the controller and wiring dry and protected from direct water exposure. Ensure proper grounding and avoid exposing the unit to prolonged moisture or flooding.
