Description
Reliable and compact, this mini 5-port Ethernet switch delivers plug-and-play gigabit performance for home, small office, or monitoring setups. With auto-negotiation, low power consumption and built-in surge protection, it provides stable wired connections for computers, IP cameras, and network devices without configuration.
Specifications:
- Ports: 5 × RJ45
- Data Rate: 10/100/1000 Mbps (auto-negotiation)
- Transmission Mode: Half/Full duplex with auto-negotiation
- Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control
- Connector: RJ45
- Max Cable Distance: 100 m (328 ft) over UTP Cat5e or higher
- MAC Table Size: 1K entries
- Buffer Space: 448 KB
- Back Bandwidth: 1 Gbps
- Latency (Time Delay): < 150 μs
- LED Indicators: Per-port status LEDs
- Power Type: External power supply (DC socket)
- Input Voltage: AC 100–240V, 50/60Hz
- Working Voltage: 5 V DC
- Power Consumption: 1.8–4 W (typical)
- Surge Protection: 4K lightning protection (whole device)
- Operating Temperature: -10 to 55 °C (14 to 131 °F)
- Storage Temperature: -40 to 70 °C (-40 to 158 °F)
- Relative Humidity: 5–90% (non-condensing)
- Dimension: 100 × 52 × 28 mm (3.94 × 2.05 × 1.10 in)
- Weight: 0.30 kg (0.66 lb / 10.58 oz)
- Other Features: Auto MDI/MDIX, store-and-forward switching, multicast support, low-power chipset (≈2.5 W at full load)
- Package: Included

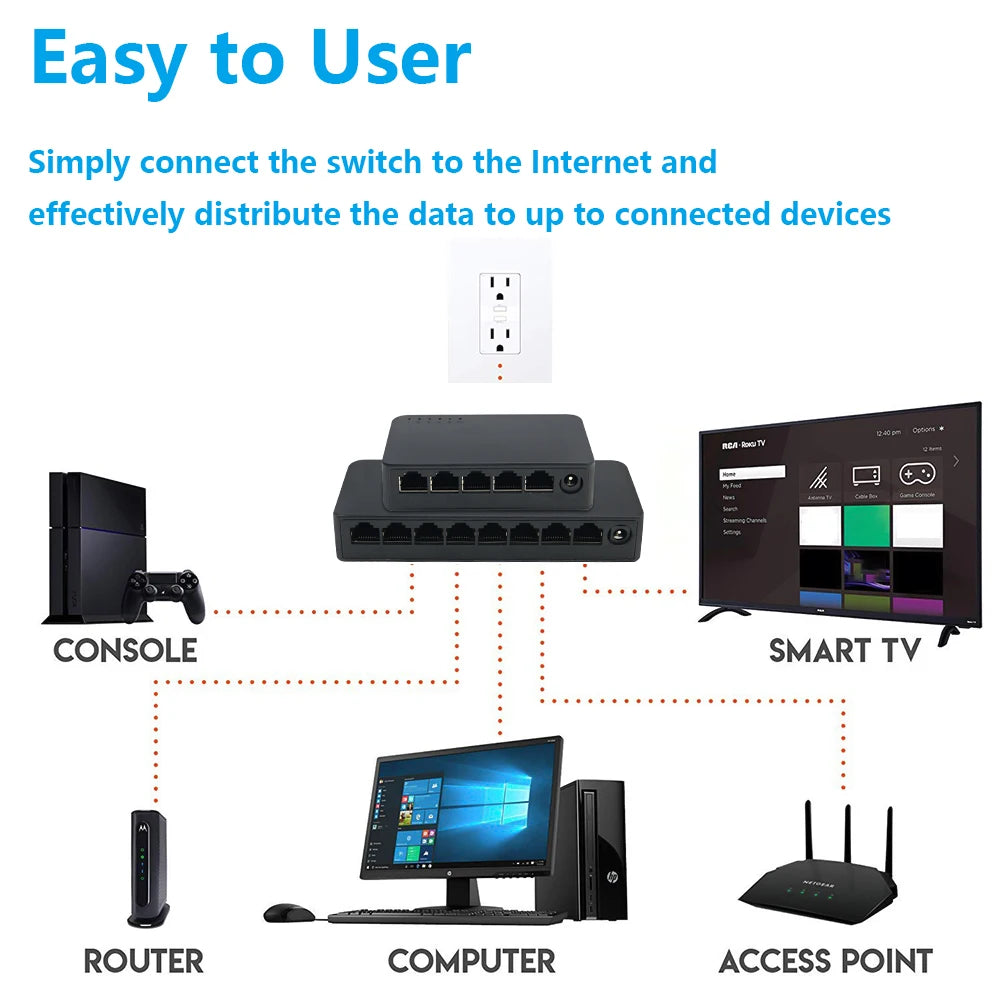

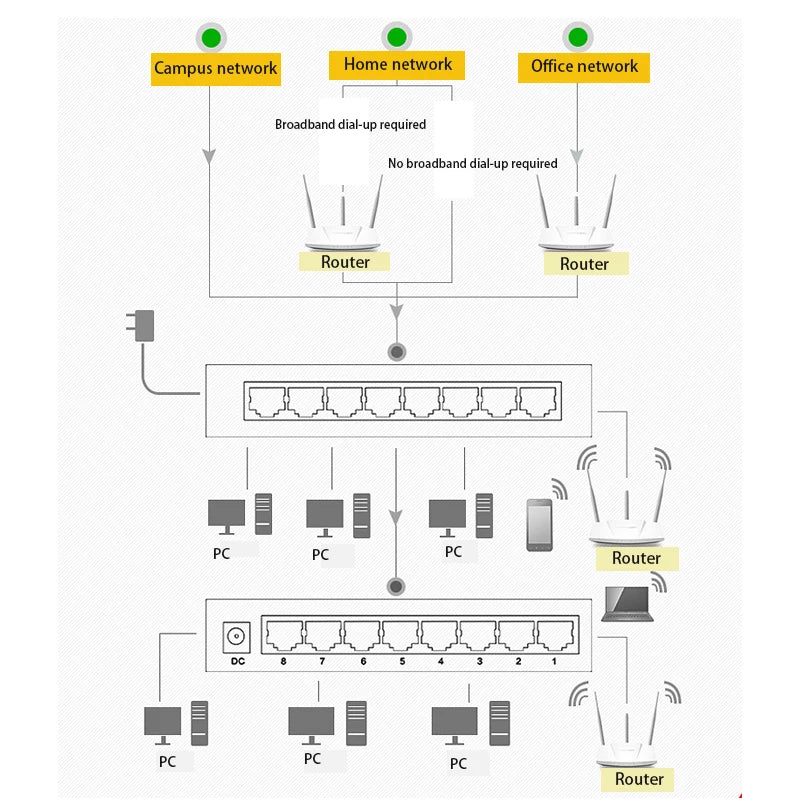

Overview: This unmanaged desktop switch instantly expands wired connectivity for small networks. Ideal for homes, small businesses, classrooms, and surveillance systems, it supports wire-speed forwarding for typical Ethernet frame sizes (64–1518 bytes) and helps prevent congestion with multicast support and flow control. No configuration required—just plug in the power and network cables.
Hashtags: #EthernetSwitch #GigabitNetwork #FanzyMarket
Safety Notes:
This device uses an external power adapter. Use only the recommended adapter and voltage, disconnect power before cleaning, and avoid exposing the unit to moisture. Do not open the housing or attempt repairs—risk of electric shock. Keep out of reach of children and place on a stable, ventilated surface during operation.
