Compact power. This handheld 4-inch touchscreen spectrum analyzer covers 100 kHz to 5.3 GHz, doubles as a signal generator, records data to a 32GB microSD card, and supports USB Type-C PC control—perfect for RF engineers, technicians, and hobbyists for field testing and diagnostics.

Specifications:

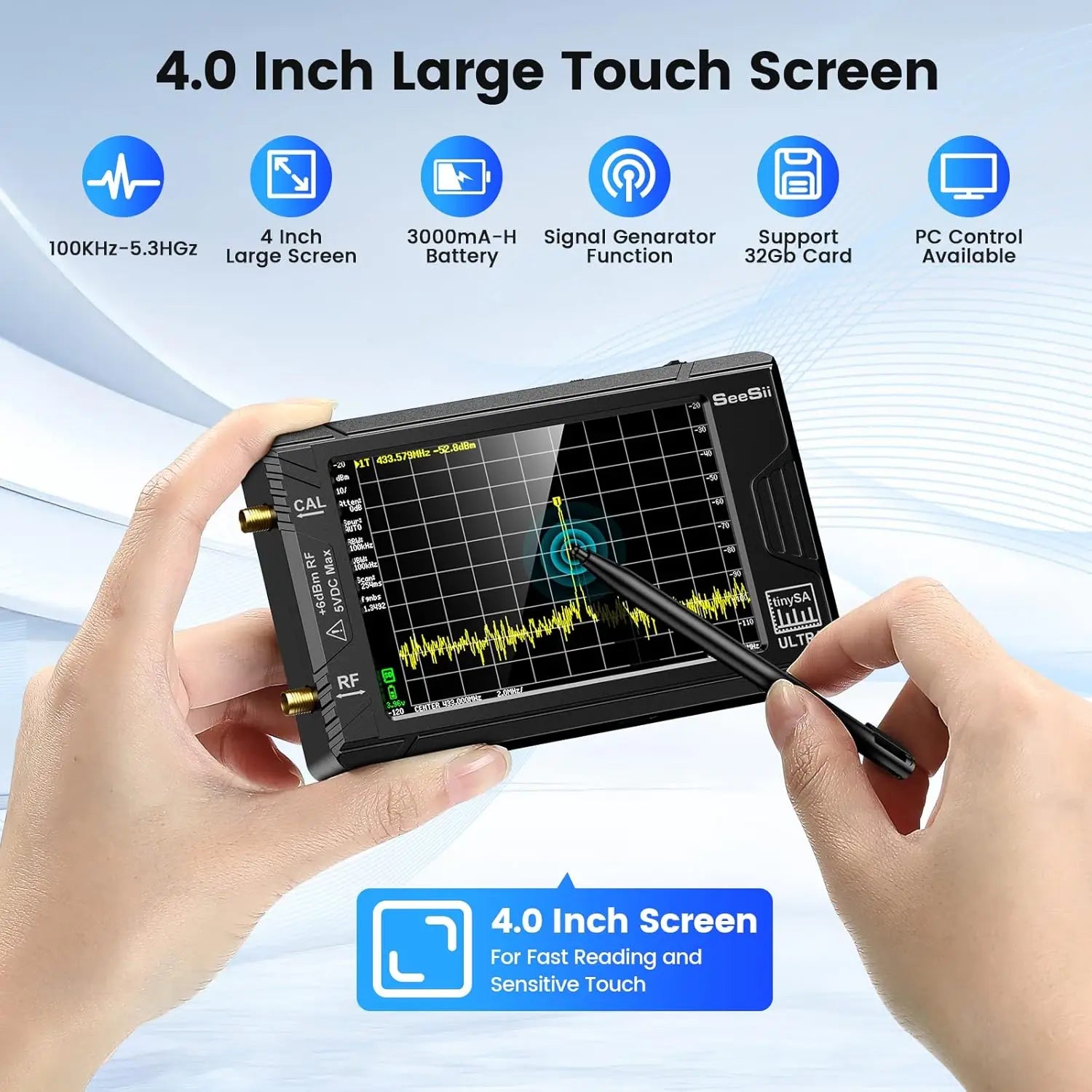

  • Display Size: 4.0" TFT LCD (480 × 320) — 4.0 in (10.16 cm)
  • Display Resolution: 480 × 320 pixels
  • Frequency Range: 100 kHz to 5.3 GHz (ultra-wide)
  • Spectrum Analyzer Range: 0.1–800 MHz (standard), Ultra mode up to 0.1 MHz–6 GHz
  • Max Output Frequency: Sine up to 800 MHz, square/dual-tone up to 4.4 GHz
  • Output Level: -104 dBm to -16 dBm

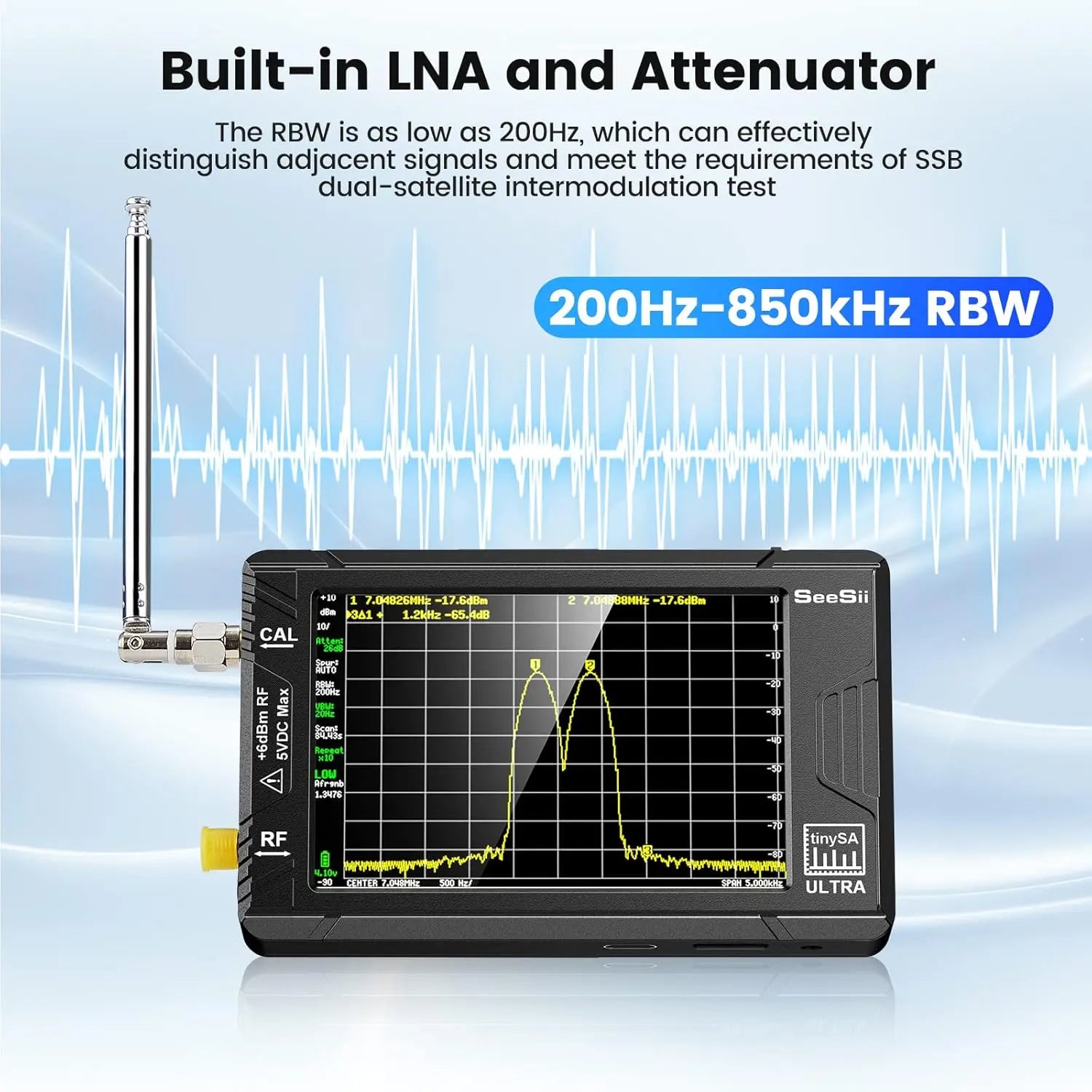

  • Resolution Band-Pass Filters: Switchable 200 Hz to 850 kHz (1, 3, 10 steps)
  • Internal LNA Gain: 20 dB up to 4 GHz
  • Displayed Points per Scan: Up to 450 points
  • 0–350 MHz Scan Time: 165 ms
  • Shortest Zero Span Time: 17 ms
  • DANL at 100 MHz: -153 dBm/Hz (LNA Off) / -169 dBm/Hz (LNA On)
  • DANL Degrading in Ultra Mode: +10 dB above 2.5 GHz, +25 dB above 5.3 GHz
  • Phase Noise: -92 dBc/Hz at 10 kHz offset; -110 dBc/Hz at 100 kHz offset
  • Input 1 dB Compression Level: +0.5 dBm (LNA Off) / -26.5 dBm (LNA On)
  • IIP3: Without LNA +18 dBm (≥2 MHz apart) / 0 dBm (500 Hz apart); With LNA -8 dBm (≥2 MHz apart)
  • Frequency Stability: <1 ppm ( -10°C to +55°C )

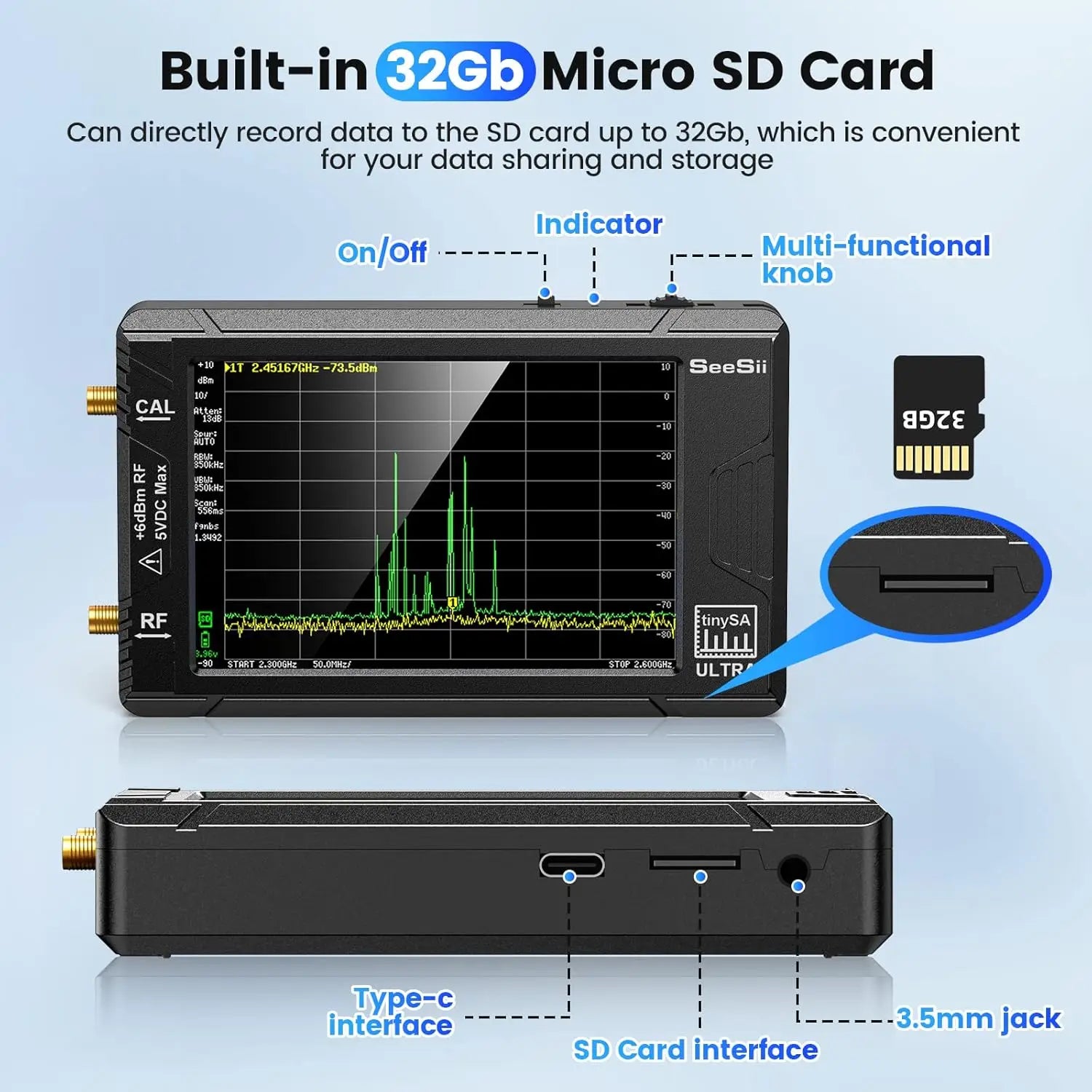

  • SD Card Slot: microSD (32GB included)
  • Audio Out: 3.5 mm headphone jack

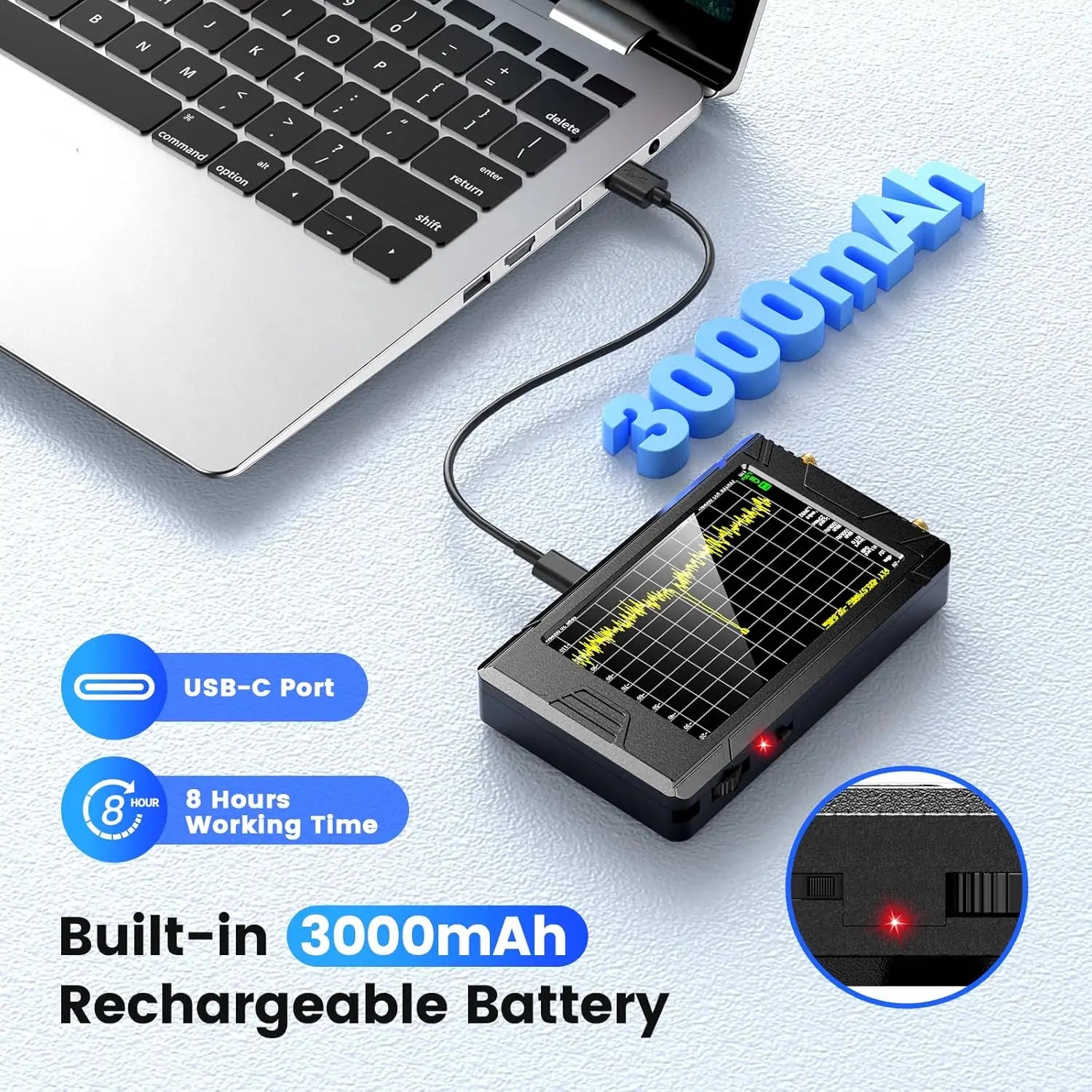

  • Battery: Li‑polymer 3.7 V, 3000 mAh (rechargeable)
  • Charging: USB Type-C, max charging current 1300 mA; full charge ~3 hours
  • Maximum Current Consumption: 330 mA
  • RF Connectors: SMA female
  • Communication Interfaces: USB-CDC (Type-C), UART-TTL (2.54 mm connector)
  • Appearance Size: 117 × 72 × 23 mm (4.61 × 2.84 × 0.91 in) excluding protruding parts
  • Ultra Mode: Level calibrated up to 5.3 GHz
  • Special Features: Built-in signal generator for calibration and testing, ESD protection, PC control via TinySA-compatible app/USB CDC

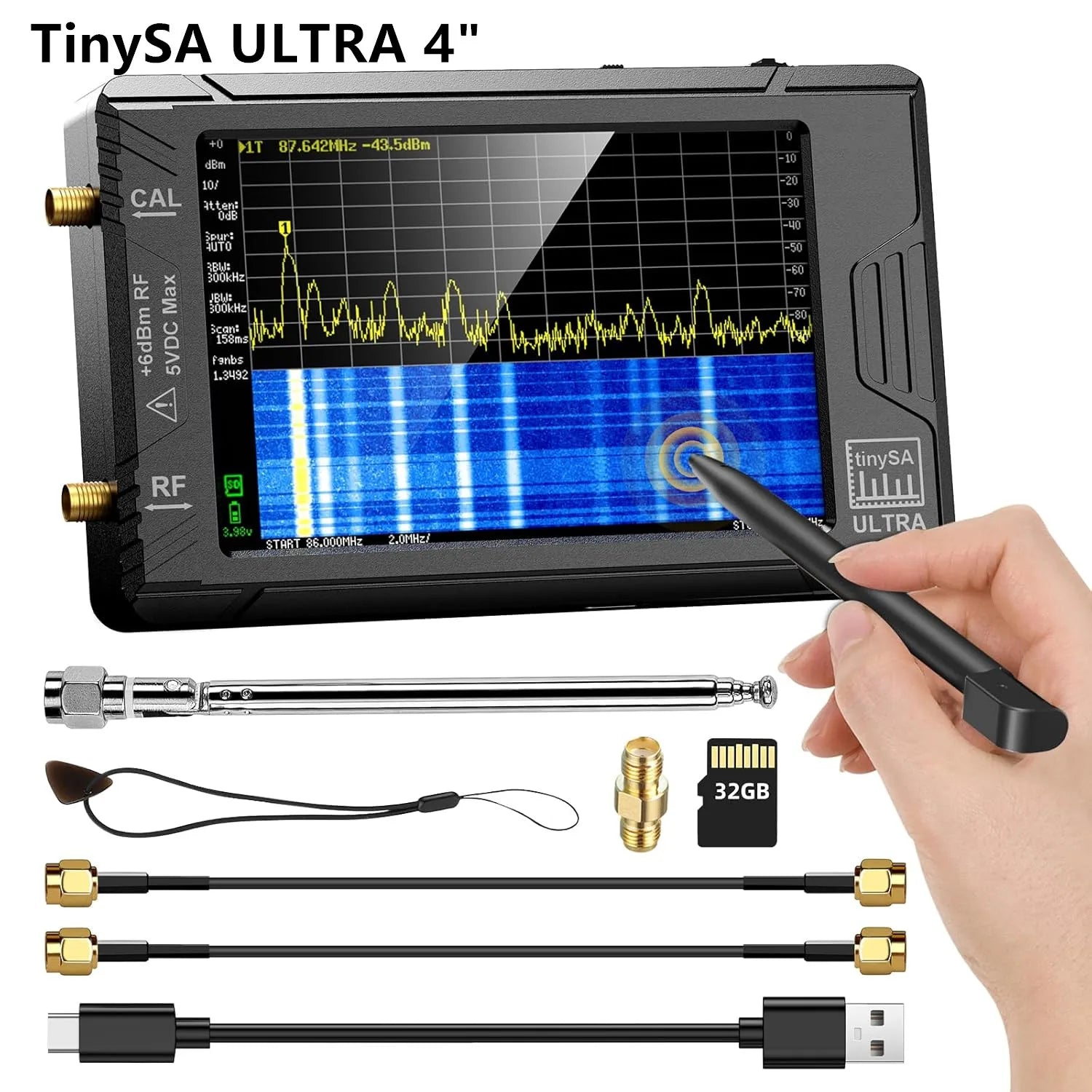

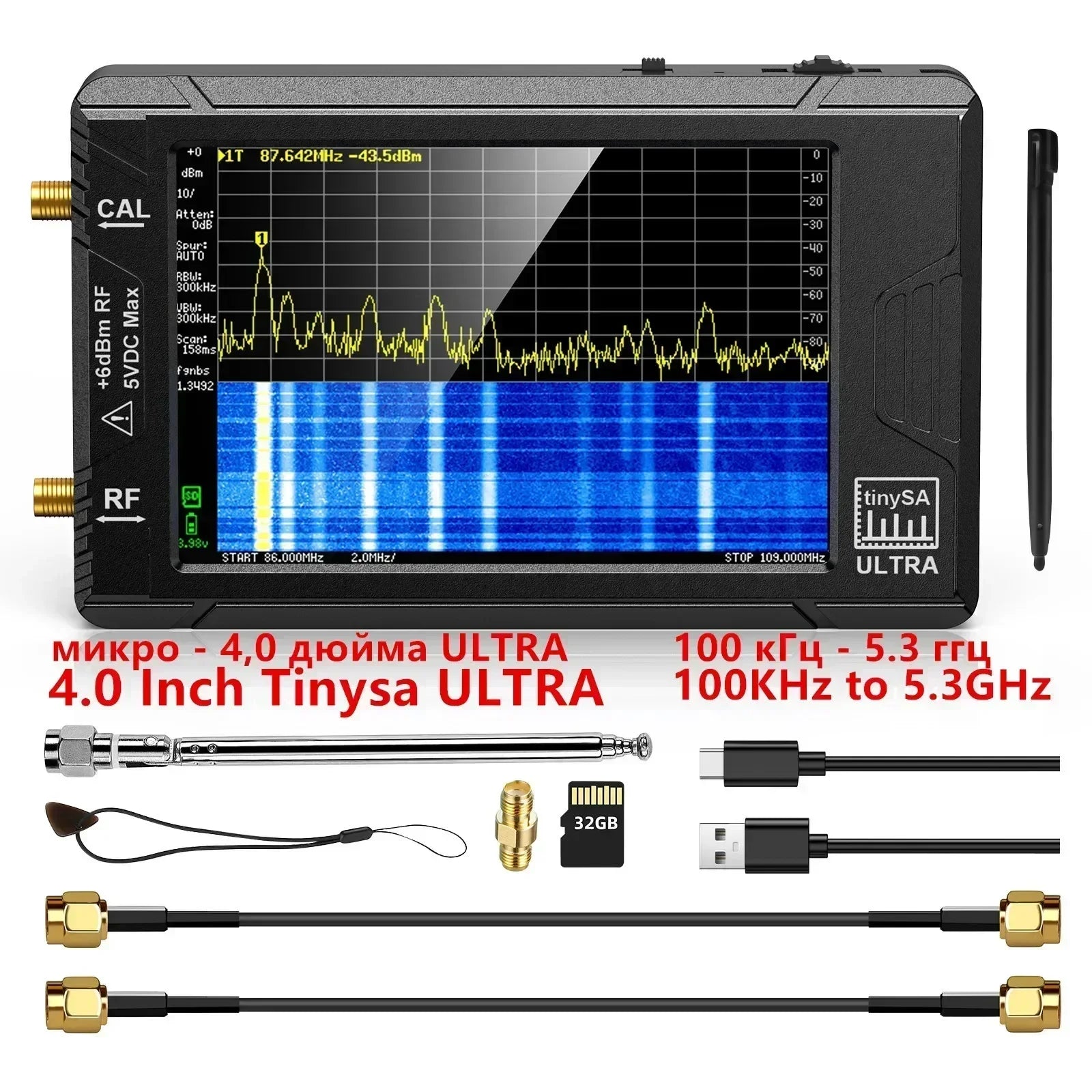

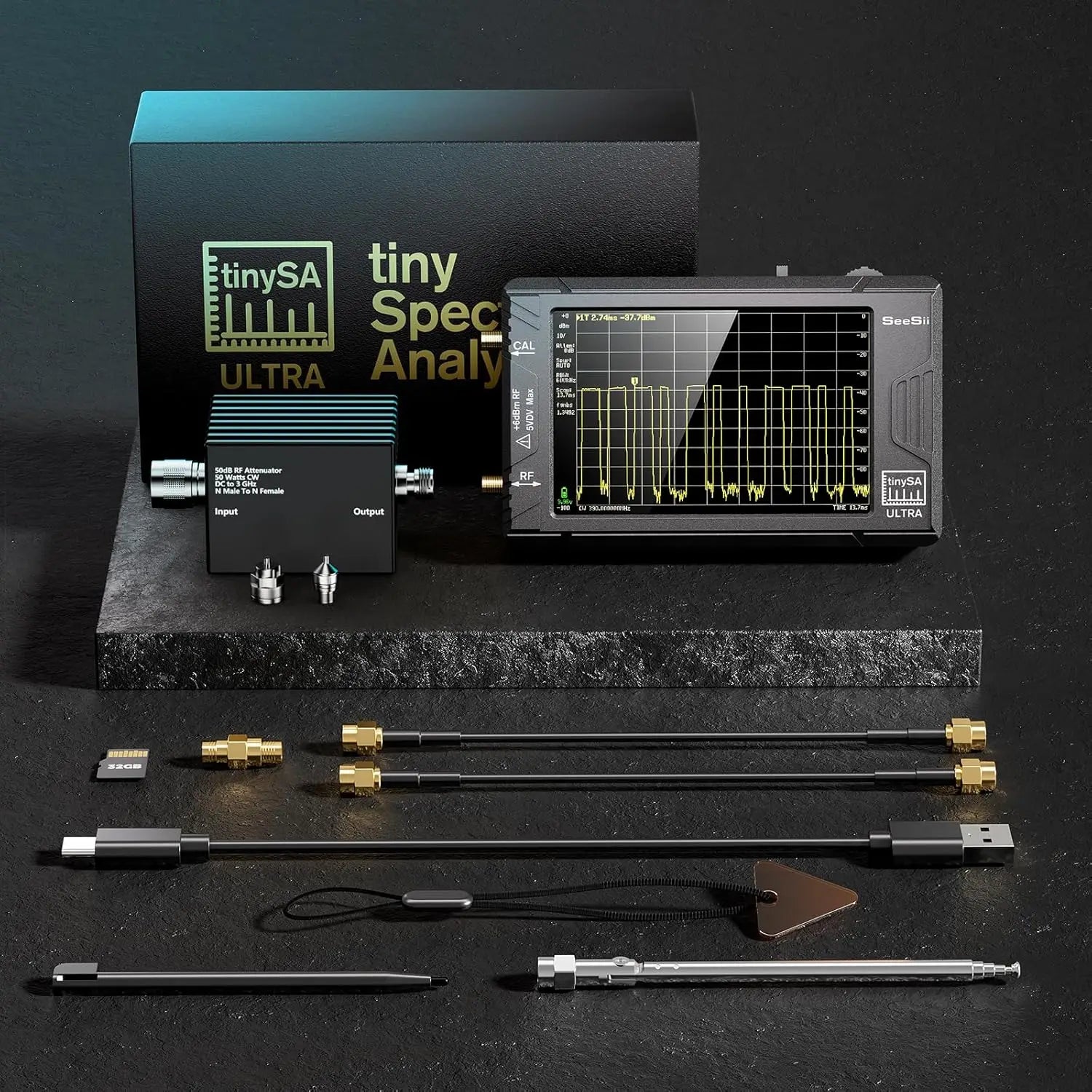

  • Package Includes: Host with 3000 mAh battery and 4" display ×1; USB Type-C data cable ×1; 30 cm ALSR100 SMA cables ×2; SMA-SMA barrel connector ×1; Antenna with SMA connector ×1; Lanyard and touch plectrum ×1; 32GB microSD card (installed) ×1
