Effortless RFID cloning and programming in a compact handheld tool. This portable 125 kHz RFID duplicator lets you read, copy and program common low-frequency access cards and key fobs quickly without a PC—ideal for access control maintenance, security testing, and rapid card provisioning.
Specifications:
- Model Number: IDW01
- Certification: CE
- Type: 125 kHz ID RFID Duplicator / Reader / Writer
- Compatibility: Reads EM/TK series (EM4100, TK4100); Writes to EM4305, T5577, EM4205 and compatible 125 kHz cards/keys (also compatible with CET5200, EN4305)
- Read Distance: 0–6 cm (0–2.36 in)
- Operation: Standalone handheld device, no PC required
- Controls: 2 buttons for simple Read and Copy operations
- Indicators: Built-in LED lights and buzzer for status feedback

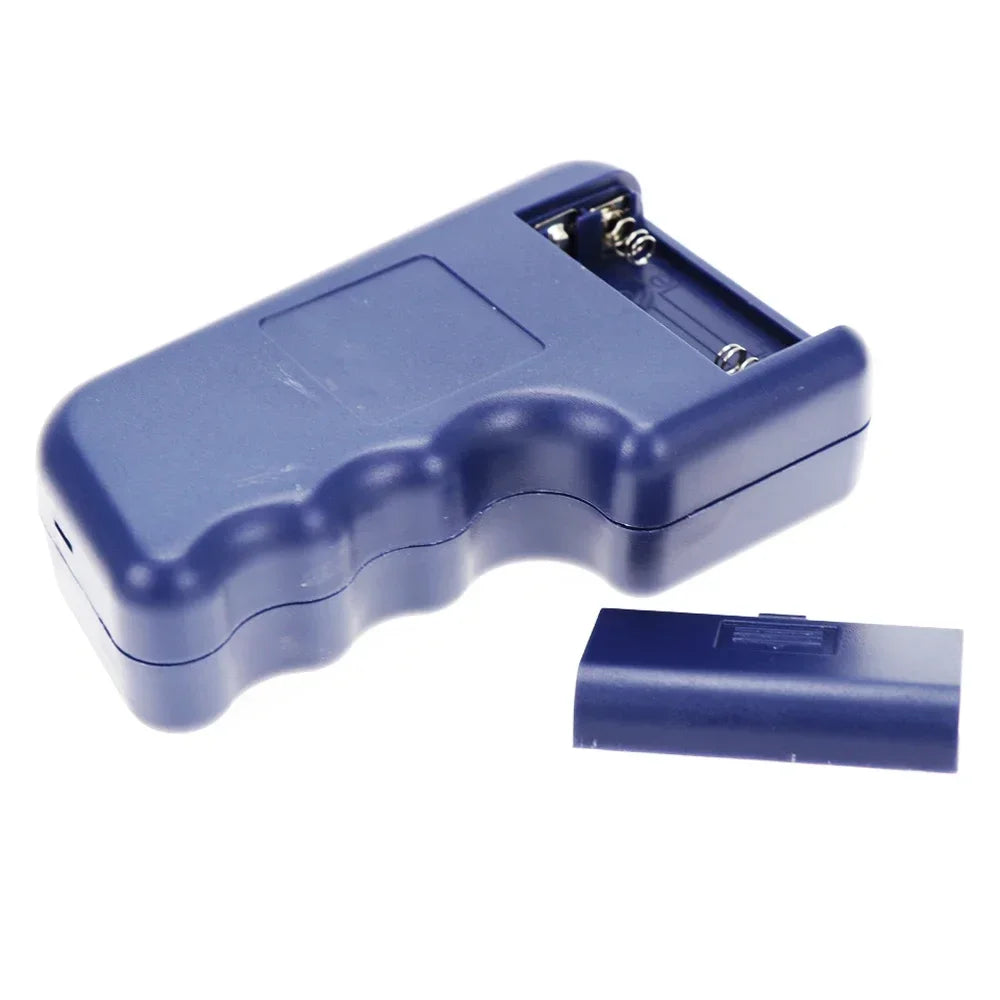

- Power Supply: 3V (2 x AAA batteries)
- Durability: Read/Write cycles > 20,000 times

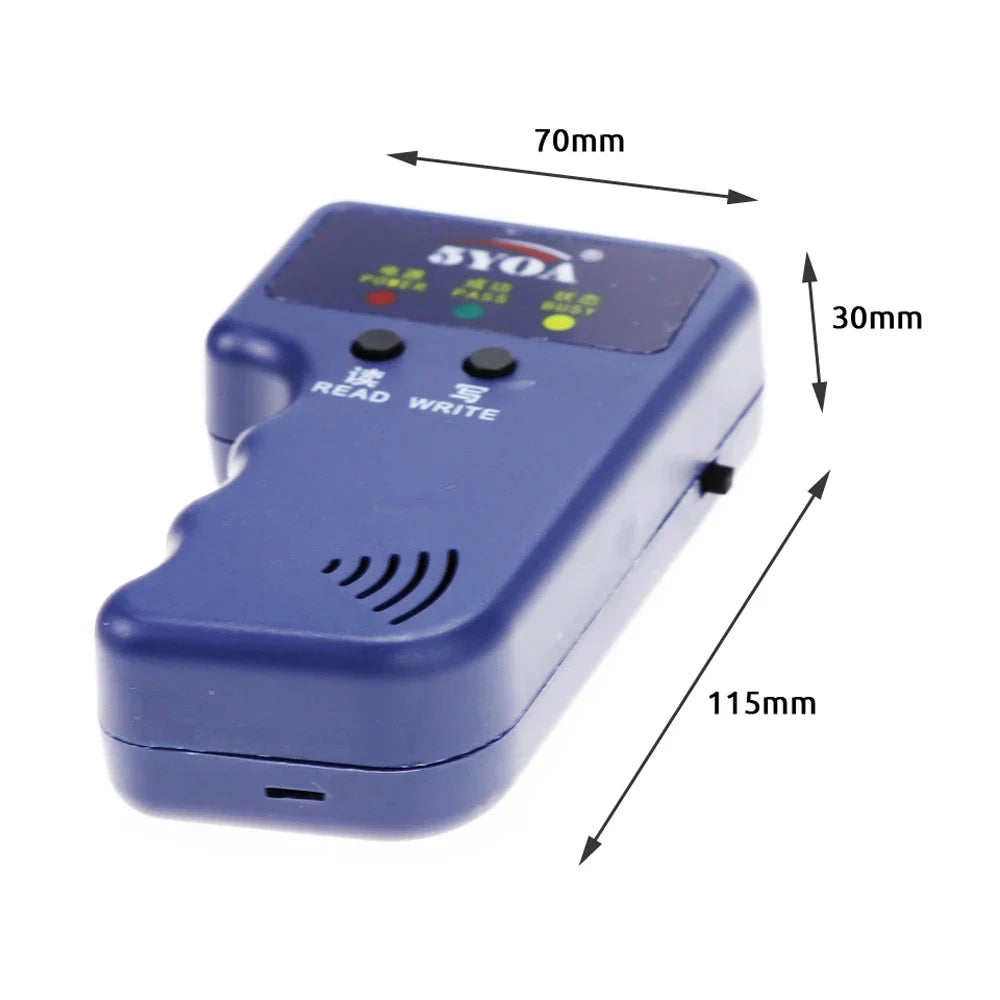

- Size (L × W × H): 115 × 70 × 30 mm (4.53 × 2.76 × 1.18 in)
- High-concerned chemical: None

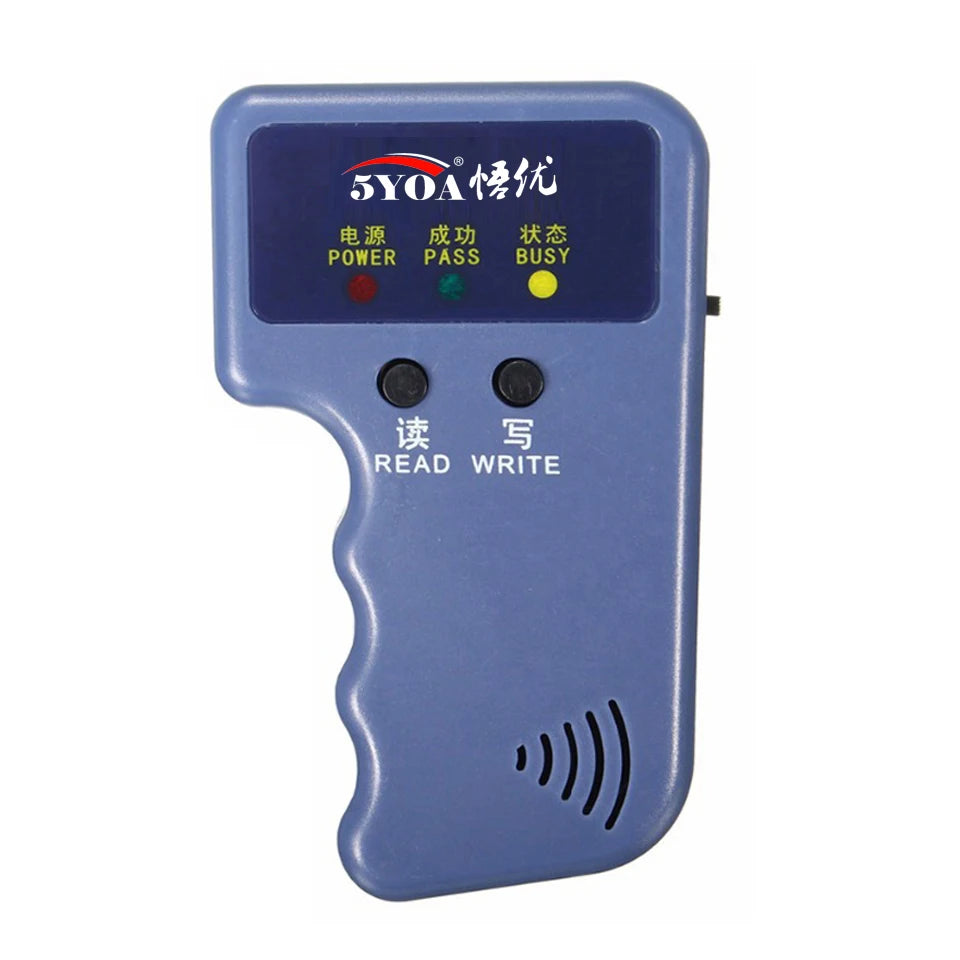

Overview: Handheld, ergonomic design with clear status LEDs and buzzer for success/failure indications. The device performs standalone read and copy actions—place a supported proximity card in the induction area and hold the Read button; then place a blank writable card and hold the Copy button to program. Ideal for facility managers, locksmiths, and security technicians who need a quick, portable cloning solution.
Usage Notes:

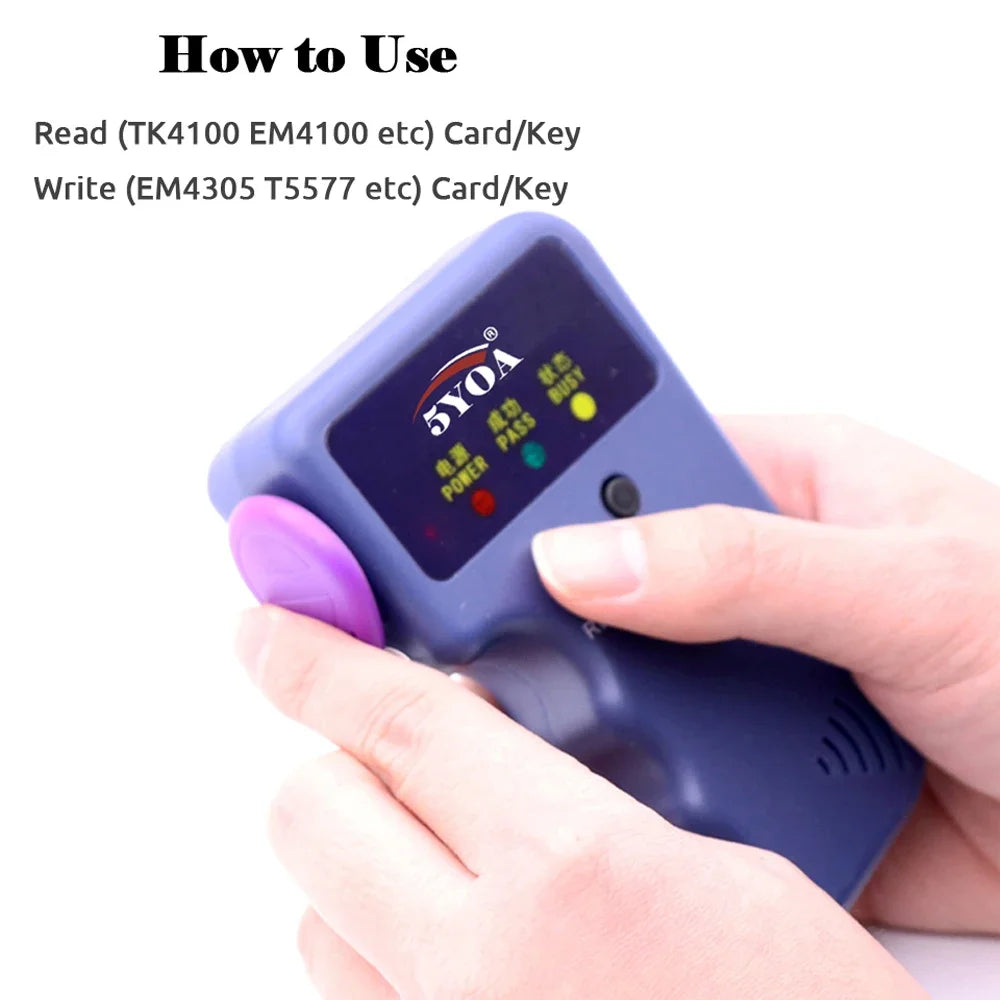

- Read: Place inductive proximity card (EM4100, TK4100, or cards containing EM4305/T5577 data) in the induction area and press the left Read key. A green LED and buzzer indicate success.
- Copy: After a successful read, place a blank writable card in the induction area and press the right Copy key. A yellow LED and buzzer indicate successful write.
- Limitations: Only supports 125 kHz low-frequency cards. Does not support HID chips or other non-writable/non-supported chip types. If reading or writing fails, the card may be unsupported or non-writable.
#RFID #AccessControl #FanzyMarket
Safety Notes:
Use only the recommended 2 x AAA batteries and install with correct polarity. Do not mix old and new batteries or different battery types.
Remove batteries if the device will be stored for extended periods. Do not expose batteries or the device to fire or high temperatures.
Keep batteries and small parts out of reach of children. Dispose of batteries properly according to local regulations.
