Description
Protect. High-performance H.265 network video recorder designed for reliable 24/7 home and business surveillance. Capture up to 4K video, use face and human detection to reduce false alarms, and access footage remotely via mobile app or P2P — all with efficient H.265 compression to save storage and bandwidth.
Specifications:

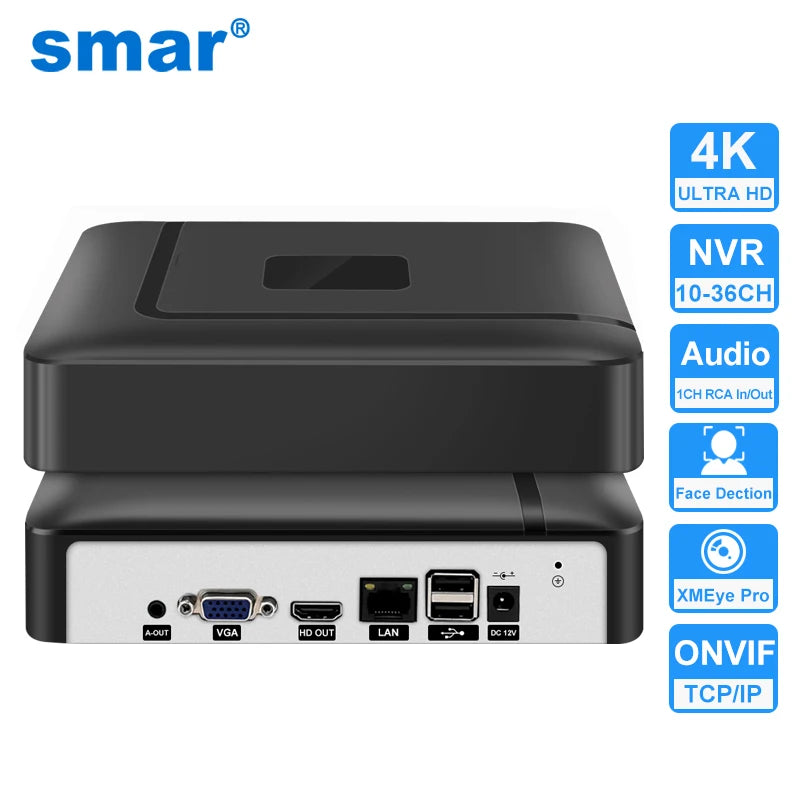

- Product: Network Video Recorder (NVR)
- Channel Options: 9 / 10 / 16 / 32 / 36 channel models (choose by listing)
- Video Compression: H.265 (HEVC), H.264
- Max Video Resolution: Up to 4K (8MP) per supported camera
- Video Input Interface: RJ45 (network)
- Video Output: 1 x VGA + 1 x HDMI (HD/4K compatible)
- Audio Compression Format: G711A
- Audio Input: No
- Audio Output: 1 channel
- Two-way Audio: No
- Storage Supported: Up to 8 TB (per unit, compatible with 3.5" HDD)
- Hard Drive Size: 3.5 in (88.9 mm) SATA
- Hard Drive Interface: SATA
- USB: 2 x USB 2.0 (keyboard not supported)
- Network Interface: RJ45 10/100 Mbps
- Network Protocols: TCP/IP, DHCP, SMTP, HTTP, DDNS, UPNP, PPPoE, FTP, DNS
- ONVIF: Supported (standard ONVIF compatibility; feature set depends on camera/NVR chip)
- P2P / Cloud Access: Supported
- POE: None (use separate POE switch/cameras if needed)
- Power Supply: 12V DC, 2A
- Communication Interface: RS232
- CMS / VMS: Desktop CMS and VMS support for local review and management
- Mobile Remote: Remote view via iOS and Android mobile apps (P2P/Cloud)
- Supported Operating Systems: Windows, macOS, iOS, Android

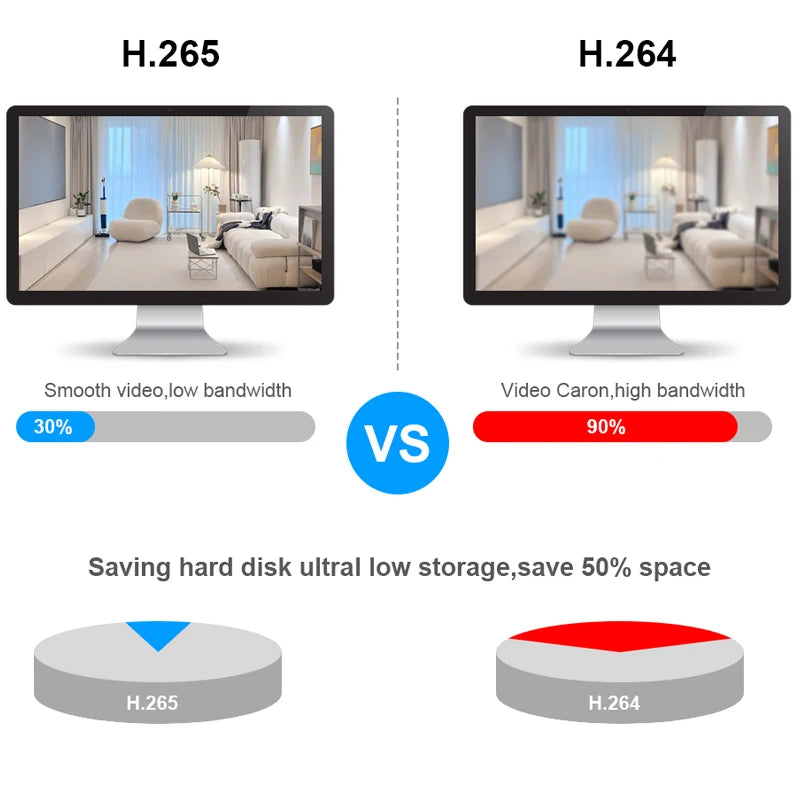

- Compression Efficiency: H.265 reduces bandwidth and storage compared to H.264

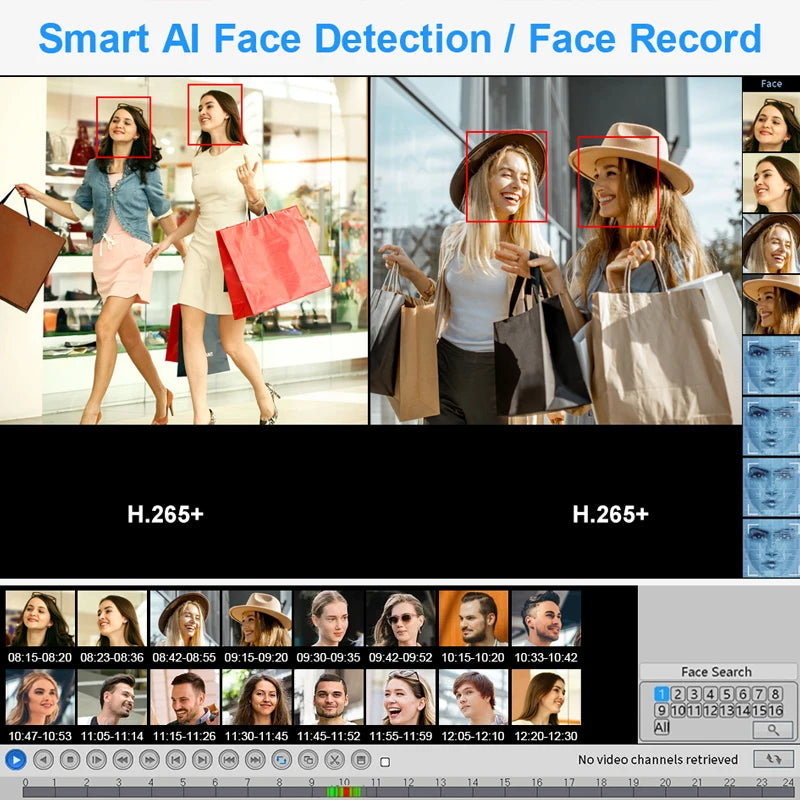

- Smart Features: Face record/face detection/face playback (requires compatible face-detection camera), human detection and motion-triggered email alerts
- USB Backup: Backup to hard drive or USB flash drive
- Packing List: NVR unit (as per channel model), USB mouse, DC12V power adapter, User's manual
- Warranty: One-year limited warranty (terms apply)
Overview: This H.265 NVR provides flexible channel choices and ONVIF compatibility for cross-brand camera connections. Use H.265 compression for efficient long-term recording, enable face and human detection for targeted alerts, and view live or recorded video remotely via the mobile app or P2P cloud. Advanced features such as motion detection, PTZ control and audio support depend on the connected camera's capabilities and system configuration.
Quick setup tips:

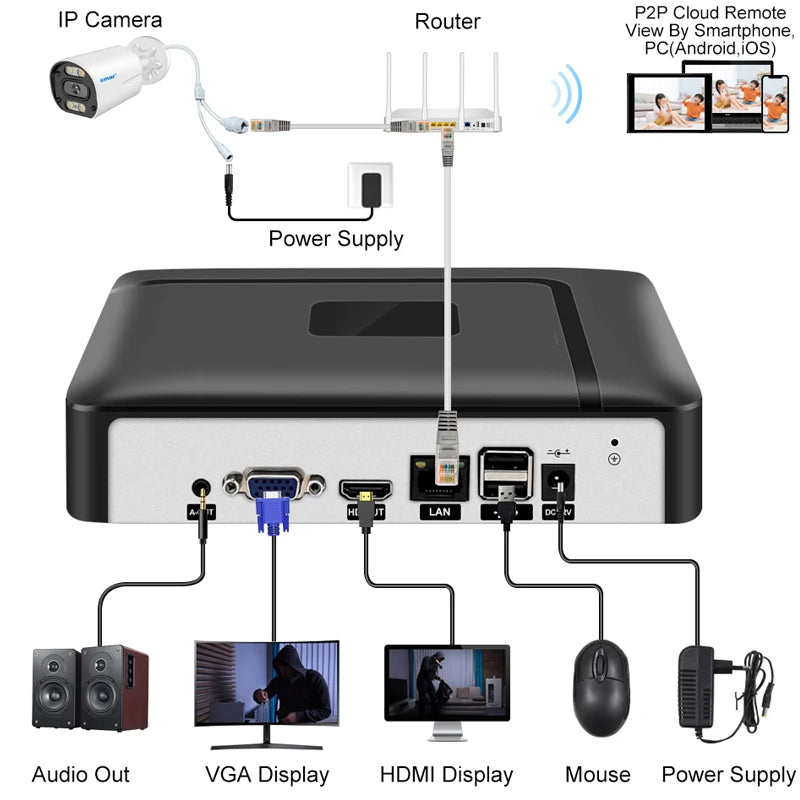

- Power the NVR and IP cameras, connect devices to the same router via network cable, then use the NVR's device search to add cameras.
- Ensure connected cameras support ONVIF for cross-brand compatibility; advanced features require camera-side support.
- Configure SMTP settings in the NVR for email alerts (use your mail provider's SMTP details).
#NVR #4KSecurity #HomeSecurity #FanzyMarket
Safety Notes:
Use only the supplied or equivalent 12V DC, 2A power adapter. Do not connect to higher voltages. Unplug the unit before servicing.
Keep the NVR and power adapter dry and away from moisture. Do not expose to rain or liquids.
Avoid opening or disassembling the unit; repairs should be performed by qualified personnel to prevent electric shock or voiding the warranty.
Use surge protection and stable power sources for continuous operation. Back up important footage regularly to avoid data loss.
