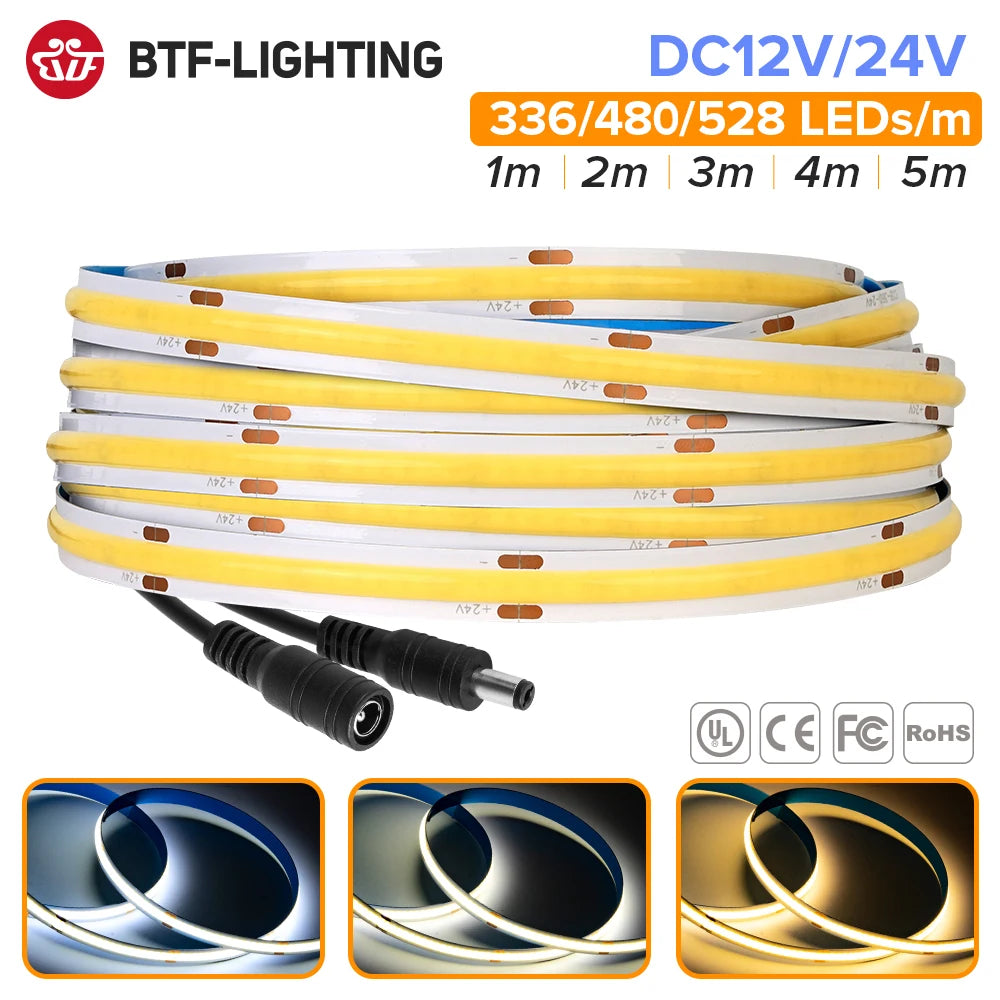

Brighten your spaces with a high-density, flexible FCOB COB LED strip designed for smooth, uniform lighting. Ideal for under-cabinet, bedroom, display, and architectural accent lighting, this dimmable strip delivers high CRI color rendering and low glare for professional-quality illumination.

Specifications:

• LED Density: 336 / 480 / 528 LEDs per meter
• Input Voltage: DC 12V / DC 24V
• Theoretical Power: 336 = 9 W/m, 480 = 9 W/m, 528 = 14 W/m
• FPCB Width: 336/480 = 8 mm (0.31 in), 528 = 10 mm (0.39 in)
• Cutting Lengths (DC12V / DC24V):
  • 336: every 35.5 mm (1.40 in) / 71.5 mm (2.82 in)
  • 480: every 25 mm (0.98 in) / 50 mm (1.97 in)
  • 528: every 22.5 mm (0.89 in) / 45.5 mm (1.79 in)

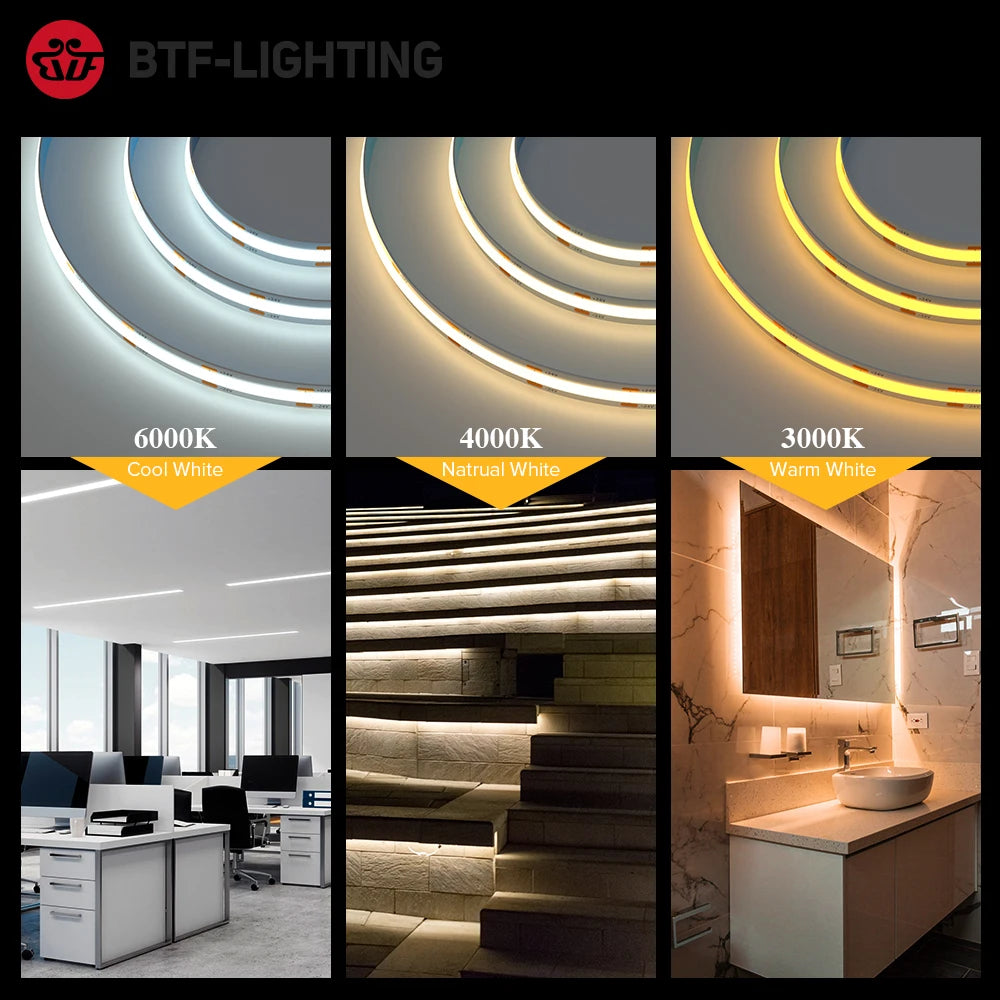

• Color Temperature: 3000K (Warm White), 4000K (Neutral/Natural White), 6000K (Cool White)
• Color Rendering Index (CRI): Ra > 90 (CRI90)
• Luminous Flux: Approx. 2,000–82,000 lm (varies by density and total length)
• Operation Temperature: -20°C to +45°C (-4°F to 113°F)
• Storage Temperature: -20°C to +60°C (-4°F to 140°F)
• Viewing Angle: 180°
• Waterproof: No (non-waterproof)
• Mounting: 3M adhesive tape on PCB back — ensure surface is smooth, clean and dry for best adhesion
• Package Includes: FCOB LED strip only (power supply, dimmer/controller and connectors not included unless specified)
• Accessories: 2-pin DC female connector included on short lengths (0.5m/1m/2m). Longer runs may ship without a DC male plug; check listing details.
• Features: No dark area, super flexible, linear dimmable, energy efficient

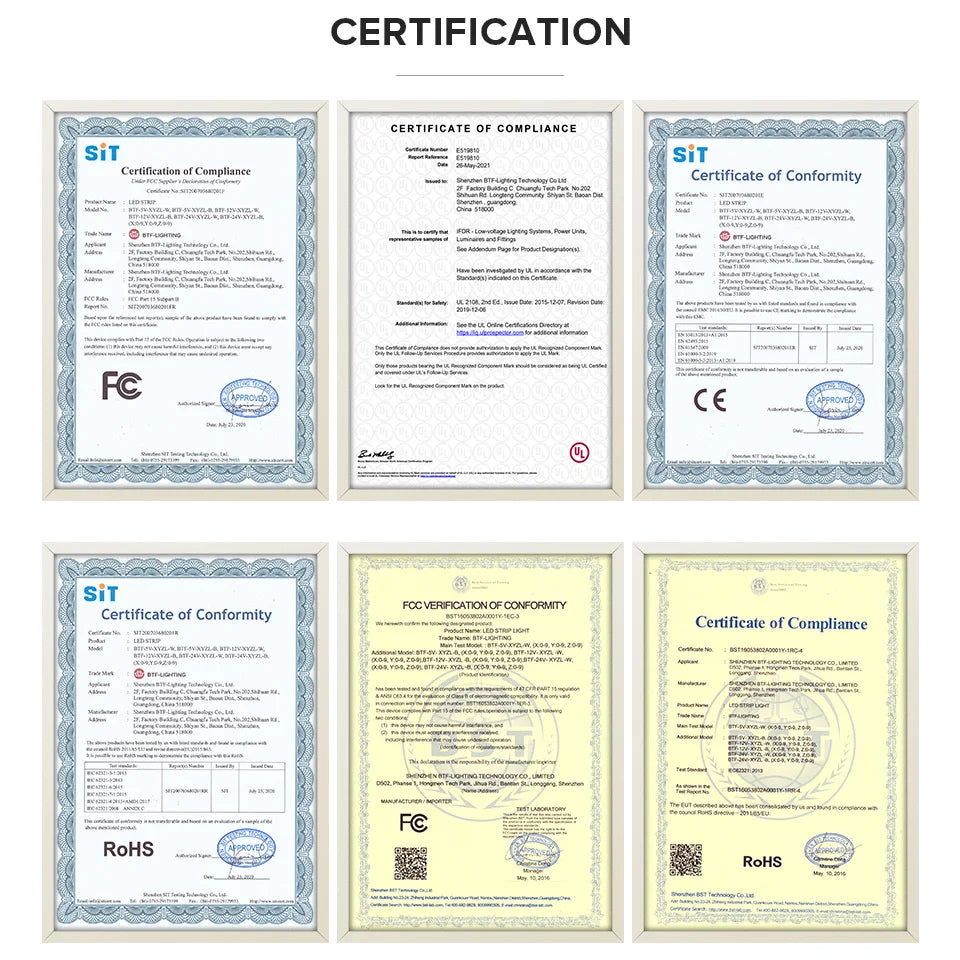

• Certifications: CE, FCC, RoHS, UL

Overview & Installation Notes:

• This strip requires a DC 12V or DC 24V power supply. Do not connect to AC mains directly.
• Every 0.5 m there will be visible solder joints — this is normal and not a defect.
• Do not bend sharply at the LED area; make cuts only at marked shear points.
• Connector polarity: Red = VCC, Black = GND. You may cut off included connectors to hardwire if needed.
• For long runs, feed power to both ends or provide additional power injection points to minimize voltage drop and maintain uniform brightness.
• 10 m orders ship as a single 10 m roll (not two 5 m rolls). A longer run requires a higher-power adapter—plan power accordingly.
• How to choose a power supply (example):
  • Calculate total wattage: e.g., 528 LEDs/m = 14 W/m × 5 m = 70 W
  • Calculate current: 70 W ÷ 12 V = 5.8 A → Choose a power supply rated at least 6 A (preferably higher for headroom)

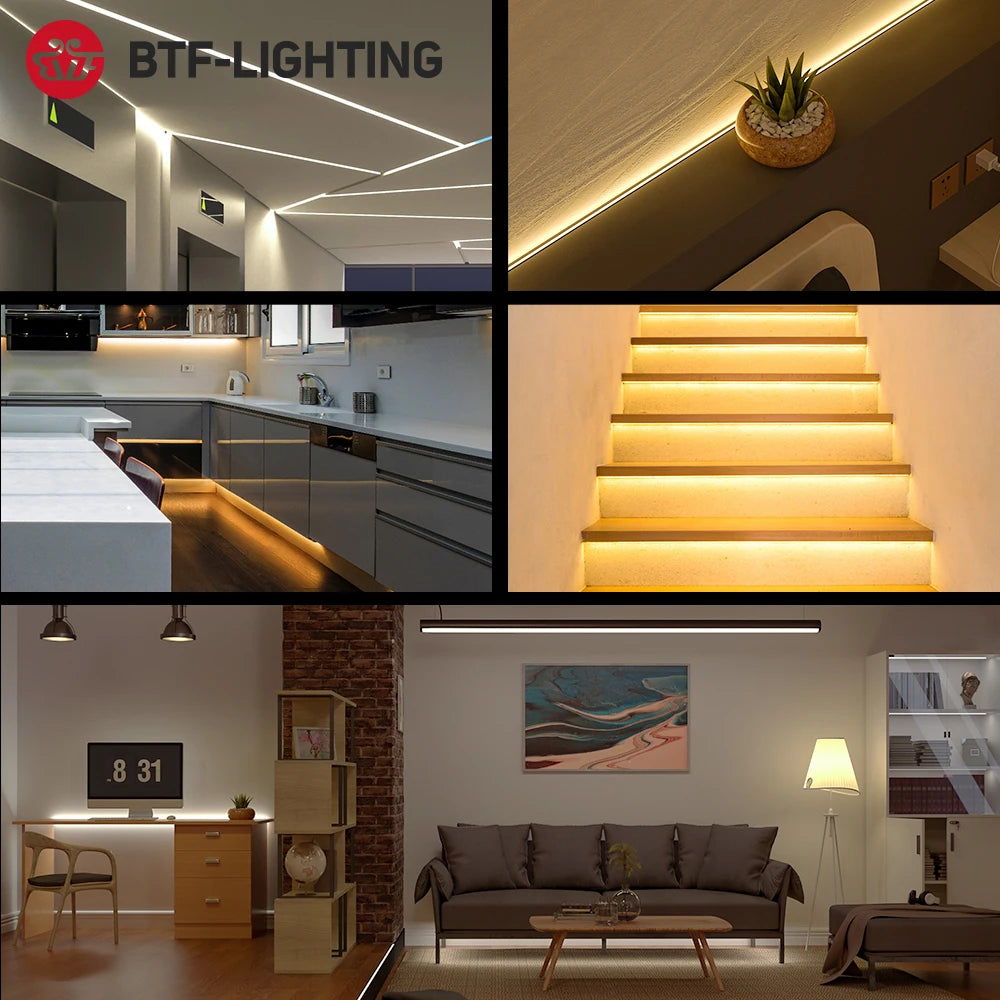

Ideal Uses: Bedroom accent lighting, cabinet lighting, hotel and office illumination, retail displays, home decoration and architectural cove lighting.
