Description

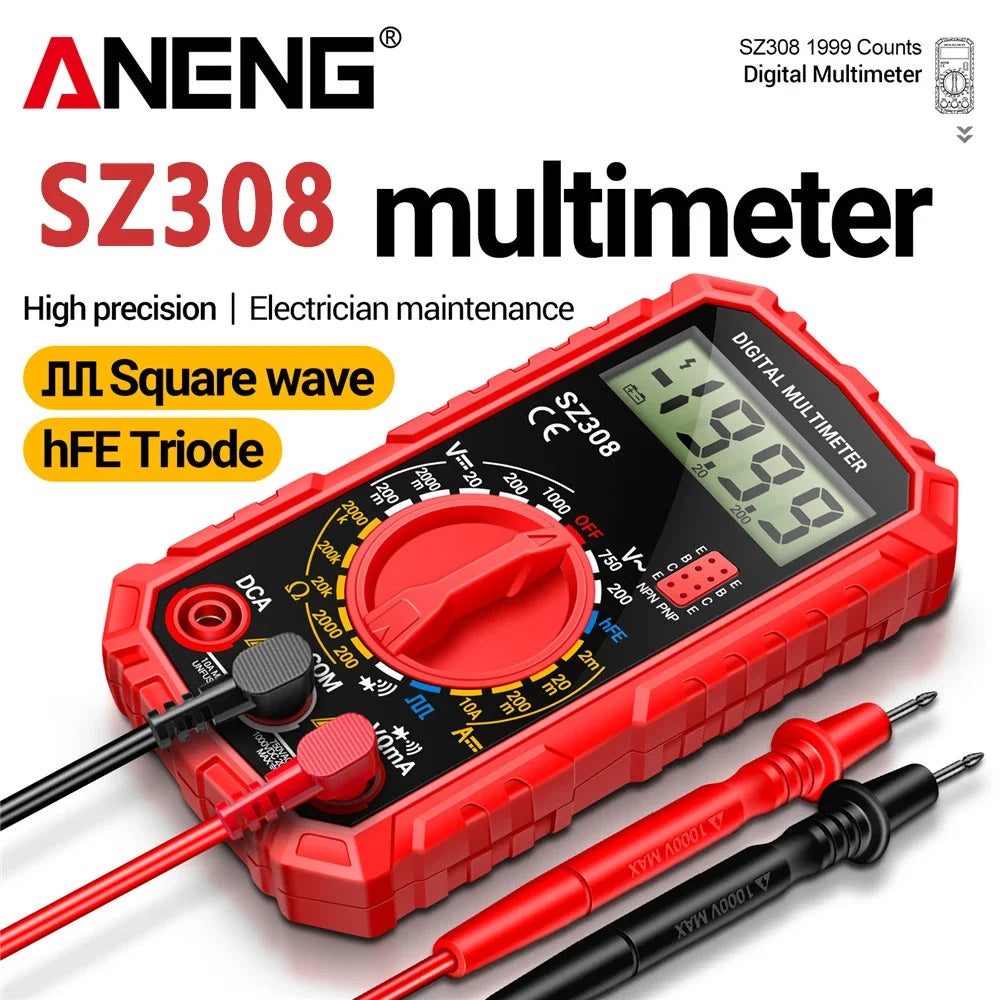

Reliable, pocket-size digital multimeter for electricians, EV owners, and DIYers. Measures AC/DC voltage and current, resistance, capacitance, diode and hFE transistor tests, and includes a built-in square-wave output and LCD backlight for clear readings in any light.

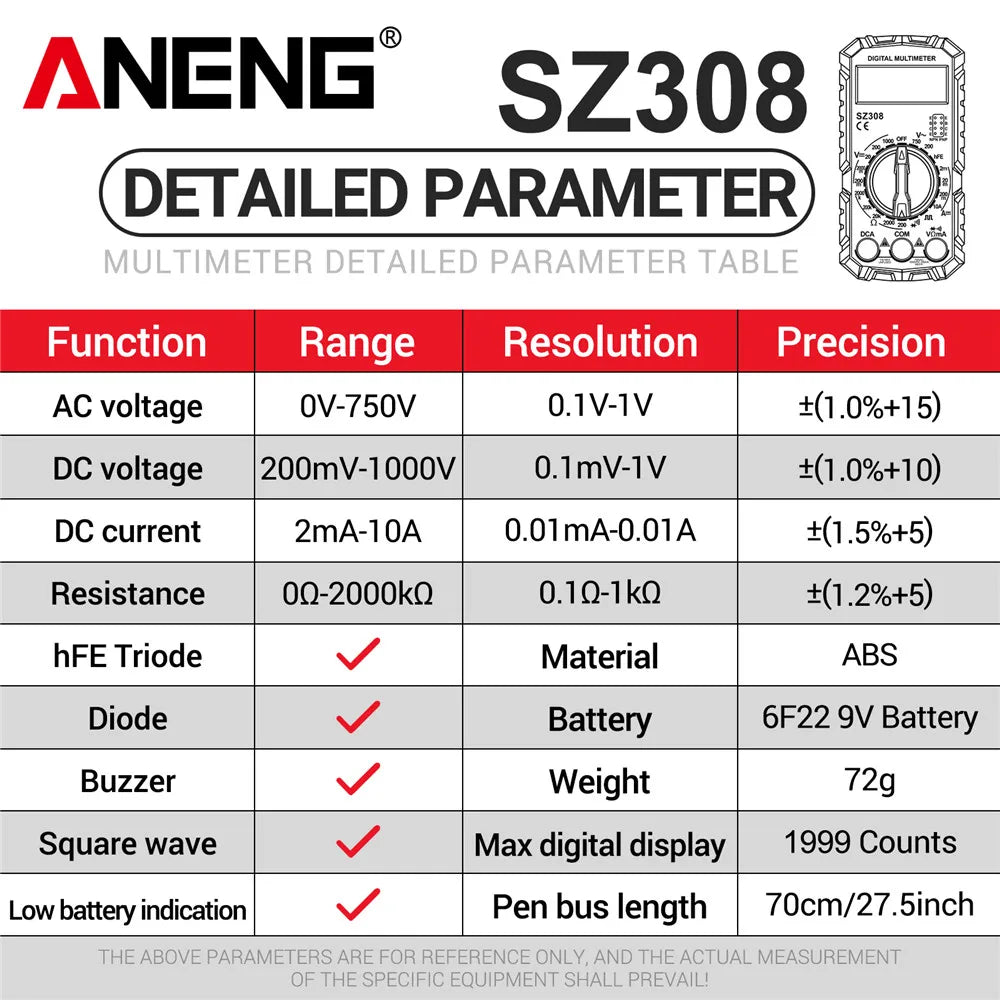

Specifications:

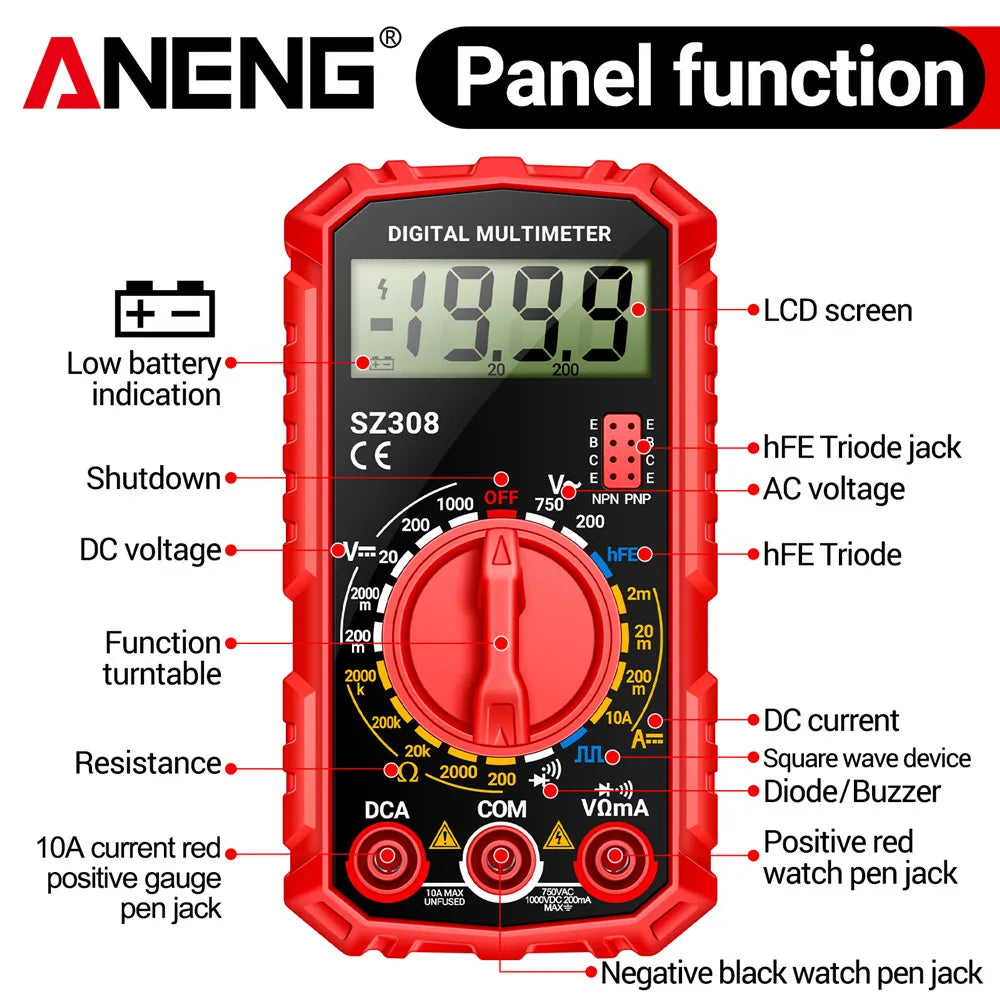

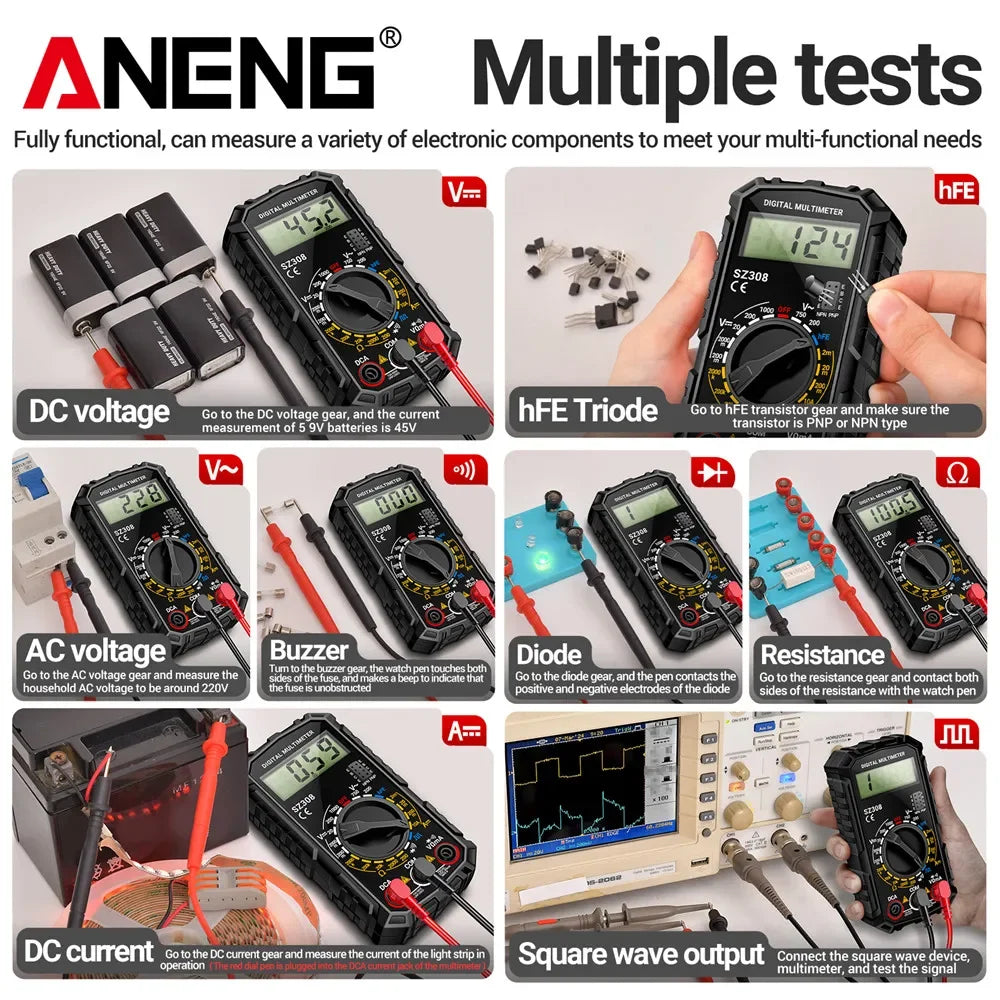

- Functions: AC/DC voltage, AC/DC current, resistance, capacitance, diode test, hFE transistor test, square-wave output

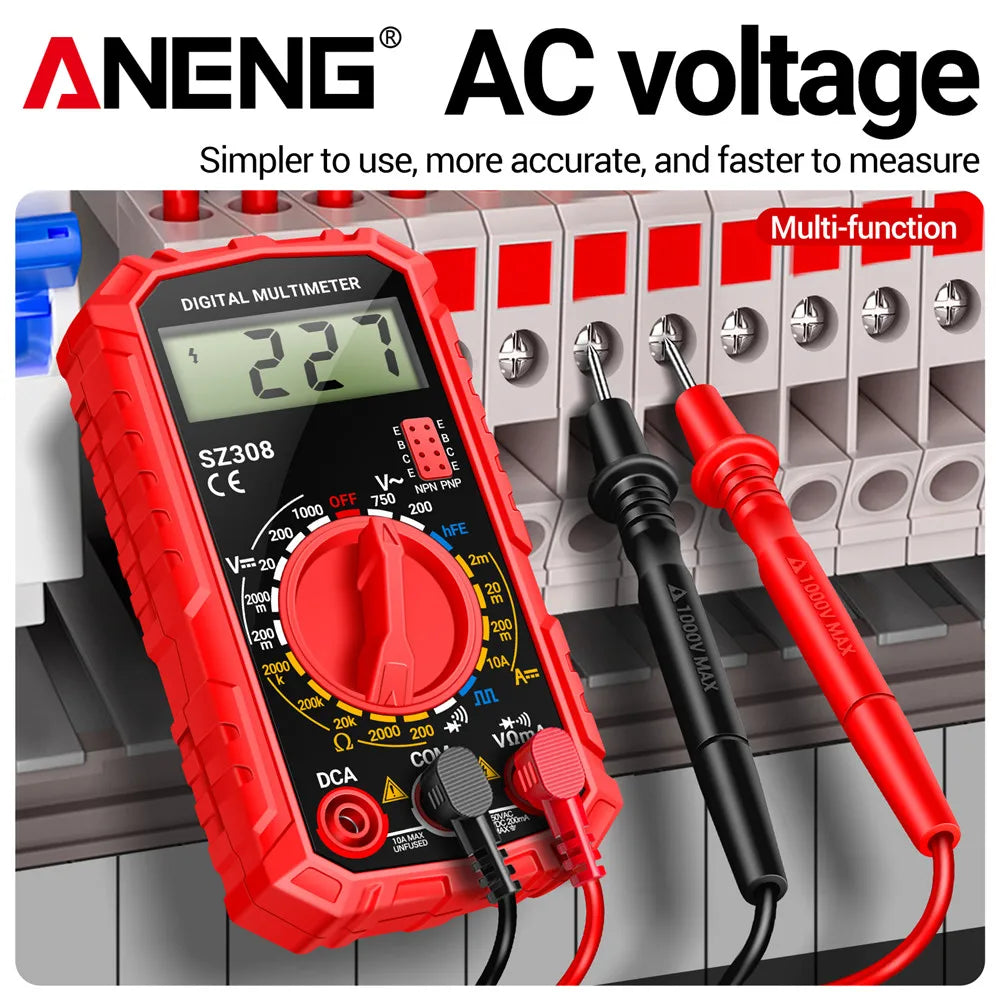

- AC Voltage Range: 200 - 750 V (VAC)
- DC Voltage Range: 200 mV - 1000 V (DC)
- DC Current Range: Up to 10 A DC (additional low-current ranges for mA measurements)
- Resistance Range: 200 Ω - 2 MΩ
- Display: LCD backlight digital display
- Accuracy: True 1999-count precision, ±1% (typical for V/A/Ω)
- Operating Mode: Manual range
- Operating Temperature: 0 - 40 ℃ (32 - 104 °F)
- Battery Included: No (battery not included)
- Certifications: CE, UL

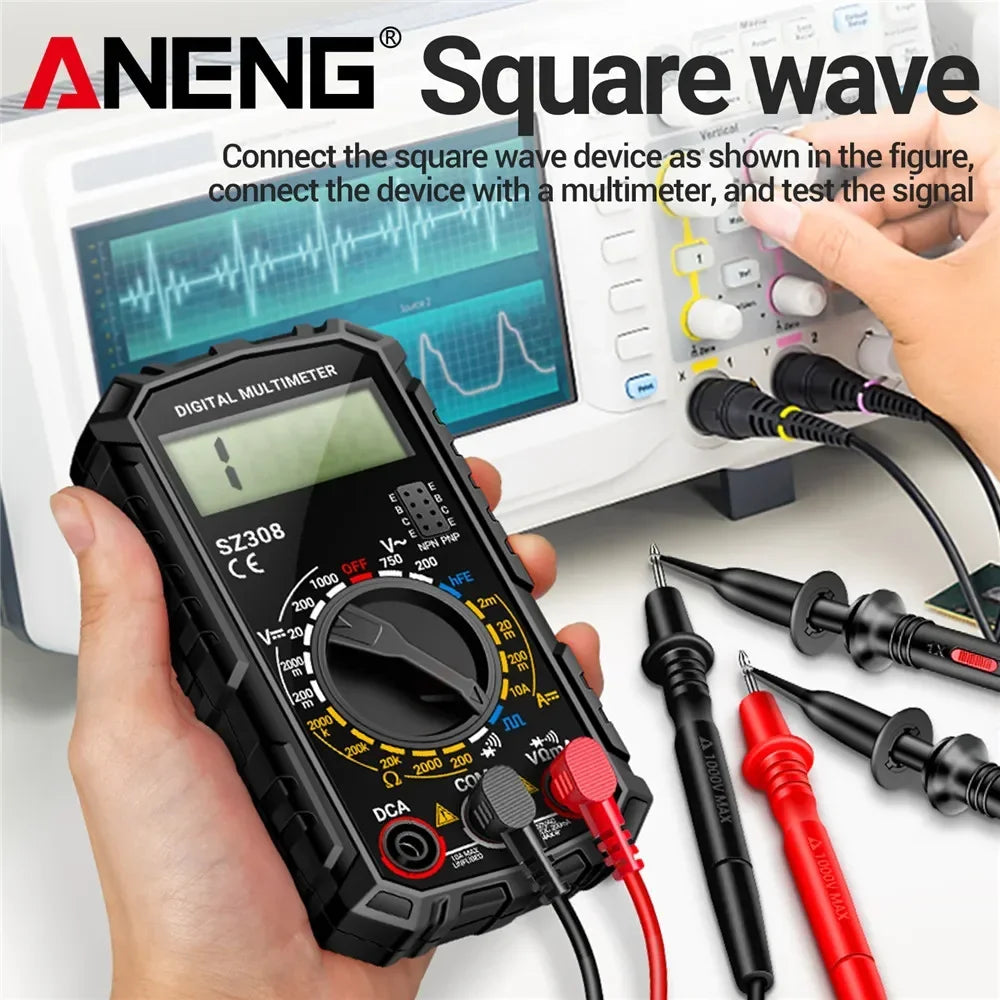

- Square Wave Generator: Built-in
- hFE Transistor Measurement: Yes
- Diode Test & Buzzer: Yes
- Overload Protection: Yes
- Weight: Approx. 72 g (2.54 oz)

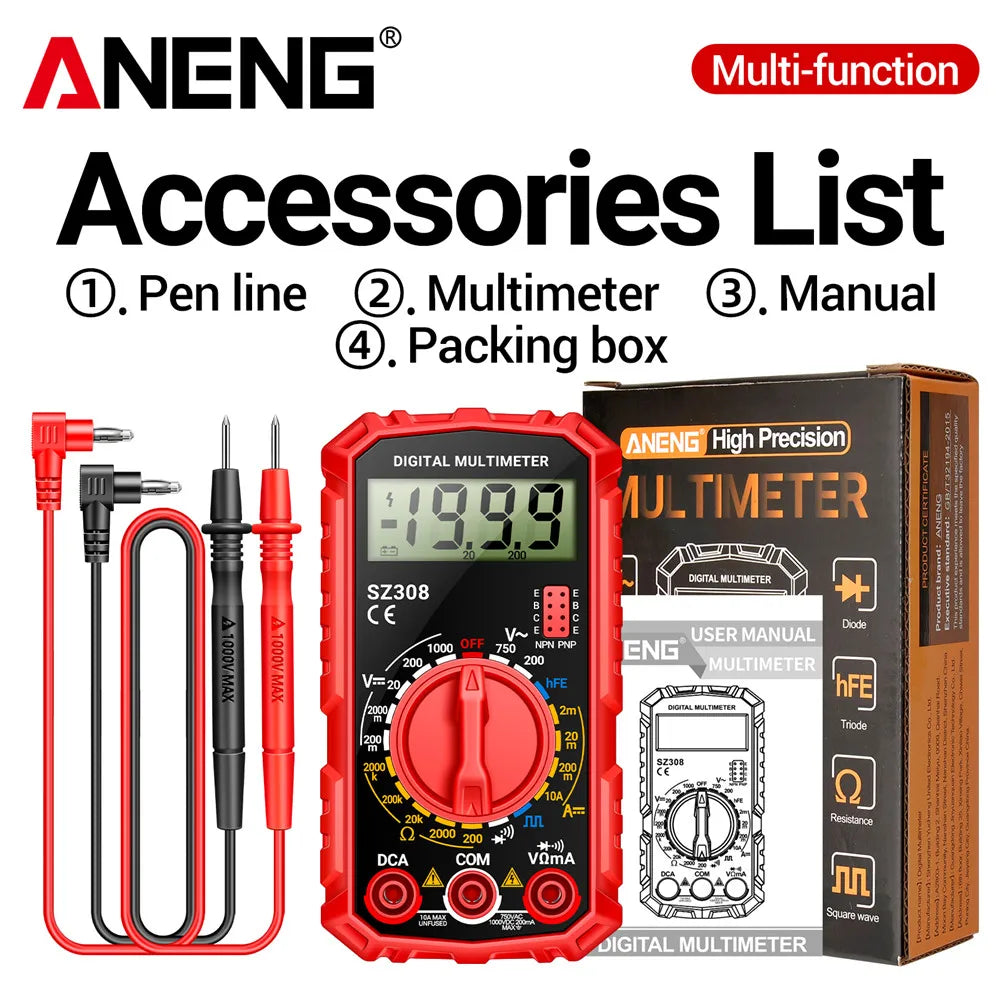

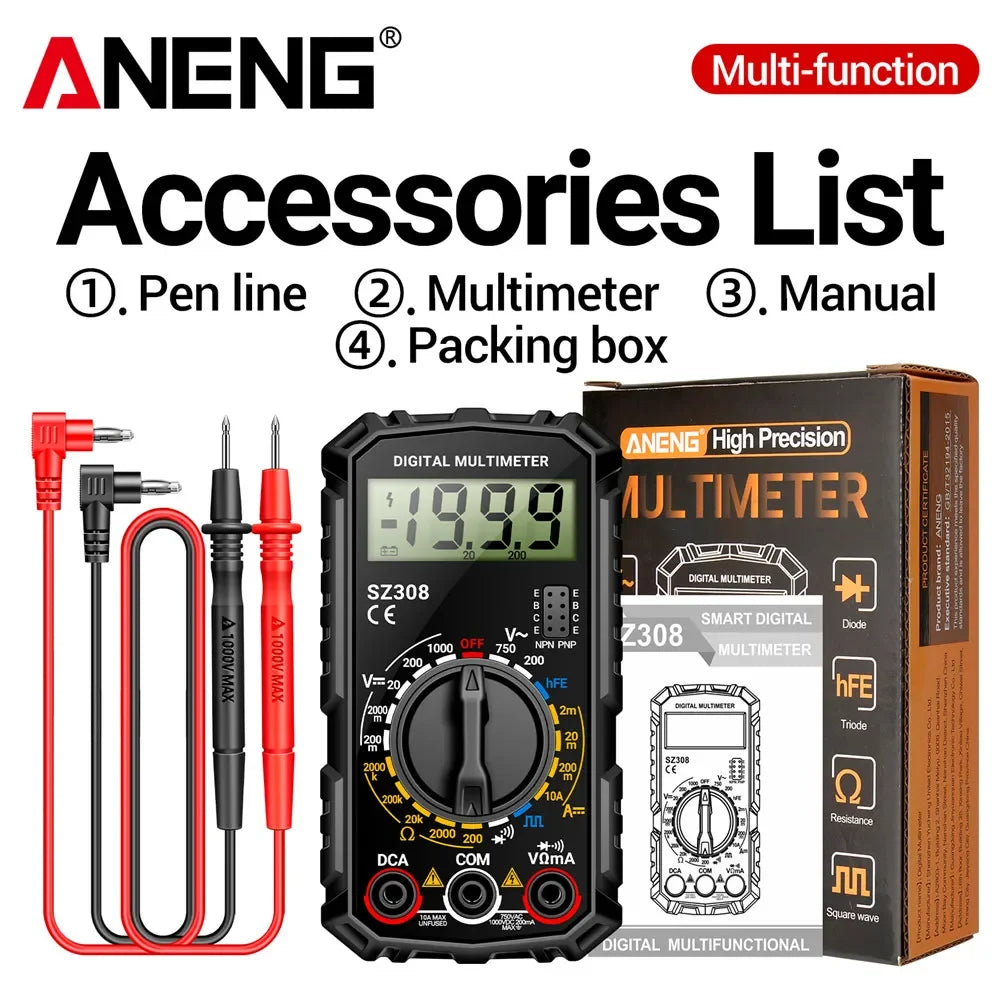

- Package Includes: 1 x Multimeter (without battery), 1 x Test lead, 1 x English user manual, 1 x Packaging box
Compact and anti-slip for one-hand use, this meter covers household, automotive and common EV/e-bike diagnostics with high-voltage ranges and practical test functions. Ideal for professional electricians and home DIY troubleshooting.
Safety Notes:
This is an electrical test instrument. Do not use the multimeter on live circuits beyond its rated voltage. Always follow proper electrical safety procedures and use insulated test leads. Only qualified personnel should perform high-voltage measurements.
Battery safety: This product does not include batteries. Use the correct battery type as specified in the manual, install with correct polarity, remove batteries when storing the device for extended periods, and dispose of batteries according to local regulations.
