Description

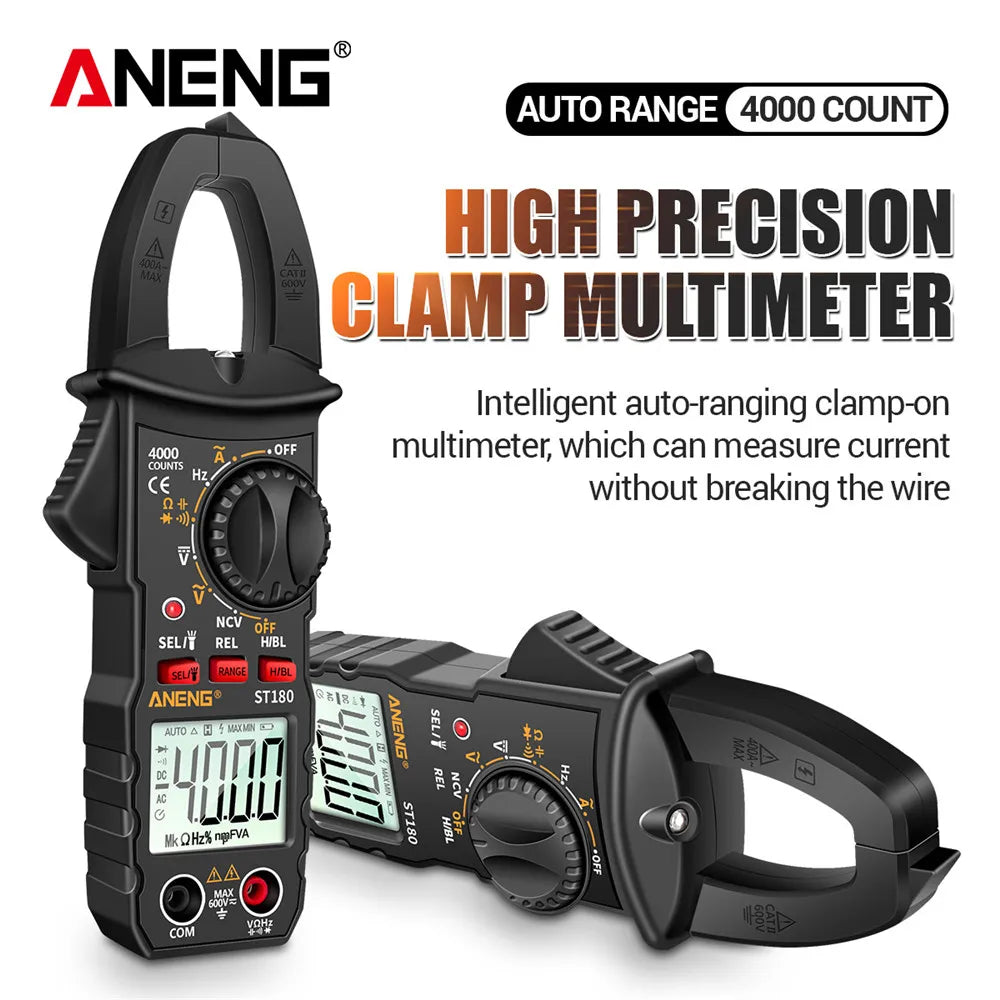

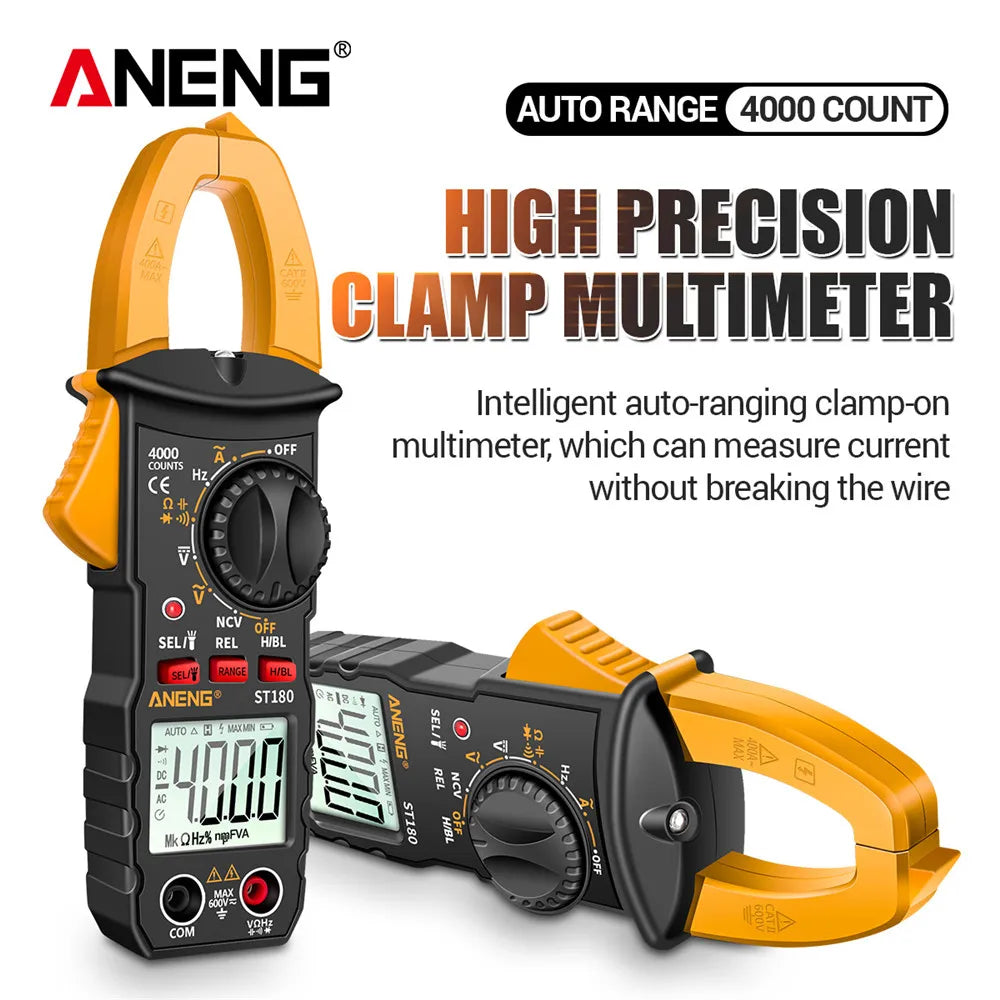

Reliable compact clamp meter for accurate AC/DC current and voltage readings, NCV detection, capacitance and frequency measurements. Ideal for electricians, technicians and DIY enthusiasts who need a portable, auto-ranging tester for car, home and industrial use.
Specifications:
- Model: ST180
- Display Type: Analog-Digital
- Display Counts: 4000 counts

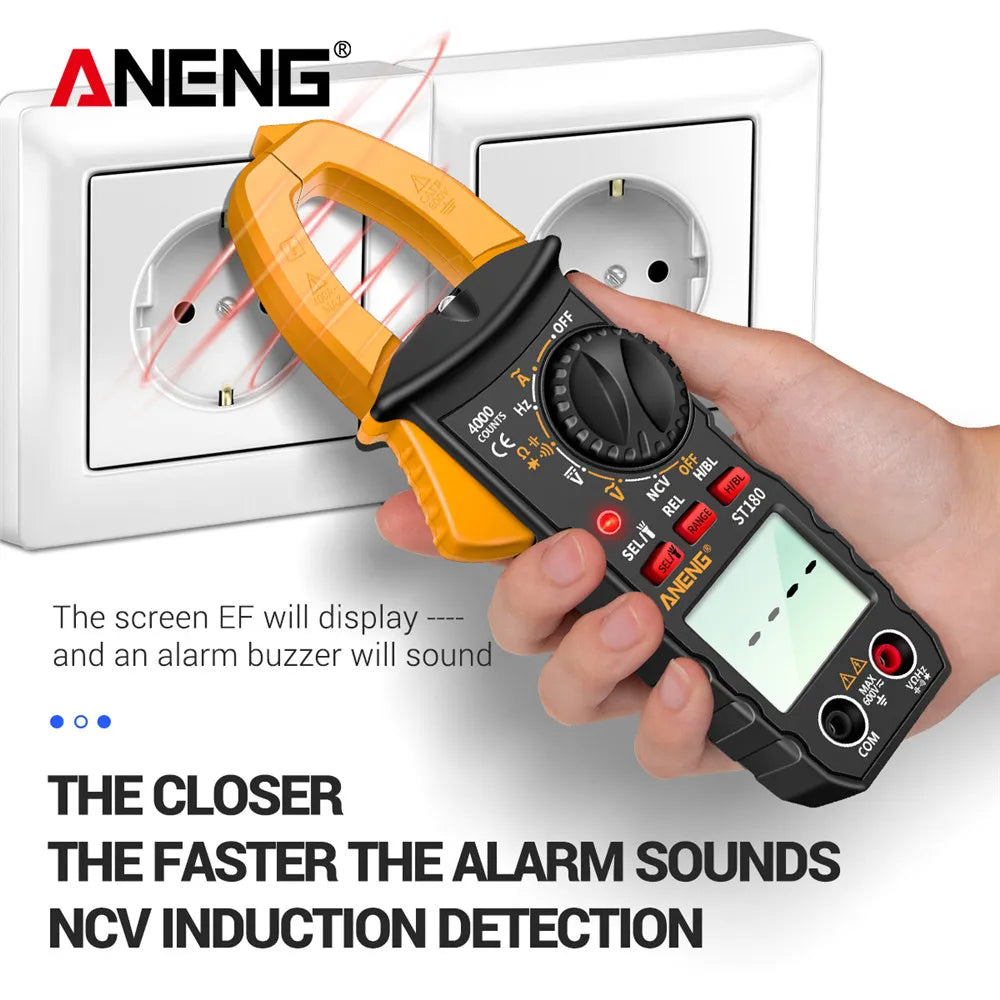

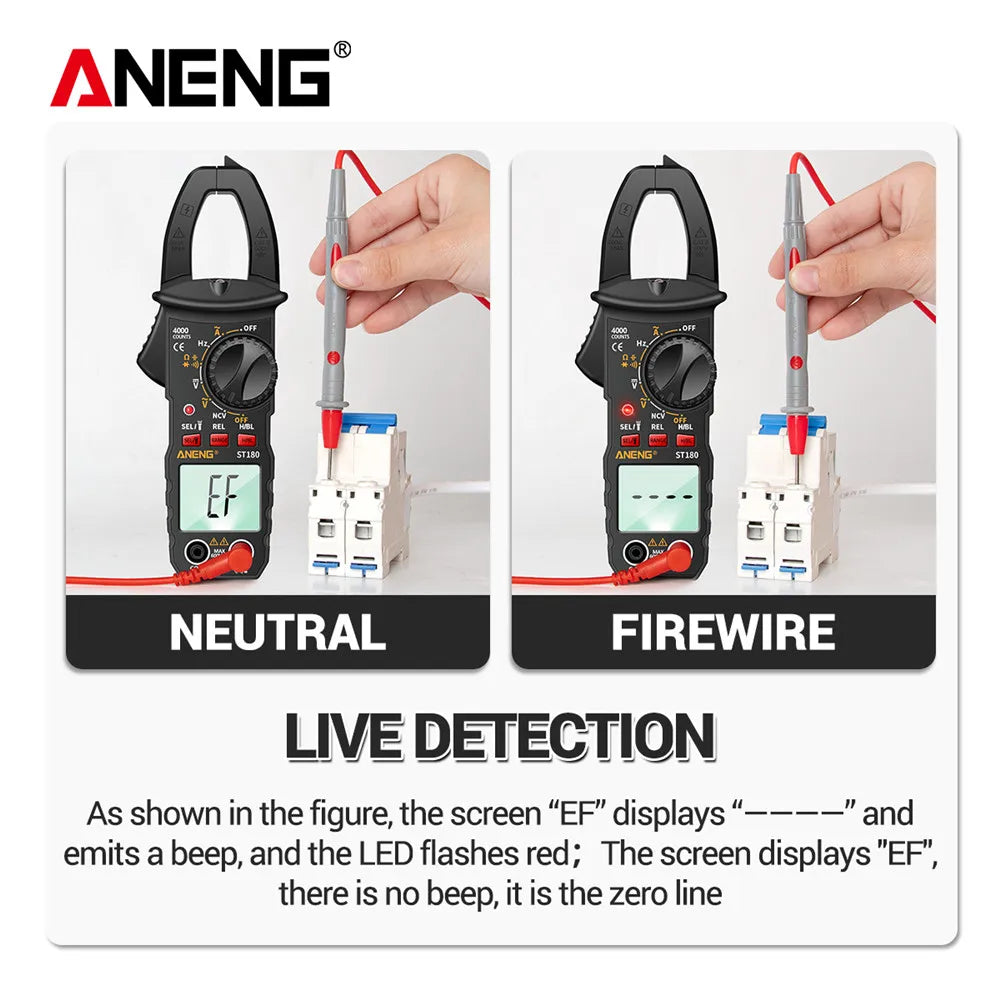

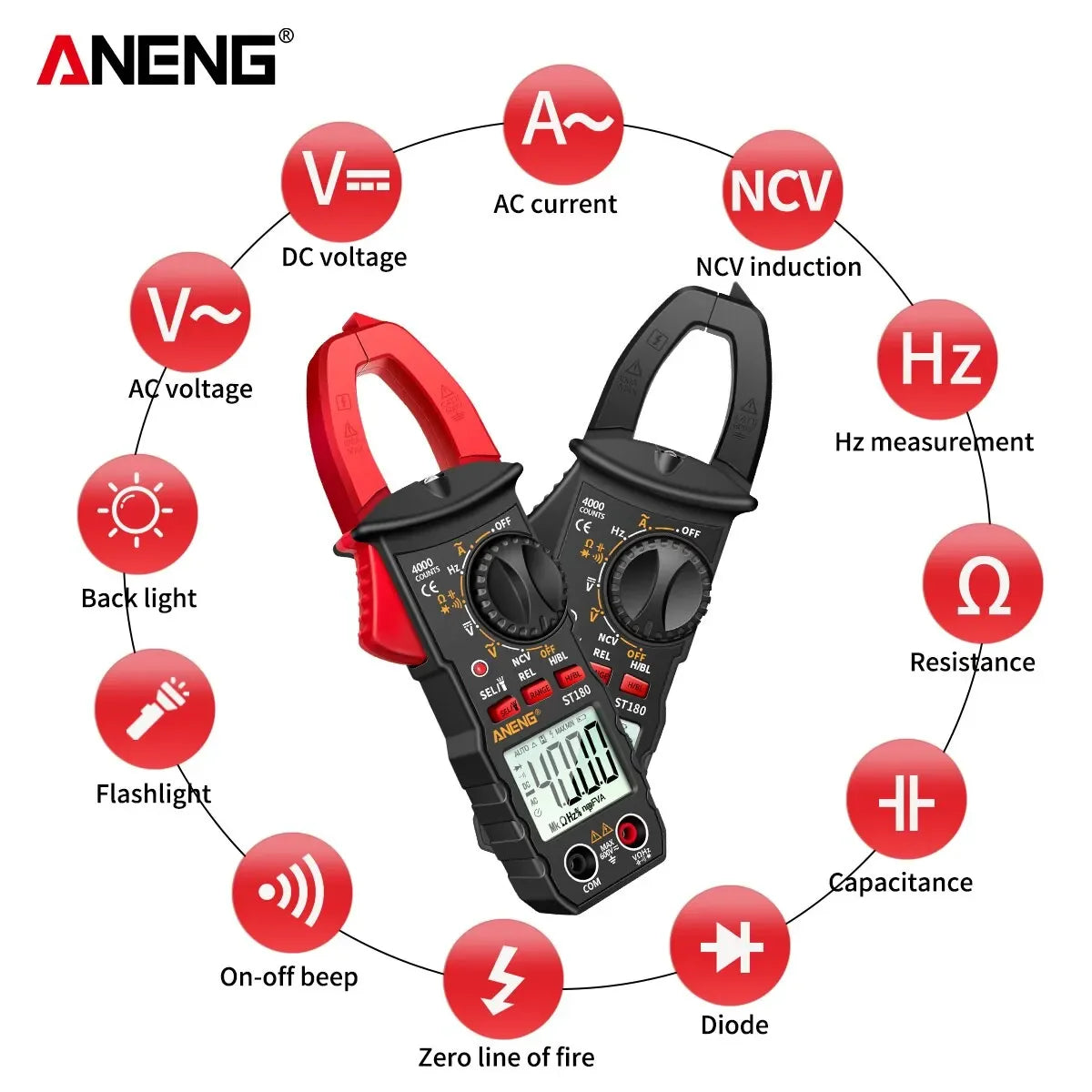

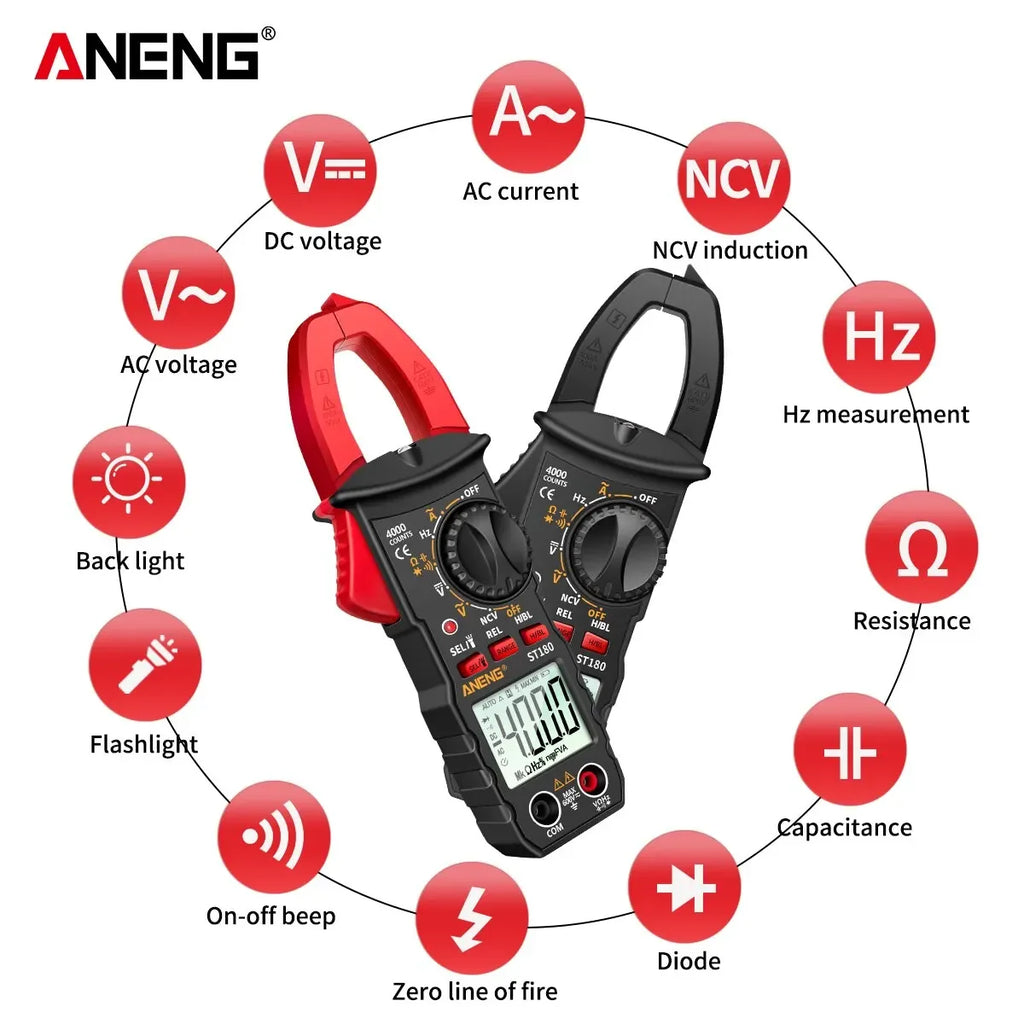

- Measurement Functions: AC current (clamp), DC voltage, AC voltage, resistance, capacitance, frequency (Hz), continuity, diode test, NCV (non-contact voltage)
- DC Voltage Range: 400 mV / 4 V / 40 V / 400 V / 600 V
- AC Voltage Range: 4 V / 40 V / 400 V / 600 V
- Resistance Range: 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ
- AC Current Range (Clamp): 40 A / 400 A
- Capacitance Range: 1 nF – 4 μF; 4 μF – 400 μF; up to 4 mF
- Frequency Range: 10 Hz – 400 kHz (accuracy varies by range)
- Operating Temperature: 0 – 40 °C (32 – 104 °F)
- Dimensions: 139.8 × 10.4 × 38 mm (5.50 × 0.41 × 1.50 in)
- Weight: 124 g (4.37 oz)
- Battery Included: No (battery not included)
- Certification: CE
- Category: Electrical / DIY test tool

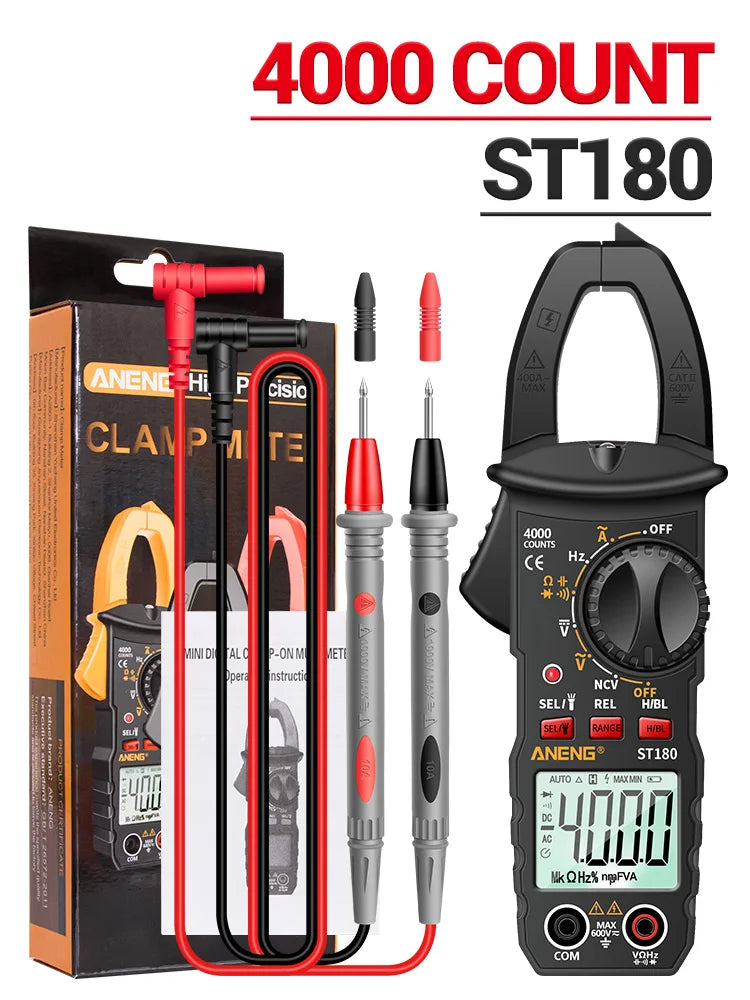

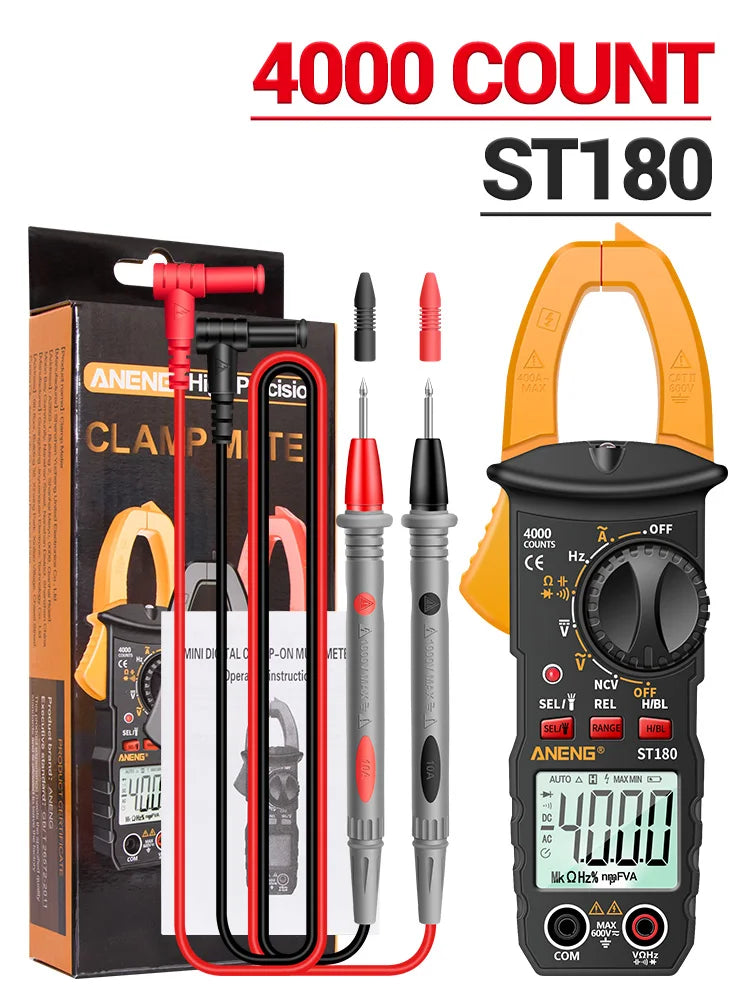

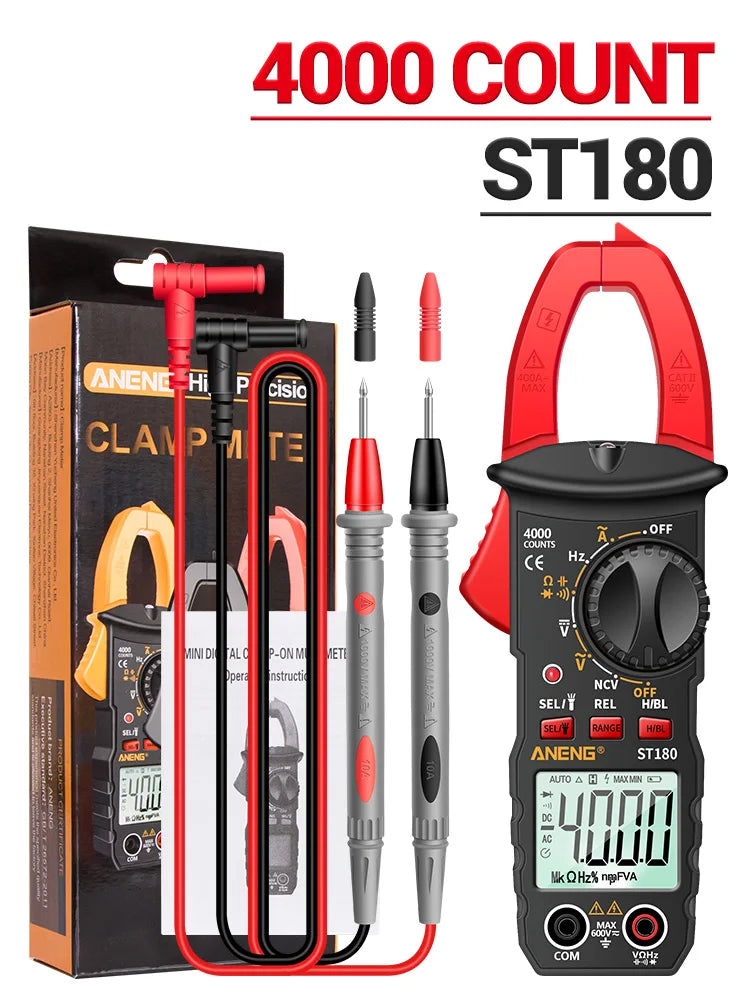

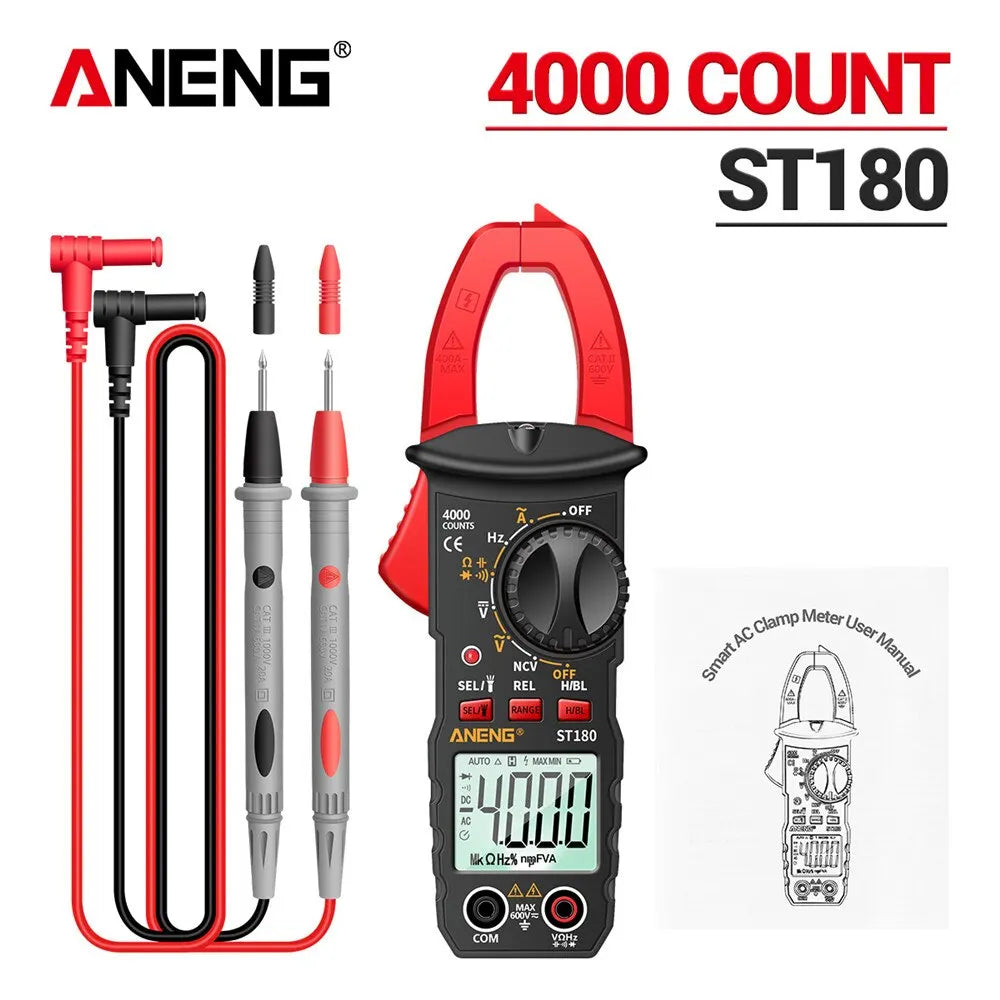

- Package List: 1 × Clamp Meter (no battery), 2 × Test Probes, 1 × User Manual, 1 × Outer Packing Box
#ElectricalTools #ClampMeter #FanzyMarket
Safety Notes:
This is an electrical test instrument. Follow all safety procedures when measuring live circuits—use insulated gloves and tools, do not exceed the specified voltage or current ranges, and keep fingers behind probe guards. Only qualified or trained personnel should perform measurements on high-voltage systems.
Use only the recommended batteries. Insert batteries with correct polarity, do not mix old and new batteries or different types, and remove batteries if the meter will be stored for a long time.
Avoid exposure to moisture and extreme temperatures. Inspect probes and leads for damage before use; replace damaged accessories to prevent shock or injury.
