Description
Powerful diagnostic performance in a compact Bluetooth OBD2 tool—supporting full-system scans, 15 service resets, bidirectional control and CAN-FD for newer vehicles. Ideal for professional mechanics and DIY car owners who need accurate live data, active tests and lifetime software updates.
Specifications:
- Model: EDIAG ELITE
- Communication Interface: OBD-II, Bluetooth
- Wireless / Bluetooth Version: Bluetooth V5.2
- Connection Range: 33 ft (10 m)
- Compatibility: Android 5.0+ / iOS 9.0+
- Supported Protocols: OBD-II, EOBD, CAN, CAN-FD
- Software Update: Lifetime free updates (over-the-air)
- External Certification: CE
- Item Type: Engine / Car Diagnostic Tool
- Special Features: All-system diagnostics, Bi-directional control (active tests), 15 service functions, CAN-FD support
- Voltage / Power Source: Vehicle OBD-II 12 V
- Operating Temperature: -10°C to 50°C (14°F to 122°F)
- Material: Plastic
- Dimensions: H 11 cm (4.33 in) × L 11 cm (4.33 in) × W 12 cm (4.72 in)
- Weight: 0.3 kg (0.66 lb)
- Hardware / Software Version: Latest
- Use: Automotive diagnostics and service
Overview:
- All-System Diagnostics: Read and clear DTCs, view live data streams, freeze frame data, I/M readiness, O2 sensor/monitor tests and component tests across powertrain, ABS, SRS, transmission, body and more.
- 15 Service Resets: Includes AFS (adaptive headlight) reset, ABS bleeding, battery maintenance, gearbox matching, electronic parking brake (EPB) reset, DPF regeneration, EGR adaptation, throttle reset, IMMO key matching, injector coding, oil/service reset, steering angle calibration, sunroof initialization, suspension calibration and TPMS reset (availability varies by vehicle).
- Bi-Directional Control: Perform active tests and actuate components (relays, injectors, solenoids, valves, etc.) to diagnose system behavior in real time. Active tests vary by make, model and year—check VIN compatibility before purchase.
- CAN-FD & Advanced Protocols: Supports CAN-FD for newer vehicle networks and improved data throughput—useful for late-model vehicles with expanded CAN frames.

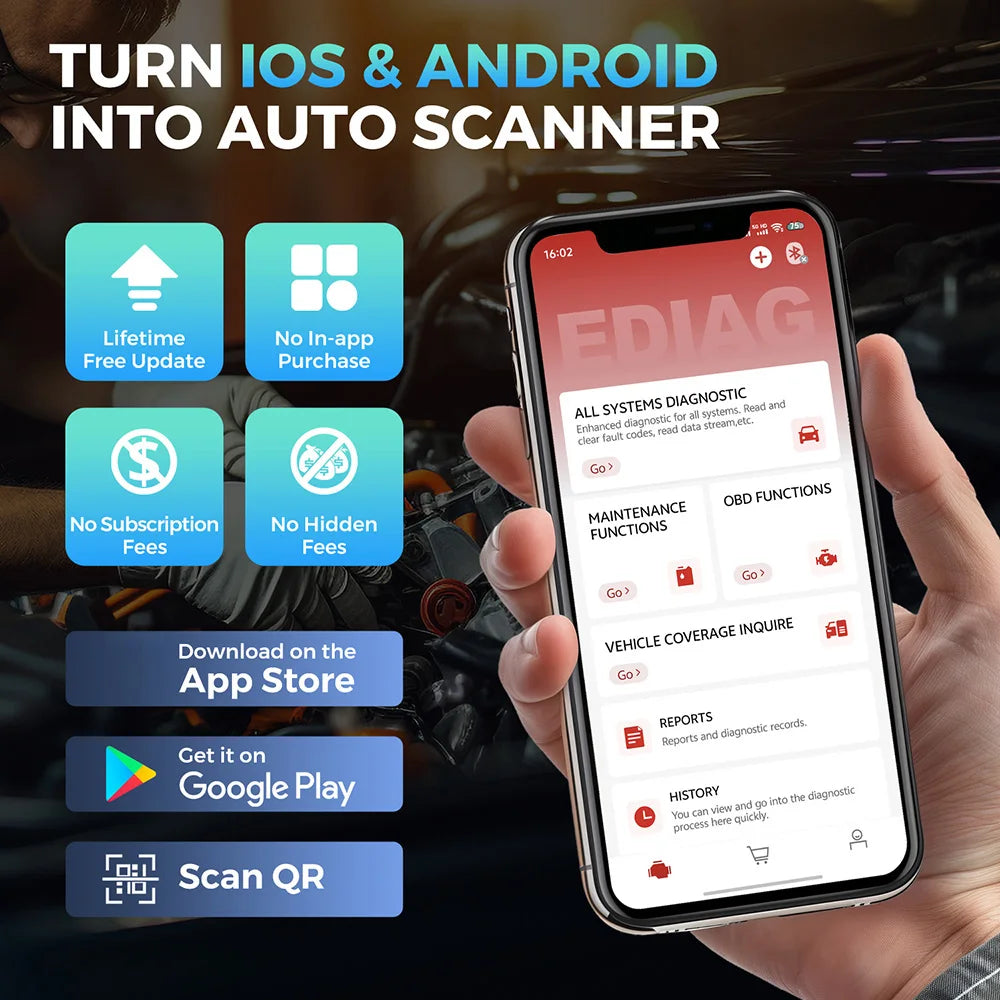

- Mobile App Integration: Pairs with the EDIAG app on Android and iOS for activation, updates and detailed reports. Generates and prints diagnostic reports; includes DTC lookup and graphical live data display.
Compatibility & Notes: Works with a wide range of Asian, European and American vehicle models. Some manufacturers or regional models may require Android for full functionality or additional account access for special gateways. Always verify compatibility by VIN when needed.
#OBD2Scanner #CarDiagnosticTool #BiDirectional #FanzyMarket
Safety Notes:
This is an electronic diagnostic tool powered by the vehicle OBD-II 12 V port. Do not disassemble the device. Avoid exposing the tool to moisture or extreme temperatures. Follow the vehicle manufacturer's instructions when performing service procedures and, where required, disconnect the vehicle battery before maintenance to prevent electrical hazards.
No batteries are required or included; the unit is vehicle-powered. Do not attempt to charge or modify internal electronics. Keep out of reach of children.
