Description
Illuminate any space with programmable, addressable RGB LED strips that deliver vibrant color effects and precise pixel control for living rooms, gaming rooms, decorative accents, and DIY projects.
Specifications:
- Certification: CE, FCC, RoHS
- Item Type: Addressable LED strip

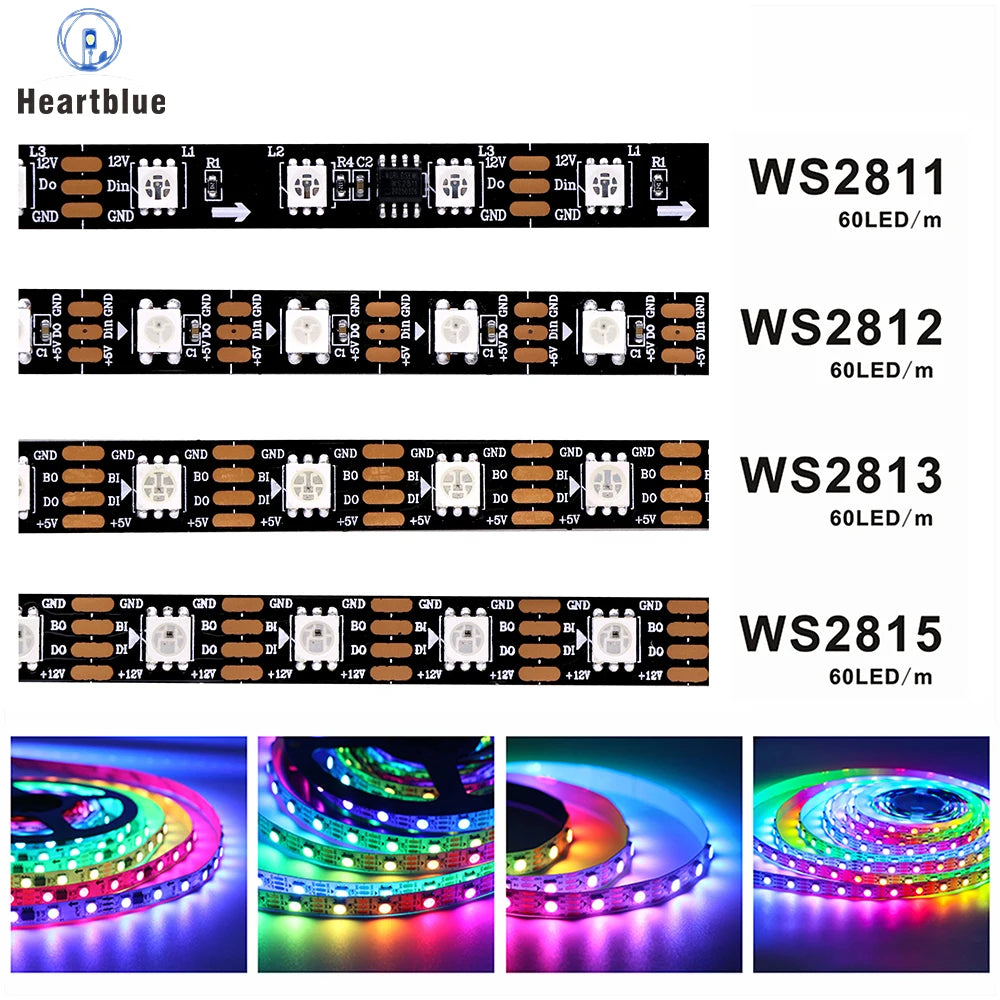

- Compatible IC / Types: WS2811, WS2812B, WS2813, WS2815
- LED Chip Model: SMD5050 (built-in IC for WS2812/WS2813/WS2815)
- Input Voltage: DC 5V / 12V

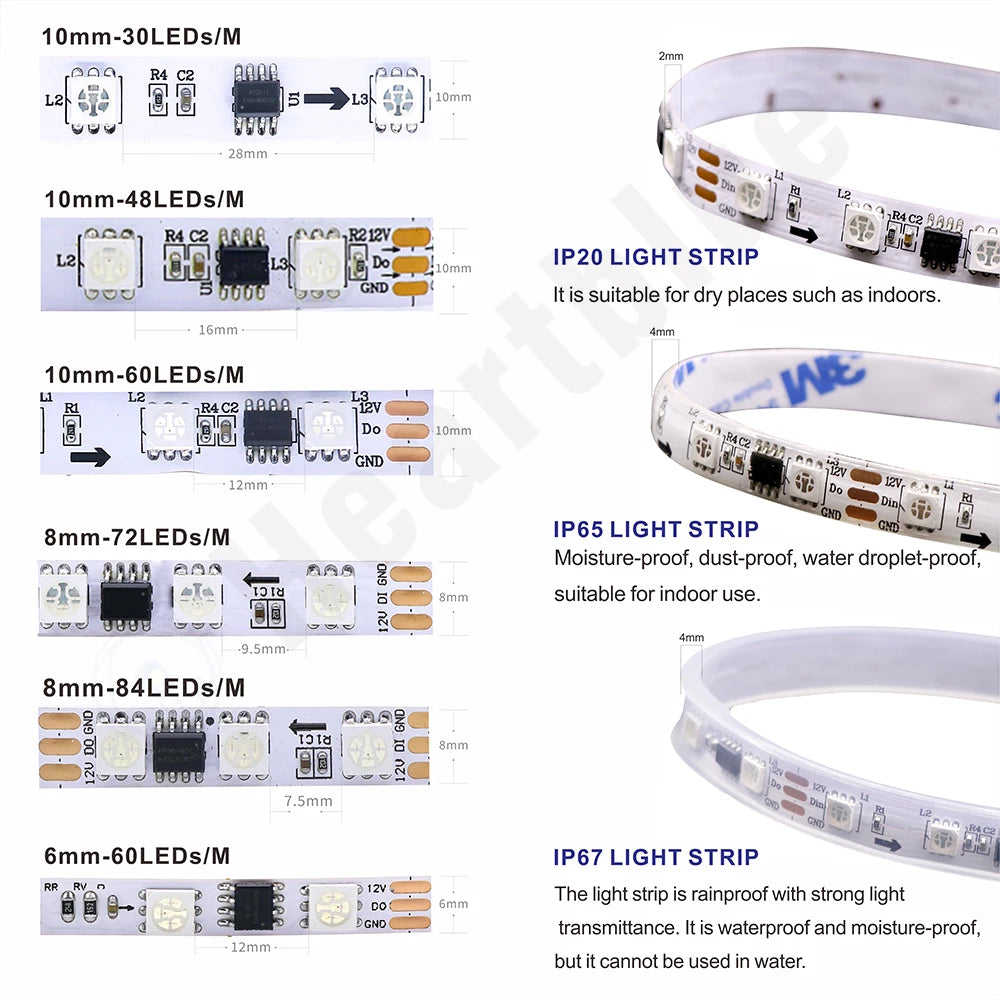

- LED Density Options: 30, 48, 60, 74, 84, 96, 144 LEDs per meter (varies by model)
- Power Consumption: Approx. 7.5–35 W/m (varies by density and IC)
- Typical LED Power: ~0.3 W per LED (use to calculate total power and required supply)
- Cuttable: Yes — WS2811: cut every 3 LEDs; WS2812/WS2813/WS2815: cut per LED

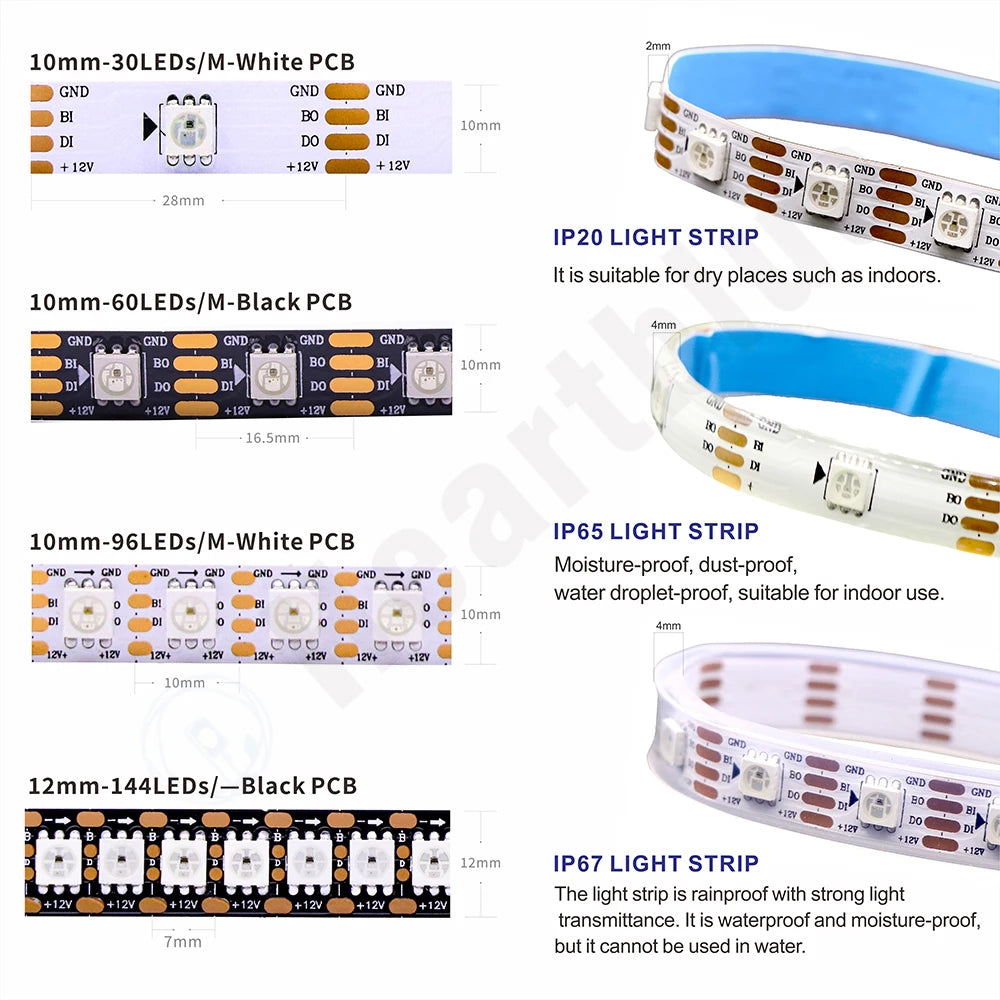

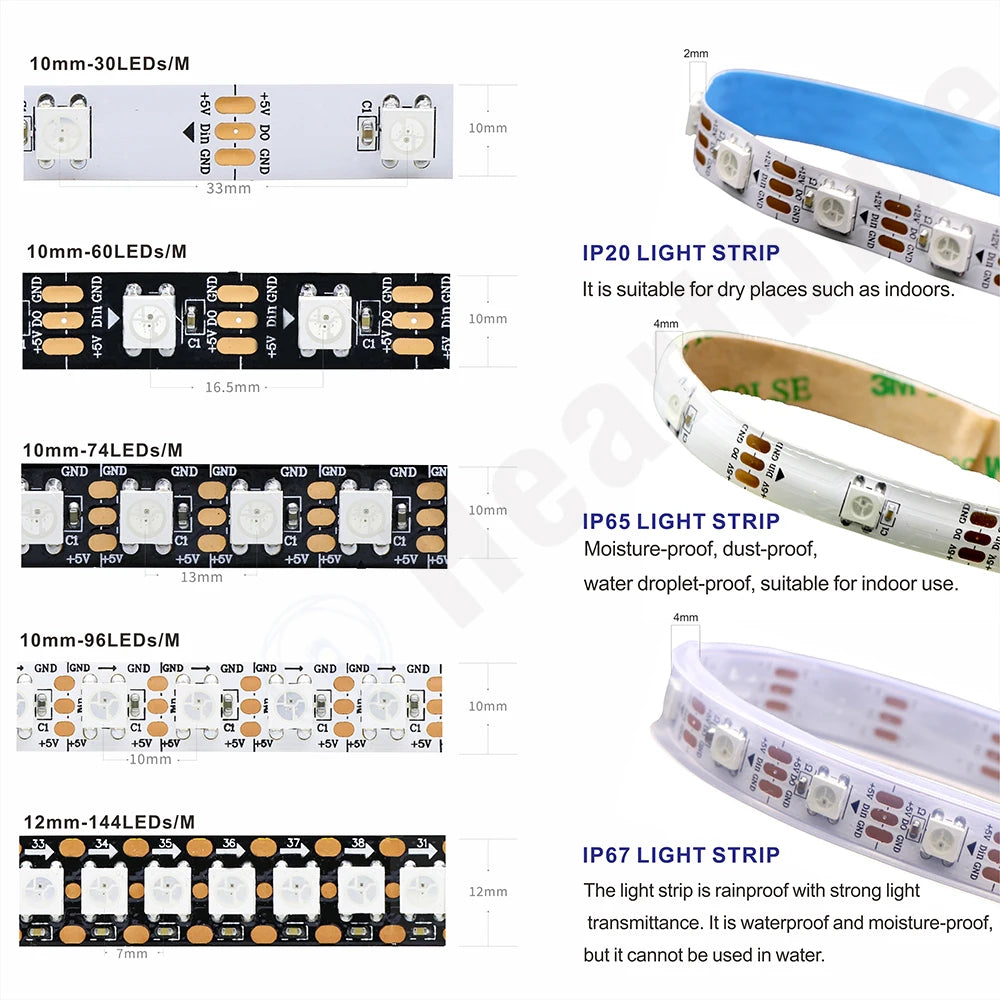

- Protection / IP Rating: IP30 (bare) / IP65 (silicone coated) / IP67 (silicone tube) options
- Dimensions: 5000 x 10 x 2.4 mm (5.0 m x 10 mm x 2.4 mm) — 196.9 x 0.39 x 0.09 in (approx.)
- Beam Angle: 120°
- Color & Effects: Full RGB color, dreamy color-changing effects, 256 gray scale
- Bits per Color: 8 bits per color
- Control: Individually addressable pixels (depending on IC), supports many color patterns and speeds
- Connector: 3-pin or 4-pin terminal (color-coded: Red = V+, Green = Data, White = GND; additional blue for secondary data on some models)
- Adhesive Backing: 3M tape on back for IP30/IP65 (no 3M tape for some IP67 versions)
- Operating Temperature: -40 to 70 °C (-40 to 158 °F)
- Storage Temperature: -50 to 80 °C (-58 to 176 °F)
- Source Lifespan: Approximately 50,000 hours
- Includes: LED strip only. Power supply and pixel controller are not included.

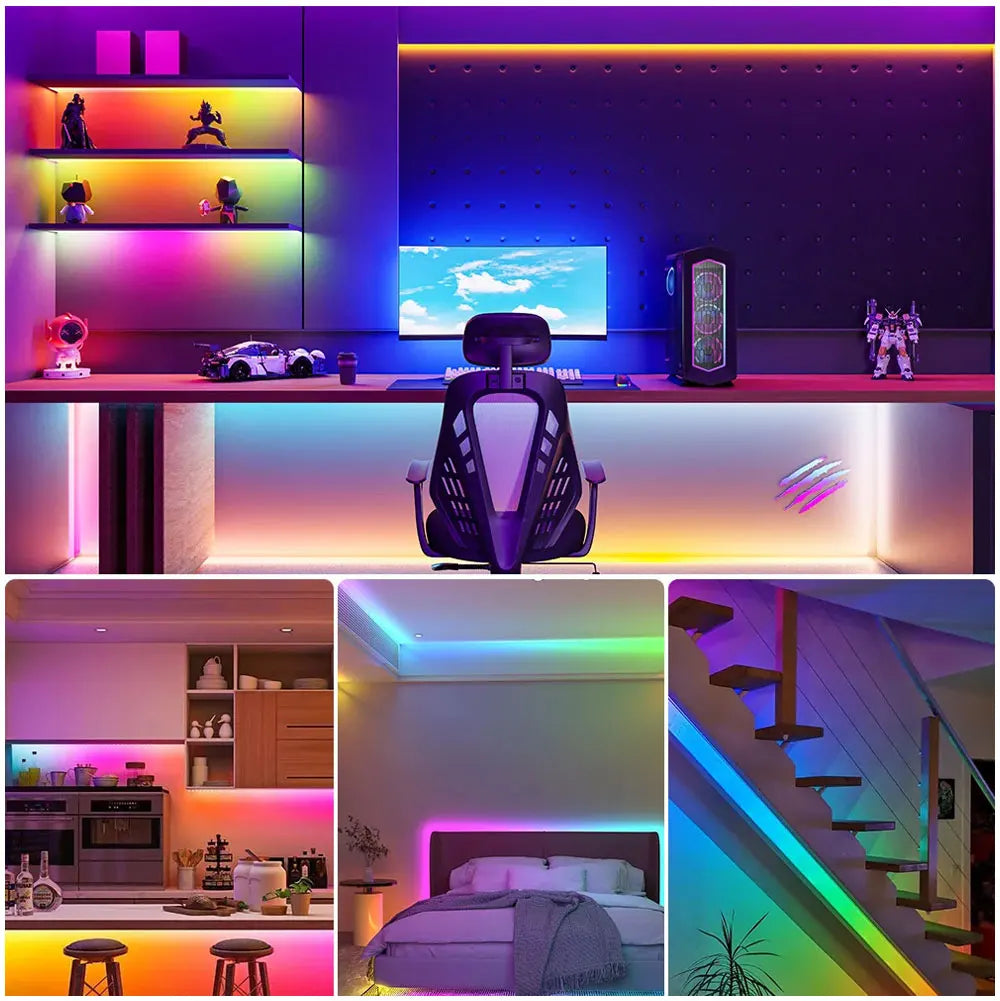

- Recommended Use: Living room accents, backlighting, signage, decorative lighting, DIY projects
Overview & Installation Notes:

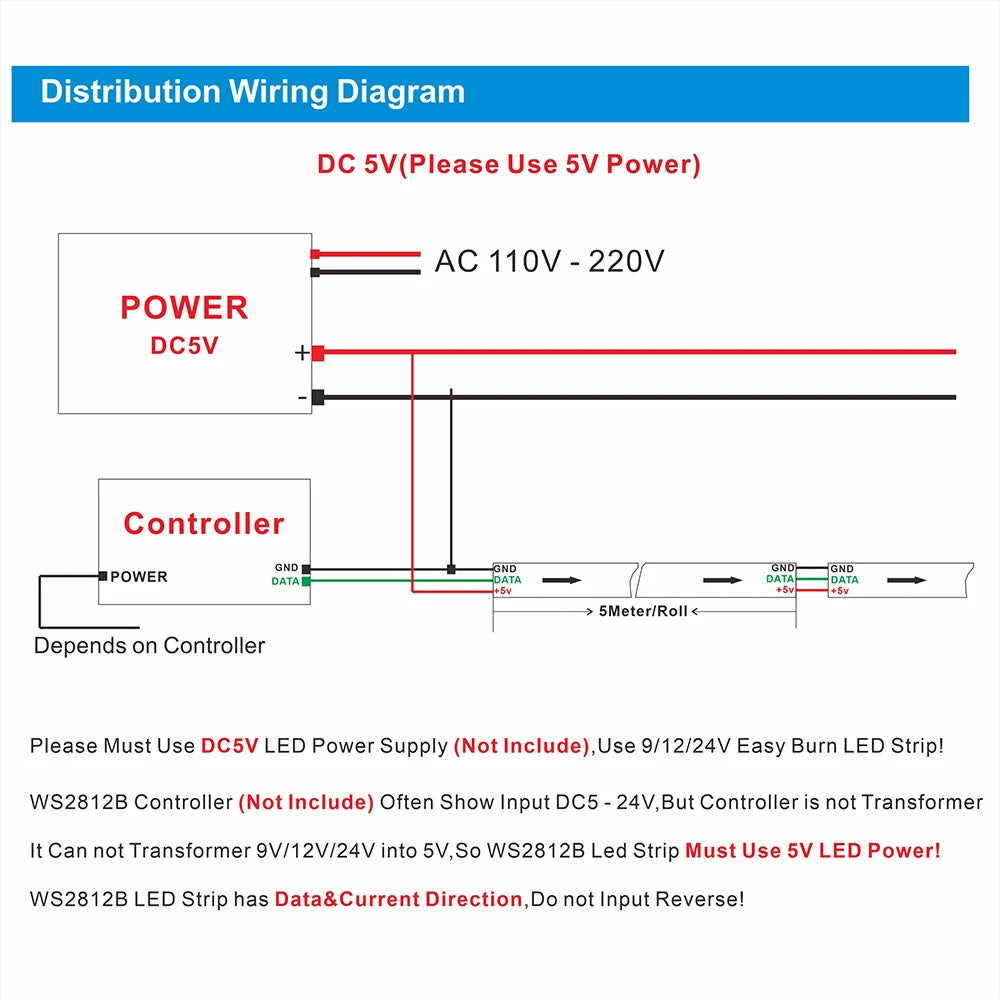

- Power & Controller: Choose a power supply that matches strip voltage (5V or 12V) and provides sufficient current. Example: a 5 m strip with 60 LEDs/m (~300 LEDs) at ~0.3W/LED requires ~90W → 90W / 5V = 18A minimum.
- Connections: 3-pin SM connector mapping: Red = VCC, White = GND, Green = DATA. Some models use 4-pin connectors for dual-line ICs.
- Cutting: Cut only at designated cut points. Avoid sharp bends to prevent damage.
- Mounting Surface: PCB has adhesive tape on the back for most versions—ensure surface is smooth, clean, and dry for secure adhesion.
- Voltage Drop: For long runs, inject power at both ends or at intervals to reduce voltage drop.
- Packaging: Supplied in anti-static bag. IP30/IP65 strips include 3M tape on back; IP67 versions may lack 3M backing.
- Note: Solder joints every 0.5 m are normal and not a quality defect.
