Description
Reliable and compact, this 9-piece lever connector kit delivers fast, solder-free splicing for AWG 28–12 (0.08–4.0 mm²) wires. Perfect for home electrical work, lighting, appliances, motors, and DIY projects that require secure, reusable connections.

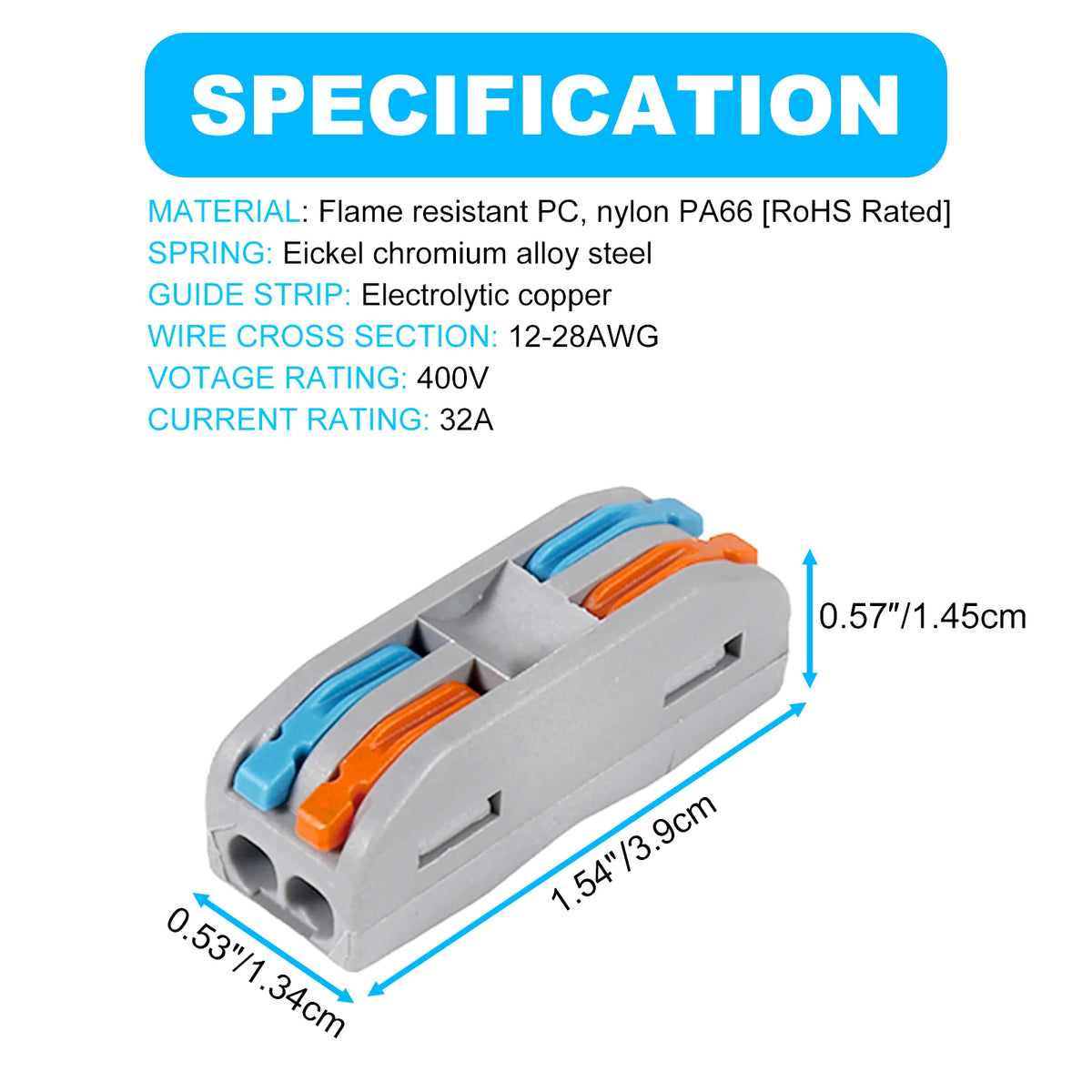

Specifications:
- Condition: New
- Type: Terminal block / Lever connector

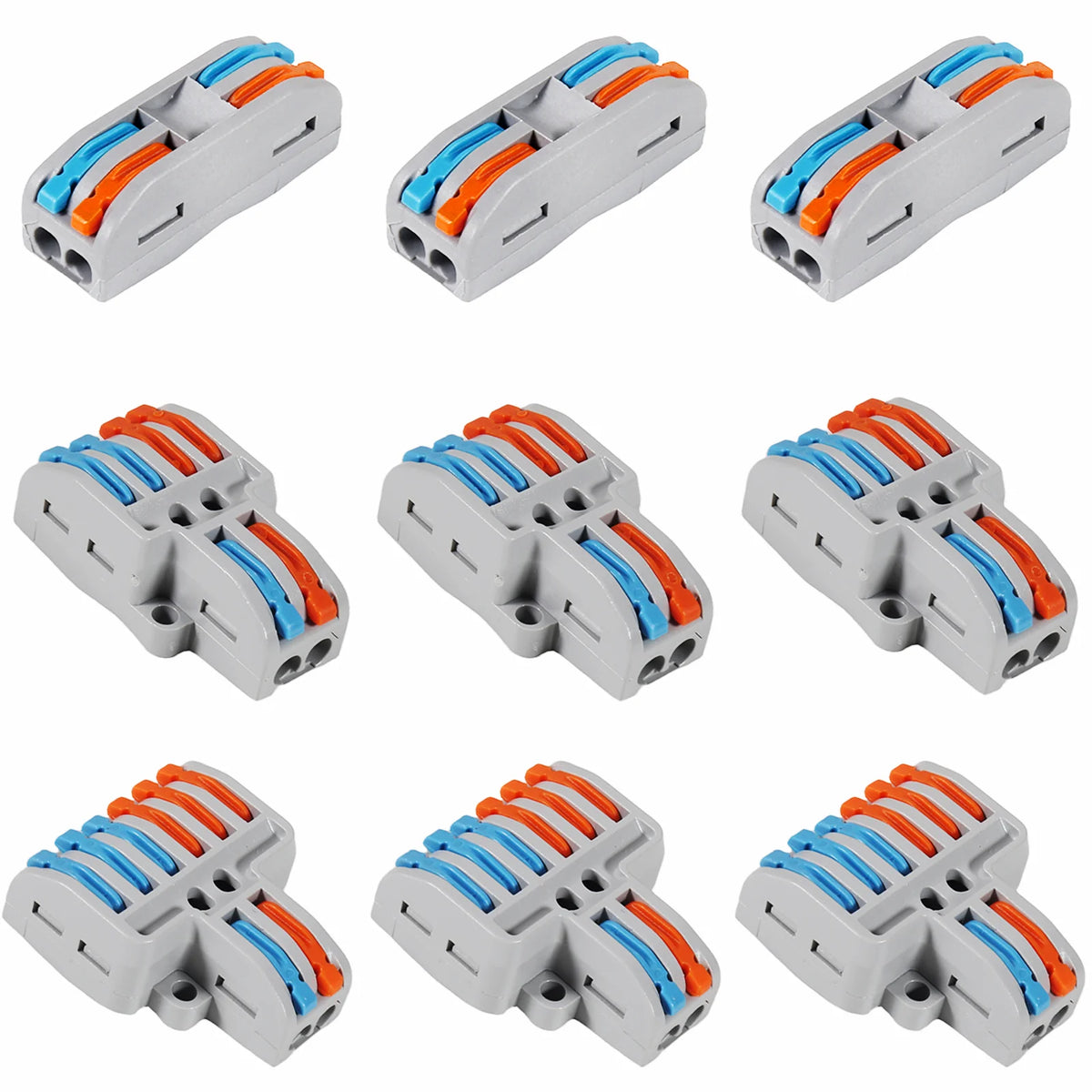

- Pack Count: 9 pieces (three 2-in-2-out, three 2-in-4-out, three 2-in-6-out)

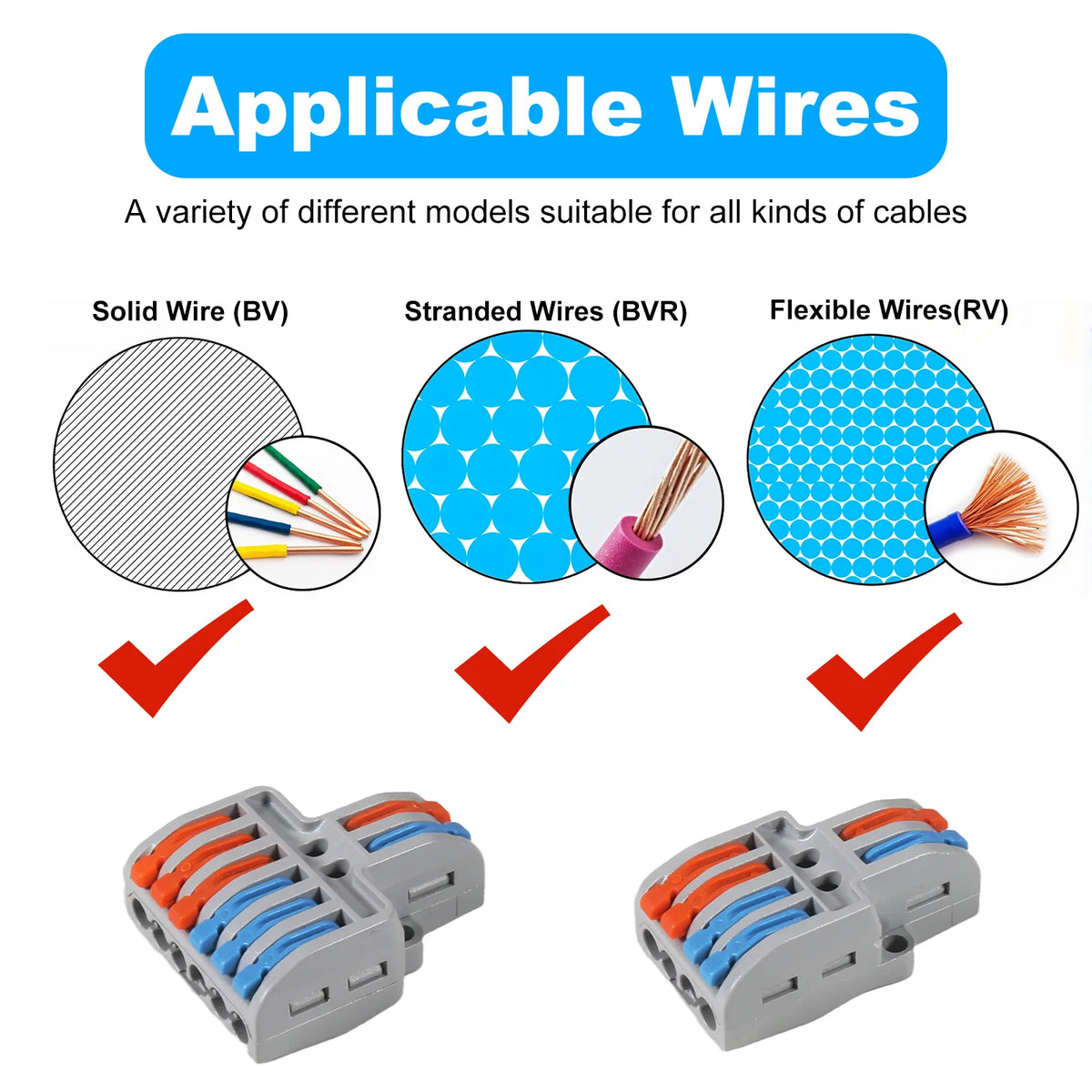

- Wire Range (solid): 0.08–4.0 mm² (AWG 28–12)
- Wire Range (flexible): 0.08–2.5 mm² (AWG 28–14)
- Rated Voltage: 600 V
- Rated Current: 32 A
- Max Operating Temperature: 95°C (203°F)
- Material: Flame-retardant shell; tinned copper conductor for corrosion resistance and strong conductivity
- Mounting: M3 screw mounting hole (~3 mm / 0.12 in) on T-shape connectors
- Customization: Yes

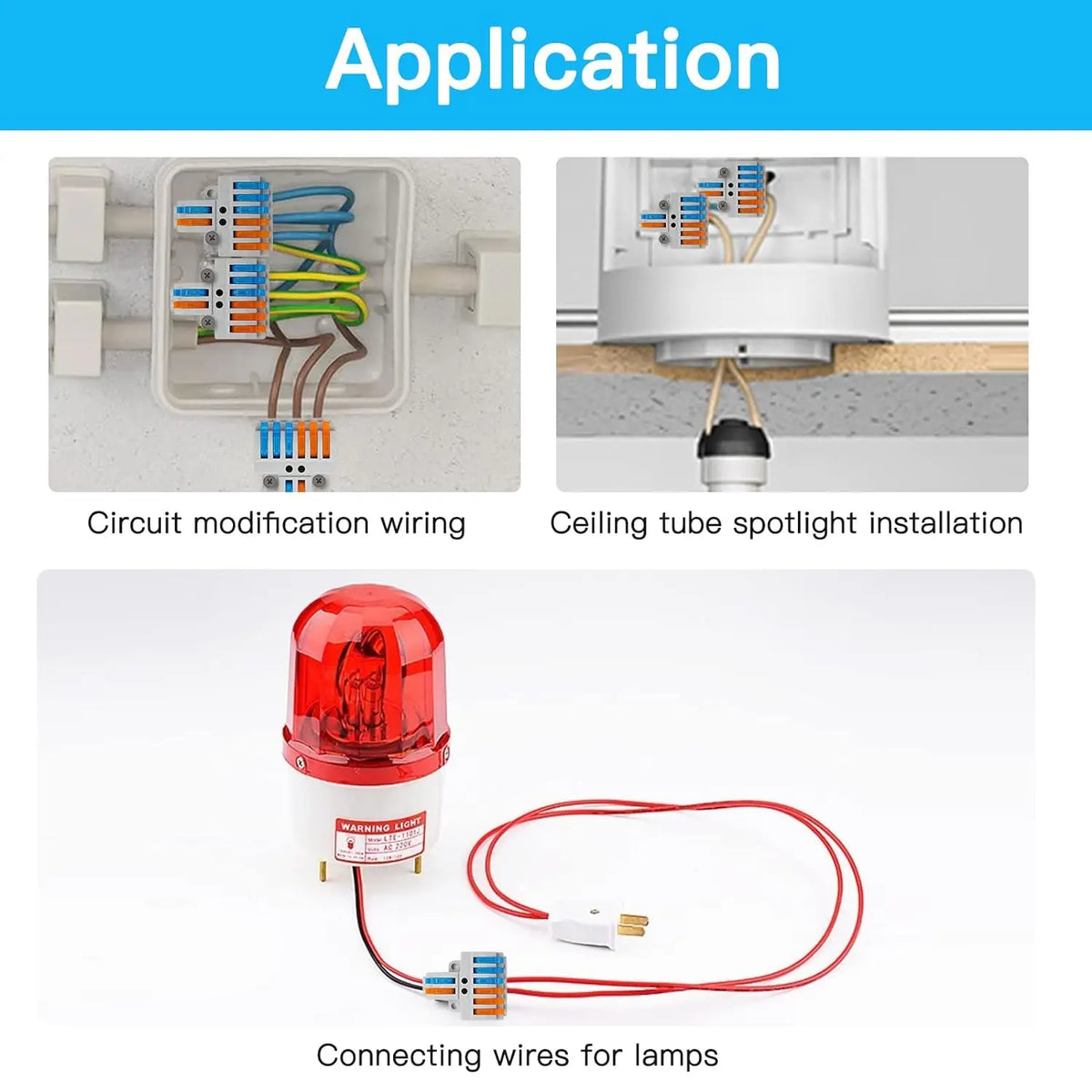

- Suitable For: Motors, electrical control, power supplies, home appliances, machinery, lights, sockets, switches, cars, speakers, and electrical boxes
Features:
- Safe and durable: Flame-retardant housing and tinned copper conductors resist heat and corrosion for reliable long-term connections.

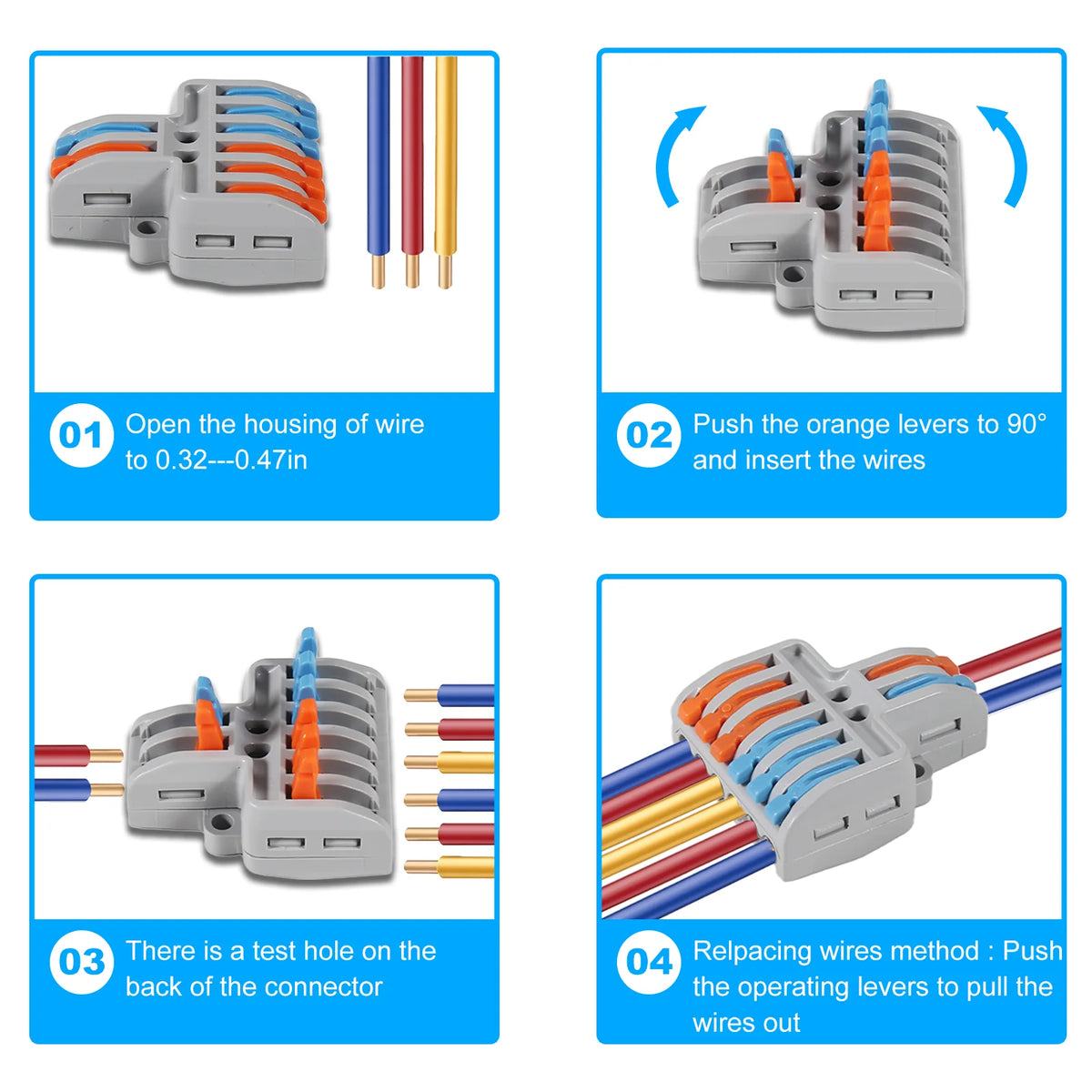

- Quick installation: Lever design enables fast, solder-free wiring and reuse without tools for many wiring tasks.
- Versatile: Multiple connector types in one kit cover common wiring scenarios from single to multi-wire junctions.
- Secure mounting: Screw holes allow fixed installation for stable, vibration-resistant connections.
Package Included:
- 2-in-2-out connectors: 3 pieces
- 2-in-4-out connectors: 3 pieces
- 2-in-6-out connectors: 3 pieces
Hashtags:
#WireConnectors #QuickSplice #FanzyMarket
Safety Notes:
Turn off all power before installation and, if unsure, have connections performed by a qualified electrician.
Do not exceed the rated voltage (600 V) and current (32 A). Inspect connectors for damage and use only on compatible wire sizes.
Contains small parts — keep away from children under 3 years to prevent choking.
