Efficiently manage up to 8 heating zones with this wired central hub controller for water underfloor heating. Designed to control actuators, boiler and circulating pump, the hub extends equipment life, improves comfort and saves energy when paired with WiFi-enabled thermostats (Tuya/Smart Life).

Specifications:

• Product Type: Wired central hub controller for water underfloor (floor) heating
• Model: CCT-10
• Zones / Outputs: 8 outputs / 8 channels (up to 8 room thermostats)

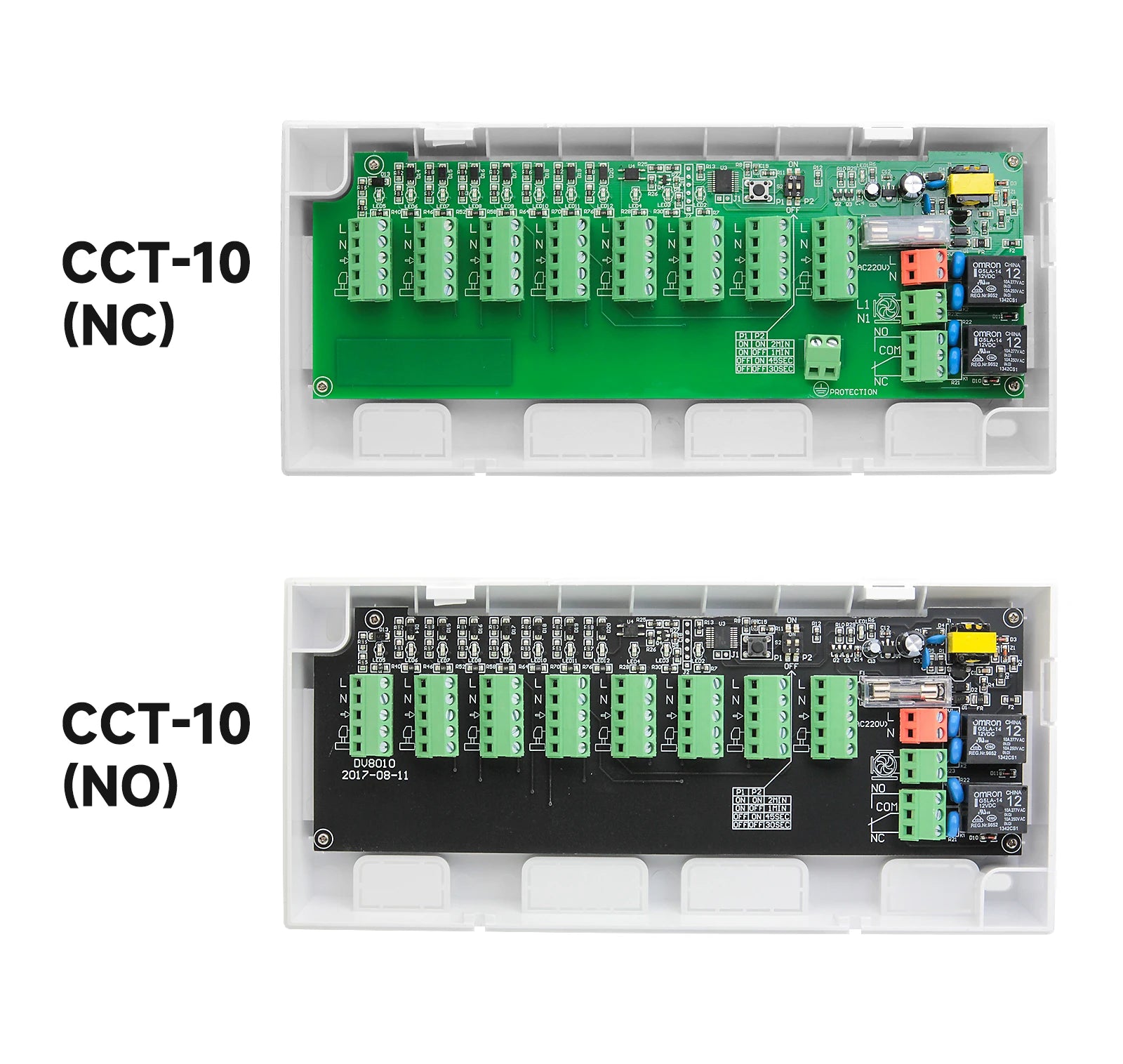

• Actuator Compatibility: For Normally Closed (NC) electric thermal actuators (CCT-10(NC)). A separate NO version exists for Normally Opened actuators.
• Controller Power Supply: 170–240 VAC, 50/60 Hz
• Controller Current Load: 3 A
• Thermostat Voltage: Thermostat: 100–240 V, 50/60 Hz
• Thermostat Load / Current: ≤ 3 A
• Thermostat Power Consumption: <0.3 W

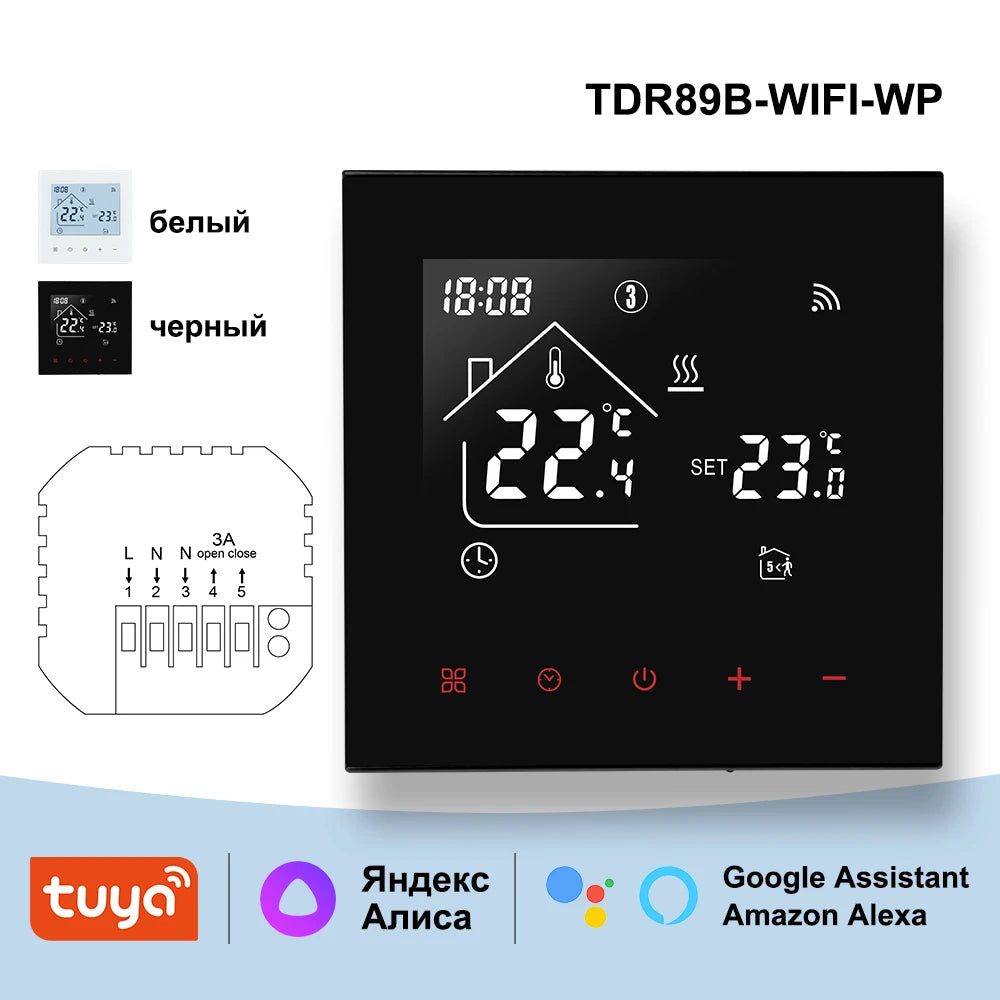

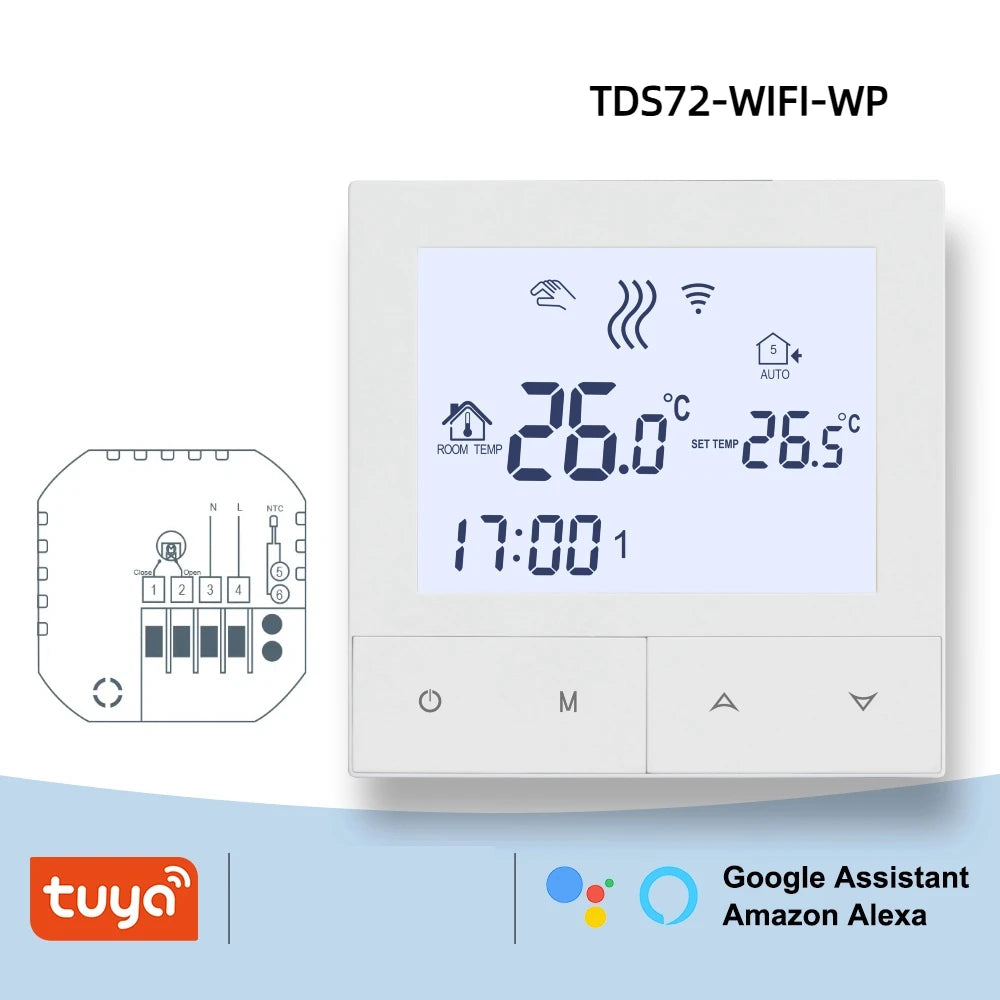

• Thermostat App Compatibility: Tuya Smart / Smart Life (mobile control when paired)
• WiFi / Remote Control: Thermostats with WiFi support remote control and voice assistants (Alexa, Google)
• Controller Set Temperature Range: 5–99 °C (41–210 °F)
• Thermostat Set Temperature Range: 5–60 °C (41–140 °F)
• Floor Set Temperature Range: 5–99 °C (41–210 °F)
• Accuracy: ±0.5 °C
• Controller Size: 240 × 110 × 42 mm (9.45 × 4.33 × 1.65 in)
• Thermostat Dimension: 86 × 86 × 45 mm (3.39 × 3.39 × 1.77 in)
• Operating Temperature (Controller): -20 to 60 °C (-4 to 140 °F)
• Storage Temperature (Controller): -20 to 70 °C (-4 to 158 °F)
• Thermostat Storage Temperature: -5 to 55 °C (23 to 131 °F)
• Certification: CE / RoHS
• Threaded Connection Size: M30 × 1.5 mm (for thermal electric actuator mounting)

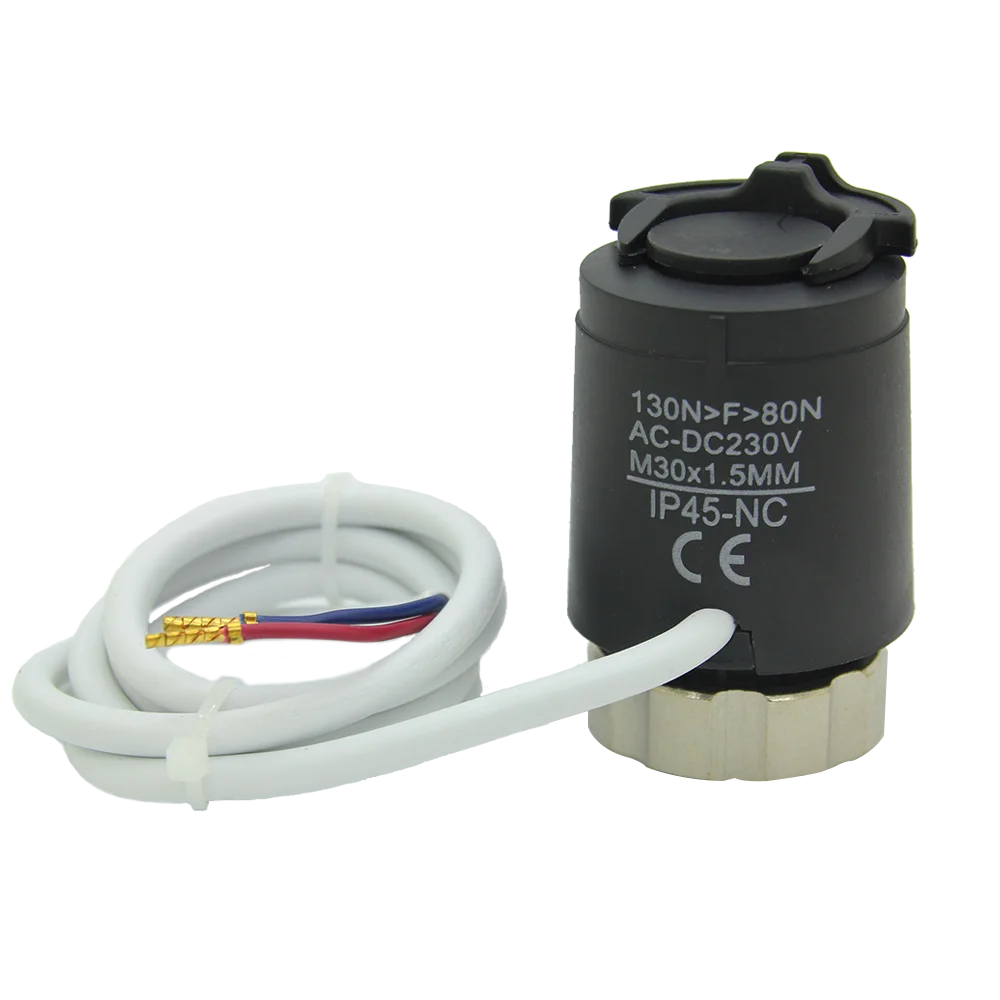

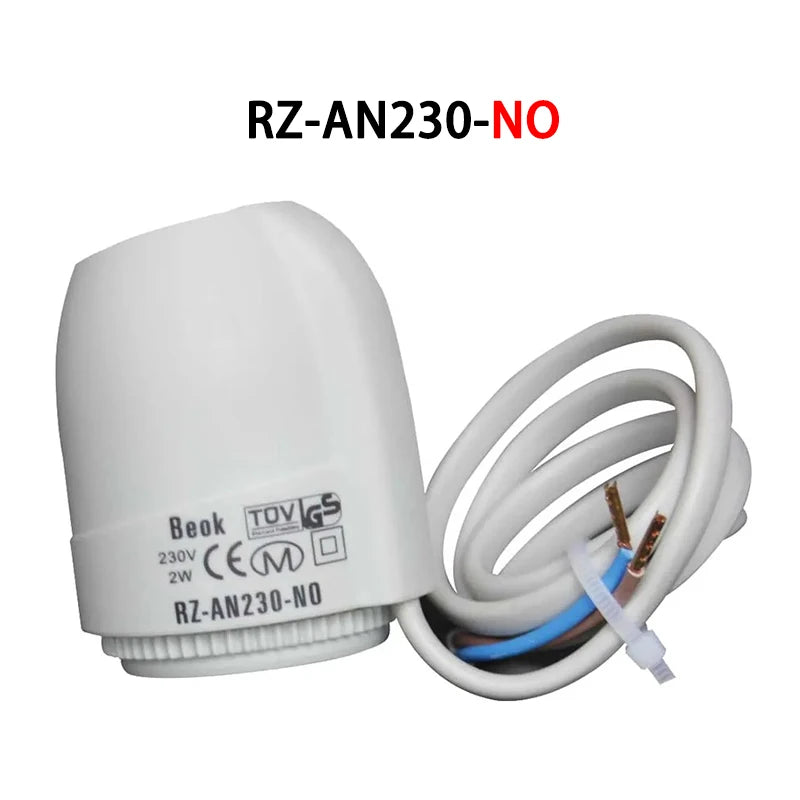

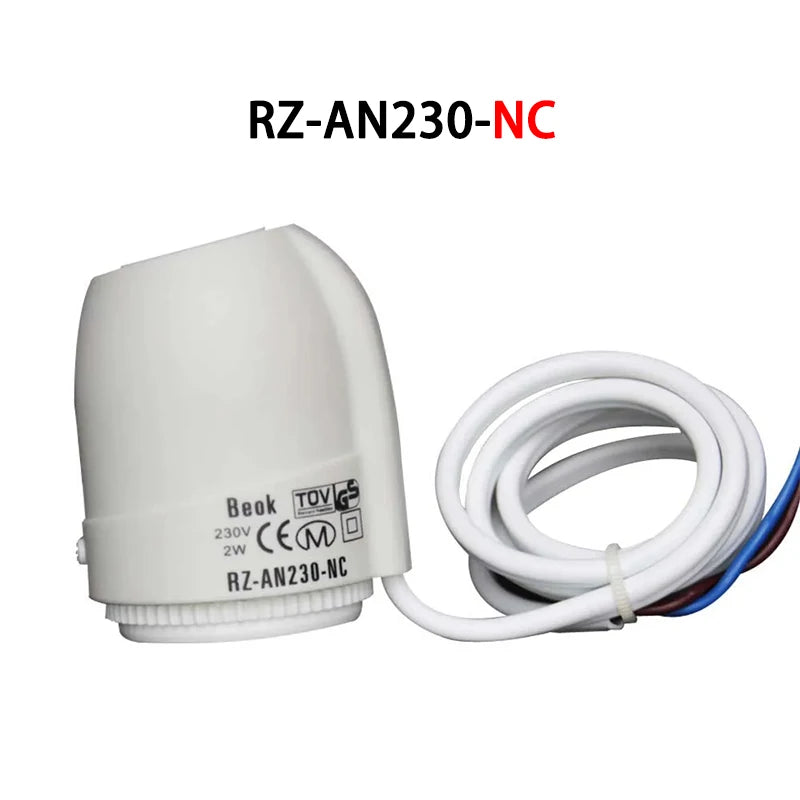

• Actuator Model: RZ-AN-230 (thermal electric actuator)
• Actuator Working Voltage: 230 VAC ±10%
• Actuator Power Consumption: 2 W (initial current ~50 mA)
• Actuator Protection Grade: IP41
• Actuator Stroke / Travel: 3–5.5 mm (approx. 0.12–0.22 in)
• Actuator Running Time: ~180 seconds (open/close)
• Actuator Cable Length: 65 cm (25.6 in / 2.13 ft)
• Workforce / Thrust: 80–120 N (approx. 18–27 lbf)
• Wattage (standby): 0.3 W
• Overall Time (valve opening reference): 2.5–6.5 min

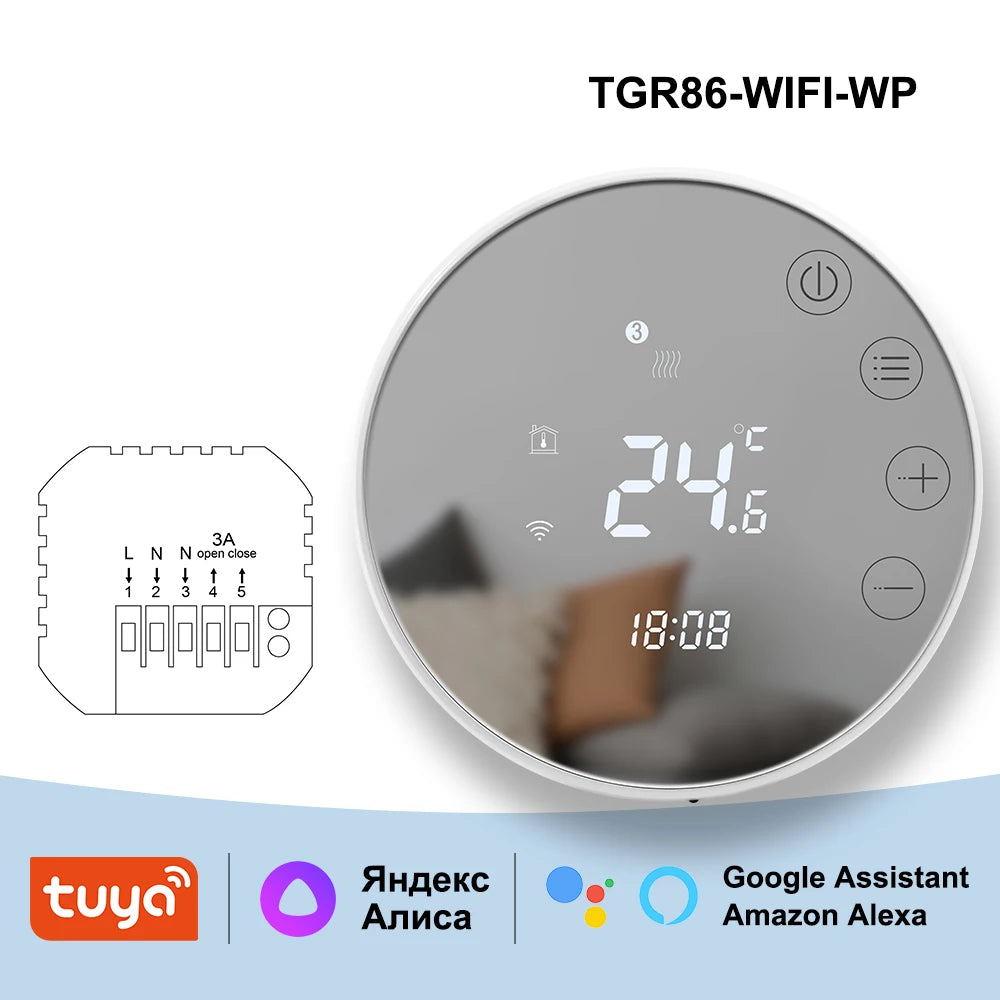

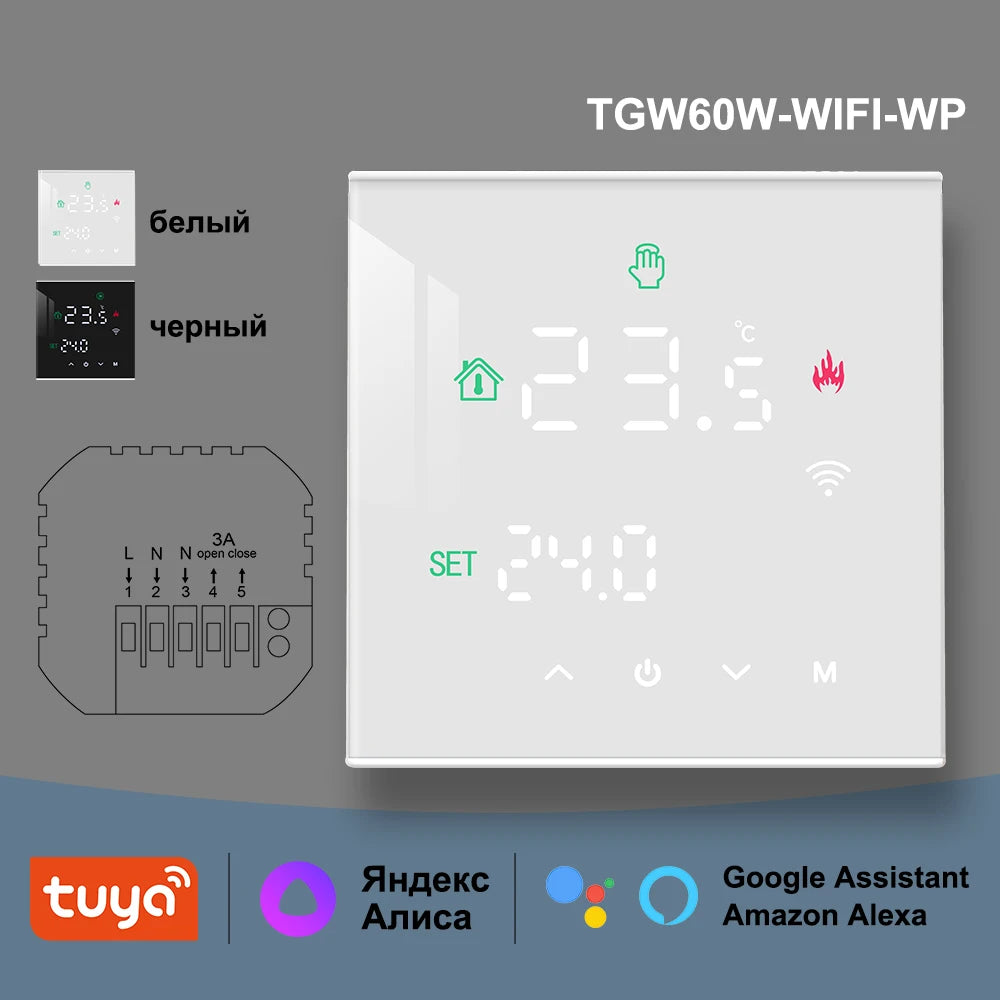

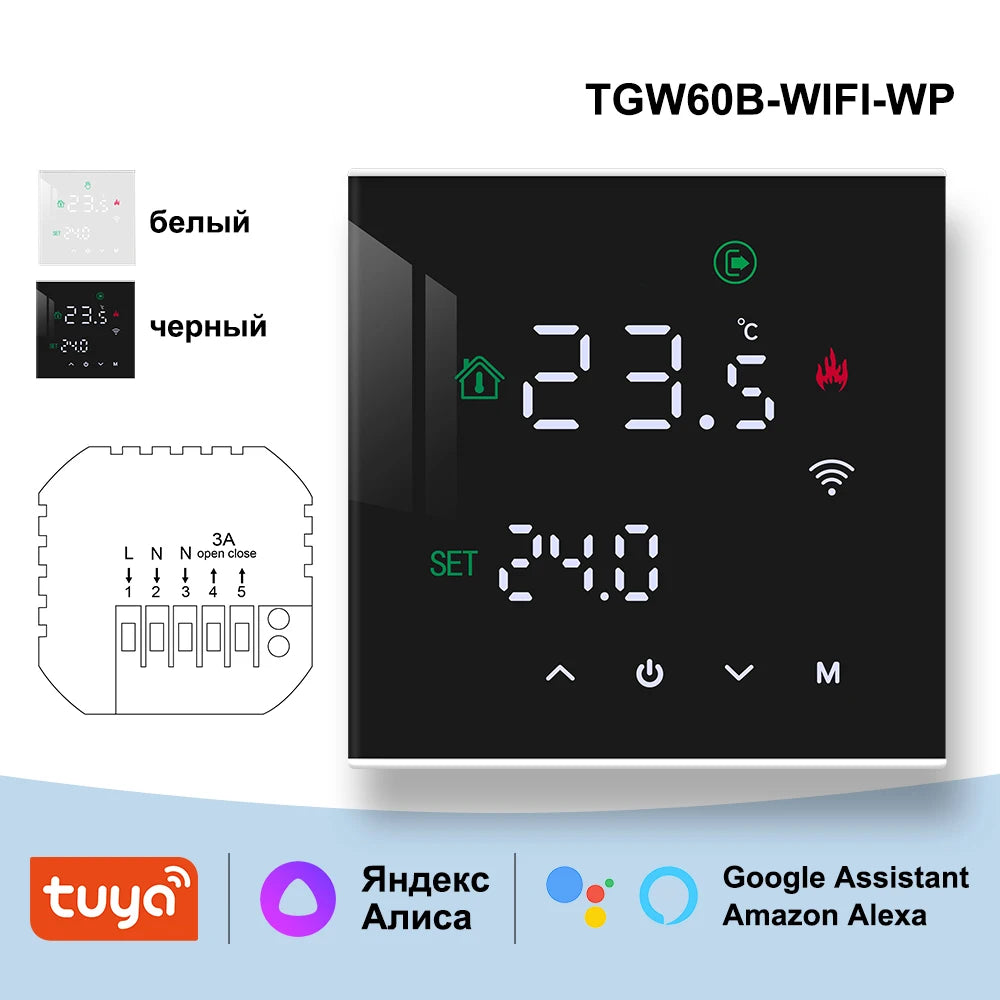

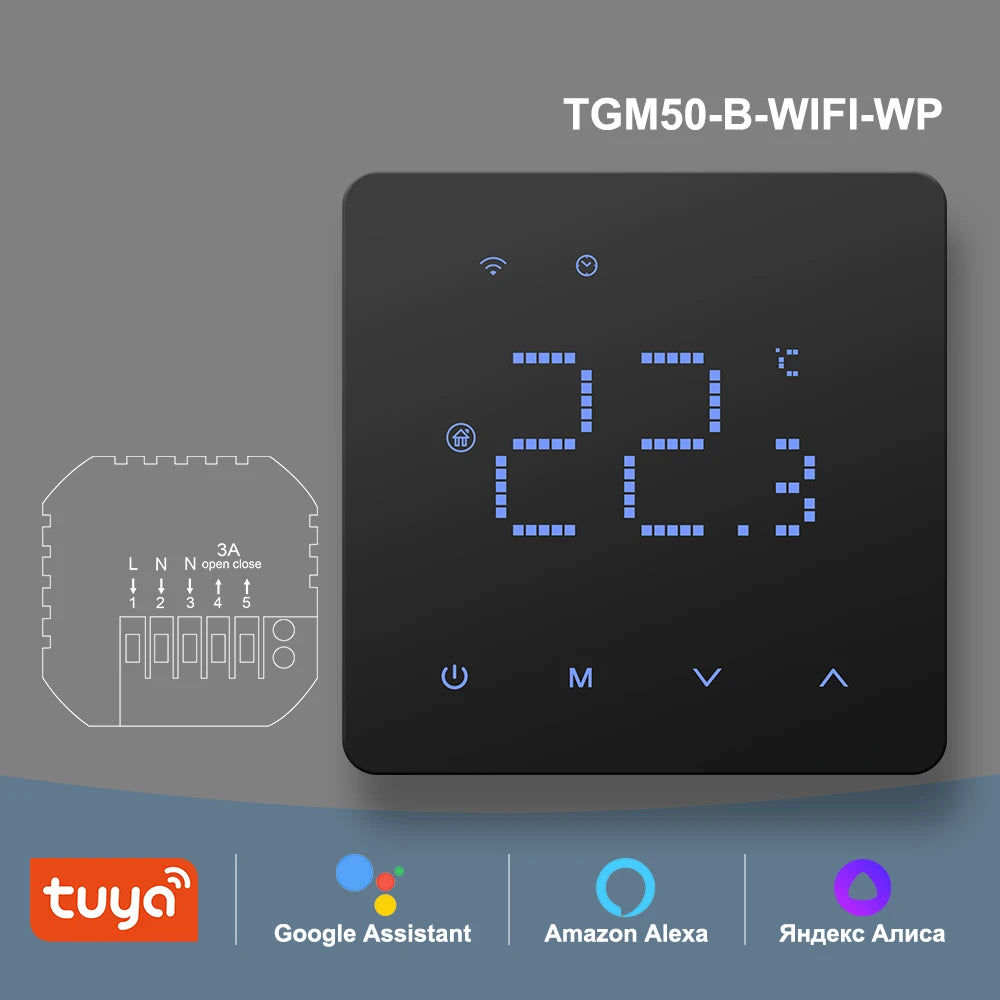

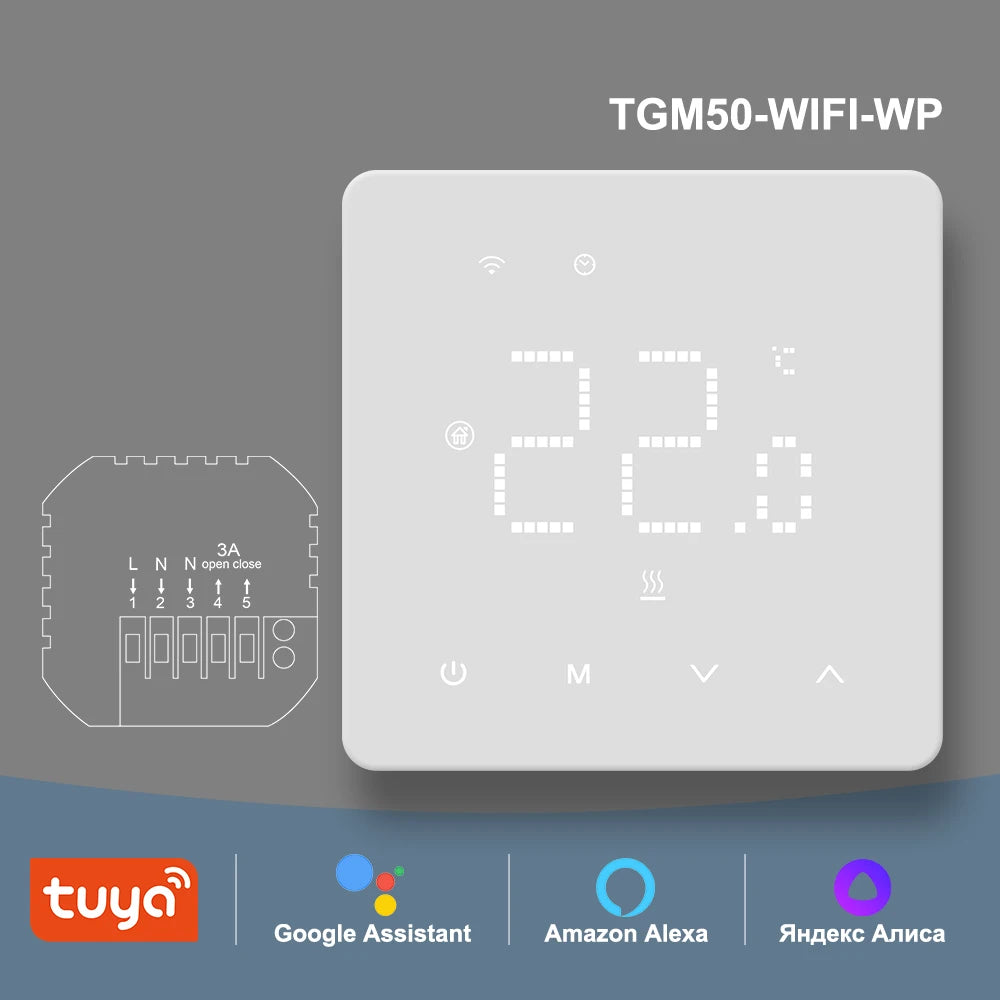

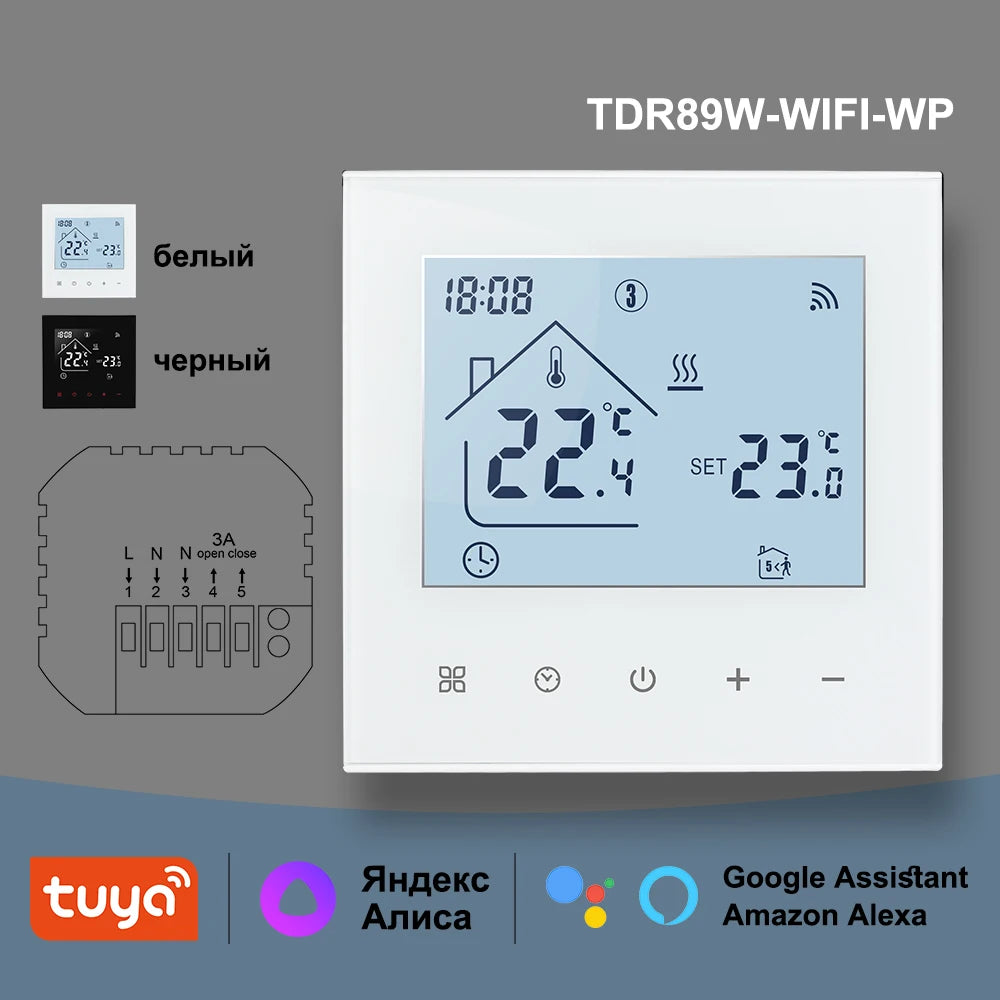

• Thermostat Features: Large touch display, programmable schedules (5+2, 6+1, 7-day), anti-freeze, child lock, selectable sensor modes, European 80 × 80 mm hidden box support

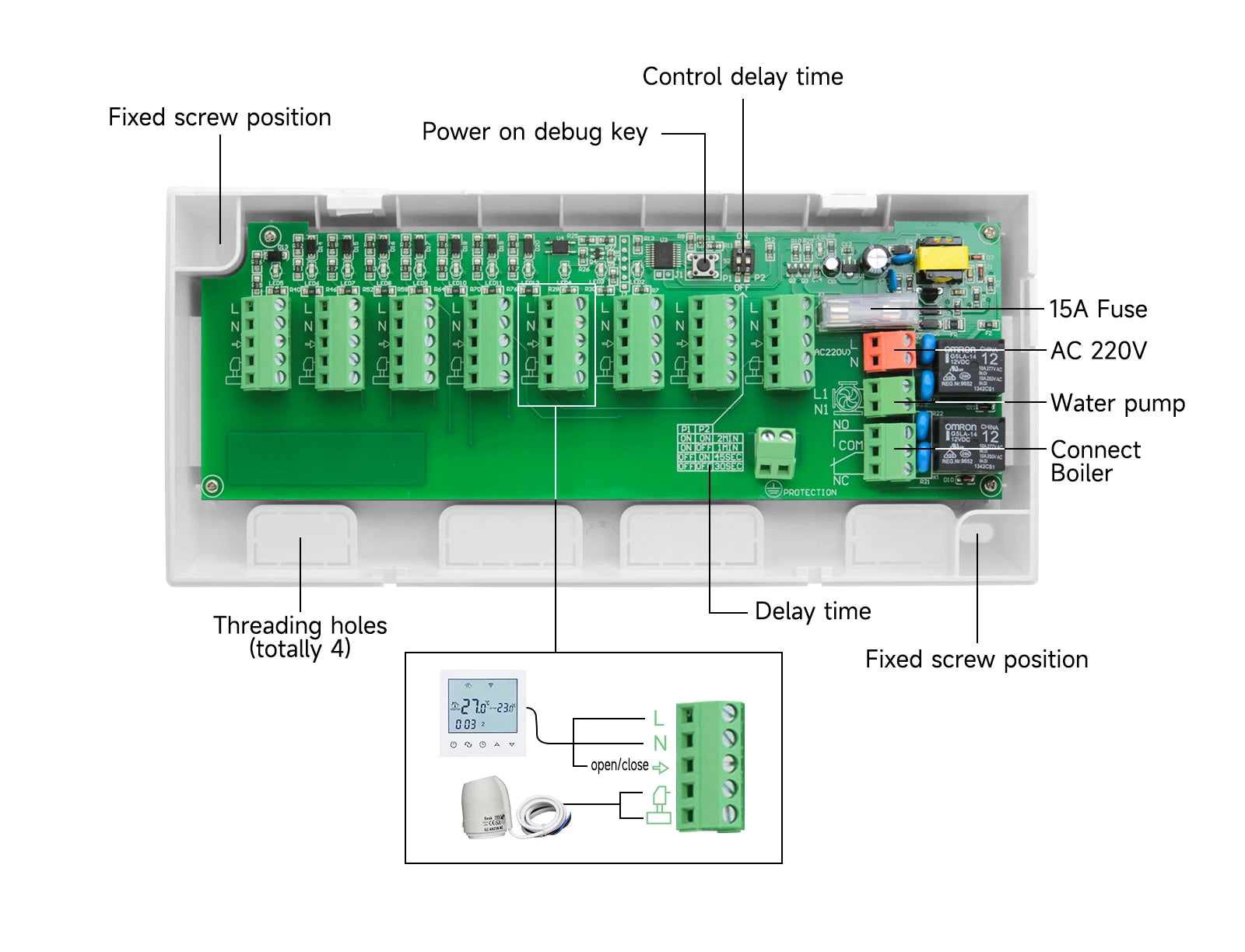

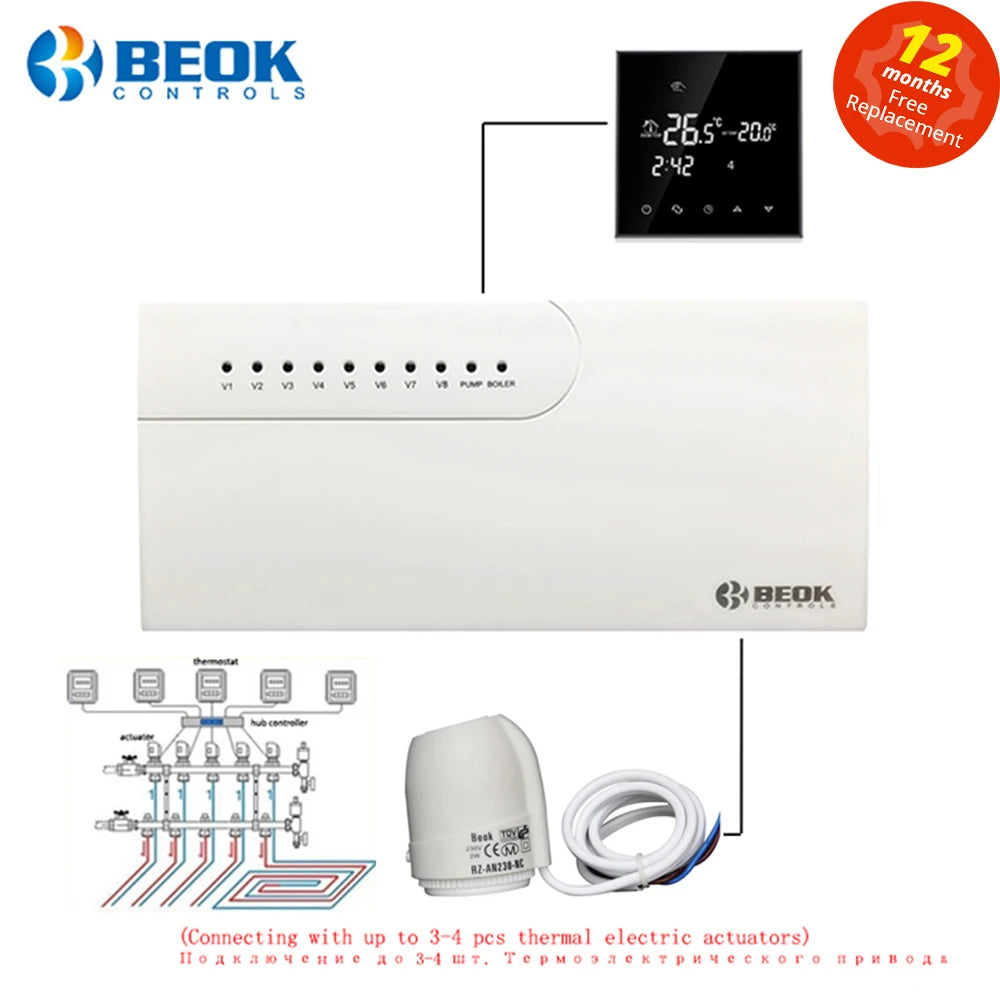

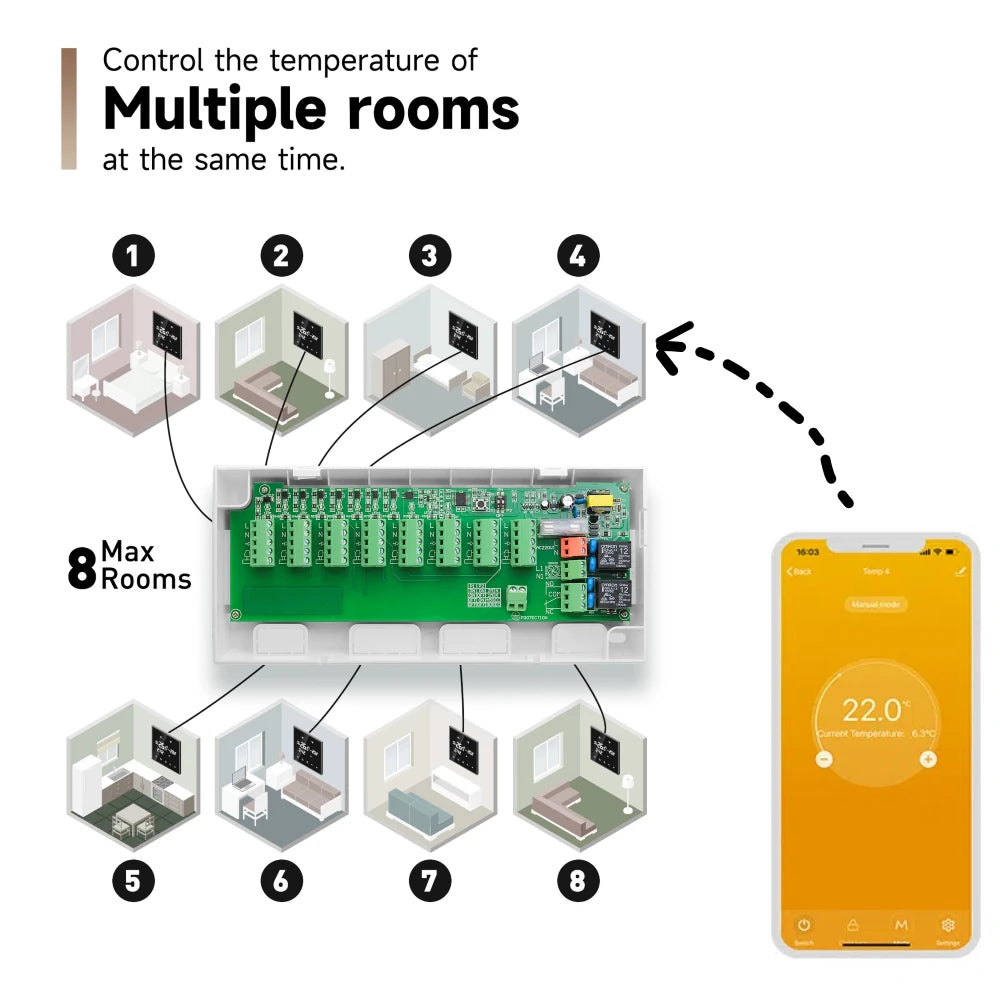

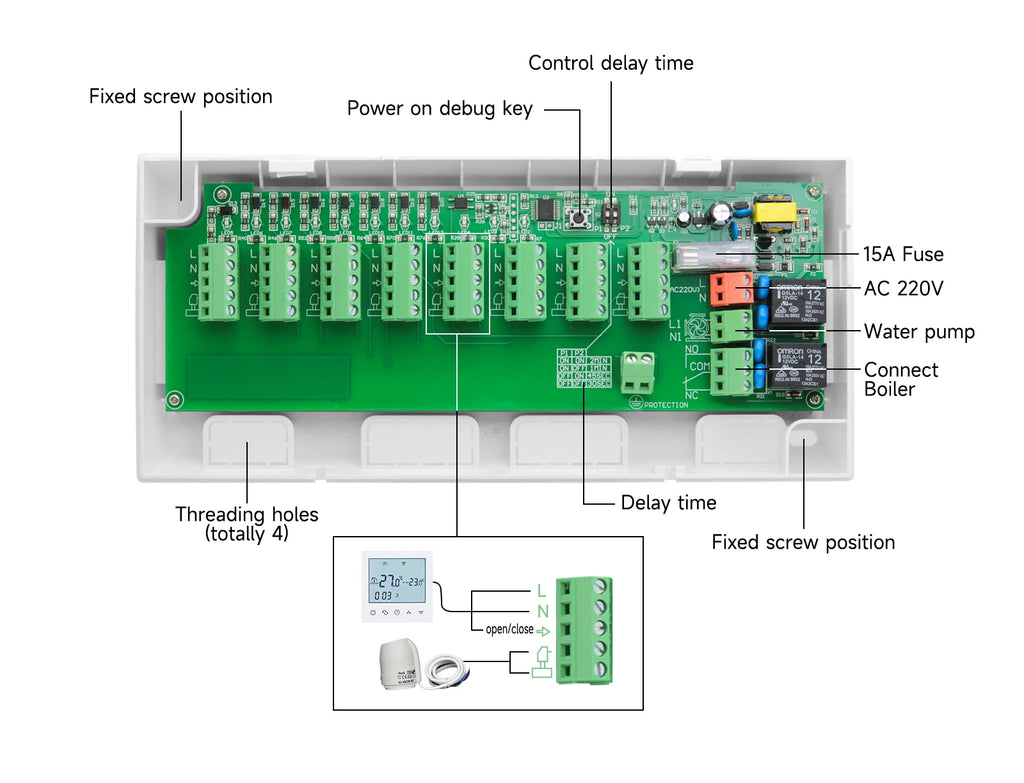

• Control Capability: Control boiler, circulating pump and zone valves to optimize comfort and energy use; 1 hub can control up to 8 rooms, each zone can connect 4–6 actuators
• Warranty: Thermostat: 2 years
• Package Includes (examples): CCT-10 controller ×1; Thermostat ×1; Screws ×2; Electric thermal actuator ×1 (package contents vary by listing — some items like external floor sensors may not be included)

Note: The CCT-10 hub controller is a wired central unit and does not include built-in WiFi. To enable mobile remote control, pair the hub with a WiFi-enabled thermostat (Tuya Smart / Smart Life). This wiring solution requires professional installation and must meet local electrical codes.

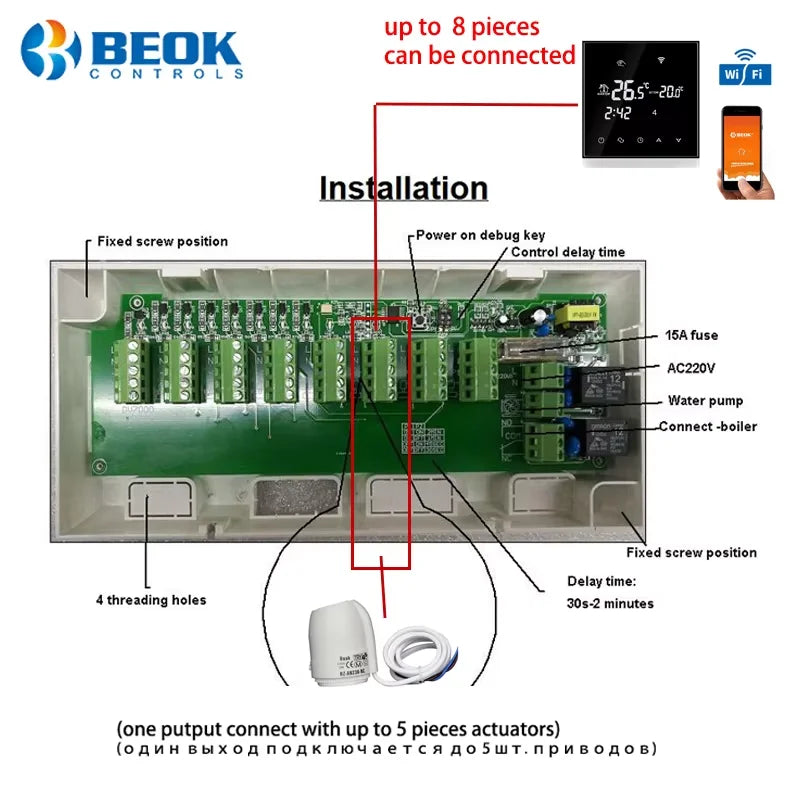

Benefits: Centralized zone control for consistent comfort, boiler/pump protection via time-delay start, simple wiring color coding for easier installation, and energy savings by only running heating when zones demand it.
