Transform any space with bright, individually addressable RGB lighting. This 5V addressable LED strip features 5050 SMD pixels with built-in control IC for full-color, dream-color effects. Choose from multiple densities (30–144 LEDs per meter) and waterproof ratings to suit home, gaming, retail, or automotive accent lighting.

Specifications:

• Item Type: Addressable LED Strip
• LED Chip Brand: Epistar
• LED Chip / IC: 5050 SMD RGB with built-in WS2811/WS2812B IC

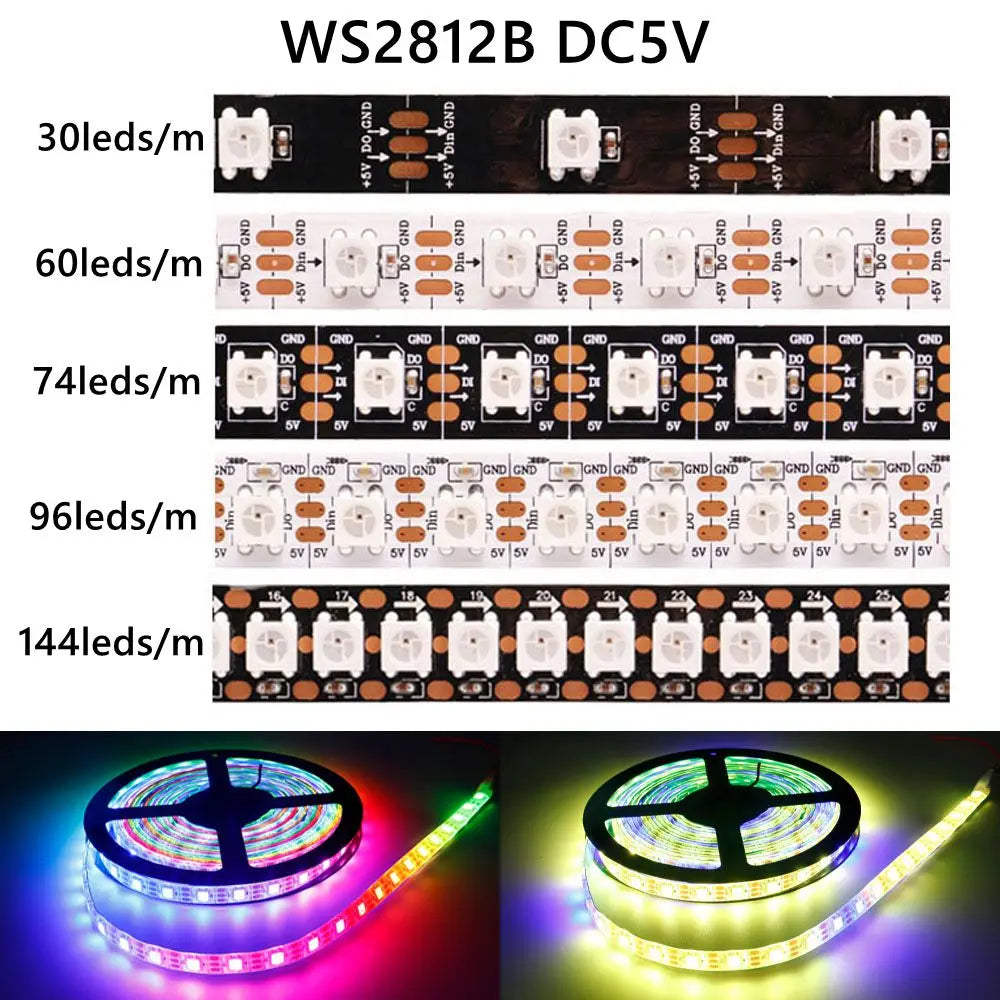

• LED Density: 30 / 60 / 74 / 96 / 144 LEDs per meter (9.14 / 18.29 / 22.56 / 29.26 / 43.89 LEDs per foot approx.)
• Nominal Voltage: DC 5V
• Power Consumption:
  • 30 LEDs/m: 6 W/m (1.83 W/ft)
  • 60 LEDs/m: 12 W/m (3.66 W/ft)
  • 74 LEDs/m: 14.8 W/m (4.51 W/ft)
  • 96 LEDs/m: 19.8 W/m (6.04 W/ft)
  • 144 LEDs/m: 28.8 W/m (8.77 W/ft)
• Average Life: More than 5,000 hours
• Luminous Flux: 249 - 2000 (lumens range depending on density and configuration)
• Control: Individually addressable pixels via single data line. Requires compatible WS2812 controller (not included).
• Connector: 3-pin JST (Red: VCC, White: GND, Green: DATA) with 20AWG wire
• Cuttable: Cuttable at every LED for custom lengths

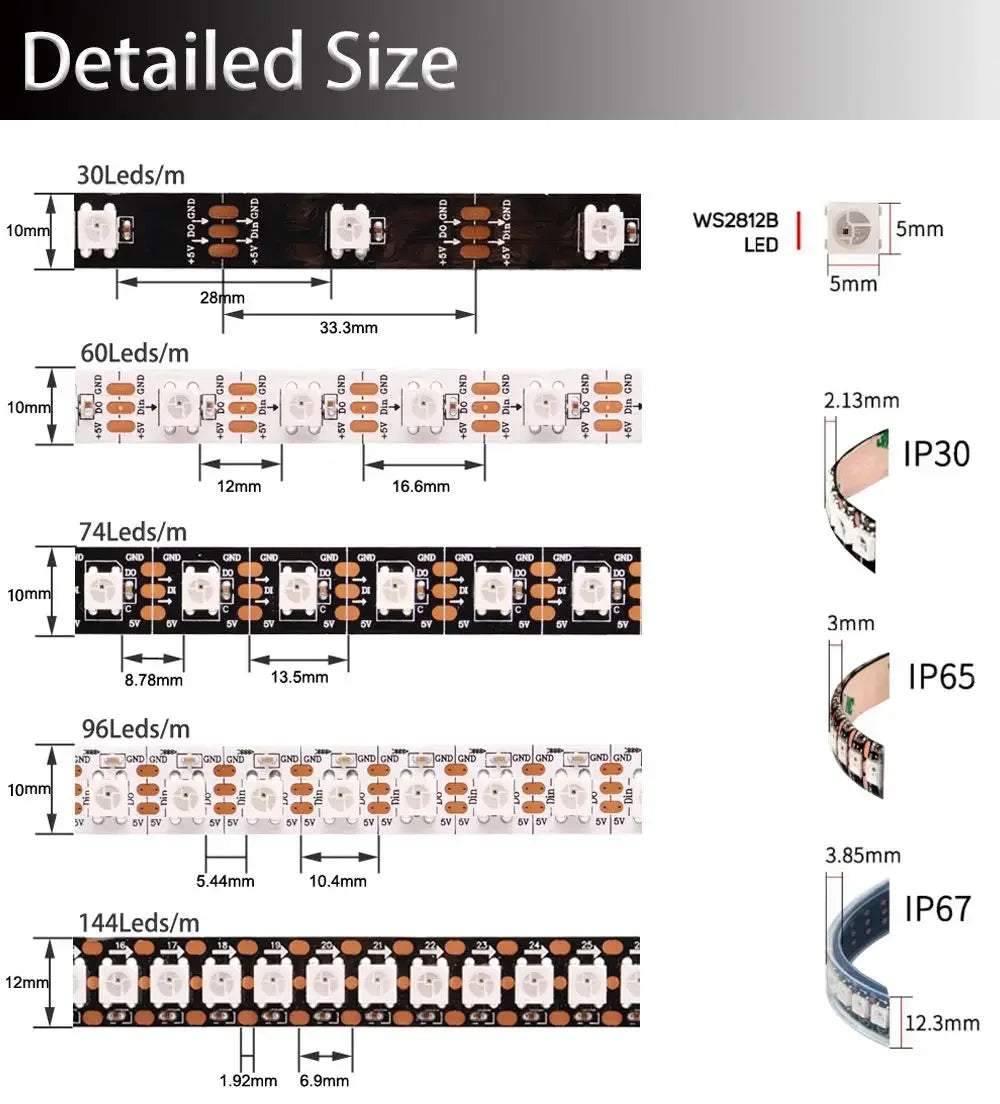

• Pitch: 16.6 mm (0.65 in)
• FPC Width: 10 mm (0.39 in) for 30/60/74/96 LEDs/m; 12 mm (0.47 in) for 144 LEDs/m

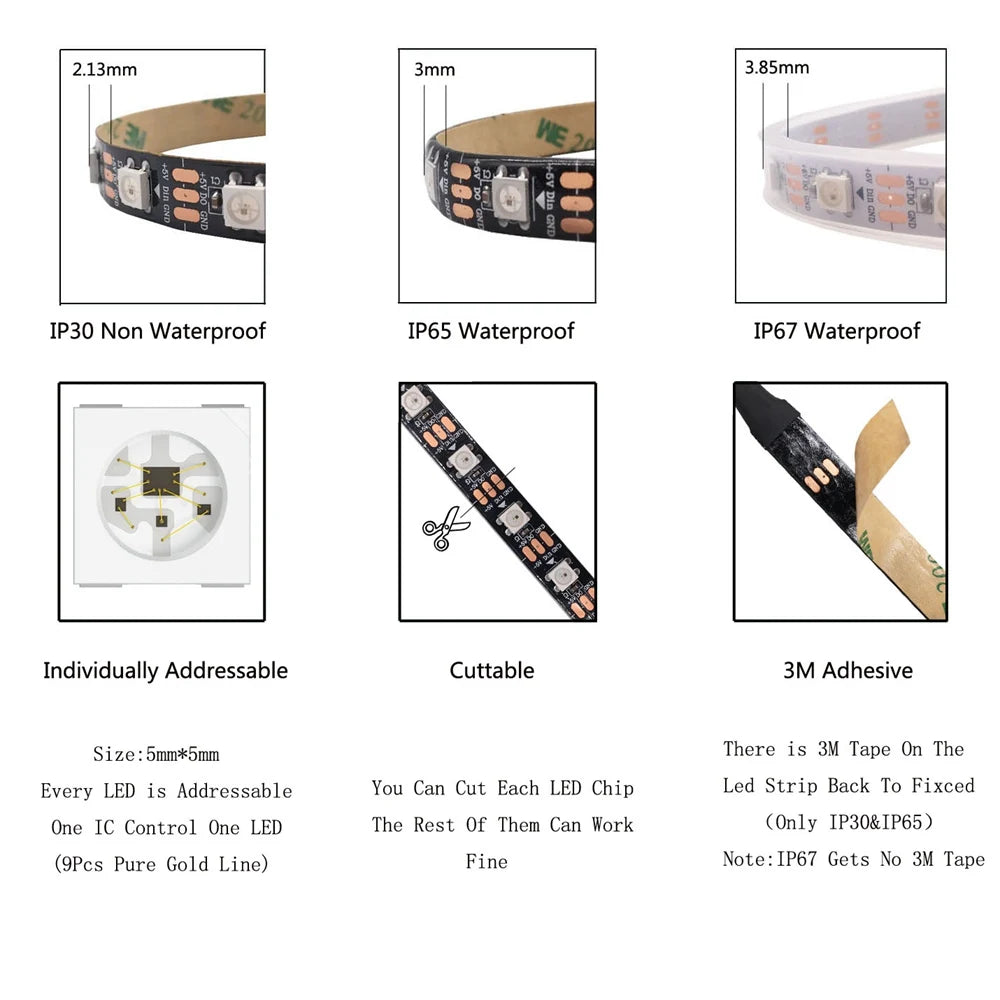

• Protection Rate: IP30 (non-waterproof) / IP65 (silicone coating) / IP67 (silicone tube)
• Gray Scale / Color Depth: 256 gray scale, 8-bit per color

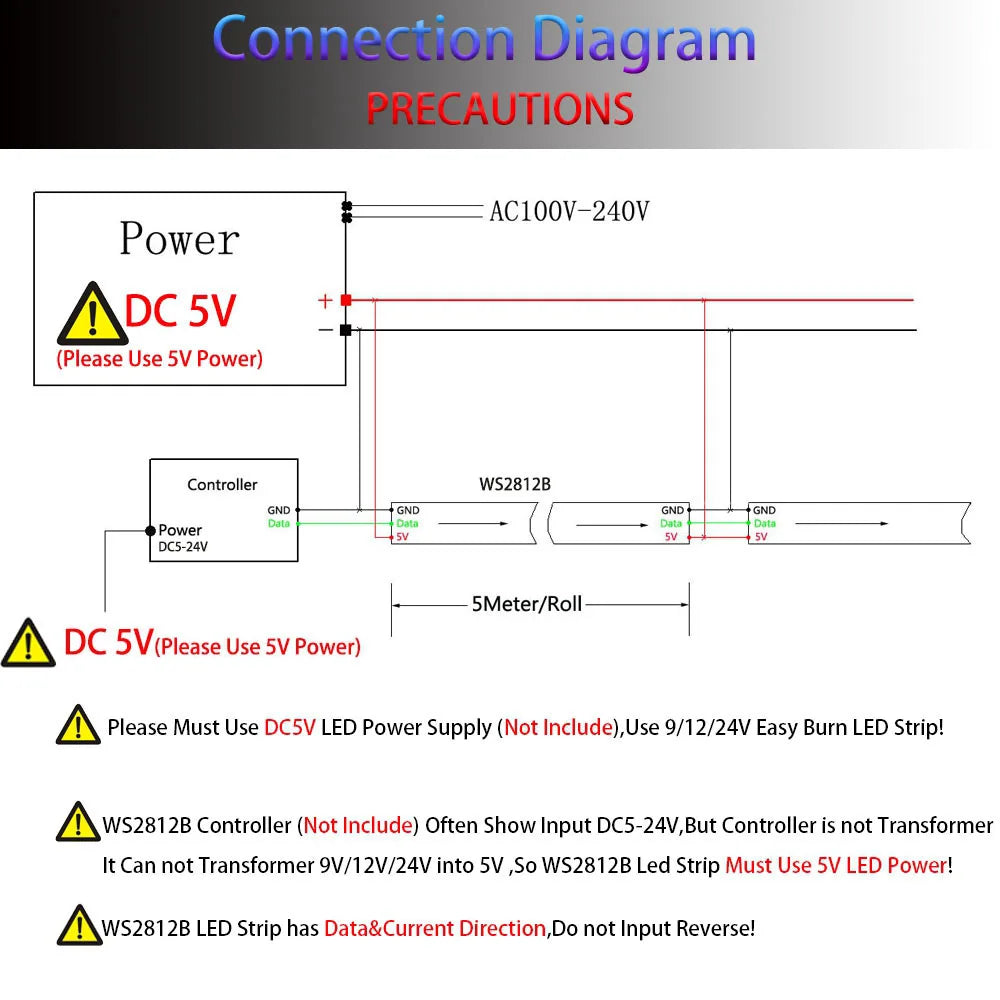

• Installation: 3M adhesive tape on back (except IP67). Surface must be smooth, clean, and dry. Do not bend sharply. Longer runs should be powered from both ends to reduce voltage drop.
• Packing List: 1 x LED strip (power supply and controller not included)
• Safety / Handling Note: Must use a 5V DC LED power supply. Voltages above DC 5.5V can damage the strip.
• Example Power Calculation: 5 m of 30 LEDs/m = 150 LEDs. At ~0.2 W per LED → 30 W total → 30 W / 5 V = 6 A recommended power supply (minimum).

Overview: Individually addressable RGB LED strip ideal for TV backlighting, game rooms, bars, retail displays, car chassis accents, and creative DIY projects. Flexible, cuttable, and available in multiple densities and waterproof options to match indoor or outdoor use cases.
