Description
Secure and reliable hybrid DVR for home and small business surveillance. This recorder supports H.265 compression, up to 5MP video input, remote mobile monitoring, and multi-signal compatibility for flexible, high-quality video capture and playback.
Specifications:
- Model Number: T1004N5 / T1008N5
- Channels: 4 or 8 channel (4CH / 8CH)
- Video Compression: H.265, H.264
- Video Resolution: Up to 5 MP
- Supported Signals: AHD, TVI, CVI, CVBS, IP (5-in-1 hybrid)

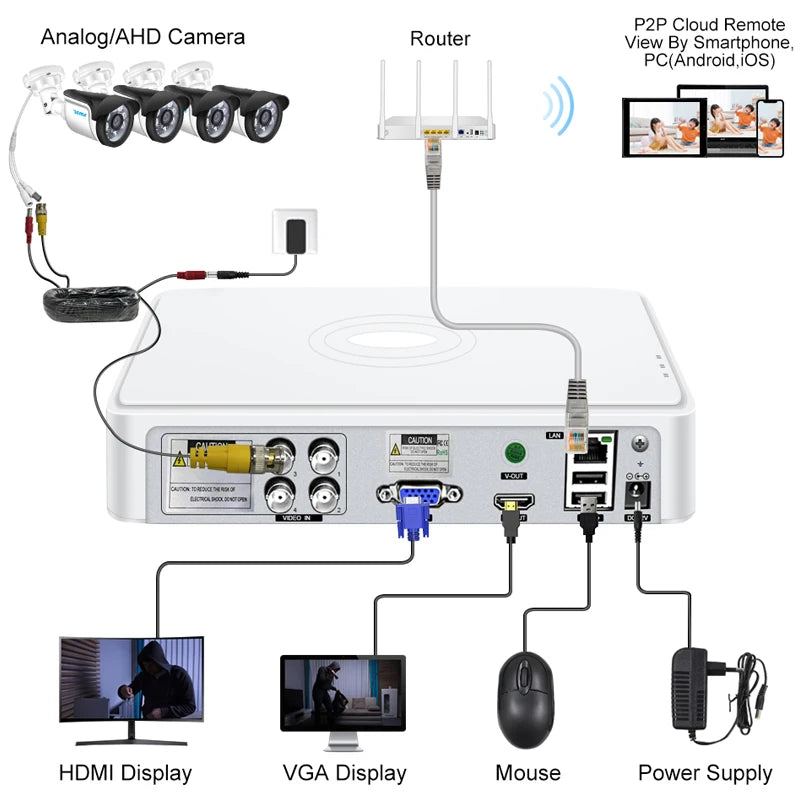

- Video Output: 1 CVBS + 1 HDMI-Compatible + 1 VGA
- Video Input Interface: BNC (1.0 Vp-p, 75Ω)
- Encode Capability: 4x5M-N (4CH) / 8x5M-N (8CH)
- Record Modes: Manual, Alarm, Motion Detection, Scheduled (Timing)
- Alarm Action: FTP Photo, Email Photo, Local Alarm
- Motion Detection & Alerts: Motion detection with configurable mask and instant email alerts
- Audio: Compression G711A; Audio Input: No; Audio Output: None
- USB: 2 x USB ports
- HDD Interface: 1 x SATA (3.5 in / 8.9 cm drive bay)
- HDD Capacity: 4 TB (supports up to 6 TB per bay)
- Network Interface: RJ45 10/100M
- Network Protocols: TCP/IP, Dynamic IP (e-Cloud P2P supported)
- Remote Access & Mobile: Remote monitoring via HIeasy app (iPhone, Android)
- Power Supply: DC 12V (12V/2A)
- Supported OS for Local Software: Microsoft Windows 98/ME/2000/XP/Vista/7
- Video Standard: NTSC / PAL
- Compression & Compatibility: ONVIF supported for third-party camera access
- Certification: CE
- Technology: ANALOG, AHD, HDCVI, HDTVI, Network
Overview:
- H.265+ encoding for ultra-low bitrates with backward compatibility to H.264.
- Simultaneous VGA and HDMI-Compatible full HD output for flexible viewing.
- Hybrid support for coaxial and IP cameras, instant playback and digital-to-analog conversion.
- Supports mobile push notifications, multiple cloud technologies and remote monitoring via DNS/ARSP.

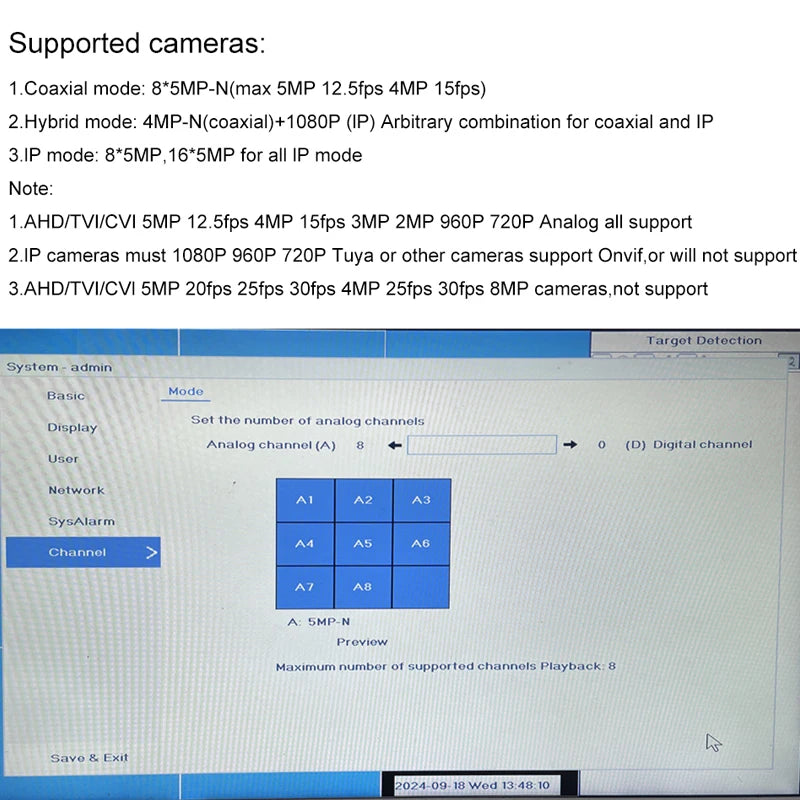

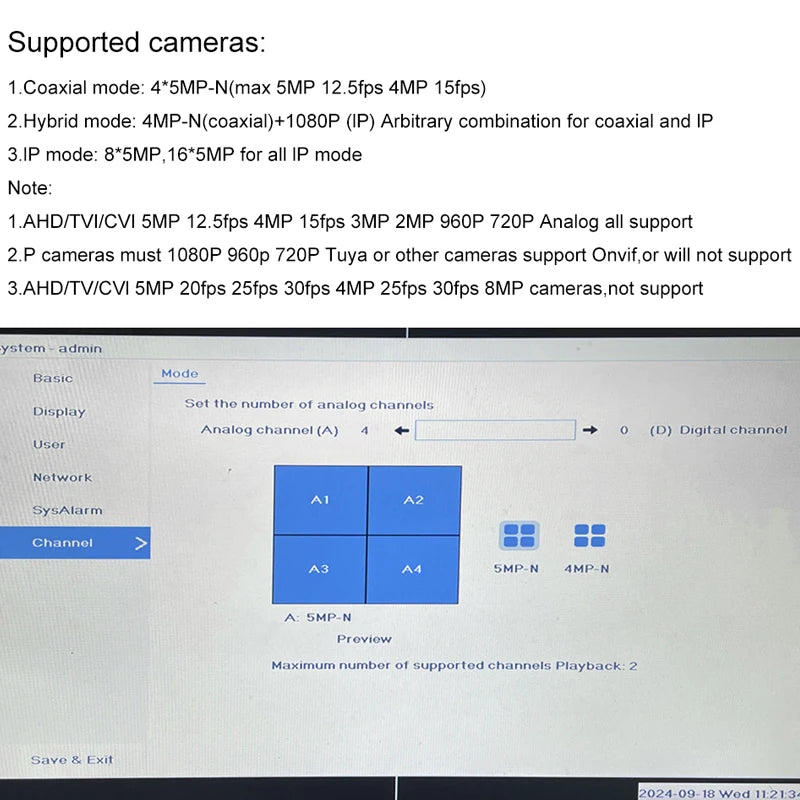

- Flexible camera combinations: coaxial, hybrid and full IP modes depending on channel count.
Packing List:

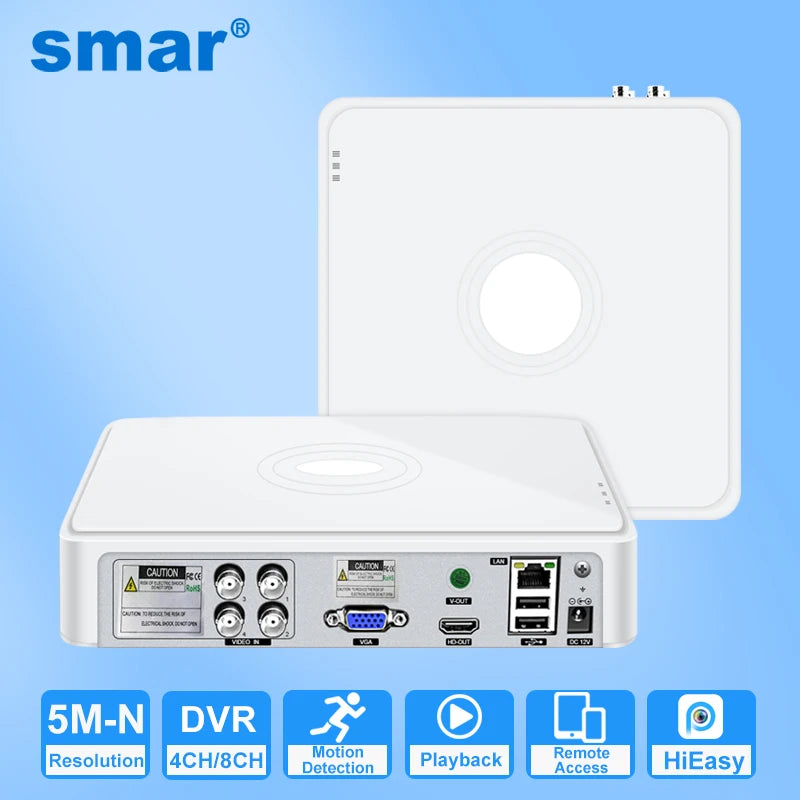

- 1 x 4CH or 8CH Mini Hybrid CCTV DVR (5-in-1) — HDD not included
- 1 x USB Mouse
- 1 x Power Plug
- 1 x Quick Operation Manual
#CCTV #HomeSecurity #Surveillance #FanzyMarket
Safety Notes:
This device is an electronic product—use the supplied power adapter (DC 12V) and avoid using damaged cables or connectors. Disconnect power before cleaning or performing maintenance.
Install the DVR and hard drive in a dry, ventilated location away from moisture and direct heat. For wiring or mounting that involves mains power, consider professional installation to ensure safe and code-compliant setup.
Dispose of electronic components and batteries responsibly according to local regulations.
