Description

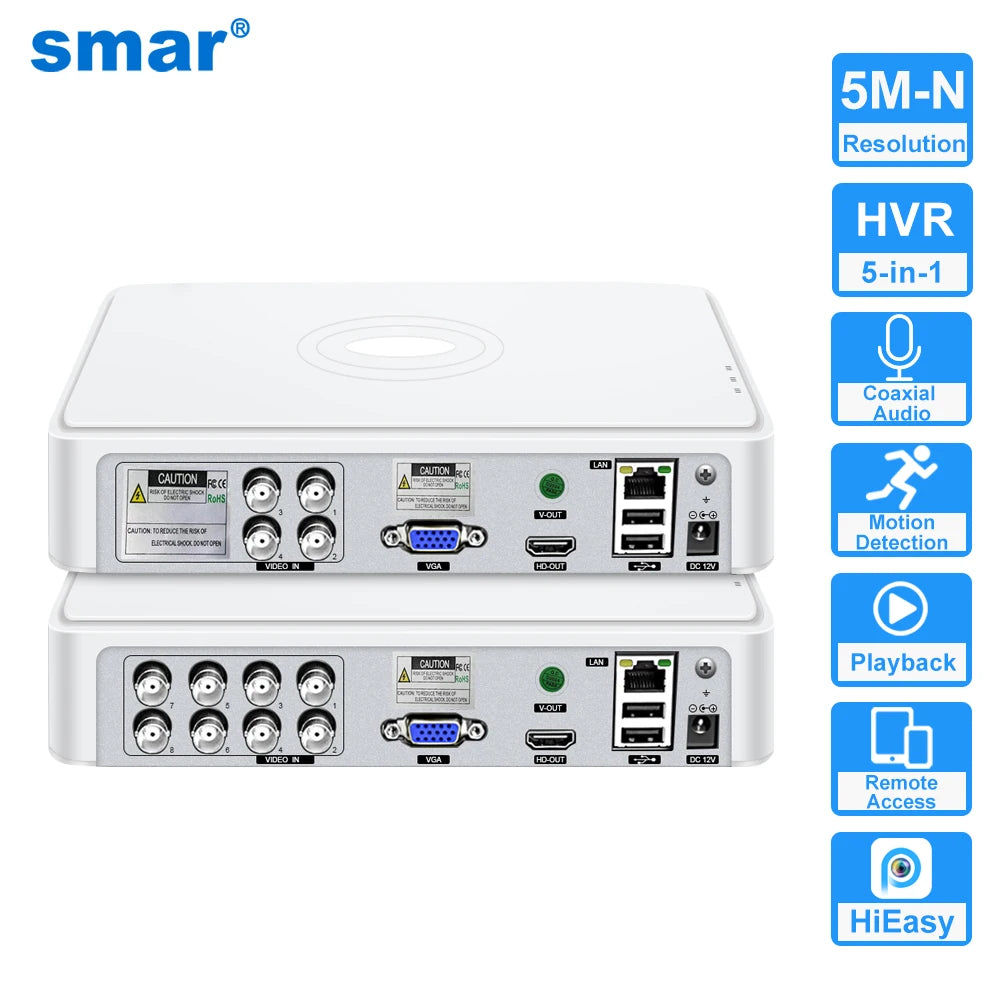

Protect your home or business with a reliable 5-in-1 hybrid DVR featuring 5MP-N clarity, H.265+ compression, P2P mobile access and smart motion alerts for fast, easy surveillance.
Specifications:
- Channels / Model Options: 4CH (4 BNC) or 8CH (8 BNC)
- Model Number: T1004N5 / T1008N5
- Video Format / Compatibility: AHD, HDTVI, HDCVI, CVBS (analog) and Network (IP) – 5-in-1 hybrid
- Video Resolution: Up to 5 MP (5MP-N)
- Compression Format: H.265, H.264 (H.265+ supported for extra savings)
- Encode Capacity: 4×5M-N (4CH) / 8×5M-N (8CH)
- Video Output: 1 × CVBS + 1 × HDMI-Compatible + 1 × VGA (Max output 1080P for 4CH, up to 2K/2560×1440 @30Hz for 8CH)
- Video Input Interface: BNC (1.0 Vp-p, 75Ω)
- Audio Input / Output: Audio Input: No; Audio Output: None; Audio Compression: G711A
- Alarm Action: FTP photo, Email photo, Local alarm
- Motion Detection: Smart motion detection with customizable zones and instant push/email alerts
- Network Interface / Protocol: RJ45 10/100M, TCP/IP, ONVIF support for many third-party IP cameras
- Remote Access / Cloud: e-Cloud (P2P) supported — mobile viewing via iOS / Android apps
- Supported Mobile Systems: iPhone OS, Android
- Supported Operating Systems (PC): Microsoft Windows 98/ME/2000/XP/Vista/7
- Storage / HDD: 1 × SATA (supports up to 6 TB each); HDD capacity example: 4 TB (approximately 4,096 GB)
- Hard Drive Size: 3.5" (3.5 inches / 8.89 cm)
- Hard Drive Interface: SATA
- Backup Type: Hard Drive, Recorder
- USB: 2 × USB ports
- Power Supply: DC 12V (12 V DC)
- Network Features: DNS (ARSP), remote monitoring, alarm push, multiple cloud/network penetration options

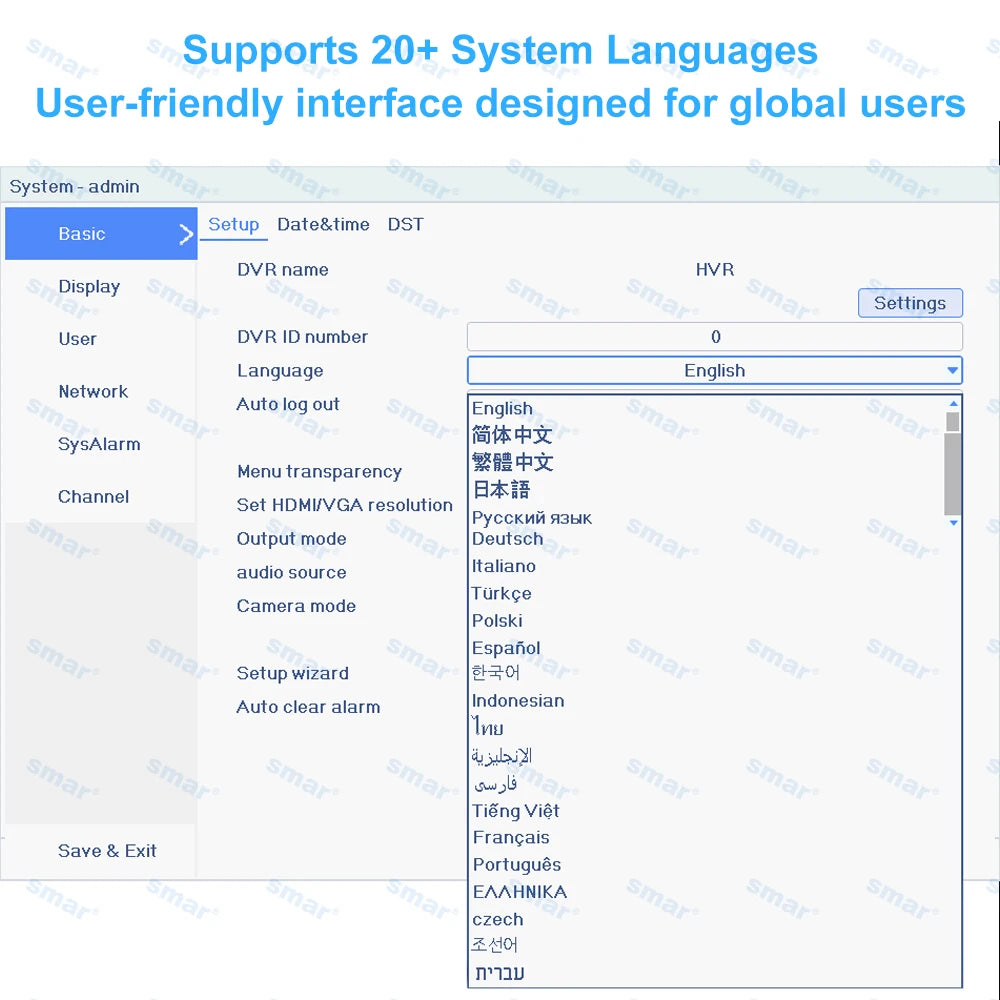

- Technology Highlights: H.265+ for up to 50% storage and bandwidth savings, multi-language OSD, VGA & HDMI simultaneous output
- Certification: CE
- Two-way Audio: No
- Video Adjustment: Auto White Balance
- Video Standard: NTSC / PAL
Key Features:

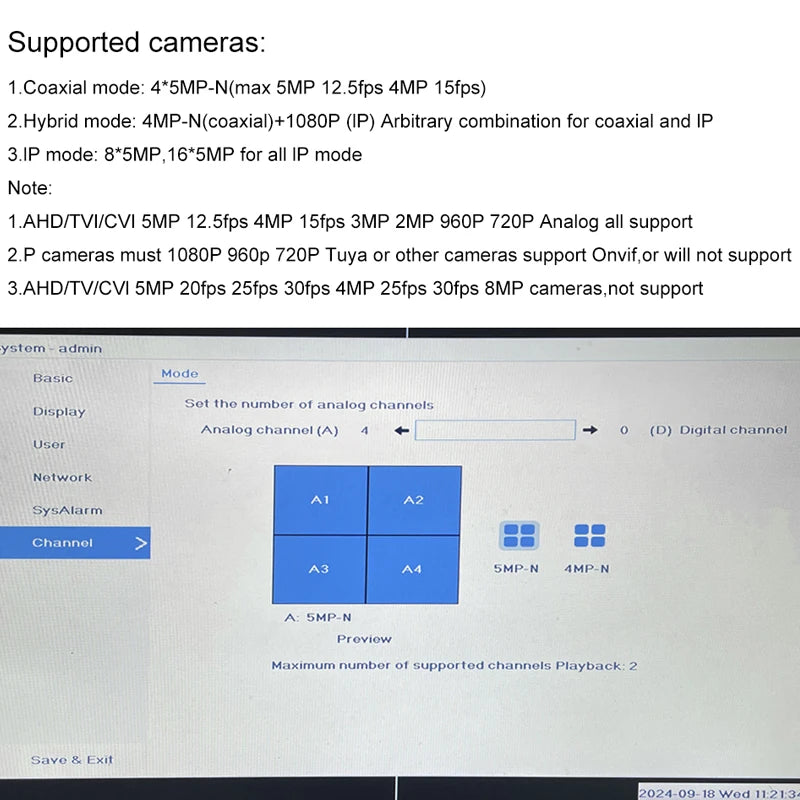

- Plug & Play support for standard coaxial analog cameras (AHD/TVI/CVI/CVBS) up to 5MP
- Native support for compatible IP cameras and ONVIF access for third-party IP cameras
- Smart event retrieval and timeline highlights for fast evidence search
- 24/7 loop recording with overwrite — no monthly subscription fees for local storage

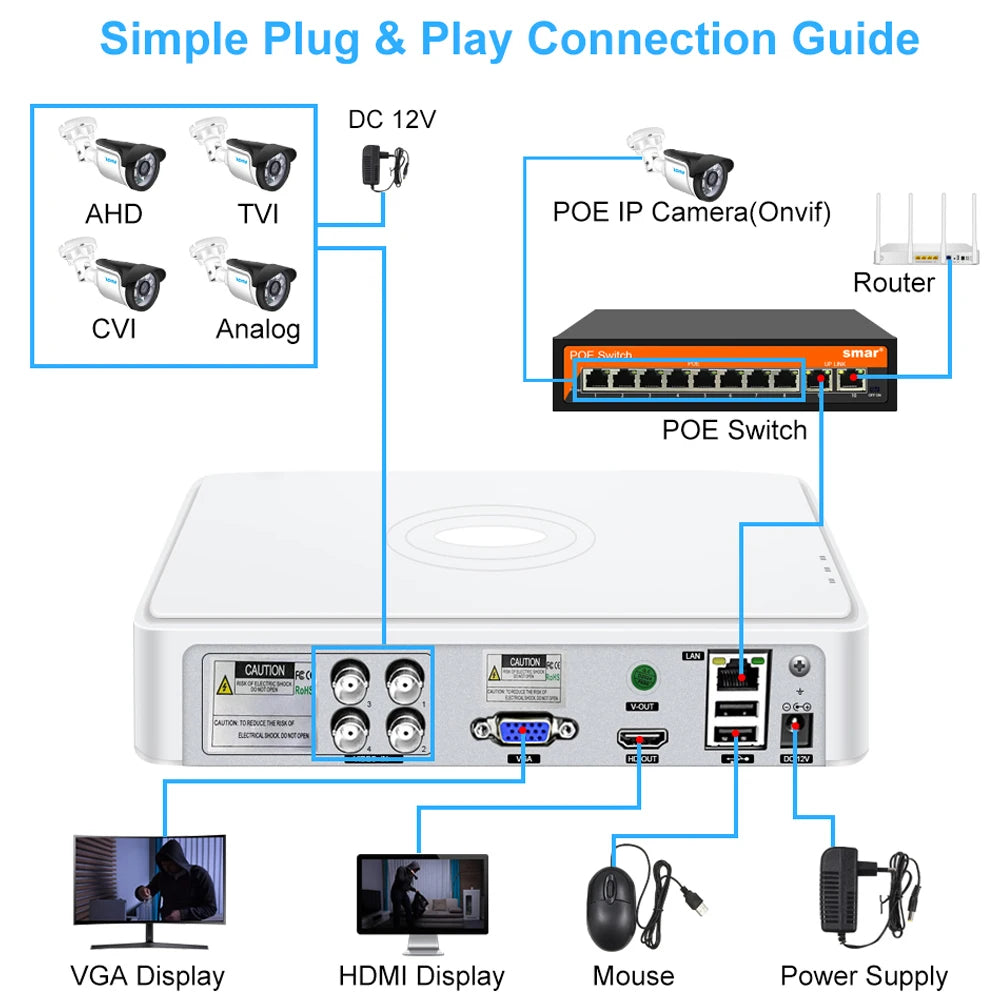

- Quick setup: connect cameras to BNC, HDMI/VGA to monitor, power with 12V adapter and scan QR for mobile P2P access
#HomeSecurity #HybridDVR #FanzyMarket
Safety Notes:
This is an electronic device powered by a DC 12V adapter. Use only the supplied power adapter or an approved replacement that matches the required voltage and polarity to avoid damage or fire risk.
Do not open the DVR enclosure. Disconnect power before installing or servicing internal components such as hard drives. Avoid exposure to moisture, extreme heat, or prolonged direct sunlight.
Keep power cables and connections away from high-traffic areas to prevent tripping hazards. Ensure proper ventilation around the unit and place the DVR on a stable surface.
