Description
Reliable, compact hybrid DVR for professional home and small business surveillance. This 5-in-1 recorder supports AHD/TVI/CVI/CVBS analog cameras and IP cameras with H.265+ compression for clear 5MP-N recording while saving storage and bandwidth. Easy HDMI/VGA output, USB backup and mobile P2P remote viewing make installation, monitoring and playback straightforward.
Specifications:

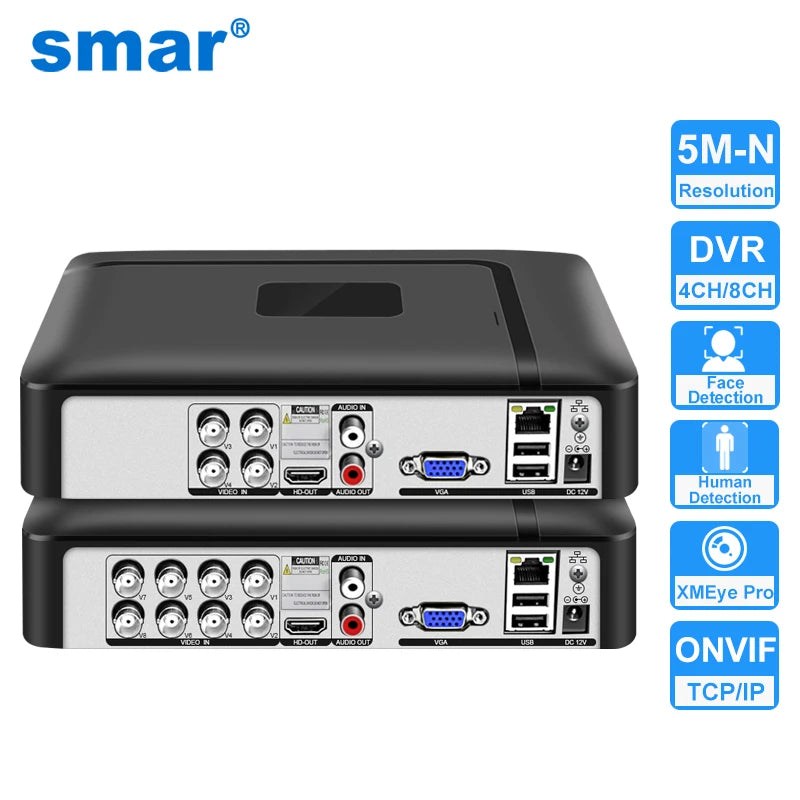

- Type: 5-in-1 Mini Hybrid DVR (supports AHD/TVI/CVI/CVBS/IP)

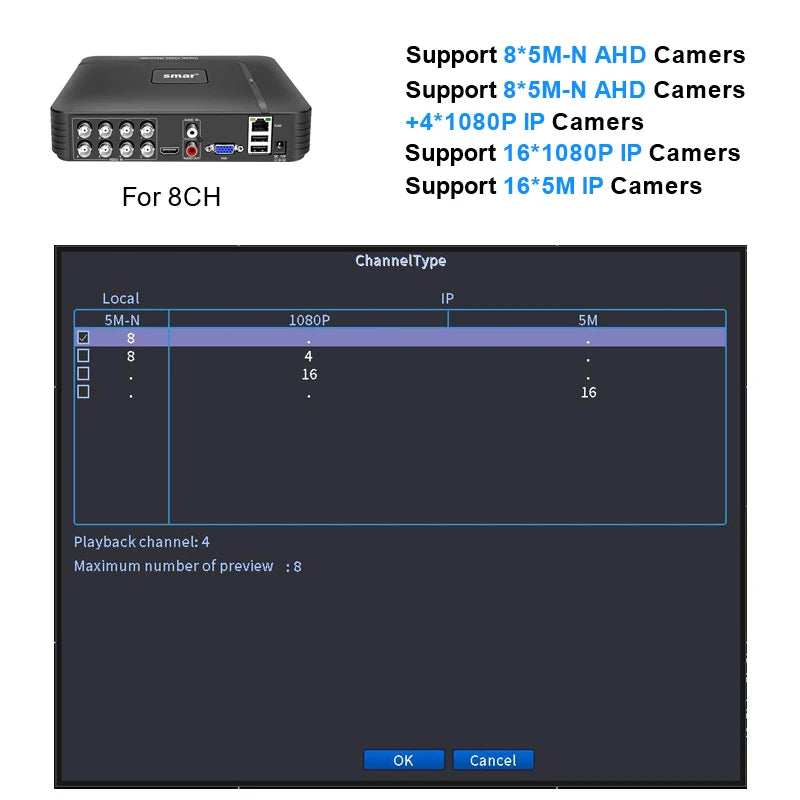

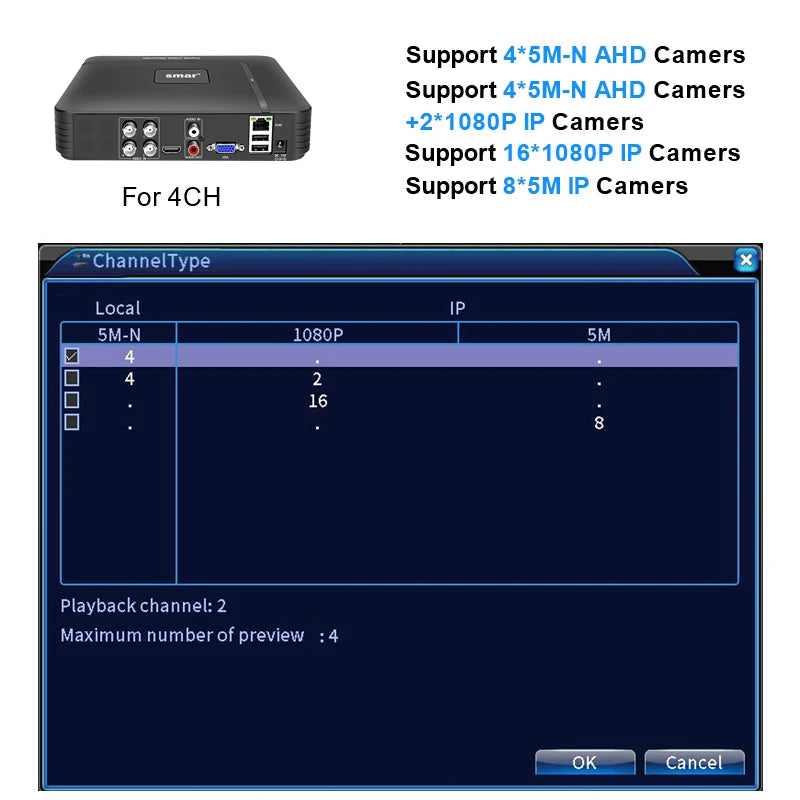

- Channels: 4CH or 8CH options (4 BNC or 8 BNC video inputs)
- Video Compression: H.265 / H.265+ (reduces storage up to ~50%)
- Max Resolution: Up to 5M-N (5MP-N), plus 1080P/960P/720P support
- Encode/Decode Ability: 4×5M-N (4CH) or 8×5M-N (8CH) encode/decode capability
- Video Input Interface: BNC (1.0 Vp-p, 75Ω)
- Video Output: 1 × VGA + 1 × HDMI-compatible (supports up to 1080P/2K depending on model)
- Audio I/O: 1 × RCA audio input, 1 × RCA audio output (G.711A)
- Network Interface: RJ45 10/100M, TCP/IP, ONVIF support for third-party IP cameras (hybrid IP integration)
- Remote Access: P2P mobile viewing for iOS and Android (mobile apps), multi-platform remote access
- Storage: 1 × 3.5" SATA HDD bay (3.5" = 88.9 mm), supports large-capacity HDDs (up to 14 TB depending on configuration)
- Backup Options: HDD, USB flash drive, network backup
- USB: 2 × USB 2.0 ports
- Power Supply: DC 12V (12V/2A adapter)
- Power Consumption: <15W (without HDD)
- Supported Systems: Mobile: iOS, Android. PC: Windows (multiple legacy versions supported)
- PTZ Control: Supports common PTZ protocols via RS-485
- Alarm/Events: Motion detection (configurable areas), email/FTP alerts with snapshot options
- Video Standard: PAL/NTSC support
- Working Environment: Temperature 0°C to +55°C (32°F to 131°F), Humidity 10%–90%
- Dimensions: 200 mm × 200 mm × 42 mm (7.87 in × 7.87 in × 1.65 in)
- Weight: Approx. 0.43 kg (0.95 lb) for 4CH / 0.46 kg (1.01 lb) for 8CH
- Additional Features: Dual display output, loop recording, configurable record modes (manual, alarm, motion, timing), support for multi-language UI, cloud P2P
Quick Overview:

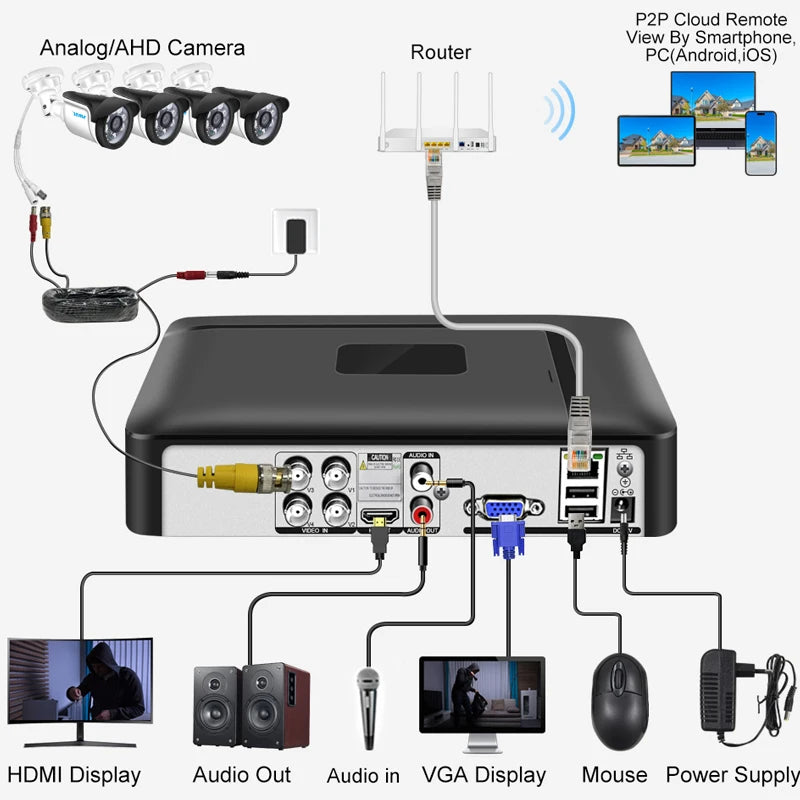

Compact hybrid DVR with 5-in-1 compatibility for analog and IP cameras, H.265+ compression for efficient storage, simultaneous VGA/HDMI output, USB backup, and P2P mobile remote viewing. Ideal for home, retail and small business surveillance installations that require flexible camera integration and reliable 24/7 recording.
#HybridDVR #HomeSecurity #FanzyMarket
Safety Notes:
This product is an electronic device powered by a DC 12V adapter. Use only the supplied or specified power adapter. Unplug the device before performing maintenance or installation. Do not expose the unit to moisture or extreme temperatures. Risk of electric shock — installation and repairs should be performed by qualified personnel. Dispose of electronic equipment responsibly according to local regulations.
