Description

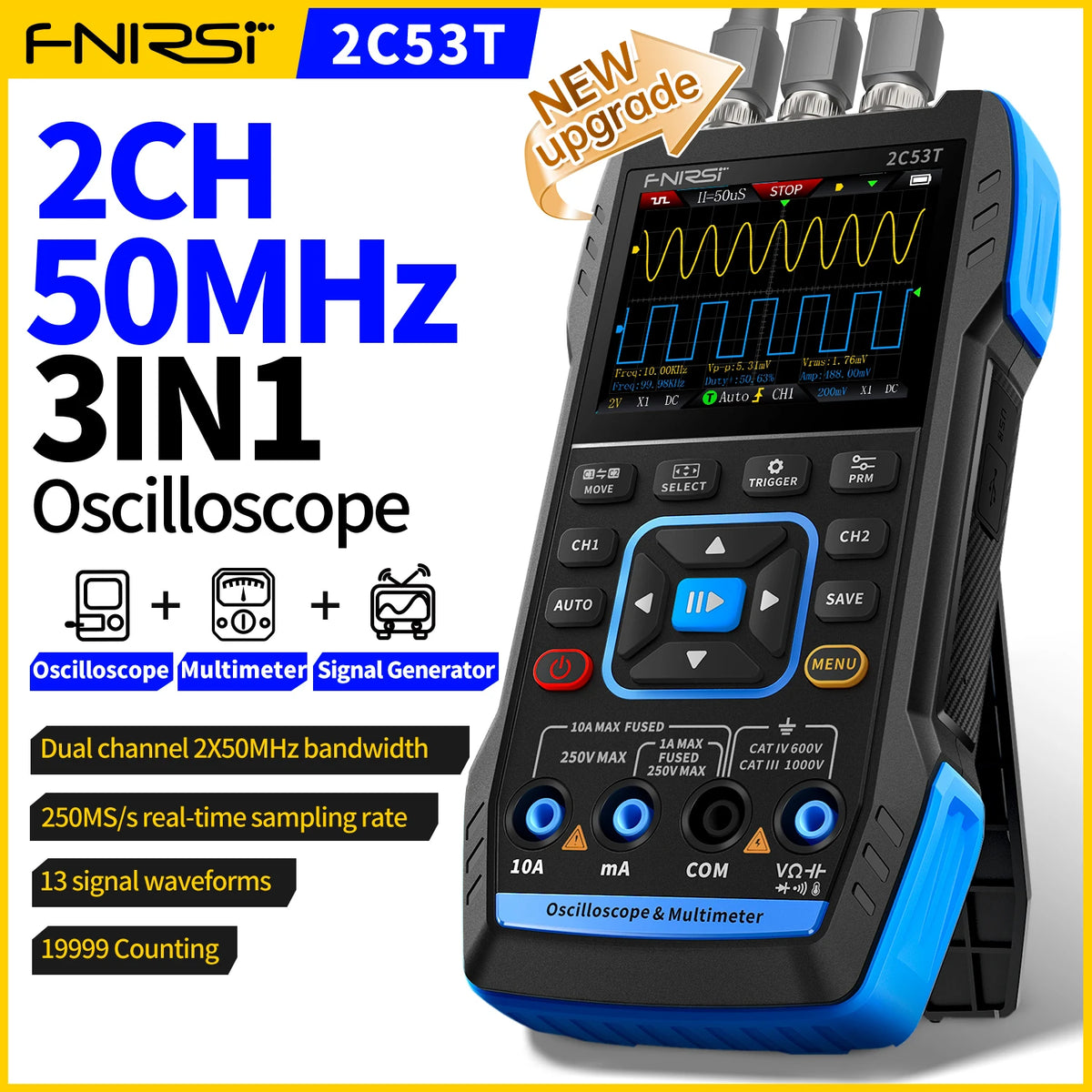

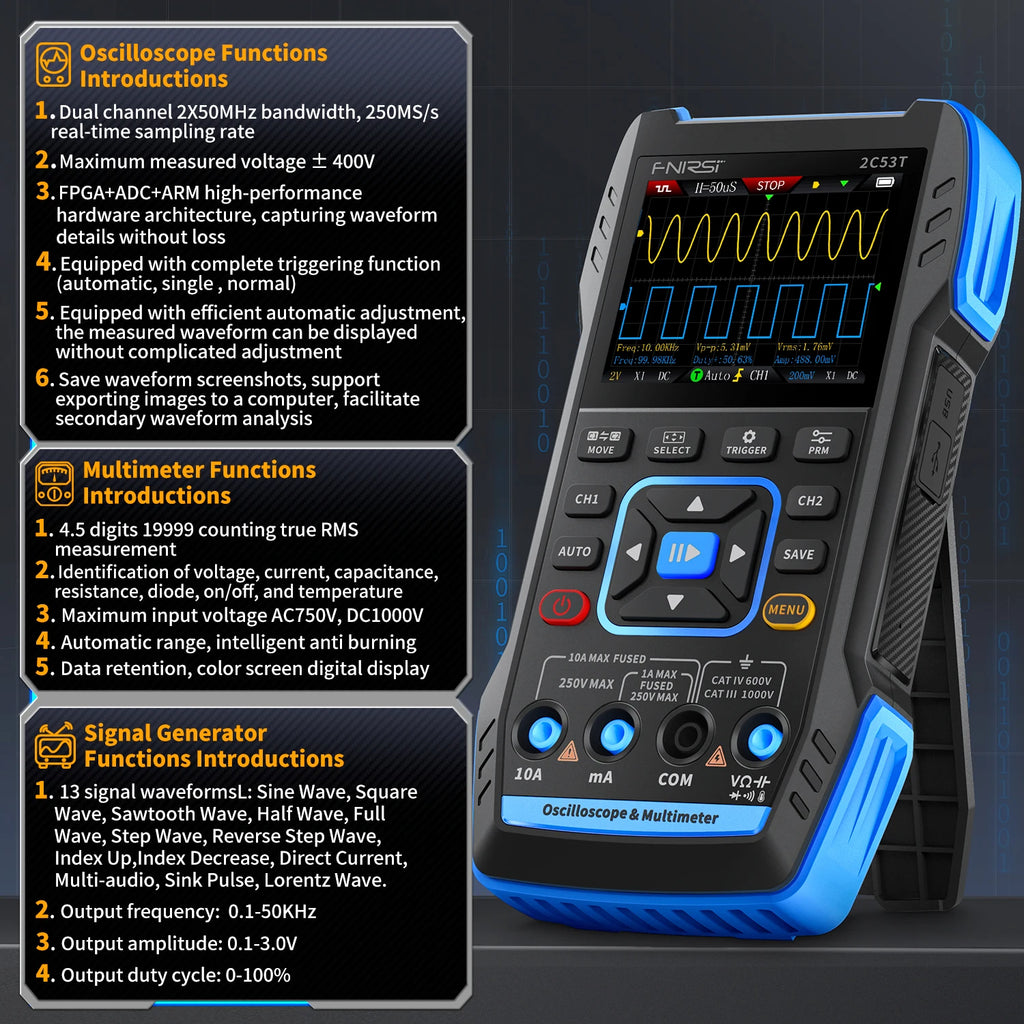

Versatile handheld 3-in-1 test instrument combining a two-channel digital oscilloscope, true RMS multimeter and DDS function generator. Ideal for electronics repair, lab work, education, hobbyists and field diagnostics—offers 50 MHz bandwidth, 250 MS/s sampling and a compact 2.8-inch (2.8" / 7.11 cm) color display for accurate waveform capture and convenient portability.
Specifications:

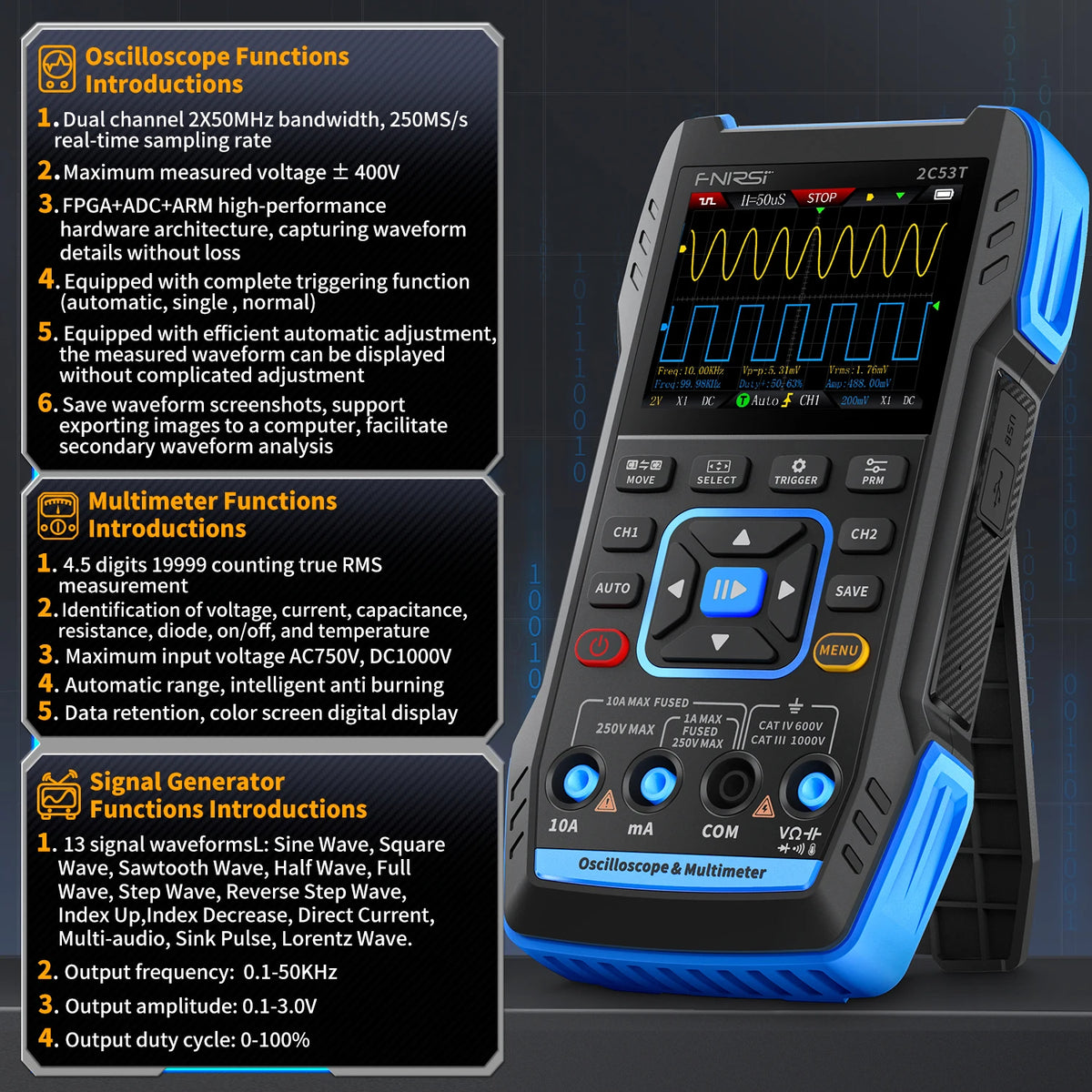

- Device Type: 3-in-1 Digital Oscilloscope, True RMS Multimeter, DDS Signal Generator

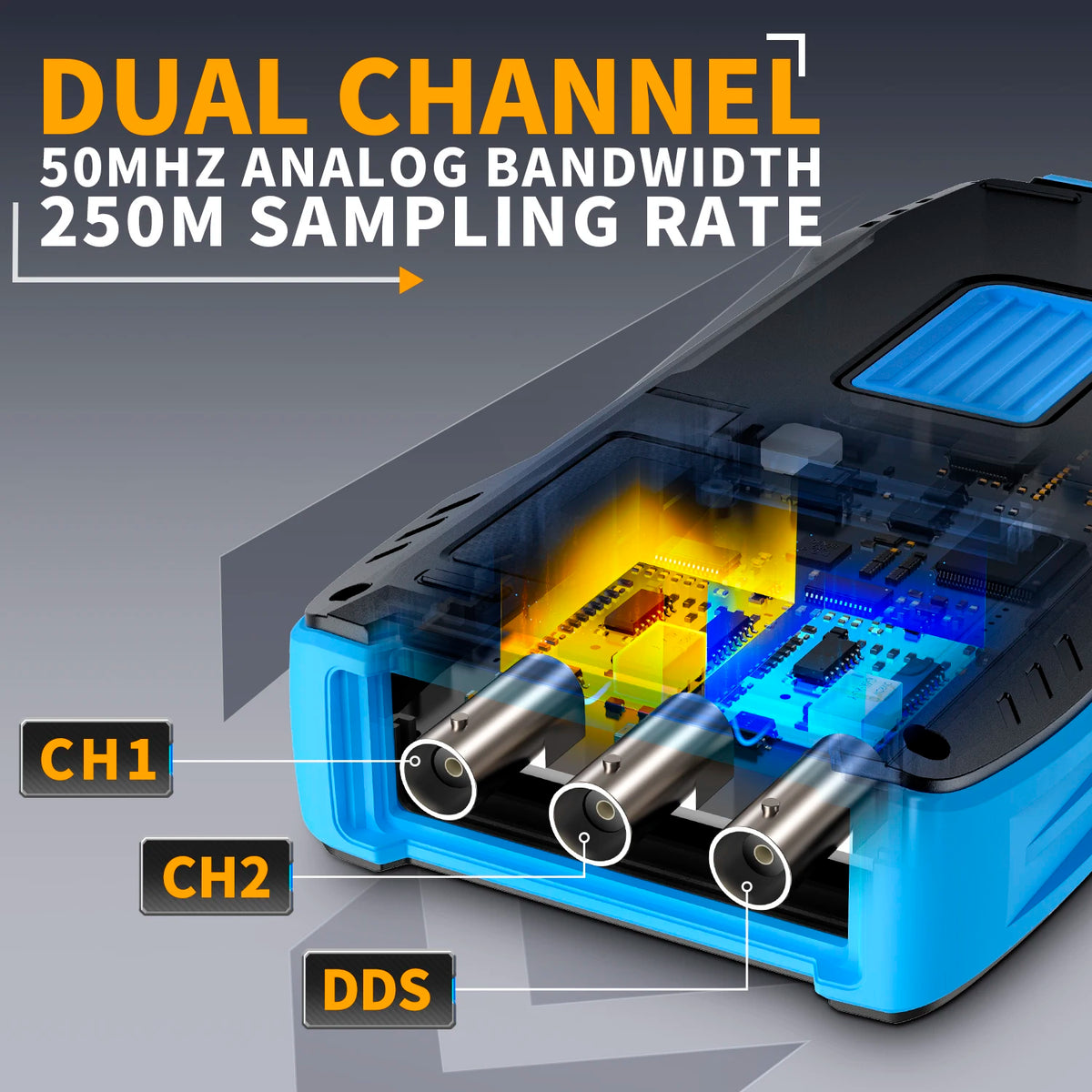

- Channels: 2
- Sampling Rate: 250 MS/s
- Analog Bandwidth: 50 MHz (two-channel independent)
- Display: 2.8-inch color HD LCD (320 x 240) — 2.8" / 7.11 cm
- Memory Depth: 1k points
- Vertical Sensitivity: 10 mV/div to 10 V/div (X1)
- Timebase Range: 10 ns to 20 s
- Maximum Measured Voltage: ±400 V (with built-in high voltage protection)
- Oscilloscope Modes: Y-T / Rolling / X-Y
- Trigger Modes: Auto / Normal / Single — Edge trigger (rising/falling)
- Math Functions: 8 basic operations + FFT

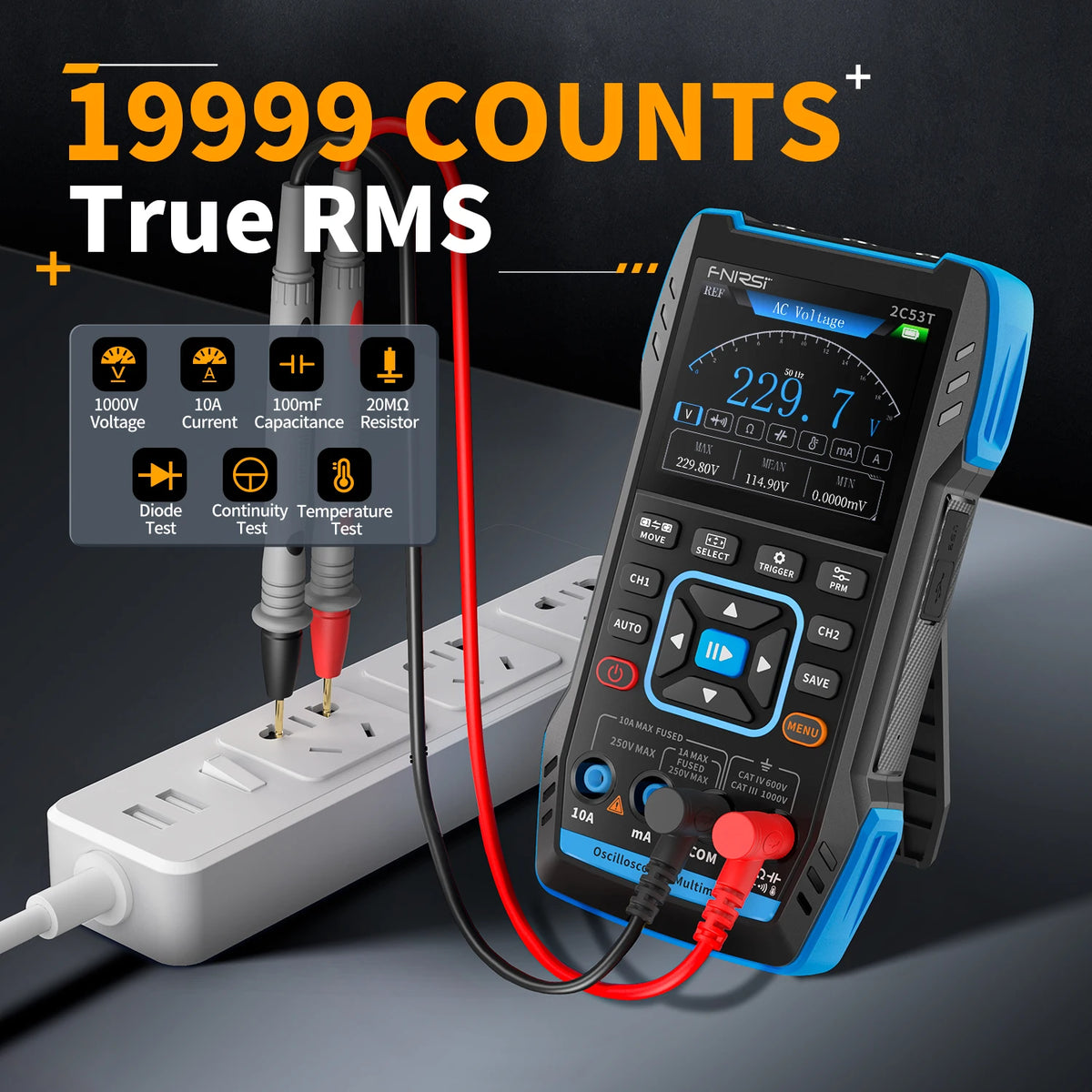

- Multimeter Resolution: 4.5 digits, 19999 counts (True RMS)
- DC Voltage Ranges: 1.9999 V / 19.999 V / 199.99 V / 1000 V
- AC Voltage Ranges: 1.9999 V / 19.999 V / 199.99 V / 750.0 V
- DC Current Ranges: 19.999 mA / 199.99 mA / 1.9999 A / 9.999 A
- AC Current Ranges: 19.999 mA / 199.99 mA / 1.9999 A / 9.999 A
- Resistance Ranges: Up to 19.999 MΩ (multiple ranges)
- Capacitance Ranges: Up to 99.99 mF (multiple ranges)
- Temperature Range: -55 to 1300 °C (-67 to 2372 °F)
- Diode / Continuity: Yes
- Signal Generator Waveforms: 13 types including sine, square, triangle, pulse, ramp, exponential, DC and more
- Generator Frequency: 0 to 50 kHz (1 Hz step)
- Generator Amplitude: 0 to 3 V
- Generator Duty Cycle: 0 to 100%

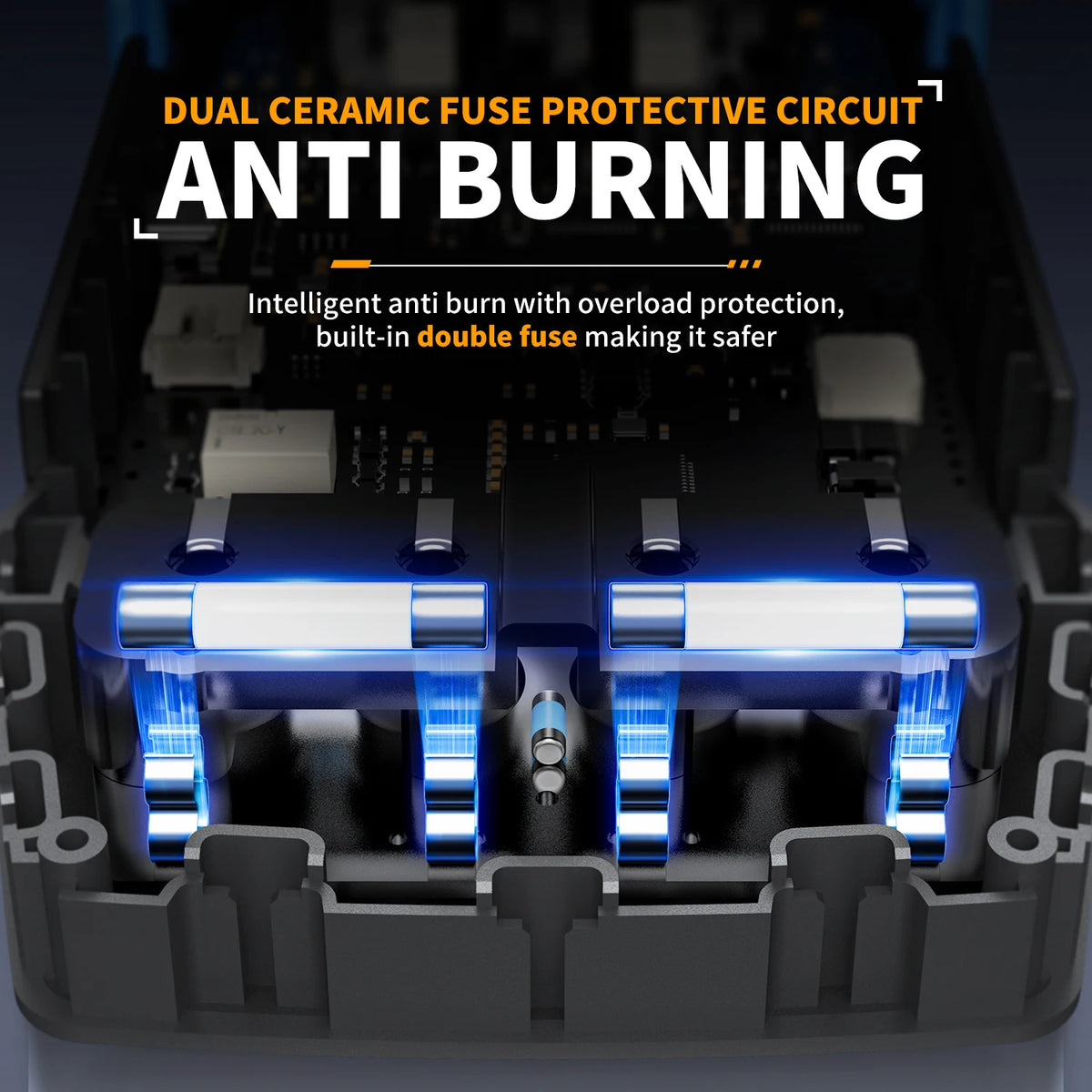

- Protection & Safety: Dual ceramic fuse, overload protection, intelligent burn protection
- Battery: Rechargeable lithium battery 3000 mAh (typ.) — runtime up to 6 hours standby
- Charging: USB Type-C 5 V / 1 A
- Impedance: 1 MΩ
- Certification: CE
- AC Voltage Rating: 750 V
- DC Voltage Rating: 1000 V
- Operating Mode: Auto range
Package Contents (examples):

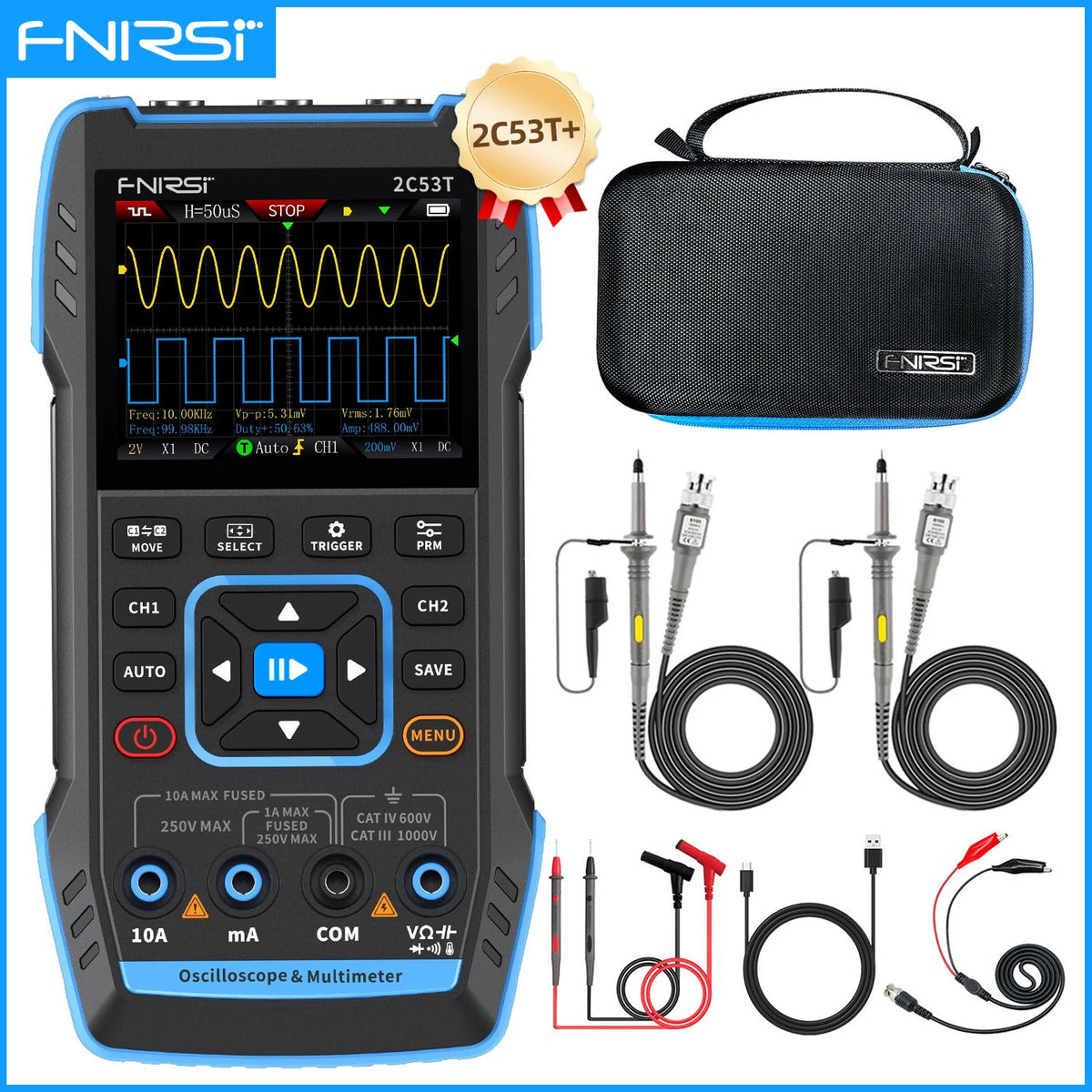

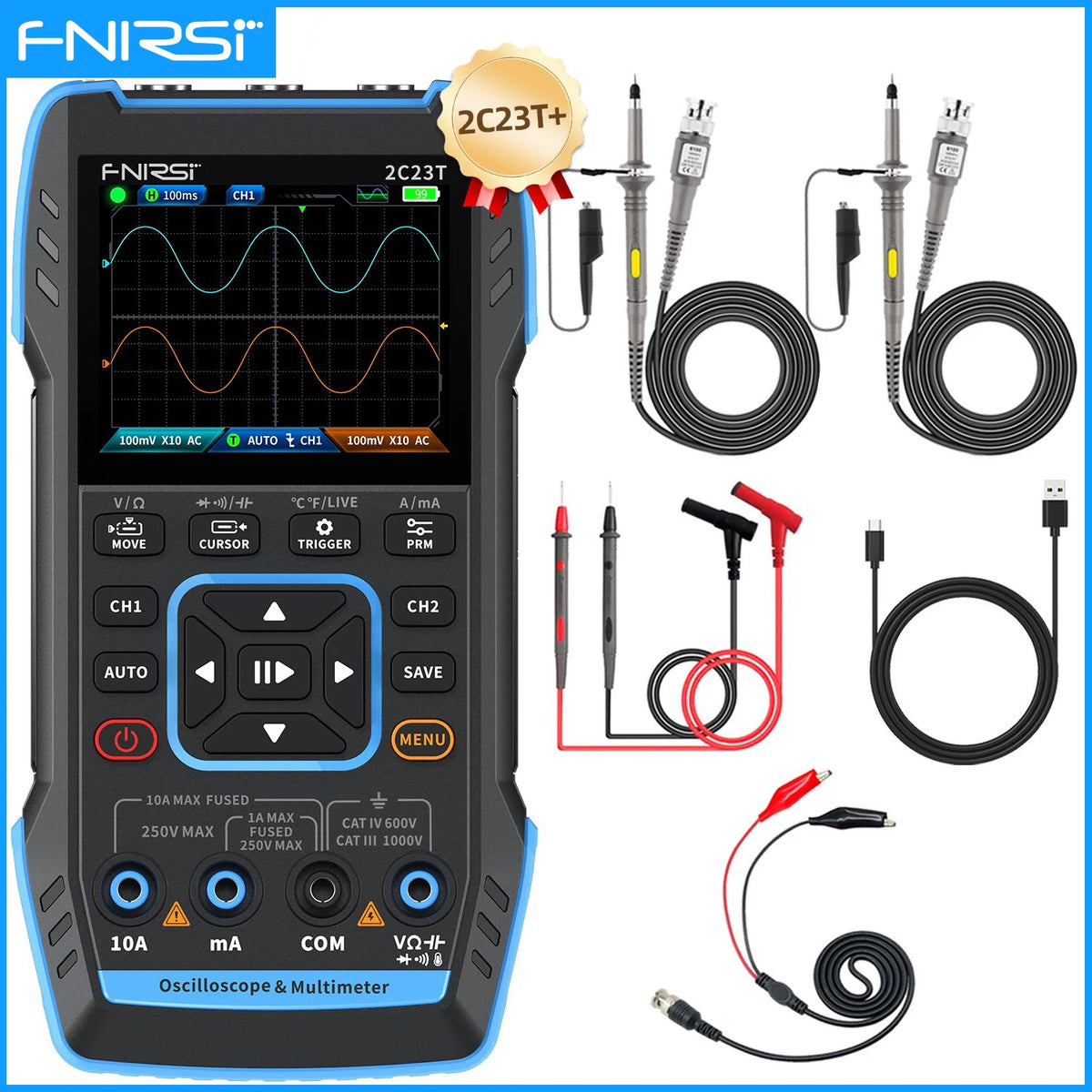

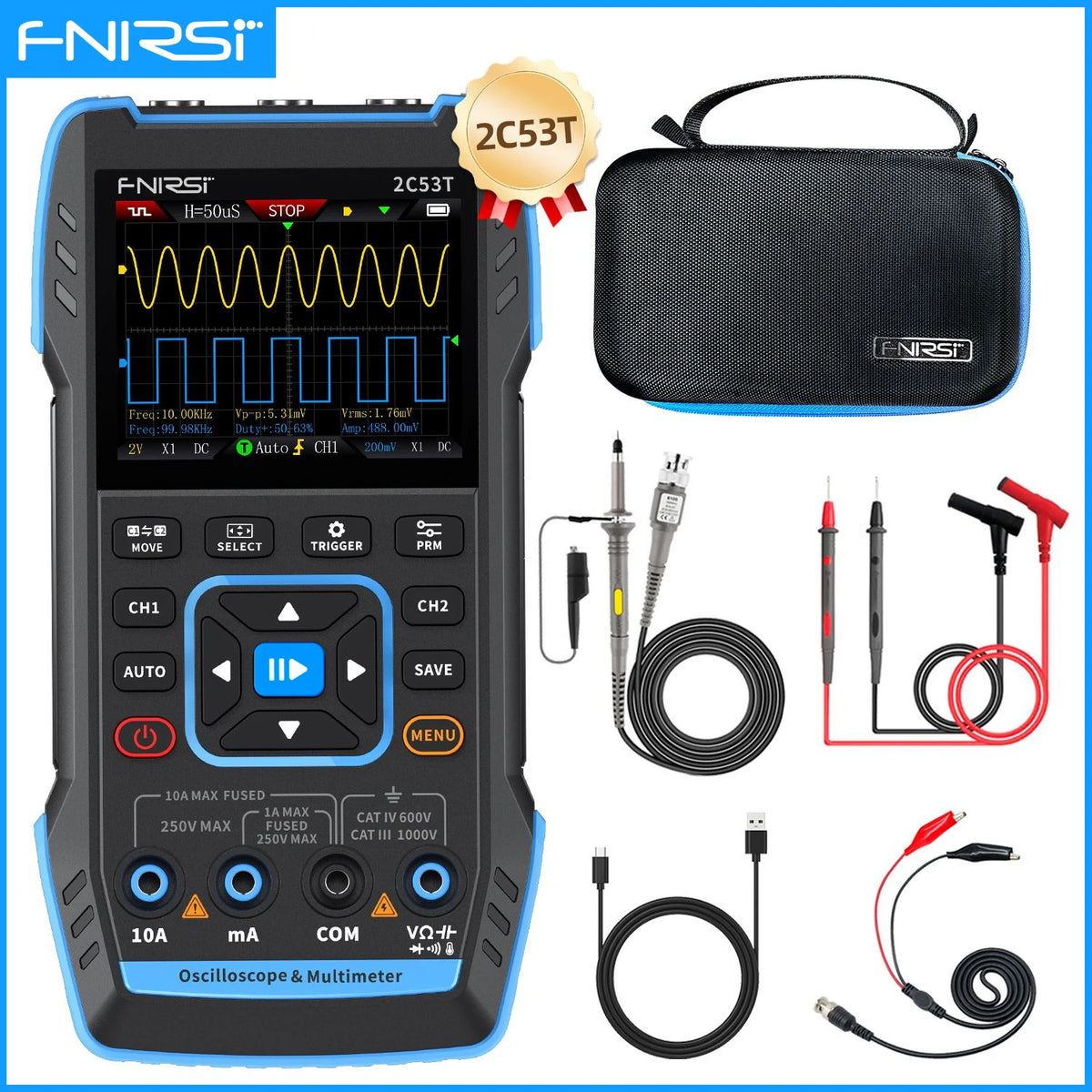

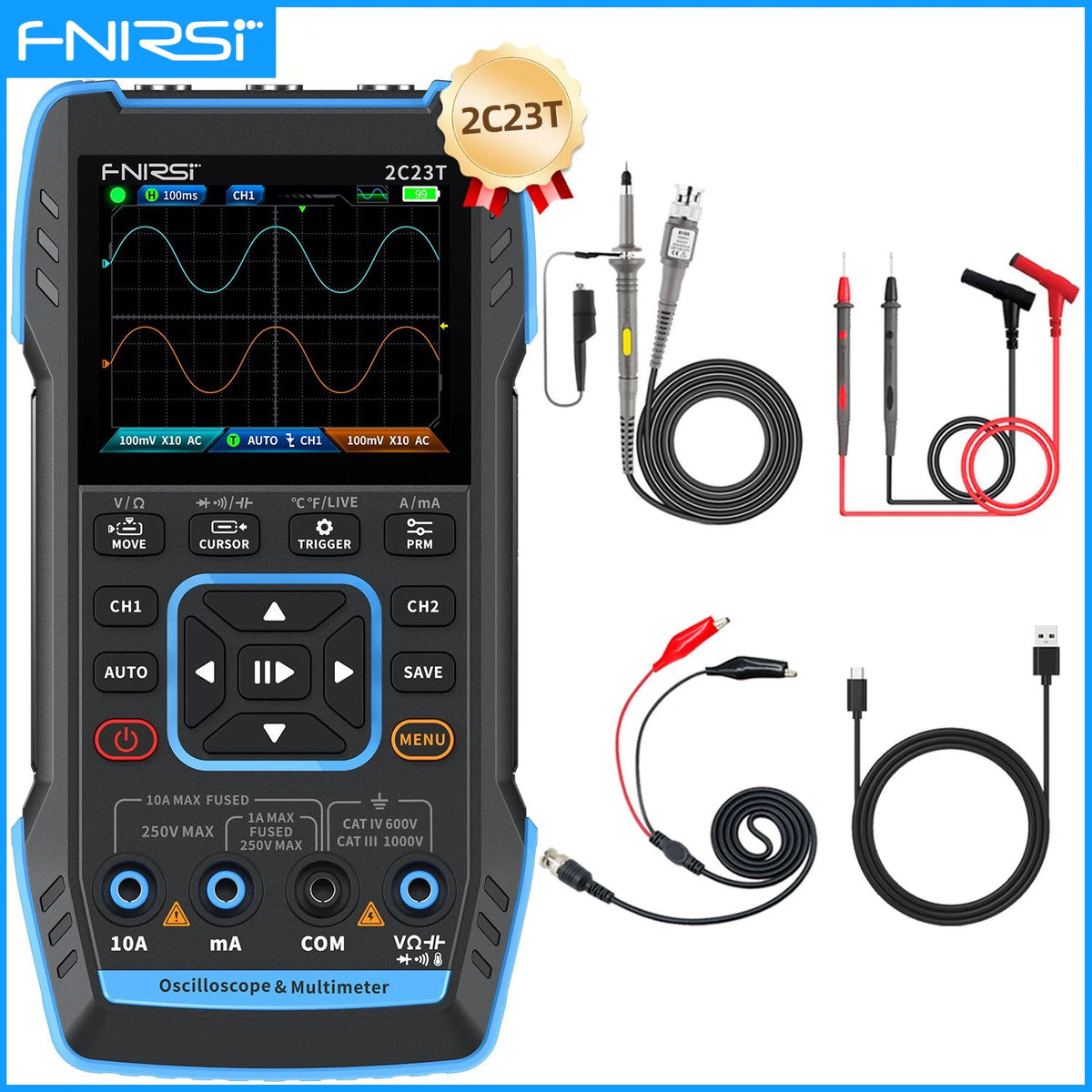

- Standard Set: Oscilloscope unit, 10X P6100 probe x1, crocodile probe x1, multimeter probe x1, USB Type-C charging cable, storage pouch, user manual, retail box
- Full Set: Oscilloscope unit, 10X P6100 probe x2, crocodile probe x1, multimeter probe x1, USB Type-C charging cable, storage pouch, user manual, retail box
Key Benefits:
- All-in-one tool: Combines oscilloscope, multimeter and signal generator to reduce bench clutter and cost.
- Portable & durable: Compact design with robust protection features for field use.
- Accurate capture: FPGA + ARM + high-speed ADC architecture for reliable waveform acquisition.

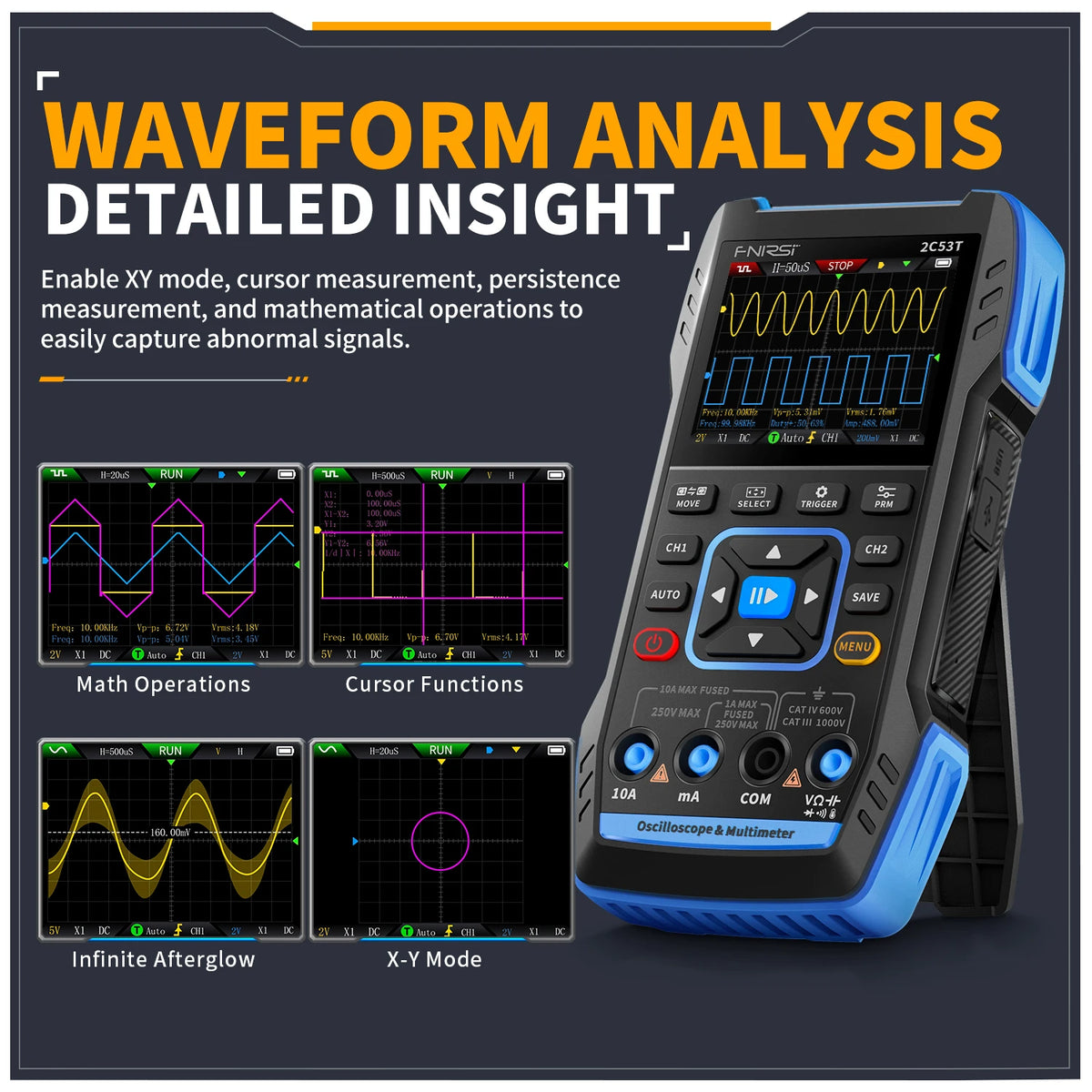

- Easy to use: One-click screenshot save, waveform export and advanced analysis modes (cursors, math, FFT).
#DigitalOscilloscope #HandheldMultimeter #SignalGenerator #FanzyMarket
Safety Notes:
Contains a rechargeable lithium battery. Use only the supplied USB Type-C 5 V/1 A charger. Do not disassemble the battery or device, avoid short circuits, and keep away from high heat. Unplug before cleaning or servicing. The instrument can measure high voltages (up to ±400 V); follow proper safety procedures to prevent electric shock and keep out of reach of children.
