2.8 in (71 mm) 1.5 GHz Vector Network Analyzer HF VHF UHF Antenna Analyzer with MicroSD & USB-C

Compact and powerful: Portable handheld Vector Network Analyzer designed for HF/VHF/UHF antenna tuning, cable diagnostics and RF development. Bright 2.8 in (71 mm) TFT display, MicroSD logging and USB-C connectivity make it ideal for both field and bench use with up to ~6 hours runtime on the built-in battery.

Specifications:

• Device Type: Vector Network Analyzer / Antenna Analyzer
• Display: 2.8 inch (71 mm) TFT, 320 x 240 pixels
• Measurement Frequency: 10 kHz – 1.5 GHz (10,000 Hz – 1,500,000,000 Hz)
• RF Output: -13 dBm (maximum -9 dBm)
• Measurement Range: 70 dB (50 kHz–300 MHz); 50 dB (300 MHz–600 MHz); 40 dB (600 MHz–900 MHz) with extended firmware
• Frequency Accuracy: < 0.5 ppm
• Port SWR: < 1.1
• Calibration Points: 101 (fixed)
• Scanning Points: 101 (fixed)
• Display Tracking / Markers / Save Slots: Display tracking 4; Markers 4; Save settings 5

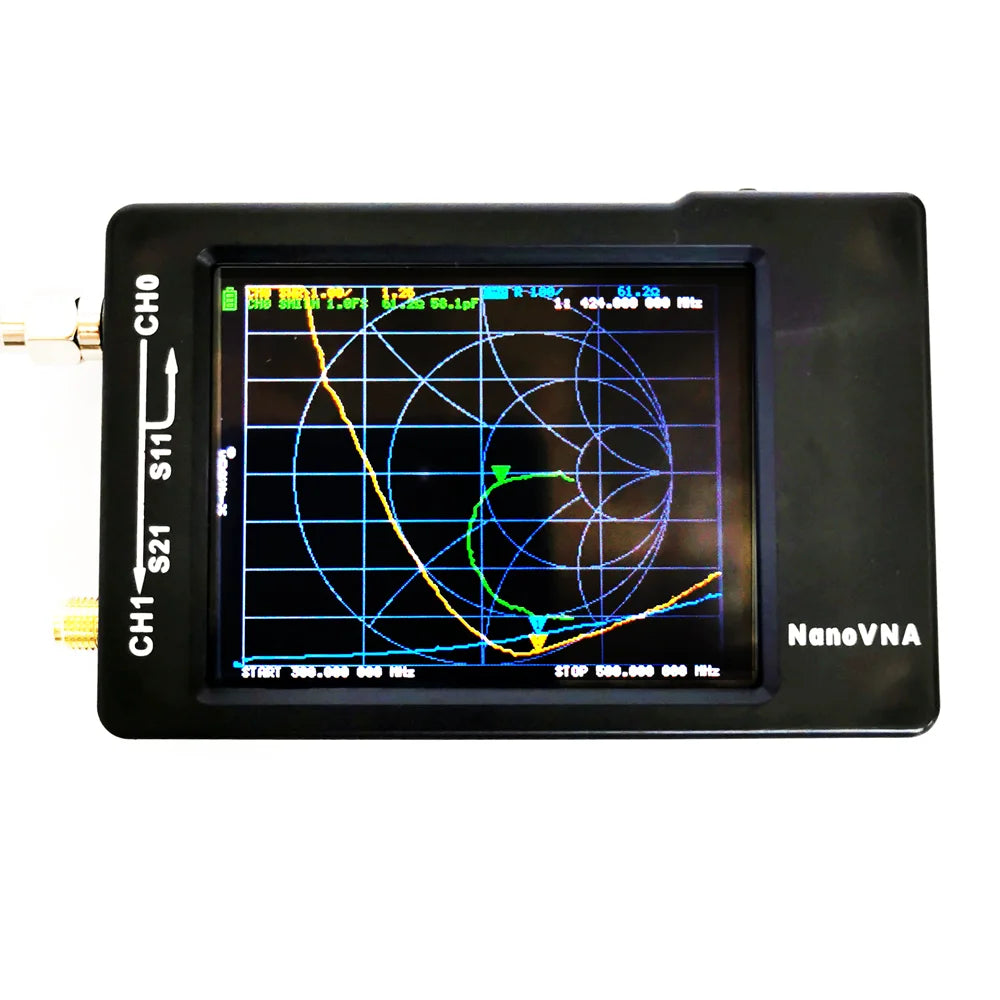

• Functions: S-parameters, VSWR, phase, delay, Smith chart, time domain reflectometry (TDR)
• Ports: Port1 and Port2 (SMA)
• USB Interface: USB Type-C, communications mode CDC (Serial)
• Power & Battery: Built-in ~1300 mAh battery (approx. 6 hours continuous use); USB 5V charging, max charging current 0.8 A; battery included
• PCB Size: 54 mm x 85.5 mm x 11 mm (2.13 in x 3.37 in x 0.43 in) (excludes connectors/switches)
• Enclosure: Full ABS protective case
• Additional Storage: MicroSD card slot for saving measurement logs and test data
• Compatibility: Supports USB-C to USB-C connection and many Android phones for screen display (does not support iPhone display mirroring)

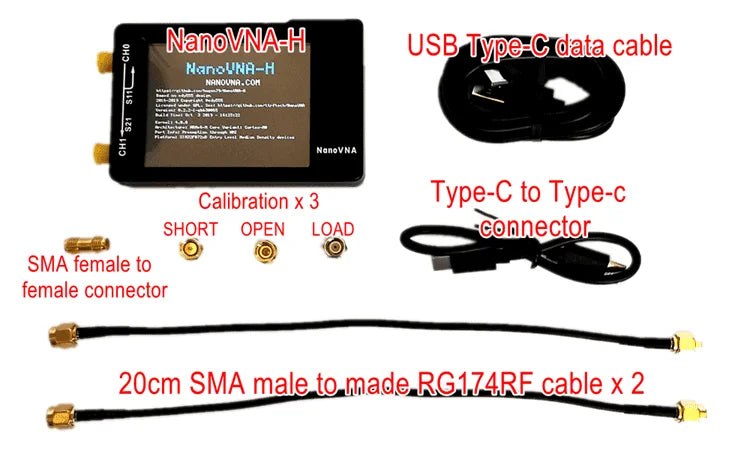

• Package Includes: 1x Vector Network Analyzer; 2x 20 cm SMA male-to-male RG174 RF cables; 2x SMA female-to-female adapters; 1x SMA calibration short; 1x SMA calibration open; 1x SMA calibration load; 1x USB Type-C data cable; 1x Type-C to Type-C cable; 1x touch paddle; original packaging

Features & Benefits:

• Portable Design: Compact 2.8 in (71 mm) form factor with full ABS coverage for field durability.
• MicroSD Storage: Save measurement logs and test data directly to a MicroSD card for review and analysis.
• TDR & Advanced Analysis: Time Domain Reflectometry (TDR) support for cable fault location and advanced RF diagnostics.

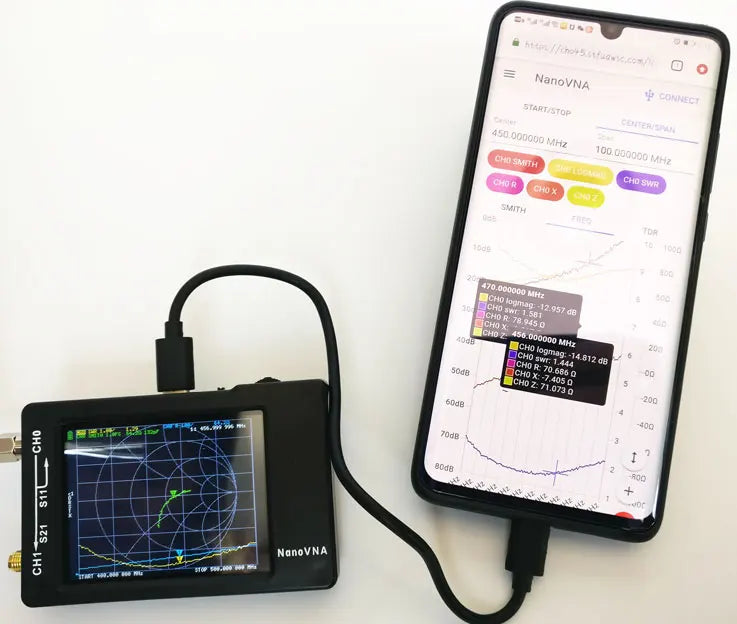

• Phone Connectivity: USB-C to USB-C support for many Android devices to view the instrument screen on mobile displays.
• Clear UI: Battery level display and intuitive controls for quick setup and repeated tests.
