Description

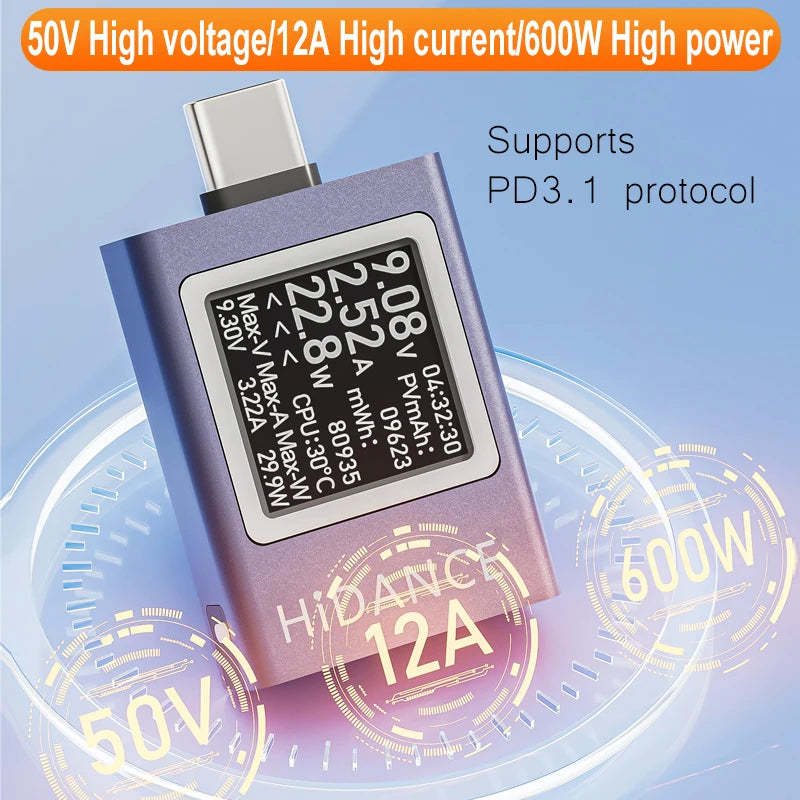

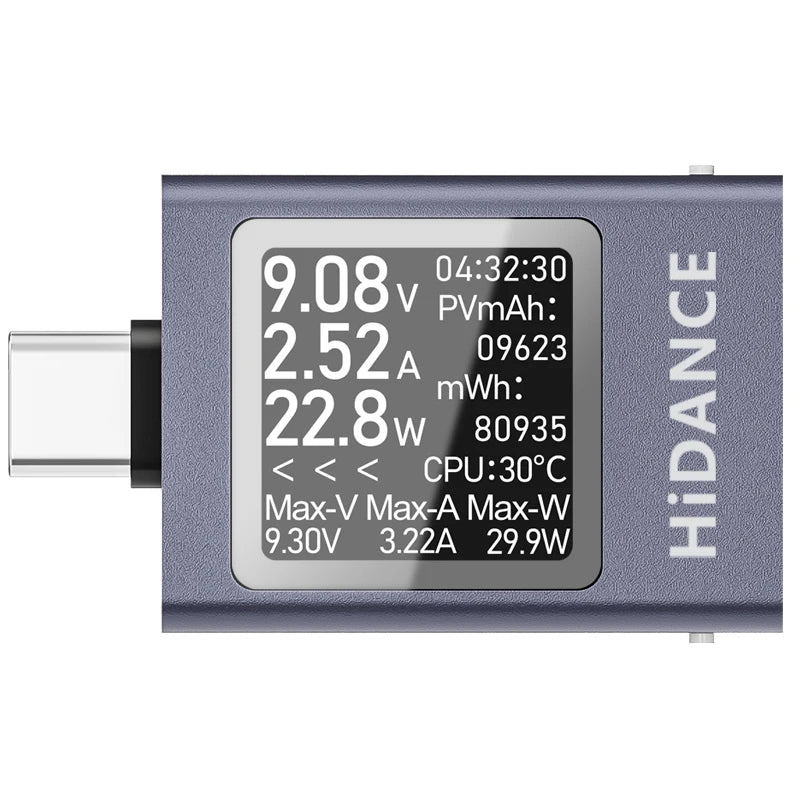

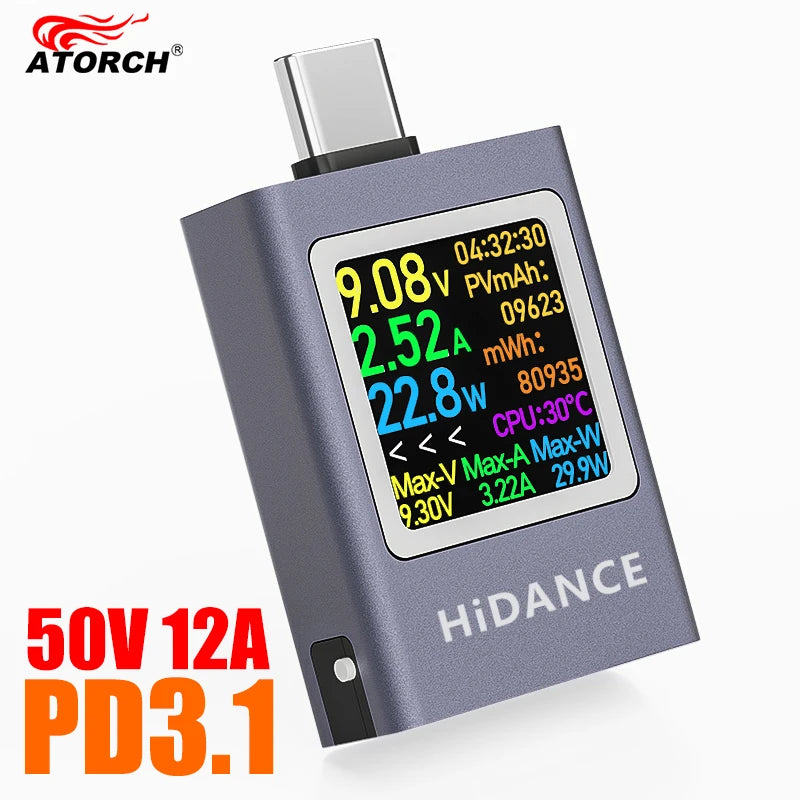

Monitor charging performance and power delivery with this compact 13-in-1 USB-C DC Power Meter Tester. Ideal for technicians and hobbyists, it displays voltage, current, power, capacity and charging protocol info in real time so you can verify fast-charge compatibility and diagnose power issues quickly.
Specifications:

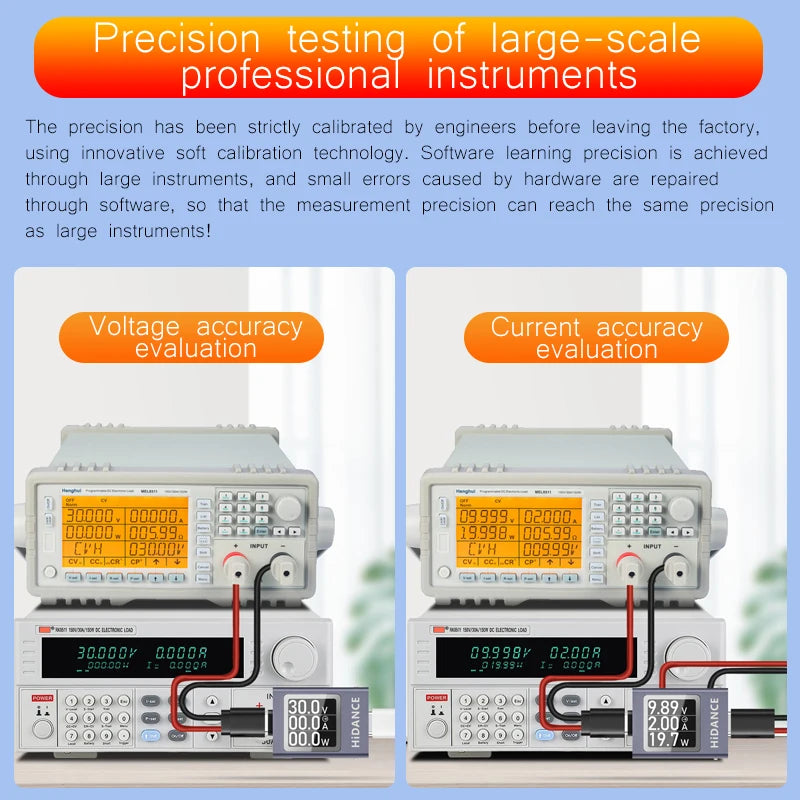

- Accuracy Class: 1% (software calibration)

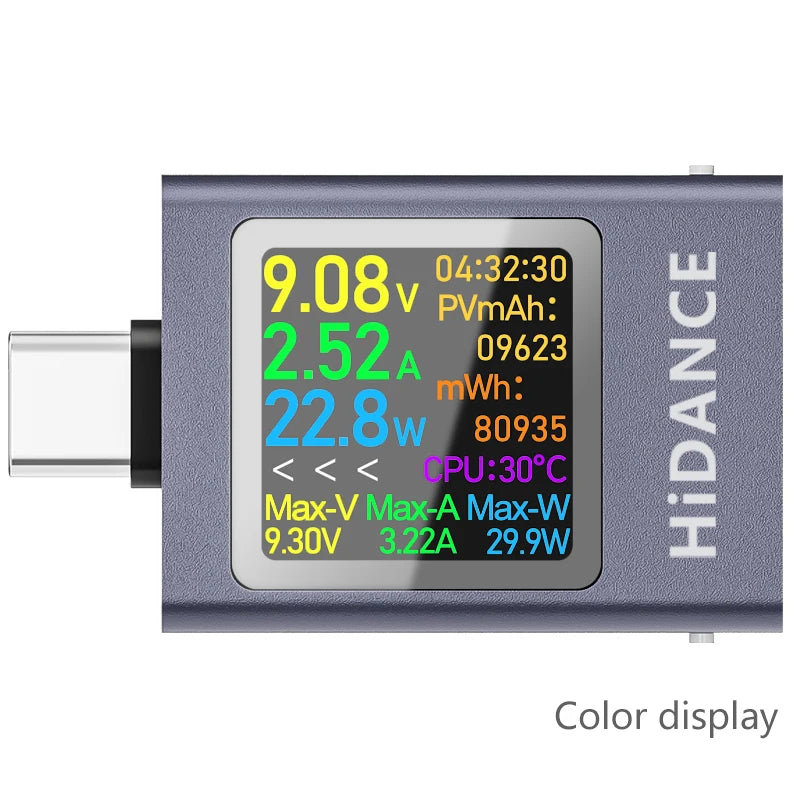

- Display Type: 0.85 inch OLED digital display (white font; color variant available)
- Screen Size: 0.85 in (≈21.6 mm)
- Backlight Brightness Adjustment: Yes

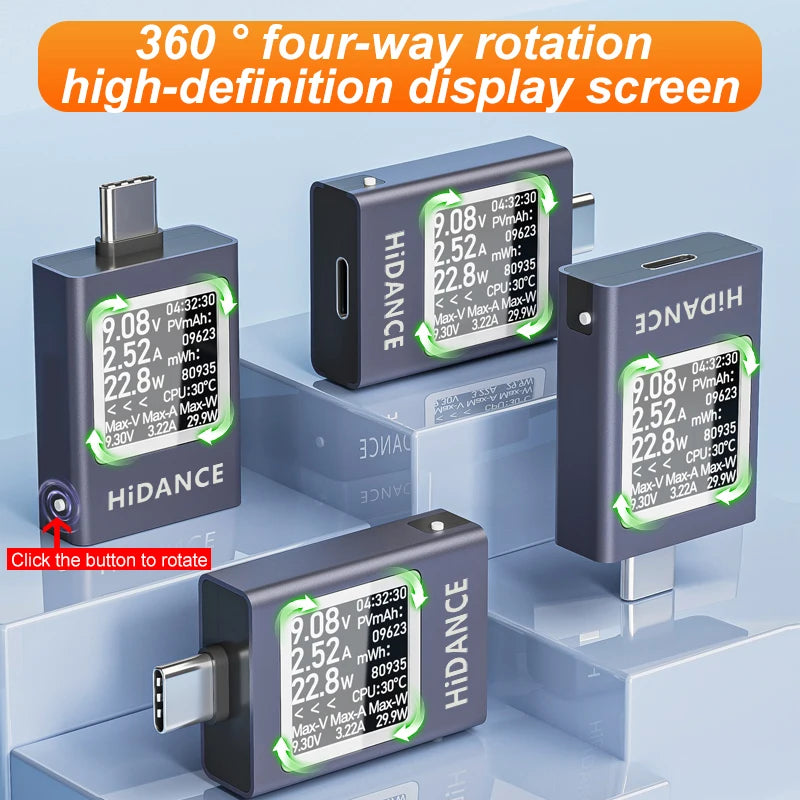

- Screen Rotation: 360° rotation via key operation
- Screen Shutdown Function: Yes
- Measure Voltage: DC 4.5–50 V
- Measure Current: 0–6 A (continuous), instant peak up to 12 A; resolution 0.01 A
- Measure Power: 0–600 W (resolution 0.01 W)
- Measure Capacity: 0–99,999 mAh
- Measure Energy: 0–9,999 Wh
- Temperature Measurement: 0–100 °C (32–212 °F)
- Timing Range: Up to 999 h 59 m 59 s
- Operating Temperature: -10–60 °C (14–140 °F)
- Dimensions: 43 × 25 × 10 mm (1.69 × 0.98 × 0.39 in)
- Housing: CNC metal shell + plastic (dustproof, drop-resistant)
- Power Supply / Source: USB DC power
- Battery Included: No
- Button Mode: Double key button

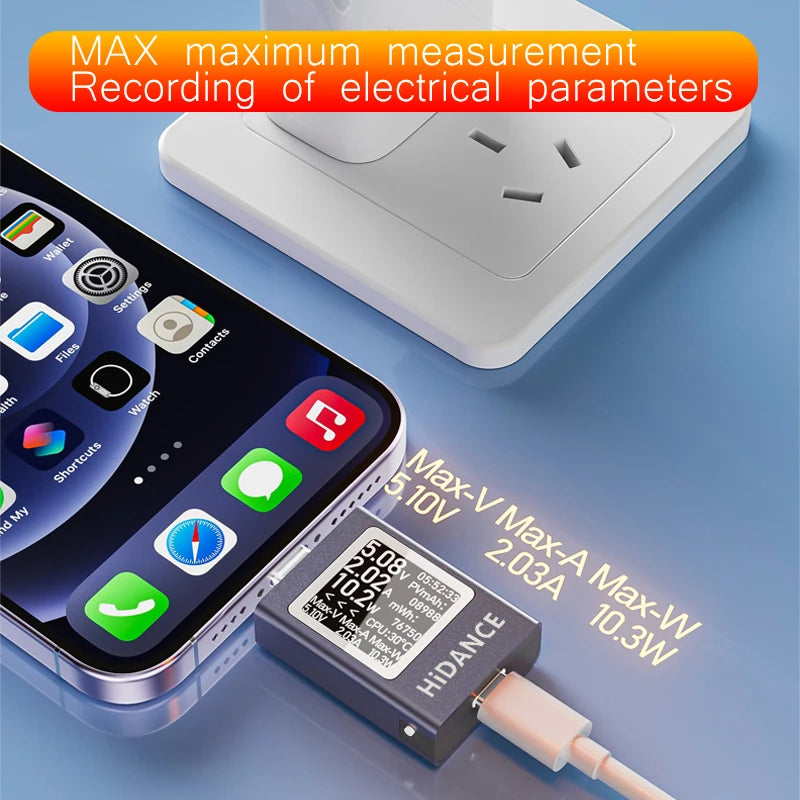

- Peak Recording: Voltage, current and power peak recording supported
- Protocols Supported: PD2.0 / PD3.0 / PD3.1, PPS, QC2.0 / QC3.0, FCP, SCP, AFC, PE, DASH, VOOC, SuperVOOC
- Certification: CE
- G-Sensor: None
- High-Concern Chemical: None
- DIY Category: Electrical
- Model Number: HDC-085C
What's Included:
- HDC-085C USB-C DC Power Meter Tester x1
- User manual x1

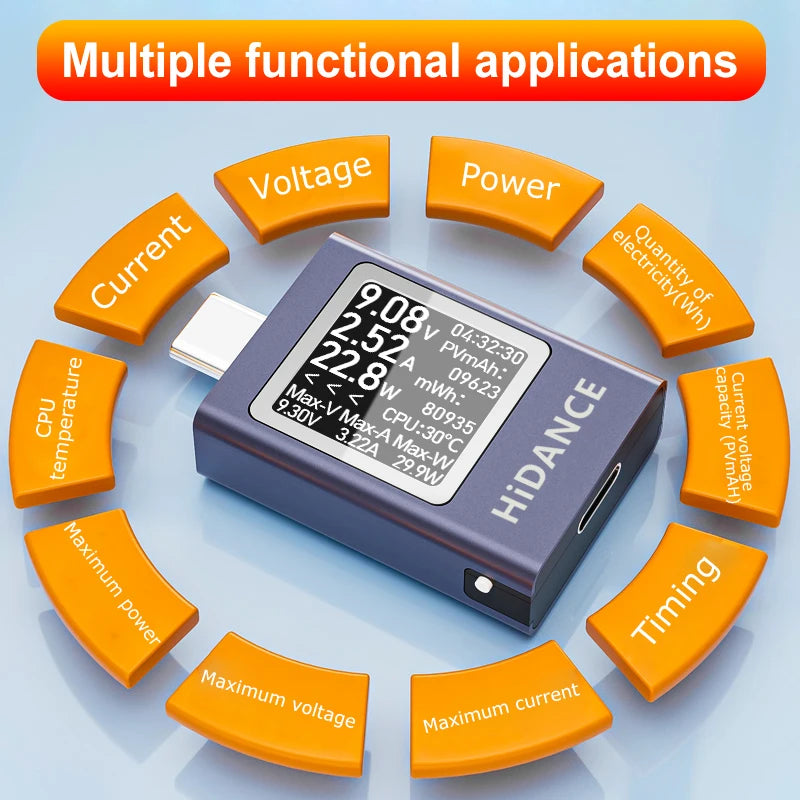

Quick Features: 13-in-1 multi-parameter monitoring, OLED HD display, two-way current test, real-time charging power detection, selectable white or color font display, screen rotation and shutdown, supports fast-charge protocol testing.
#PowerMeter #USBCTester #FanzyMarket
Safety Notes:
This product contains electronic components and is powered via USB. Use only within the specified voltage and current ranges to avoid damage. Do not disassemble or modify the unit. Keep away from water and moisture. Use appropriate cables and chargers rated for the tested protocols. Keep out of reach of children and unplug before cleaning or servicing.
