Description
Versatile relay module board shield with optocoupler isolation and selectable high/low level trigger. Ideal for Arduino, Raspberry Pi and DIY home automation projects where reliable isolation and multi-channel control are required.
Specifications:
- Condition: New
- Type: Logic ICs
- Is Customized: Yes
- High-concern Chemical: None

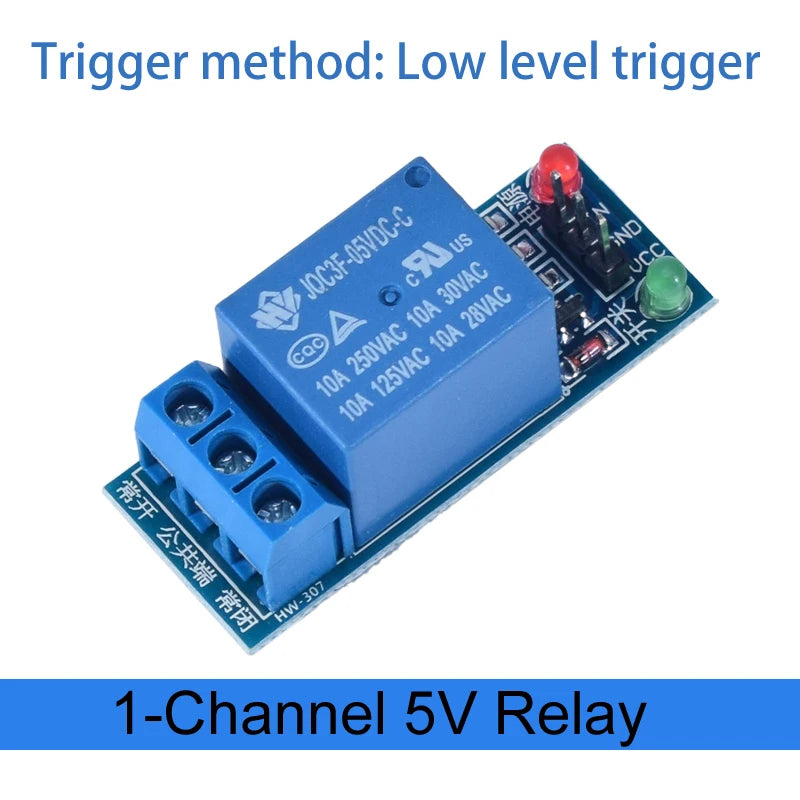

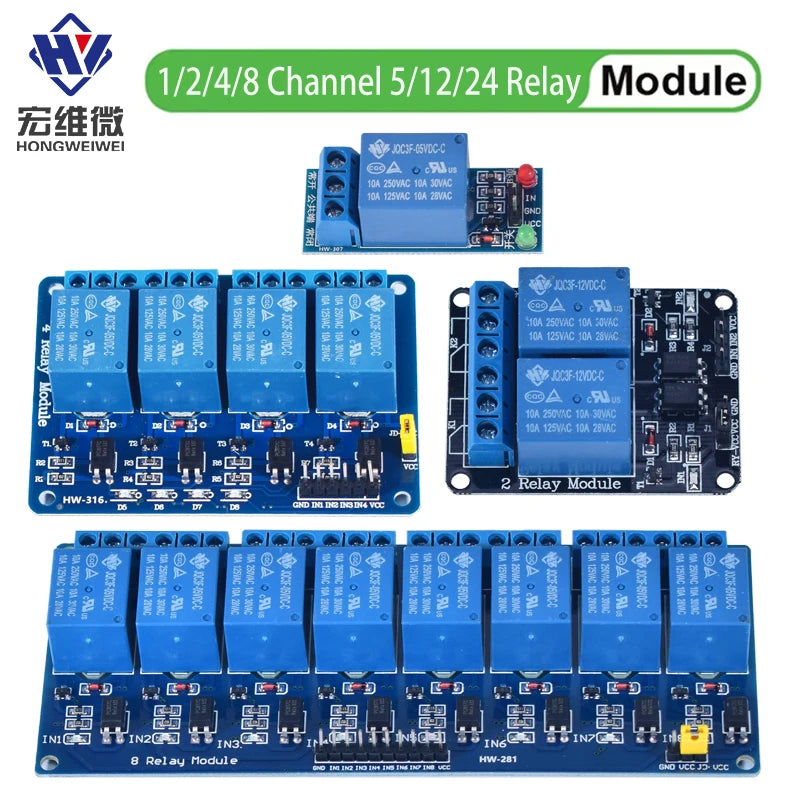

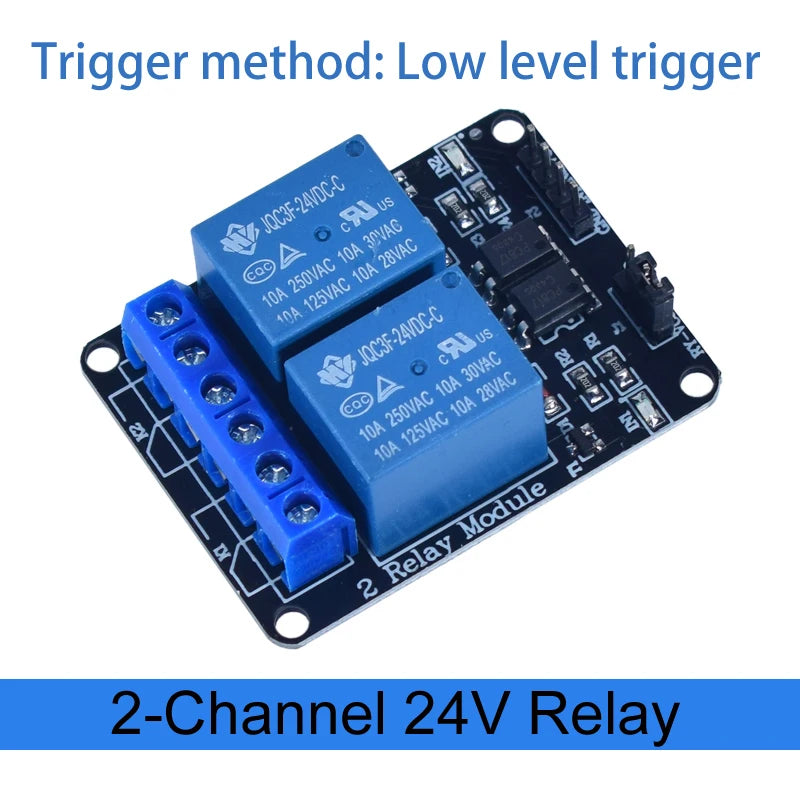

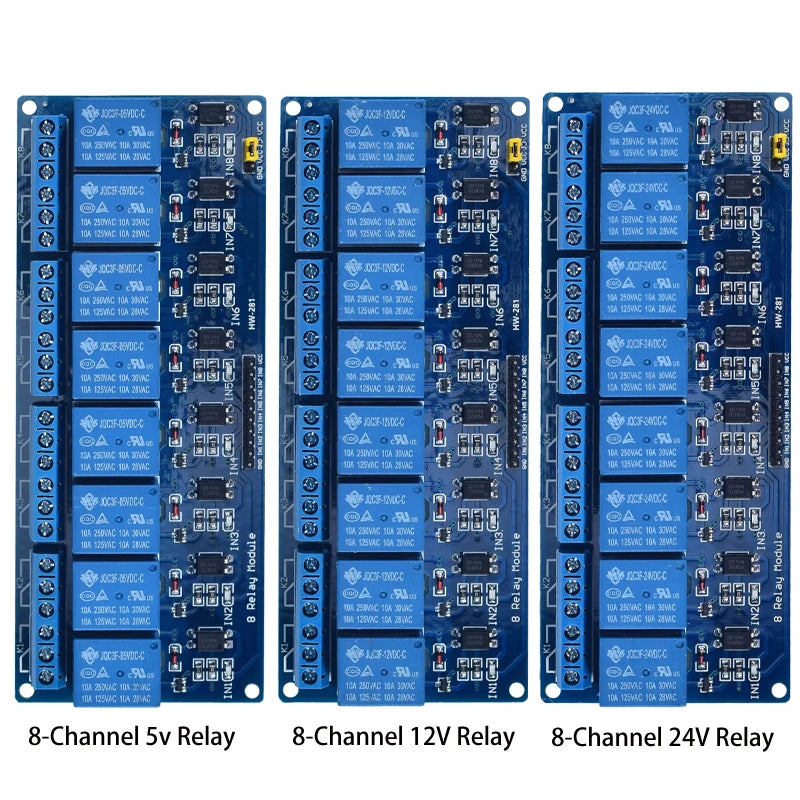

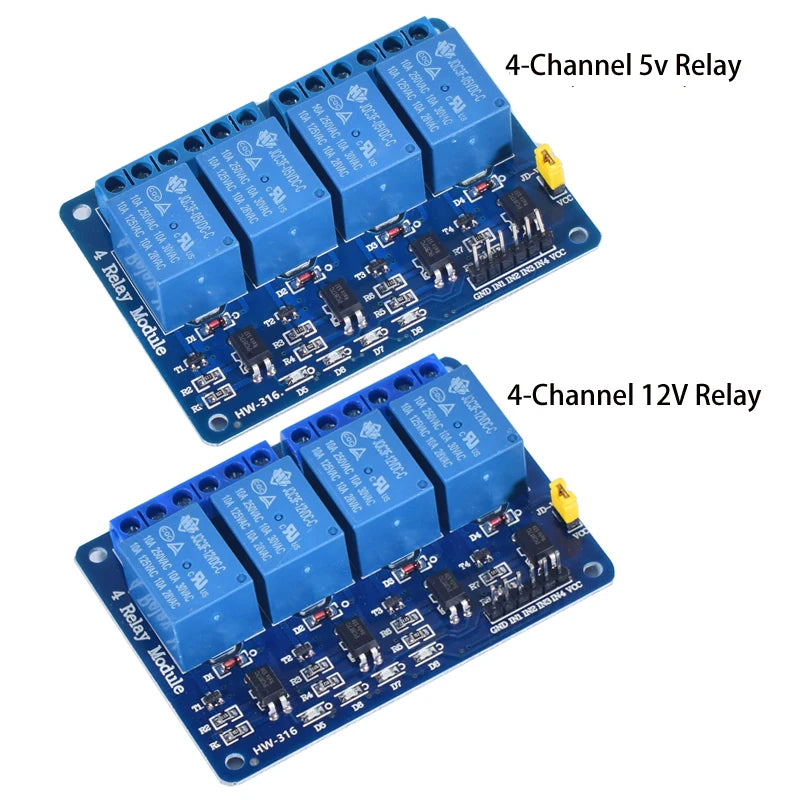

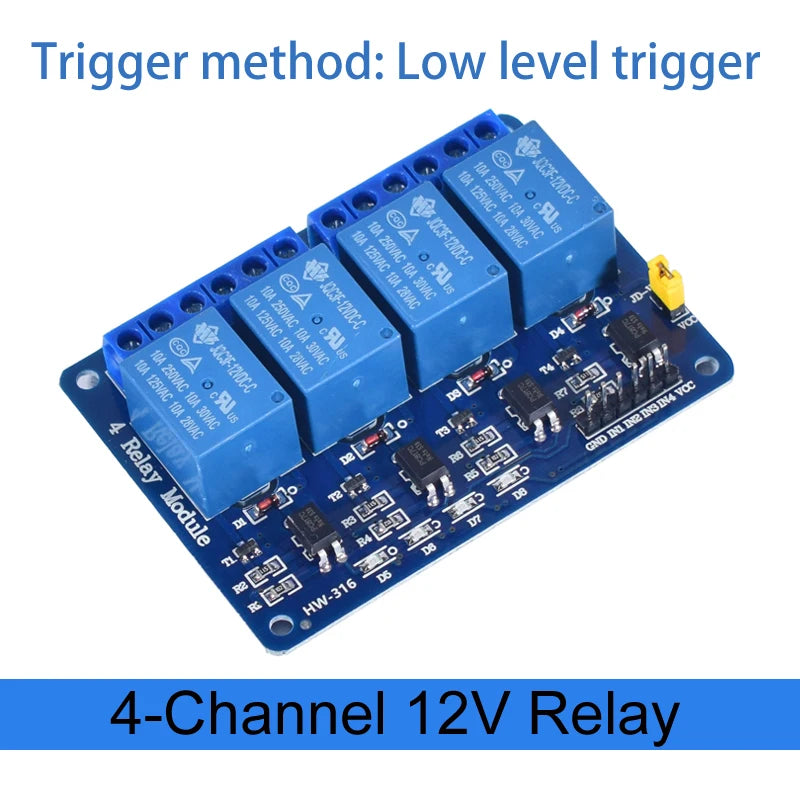

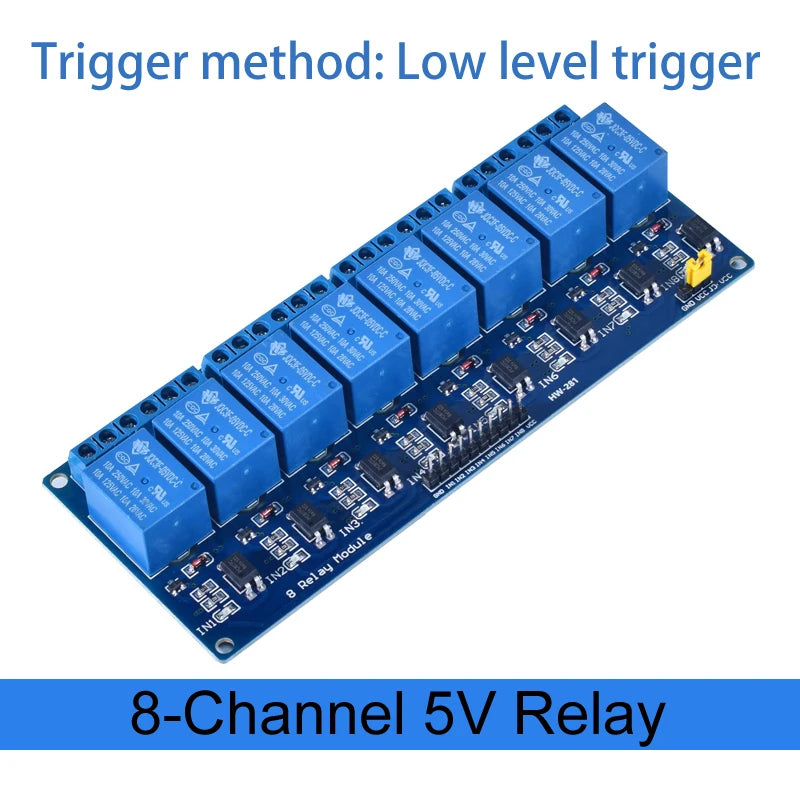

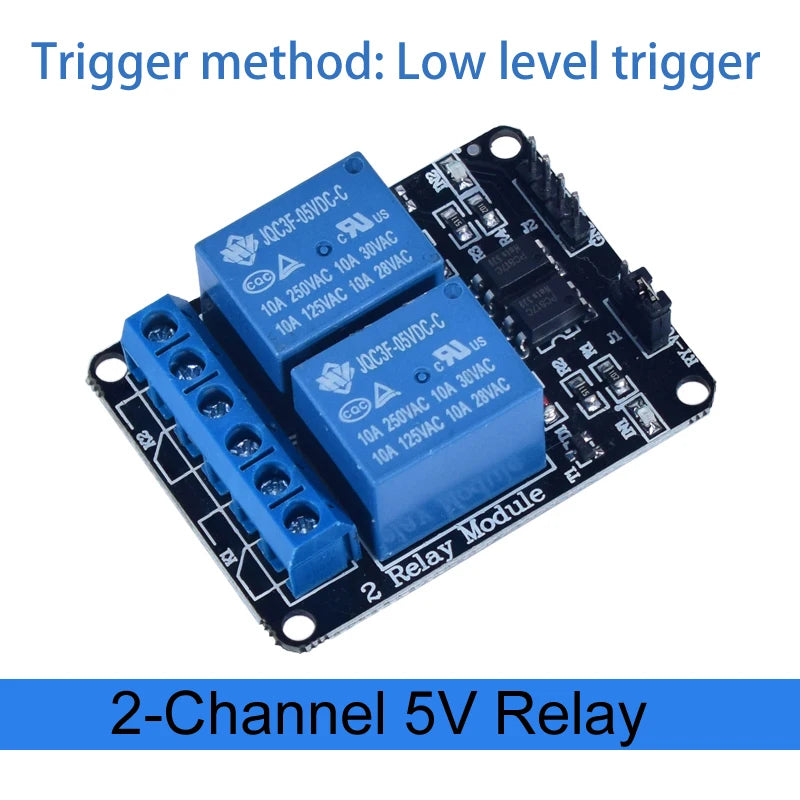

- Channels Available: 1, 2, 4, 6, 8
- Trigger Type: High and Low level trigger (IN pins active on low-level 0V)
- Isolation: Optocoupler isolation for signal protection
- Compatible With: Arduino, Raspberry Pi, microcontrollers, DIY automation systems
-
Power Supply (per variant):
- 1-channel: DC +5V / +12V / +24V
- 2-channel: DC +5V / +12V / +24V
- 4-channel: DC +5V / +12V
- 8-channel: DC +5V / +12V
- Input Signal: IN pins, low level (0V) effective to activate relays
-
Dimensions:
- 1-channel: 17.3mm × 43.2mm (0.68" × 1.70")
- 2-channel: 50.4mm × 38.7mm (1.98" × 1.52")
- 4-channel: 55.5mm × 75.5mm (2.19" × 2.97")
- 8-channel: 56.5mm × 138.4mm (2.22" × 5.45")
This relay module shield provides isolated control channels for switching external loads from microcontroller signals. Optocoupler isolation reduces interference between control logic and high-voltage circuits. Choose the channel count and supply voltage that match your project requirements, and verify the module version for supported input voltages.
