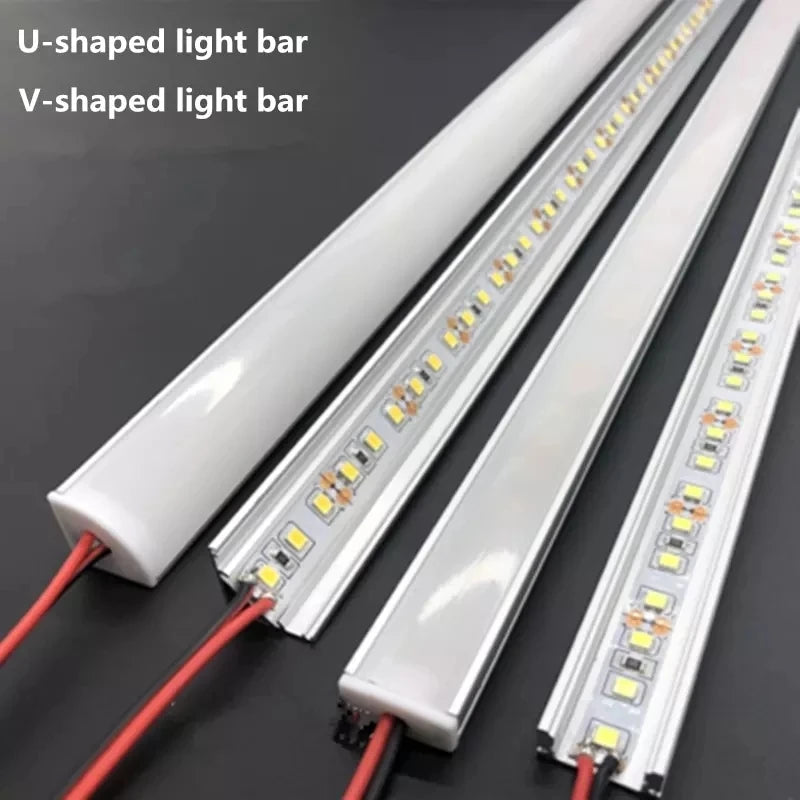

Illuminate: Compact and durable LED aluminum rigid light bar for clean, high-brightness indoor accent and architectural lighting. Designed for easy installation and long service life, this 0.5 m (20 in) U or V-shaped channel light is ideal for display cases, storefronts, shelving, stairs, bars and decorative installations.
Specifications:
- Product Name: LED Rigid Light Bar / LED Strip Light
- Item Type: Bar Lights
- Body Material: Aluminum housing with PC cover
- Base Type: Wired
- LED Chip Types: 5730, 5050, 5630 (SMD)
- LED Count: 36 LEDs (per 0.5 m / 20 in)
- PCB Width: 12 mm (0.47 in)

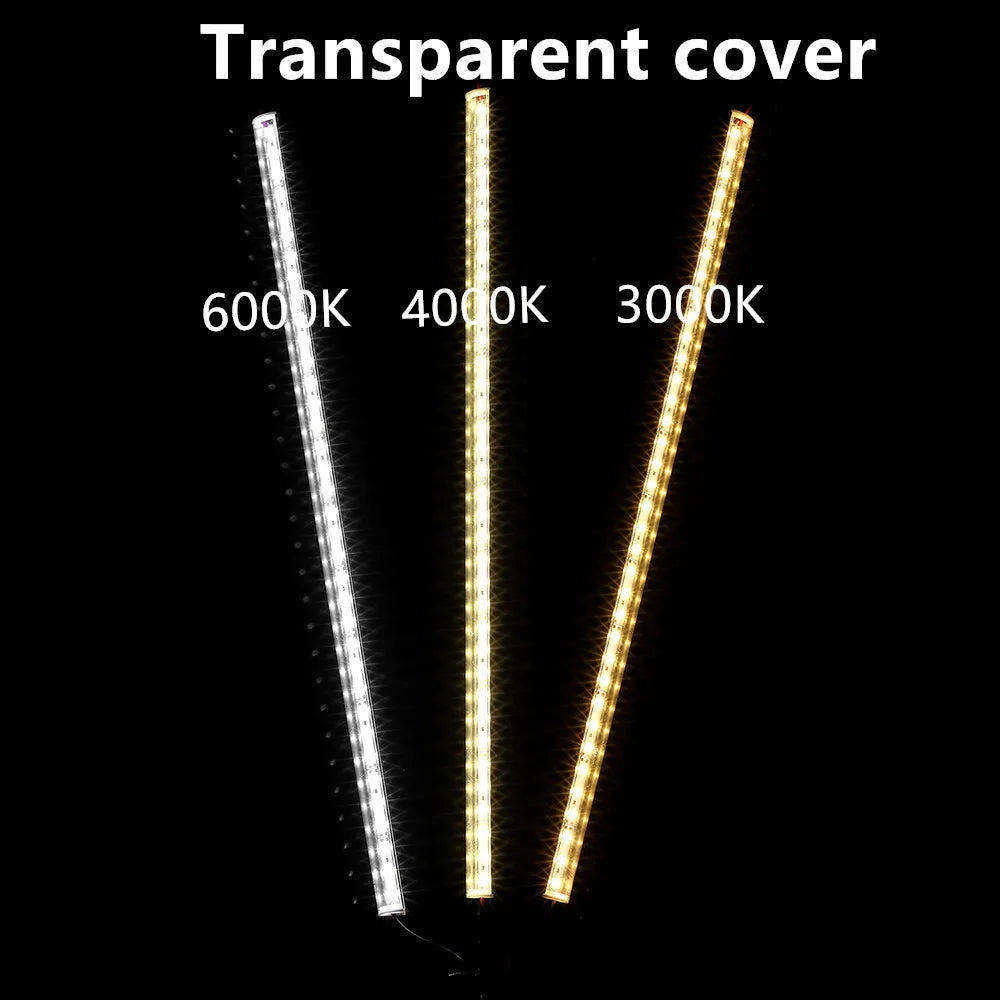

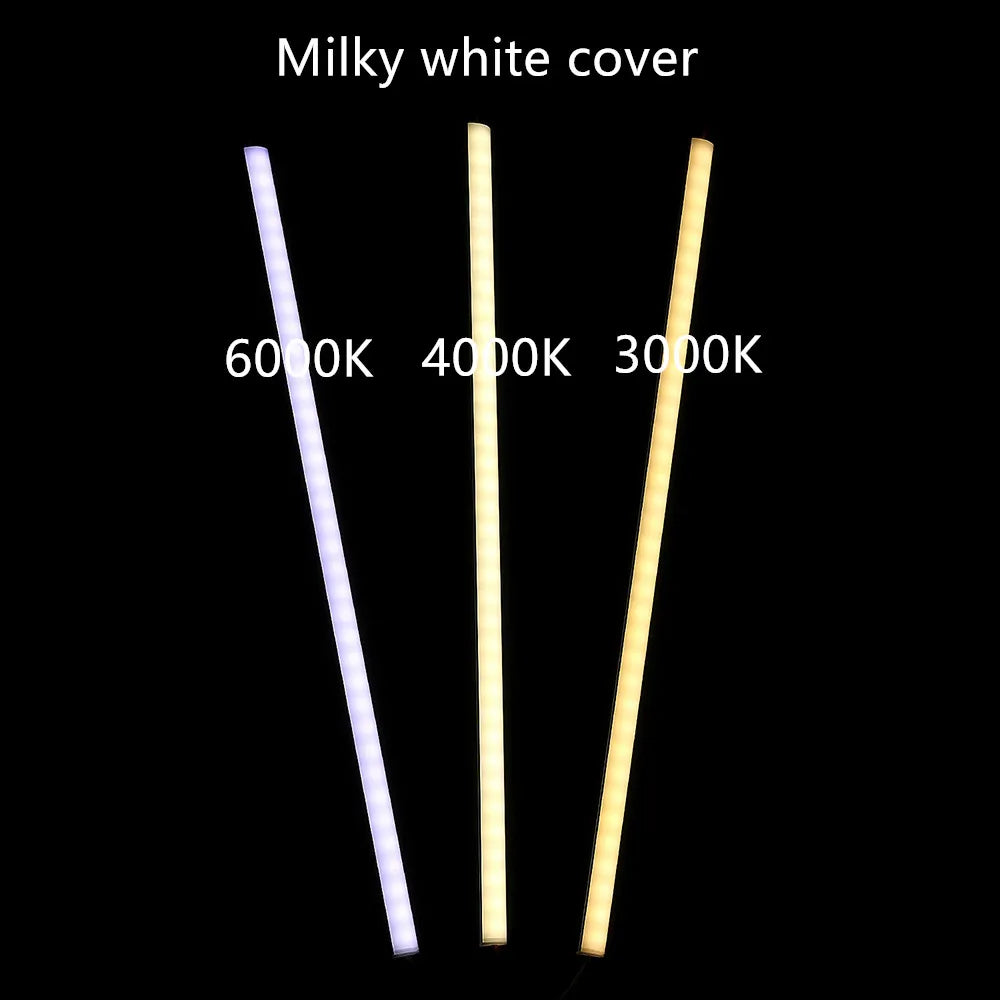

- Color Temperature: Warm 3000–3500K, Neutral 4000–4500K, Cool 6500–7000K
- Voltage: DC 12V
- Power / Wattage: 9W per 0.5 m (0.5 m / 20 in segment)
- Luminous Flux: 249–2000 lm (depends on configuration and LED type)

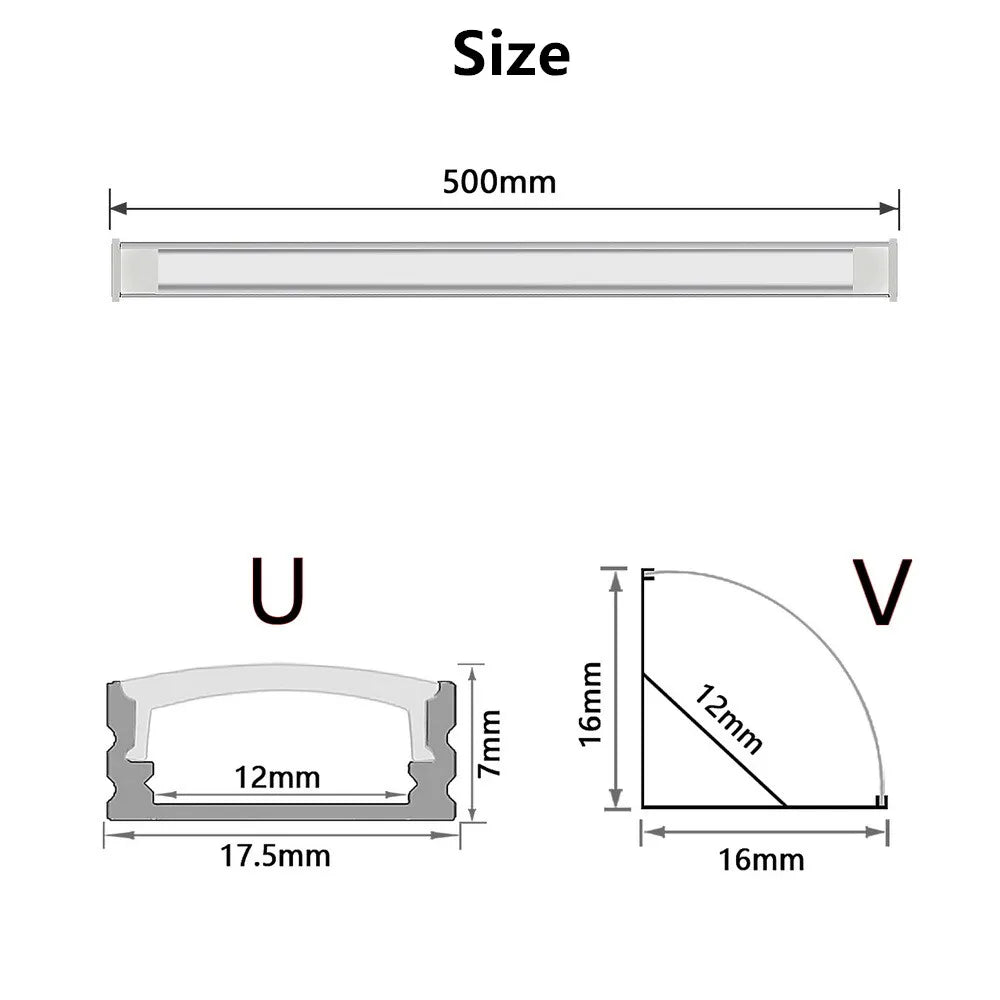

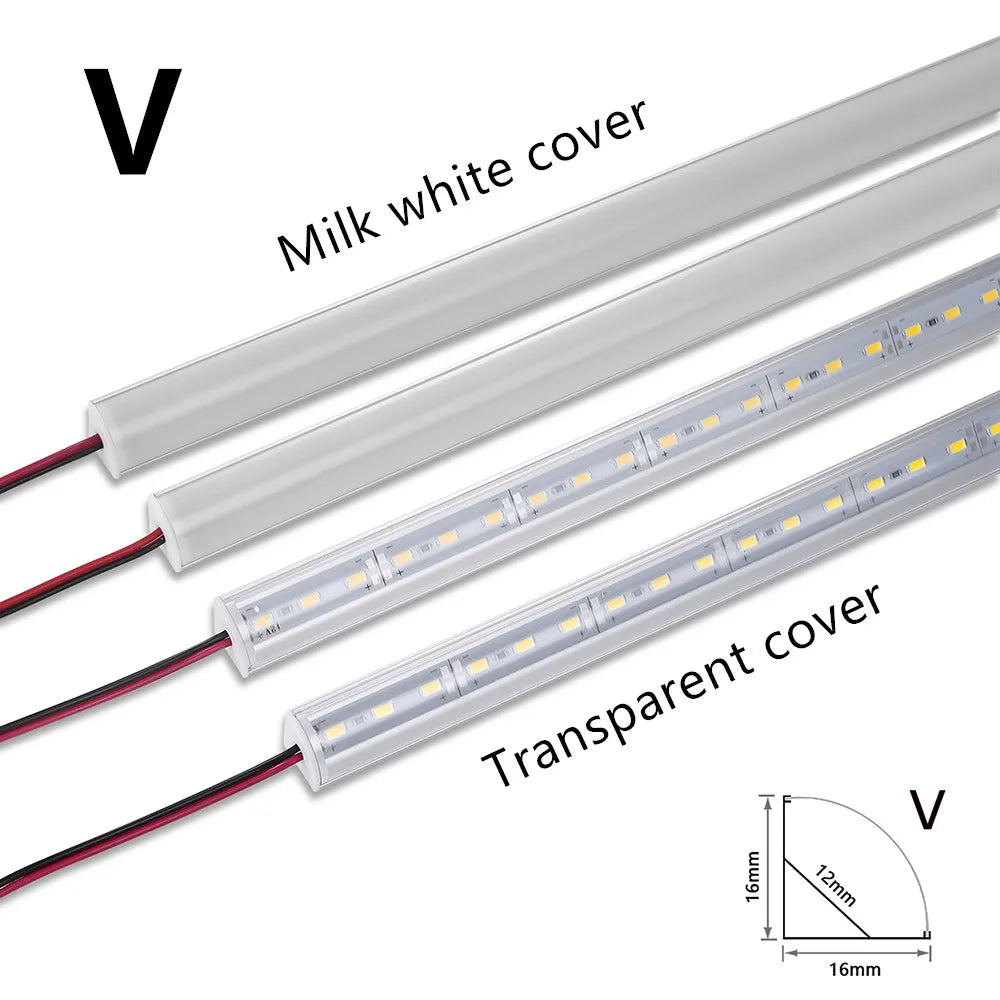

- Size (V Shape): L 500 x W 16 x H 16 mm — 19.7 x 0.63 x 0.63 in

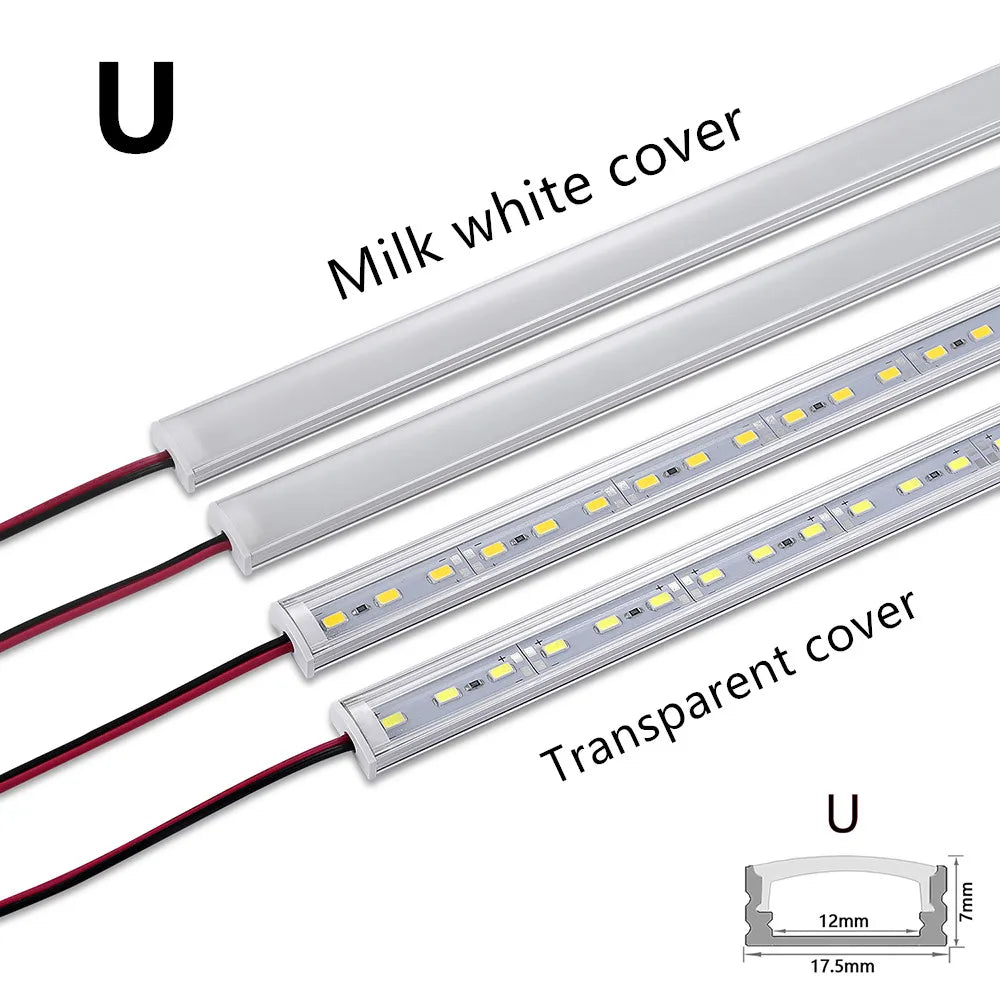

- Size (U Shape): L 500 x W 17.5 x H 7 mm — 19.7 x 0.69 x 0.28 in
- Light Source: LED SMD strip
- Dimmable: Yes (requires compatible dimmer and driver)
- Batteries Included: No
- Power Source: DC
- Certification: CCC, RoHS, CE
- Lifespan: Up to 50,000 hours
- Warranty: 3 years
- Features: Ultra-high brightness SMD 5730 LEDs, cuttable every 3 LEDs, easy installation, custom lengths available
- Applications: Architectural contour lighting, landscape displays, retail displays, storefronts, bars and nightclubs, event and festival decorations, window displays, stairs and railings
Installation & Notes: Designed for indoor use. Cuttable every 3 LEDs for custom lengths; use a compatible 12V DC power supply and dimmer for dimming functionality. Secure mounting recommended using the aluminum channel for heat dissipation and protection.
